Summary of Contents for Motorline ROSSO 60

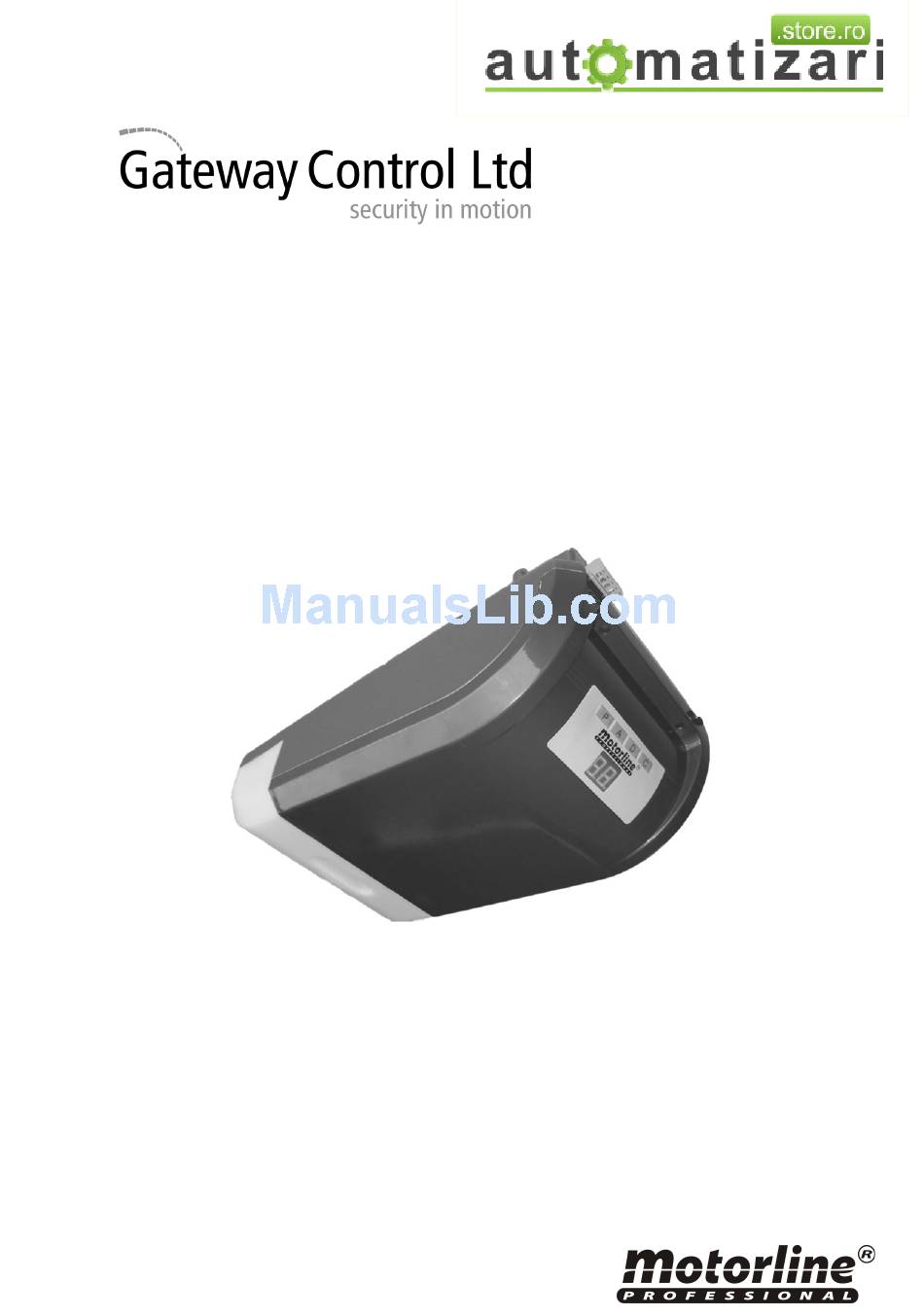

- Page 1 ROSSO 60 / 100 Operating and installation instructions 1 ...
- Page 2 General safety instructions and checklist This electric garage door operator complies with all current European Directives – please see Declaration of Conformity certificate. When installed correctly this electrically operated motor complies with all relevant safety standards. Please ensure the operating manual is fully read and understood before installation and operation. Installation should only be carried out by a competent and qualified person.
-
Page 3: Technical Details

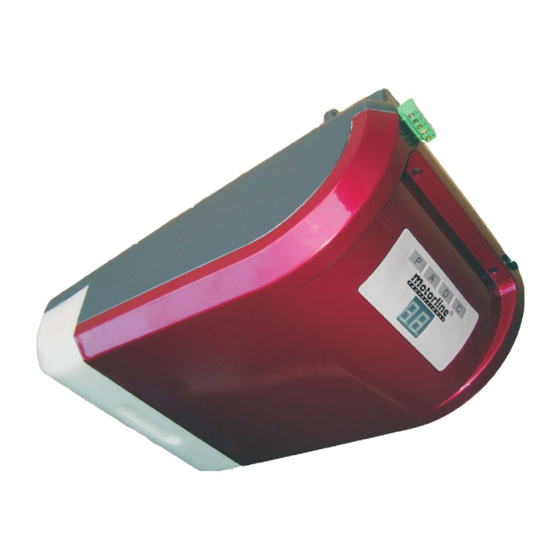

2 years / 2000 operation 1. Description The Motorline ‘Rosso’ 60 / 100 garage door operator is an electrically operated motor to automate suitable one piece, fully retractable and sectional garage doors. The power supply required is standard 230V (ac) to the control panel, and the motor is powered by a 24V (dc) supply. - Page 4 Install Front rail fixing bracket to the rail, as below Measure the width of the garage door and mark the position the rail will be fitted, ensuring that there is sufficient clearance between the operator rail and the opening arc of the door travel Rest the motor head on a stable base so that it is supported.
- Page 5 4. Installation – programming and commissioning Programming the logic board The controls: ‘P’ – Programming button ‘A’ – Increase button ‘D’ – Decrease button ‘C’ – Code button Connect the power supply. When the power is first turned on the lamp will come on and the digital display will display numbers from 99 to 11.
- Page 6 3. The setting of safety photocells This menu function is only required if adding a set of safety photocells, by wiring the photocells into the external terminal connections as displayed below, on page 7. Press the ‘P’ button for 4 seconds so that the display shows ‘P1’, then press the ‘A’ button twice so that the display shows ‘P3’, press ‘P’...
-
Page 7: Handing Over
The display will flash ‘FU’ when the memory is full. The operator can accept up to 30 transmitters. (Motorline MX4SP, 433.92MHz rolling code) The standard cycle for the Rosso garage door operator would be: Door Position Closed – Command – Door Opens fully – Command – Door will stop Door Position Open –... - Page 8 Declaration of Conformity & Installation Hand-over Garage Door type: (Retractable / Sectional etc) _________________________________________________________________________________ Manufacturer and model of garage door: (including material of door) _________________________________________________________________________________ Unique Serial No. (individual number given by installing company) Garage Door size: Operator manufacturer: Operator model / kit: Installation details and checklist: Electrical power supply tested...
- Page 9 Declaration of Conformity & Installation Hand-over Garage Door type: (Retractable / Sectional etc) _________________________________________________________________________________ Manufacturer and model of garage door: (including material of door) _________________________________________________________________________________ Unique Serial No. (individual number given by installing company) Garage Door size: Operator manufacturer: Operator model / kit: Installation details and checklist: Electrical power supply tested...
