Garage Door Opener
ROSSO 60 / 100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROSSO 60 and is the answer not in the manual?

Questions and answers

Teixeira
August 3, 2025

Bonjour quand je veux programmer le moteur motorline porte de garage ça marque H

0

Related Manuals for Motorline ROSSO 60

Summary of Contents for Motorline ROSSO 60

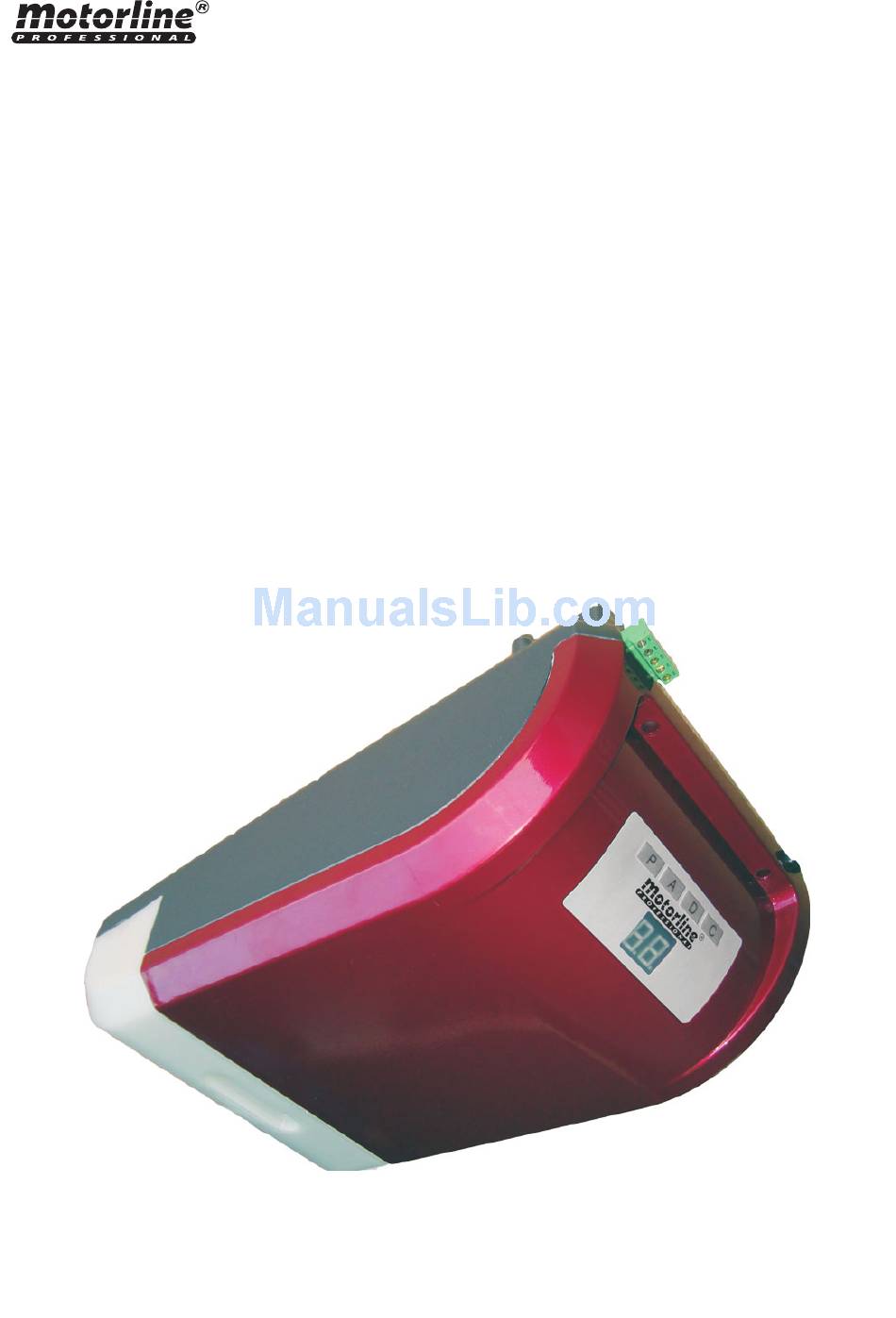

  • Page 1 Garage Door Opener ROSSO 60 / 100...
  • Page 4 / assist the system correctly. DESCRIPTION The MOTORLINE ROSSO 60 / 100 requires AC230V 50Hz power input and has a 24V DC motor. When the door is in operation, movement can be interrupted by activation of the safety inputs (manual pull cord, transmitter, wall button if fitted and photocells if fitted).
  • Page 5 03 - Make sure that when the door is moving there are no friction points; 04 - The door must be balanced; 05 - Install a 230V, adequately protected with ground socket near where the MOTORLINE opener is going to be installed.
  • Page 6 English emergency STOP device for interruption of power supply to the opener if required; 09 - Once the risks have been analyzed, install the MOTORLINE opener and relative safety devices, emergency STOP and/or photocells; 10 - When installing the MOTORLINE opener, strictly follow all the instructions given in the instruction manual; if some points are not clear do not install the unit until all doubts have been cleared up with our technical department.
  • Page 7 Garage Door Opener ROSSO60 / 100 English adjusted by the A key or D key and LED displays OP. Repress the P key 2 seconds and the digital screen shows CL to access the setting of the bottom limit. 1.2 - The position of the bottom limit is also adjusted by the A key or D key and LED displays CL. Once the position is approved, press the P key 2 seconds and the system quits from the setting of the limit position with the 2 seconds' flash.
  • Page 8 Inform the owner about the need for a regular and accurate maintenance, especially regarding a regular check of the safety and reversing devices. TIPICAL APPLICATIONS The MOTORLINE device (with standard rail) can automatize sectional overhead doors up to 2300mm. In case of a higher door, MOTORLINE sells rail extensions, increasing the maximum height up to 3300mm. Pág. 7...
  • Page 9 USER INFORMATIONS Once the MOTORLINE opener has been installed, the user must be informed about how it works and all the risks that can come from an improper use. The user must avoid placing himself in dangerous situations, such as standing within the door’s operating range when moving.
  • Page 10 The company STATEUROP, with the head quarters in the address Rua do Sobreiro, Rio Côvo (Santa Eugénia), 4755-474, BARCELOS, PORTUGAL, as responsible vendor within the Community (or European Economic area) for the ROSSO 60 and 100 garage door openers, declares that they were designed according to the following directives of the European Community: - Ref.
