Infrared+ halogen

Advertisement

The safest and most advanced heating technology available
Smart
HEATER

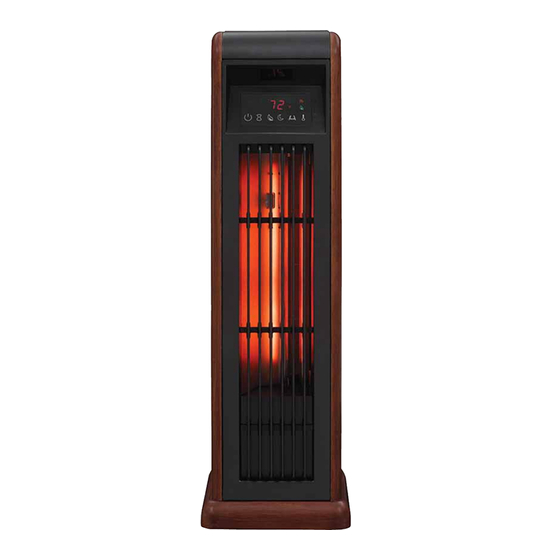

MODEL: 19QH8000-W500
INSERT MODEL: 19QI071ARA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 19QH8000-W500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Twin-Star International 19QH8000-W500

  • Page 1 The safest and most advanced heating technology available Smart HEATER MODEL: 19QH8000-W500 INSERT MODEL: 19QI071ARA...
  • Page 2: Important Instructions

    IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons including the following: 1. Read all instructions before using this appliance. 2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance.
  • Page 3: Getting Started

    Model Number MOVABLE HEATER/ MEUBLE CHAUFFANT/ CALENTADOR DE MUEBLES 19QI071ARA 120V ~, 1500W, 60Hz Twin-Star International, Inc. www.twinstarhome.com CONFORMS TO UL STD. 1278 CERTIFIED TO CSA C22.2 NO.46 EN CONFORMITÉ AVEC LA NORME UL 1278 CERTIFIÉ CSA C22.2 NO 46 MADE IN CHINA CONFORME A UL STD.1278...
  • Page 4 OPERATION INSTRUCTIONS Display Control Panel The relevant icon will illuminate on the display to indicate when a function is activated. The icon will dim out when a function is deactivated. The display backlight will dim a few seconds after a command has been set. Remote Control The heater can be operated by either the remote control or the control panel.
  • Page 5 OPERATION INSTRUCTIONS FUNCTION ICON DESCRIPTION The power button supplies power to all of the functions of the POWER heater. The power button will put the heater in a standby mode. This will turn off all functions at once but will hold the settings in the memory.
  • Page 6: Night Mode

    OPERATION INSTRUCTIONS FUNCTION ICON DESCRIPTION NIGHT MODE Toggle between night mode which reduces the halogen and reduces the brightness of the heater for night use. “ ” display show when turn off the halogen. After the heater has ran the fan will continue to run for a period COOL DOWN CYCLE of time to cool down the internal parts.
  • Page 7 OPERATION INSTRUCTIONS FUNCTION ICON DESCRIPTION The Infragen Smart Heater is equiped with app control that allows the corresponding Smart Star app on compatible iOs or Android Smart Star App devices to work with the heater. The Smart Star app works as a remote control for the heater.
  • Page 8: Troubleshooting

    TROUblESHOOTING Problem Root Cause Corrective Action Display shows “ ” Unplug the heater, remove the back panel of the heater and check that The thermostat the thermostat is plugged into the main circuit board. If this does not sensor is broken or solve the problem contact customer service for a replacement disconnected.
  • Page 9: Exploded View

    EXPlODED VIEW Part Part Name Part Number Main Circuit Board Y16-S177-P15 Control Panel Circuit Board Y16-S177-P32 Remote Control P140 CARE AND MAINTENANCE • C lean the trim using a soft cloth, slightly dampened with citrus oil based product and buff with a clean soft cloth. DO NOT • use brass polish or household cleaners as these products will damage the metal trim. Citrus oil based products can be obtained at supermarkets or hardware stores.
  • Page 10: Battery Replacement

    FCC InFormatIon WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 11: Three-Year Limited Warranty

    THREE yEAR lIMITED WARRANTy The manufacturer warrants that your new Electric Heater is free from manufacturing and material defects for a period of three years from date of puchase, subject to the following conditions and limitations. 1. Install and operate this Electric Appliance in accordance with the installation and operating instructions furnished with the product at all times.
  • Page 12 Customer Service: www.tsicustomerservice.com 1-866-661-1218 Twin-Star International, Inc. Delray Beach, FL 33445 Made in China • Printed in China...
