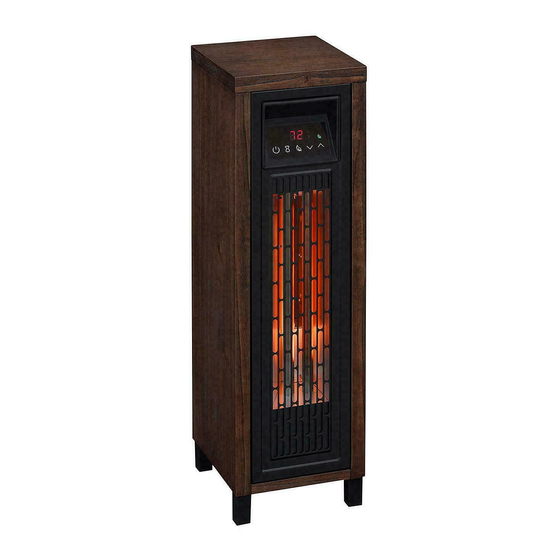

Twin-Star International ClassicFlame 19QH60131-H371 Manual

Twin-Star International ClassicFlame 19QH60131-H371 Manual

Advertisement

MODEL: 19QH60131-H371
INSERT MODEL: 19QI091ARA
www.tsicustomerservice.com
1-866-661-1218
© 2018, Twin-Star International, Inc. Delray Beach, FL 33445
Made in China
A5961
www.tsicustomerservice.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ClassicFlame 19QH60131-H371 and is the answer not in the manual?

Questions and answers

Richard Sparks
February 19, 2025

Parts listing images

1 comments:
Mr. Anderson
May 14, 2025

The parts listing for the Twin-Star International model 19QH60131-H371 includes:

1. Main Circuit Board – Part Number: Y17-S253-P15
2. Control Panel Circuit Board – Part Number: Y17-S253-P32
3. Remote Control – Part Number: P169
4. Thermostat Sensor – Part Number: PH-NTC
5. Feet – Part Number: FT-19QH60131

There are no images provided in the context.

This answer is automatically generated

Summary of Contents for Twin-Star International ClassicFlame 19QH60131-H371

  • Page 1 MODEL: 19QH60131-H371 INSERT MODEL: 19QI091ARA www.tsicustomerservice.com 1-866-661-1218 © 2018, Twin-Star International, Inc. Delray Beach, FL 33445 Made in China A5961 www.tsicustomerservice.com...
  • Page 2: Important Instructions

    IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons including the following: 1. Read all instructions before using this appliance. 2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance.
  • Page 3: Getting Started

    Model Number MOVABLE HEATER/ MEUBLE CHAUFFANT/ CALENTADOR DE MUEBLES 19QI091ARA 120V ~, 1500W, 60Hz Twin-Star International, Inc. www.twinstarhome.com CONFORMS TO UL STD. 1278 CERTIFIED TO CSA C22.2 NO.46 EN CONFORMITÉ AVEC LA NORME UL 1278 CERTIFIÉ CSA C22.2 NO 46 MADE IN CHINA FABRIQUÉ...
  • Page 4 OPERATION INSTRUCTIONS Display Control Panel The relevant icon will illuminate on the display to indicate when a function is activated. The icon will fade away when a function is deactivated. The display backlight will dim a few seconds after a command has been set. Remote Control The heater can be operated by either the remote control or the control panel.
  • Page 5 OPERATION INSTRUCTIONS FUNCTION ICON DESCRIPTION The power button supplies power to all of the functions of the POWER heater. The power button will put the heater in a standby mode. This will turn off all functions at once but will hold the settings in the memory.
  • Page 6 OPERATION INSTRUCTIONS FUNCTION ICON DESCRIPTION This product is equipped with a Safer Plug™; an advanced safety device that helps detect electrical fires caused from faulty outlets. SAFER PLUG™ Overloading of outlet, adapters and surge protectors may cause overheating, damage, and increase risk of fires. Safer Plug continuously monitors the temperature in the plug and outlet and will turn off the heater to prevent unsafe outlet overheating. If the Safer Plug cuts the power due to unsafe conditions, it will show an “...
  • Page 7: Troubleshooting

    TROUblESHOOTING Problem Root Cause Corrective Action Display shows “ ” Unplug the heater, remove the back panel of the heater and check that The thermostat the thermostat is plugged into the main circuit board. If this does not sensor is broken or solve the problem, contact customer service for a replacement disconnected.
  • Page 8: Exploded View

    EXPlODED VIEW Part Part Name Part Number Main Circuit Board Y17-S253-P15 Control Panel Circuit Board Y17-S253-P32 Remote Control P169 Thermostat Sensor PH-NTC Feet FT-19QH60131 CARE AND MAINTENANCE • C lean the trim using a soft cloth, slightly dampened with citrus oil based product and buff with a clean soft cloth. DO NOT • use brass polish or household cleaners as these products will damage the metal trim. Citrus oil based products can be obtained at supermarkets or hardware stores.
  • Page 9: Fcc Information

    FCC INFORMATION WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 10: Three-Year Limited Warranty

    THREE yEAR lIMITED WARRANTy The manufacturer warrants that your new Electric Heater is free from manufacturing and material defects for a period of three years from date of puchase, subject to the following conditions and limitations. 1. Install and operate this Electric Appliance in accordance with the installation and operating instructions furnished with the product at all times.
  • Page 11 WWW.TSICUSTOMERSERVICE.COM © 2018, TWIN-STAR INTERNATIONAl, INC. DElRAy bEACH, Fl 33445 MADE IN CHINA A5961 www.tsicustomerservice.com...
