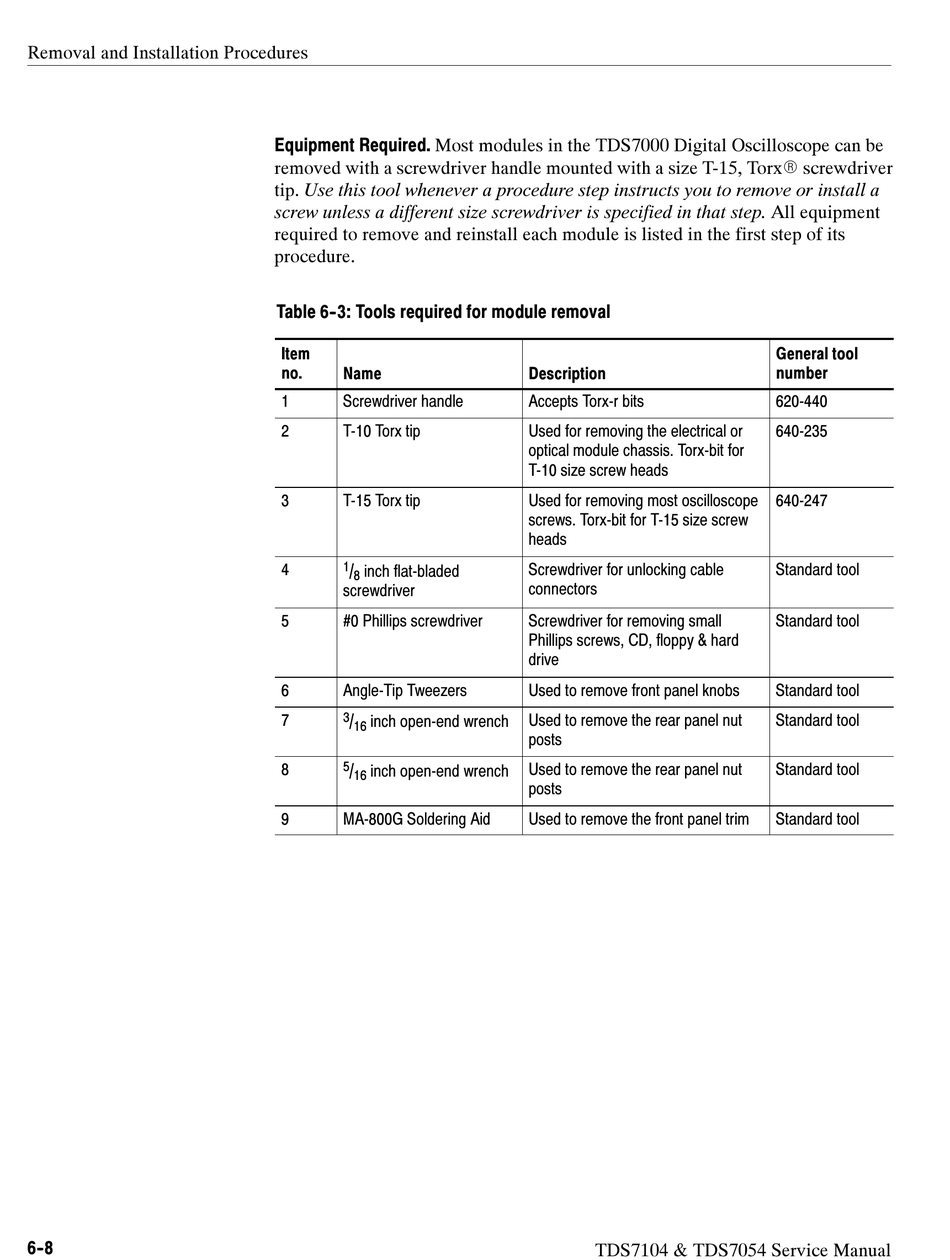

Table 6- -3: Tools Required For Module Removal - Tektronix TDS7054 Service Manual

Removal and Installation Procedures
6- - 8
Equipment Required. Most modules in the TDS7000 Digital Oscilloscope can be
removed with a screwdriver handle mounted with a size T-15, TorxR screwdriver
tip. Use this tool whenever a procedure step instructs you to remove or install a
screw unless a different size screwdriver is specified in that step. All equipment
required to remove and reinstall each module is listed in the first step of its
procedure.
Table 6- - 3: Tools required for module removal
Item
no.
Name
1 Screwdriver handle
2 T-10 Torx tip
3 T-15 Torx tip
/
1
4
inch flat-bladed
8
screwdriver
5 #0 Phillips screwdriver
6 Angle-Tip Tweezers
/
3
7
inch open-end wrench
16
/
5
8
inch open-end wrench
16
9 MA-800G Soldering Aid
Description
Accepts Torx-r bits
Used for removing the electrical or
optical module chassis. Torx-bit for
T-10 size screw heads
Used for removing most oscilloscope
screws. Torx-bit for T-15 size screw
heads
Screwdriver for unlocking cable
connectors
Screwdriver for removing small
Phillips screws, CD, floppy & hard
drive
Used to remove front panel knobs
Used to remove the rear panel nut
posts
Used to remove the rear panel nut
posts
Used to remove the front panel trim
TDS7104 & TDS7054 Service Manual
General tool
number
620-440
640-235
640-247
Standard tool
Standard tool
Standard tool
Standard tool
Standard tool
Standard tool
