urmet domus 1717/32 Installation Handbook

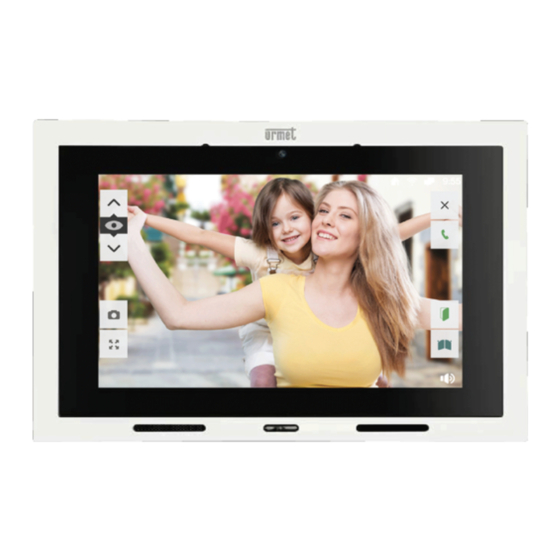

Ip 7" touchscreen monitor
Hide thumbs Also See for 1717/32:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1717/32 and is the answer not in the manual?

Questions and answers

Related Manuals for urmet domus 1717/32

Summary of Contents for urmet domus 1717/32

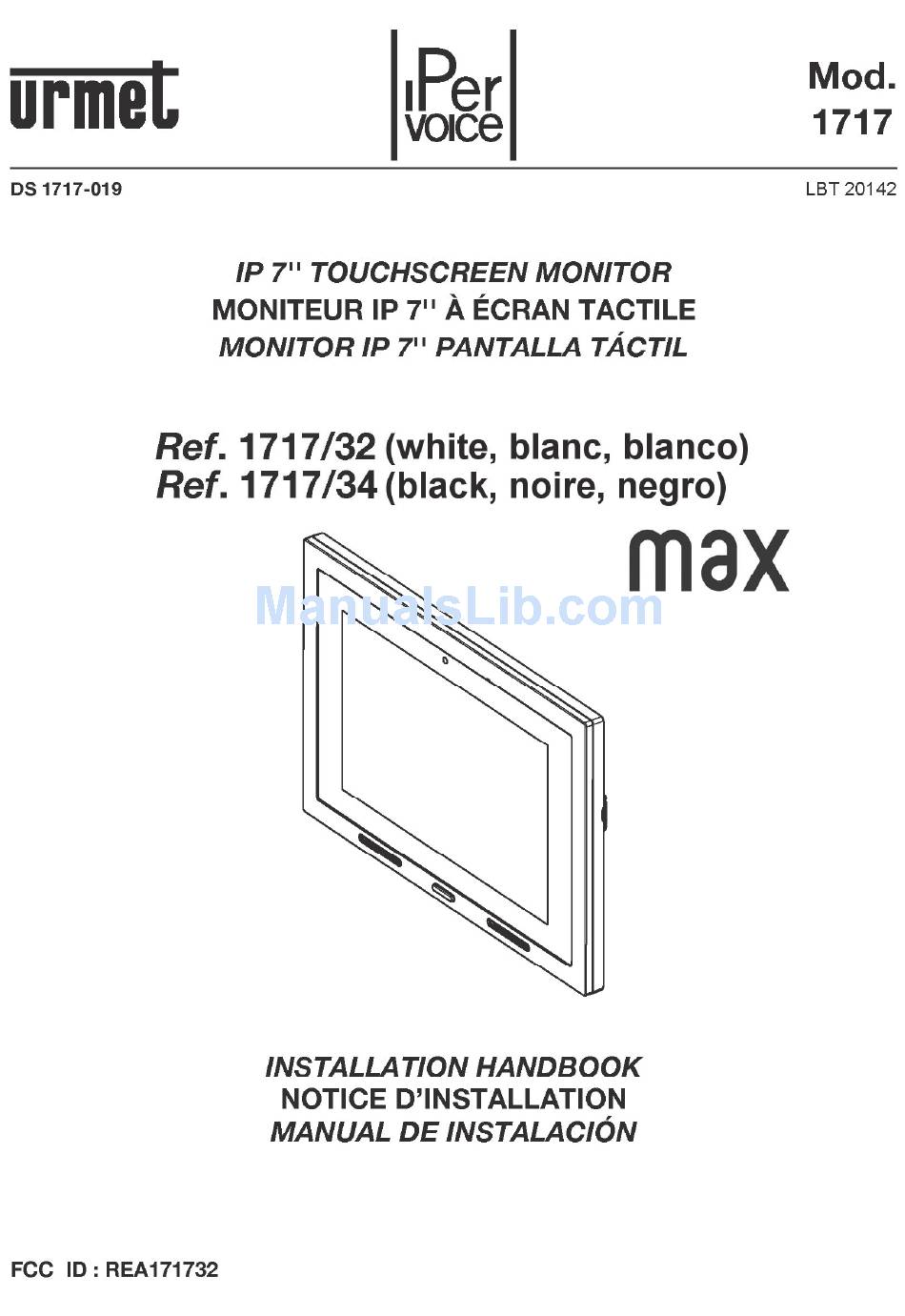

  • Page 3: Wiring Instructions

    The.monitor.Ref.1717/32 or /34 is.an.IP.video.door.phone.dedicated.to.the.IPerVoice.system. For.trouble-free.operation,.the.device.requires.a.LAN/POE-type.connection. DeScRIPTION OF cOMPONeNTS aND chaRacTeRISTIcS 7”.touchscreen.display 1. way. connector. for. external. connections’. Webcam.Mpx printed.circuit Microphone Secondary. LAN. connector. for. Internet. Backlit.blue.Home.button IPerHOME.connection.(LOCAL.LAN.PORT) Speakers IPerVoice. LAN. connector. with. POE. power. Micro.SD.card supply.(DOORPHONE.POE.PORT) Switch. for. IPerHOME. bus. termination.

  • Page 4: Power Supply

    • Cut.the.cables.so.that.they.protrude.from.the.guide.by.about.5.mm,.insert.the.guide.in.its.plug.and.crimp. with.the.specially.provided.tool. ~ 5 mm Plug Make sure that the grey sheath stays inside the plug. This type of connection will NOT guarantee double insulation. POWeR SuPPLY The 1717/32 or /34 monitor can be supplied power in two different ways: — — 4.V. .–.18.W.power.supply When.the.power.supply.is.used,.POE.is.not.available.because.the.monitor.is.powered.only.by.the.local. power.supply..In.this.case,.RJ45.can.be.connected.to.the.NO.POE.port.of.the.switch. INSTaLLaTION It is possible to fix the wall bracket by using a 503 box and the supplied screws, or a Ø 60 box with suitable screws.
  • Page 5 DISTaNceS, SecTIONS, caBLeS aND Tech SPecS Type of connection Max distance Min - max cross.section Call to floor level 30.m 0,5.-.1.mm Panic.Alarm 30.m 0,5.-.1.mm Call.repeating. 30.m 0,5.-.1.mm External.4.Vdc 5.m 0,5.-.1.mm 100.m CAT5e.(*) (*). To.ensure.longest-range.monitor.operation,.the.cable.must.be.a.class.5e.device.and.the.twisted.pairs’. cross.section.must.be.AWG4. The.maximum.resistance.of.the.individual.wires.must.not.exceed.10ohm/100m. The.cable.must.be.up.to.the.following.standards: -.EIA/TIA.568-B..or.EIA/TIA.568-C. -.EN5088.3-1 -.IEC.61156-5 The.connection.between.the.monitor.and.POE.switch.must.be.ensured.by.a.single.cable.without.any.
  • Page 6 This device complies with Part 15 of the FCC rules subject to the following two conditions: 1) This device may not cause harmful interference 2) This device must accept all interference received, including intereference that may cause undesired operation. 15.105 Information to the user statements: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 7 DS1717-019...
  • Page 8 This device complies with Part 15 of the Fcc rules subject to the following two conditions: 1) This device may not cause harmful interference 2) This device must accept all interference received, including intereference that may cause undesired operation. DS 1717-019 LBT 20142 URMET.S.p.A.
