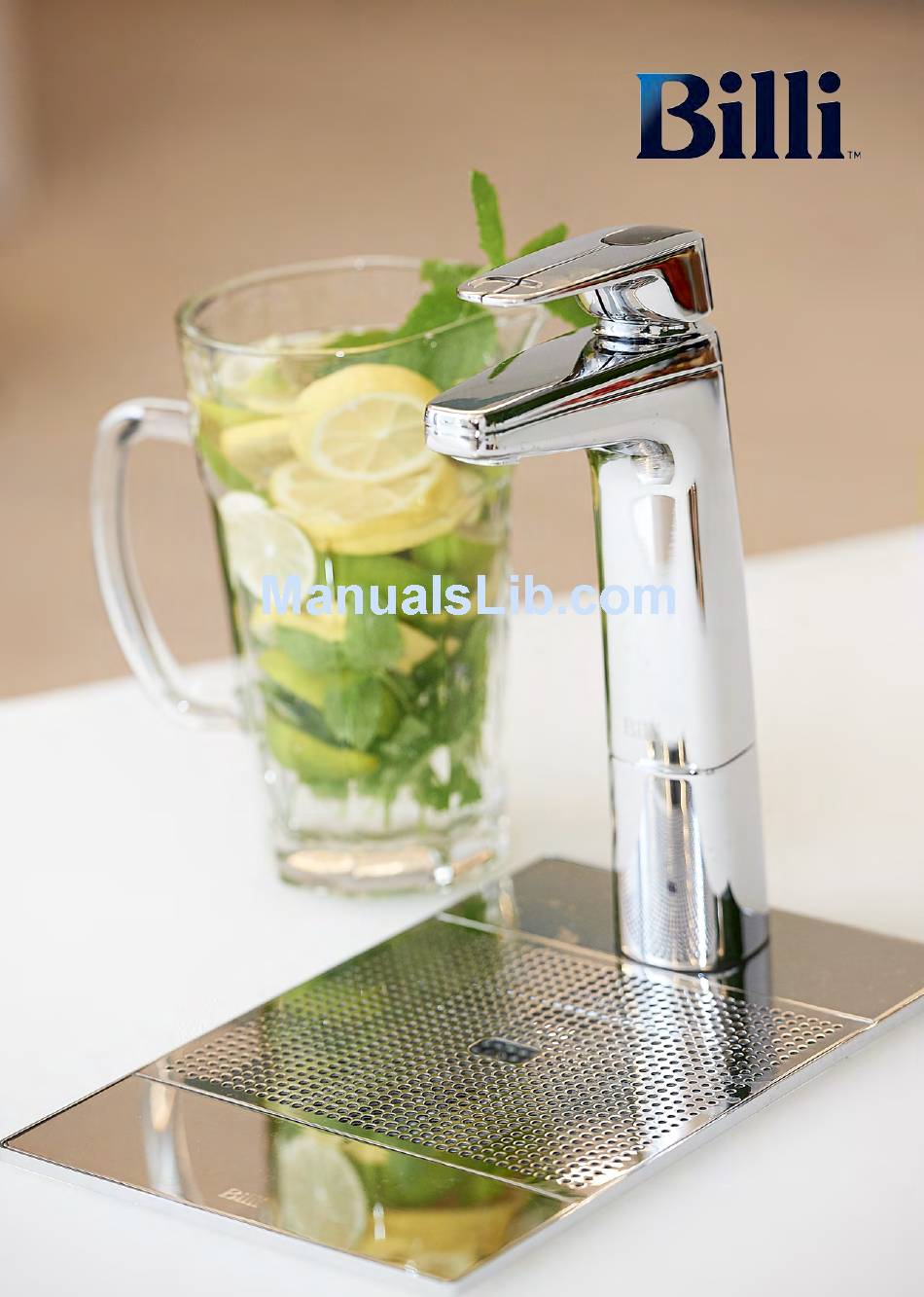

- Page 1 Install Guide Sahara & Sahara Plus...
- Page 2 Minimum water supply: 6 l/m at 250 Kpa Supply temp: min. 5°C, max. 30°C. * Sahara 310 supply pressure: Min 200 Kpa - 500Kpa. Where supply pressure is greater than 500 Kpa a PLV must be fitted. Billi recommends PLV’s with anti-hammer properties.
- Page 3 Installing the dispenser. IMPORTANT: This Billi appliance is to be installed by a licensed tradesperson in accordance with AS 3500.4 or AS/NZ 3500.4.2 and in compliance with applicable state regulatory requirements. For correct operation of this appliance, it is essential to observe the manufacturer’s instructions. 1.
- Page 4 (blue) (red) (blue) cord water water shown in diagram 8a & 9a for the Sahara 310 cord supply supply and Diagram 8b & 9b for the Sahara & Sahara Plus 320, 360, 3120 models. Ensure correct orientation of dispenser...
- Page 5 Installing Sahara Plus mixer tap. — Additional Components for Billi Sahara Plus 320, Plus 360 and Plus 3120 Models Extended Before commencing installation, identify barb adapter the following components: with PVC tube fitted. 1. O-ring (large) Note correct 2. Tap base ring postition 3.
- Page 6 Commissioning. — Turn On the Water Supply To change the pipe length: Turn on water supply and ensure that there are – Press and release the Hot(left) Lever no leaks. Remove front panel of unit and remove to reduce the pipe length. packing foam from under filter canister.
- Page 7 – Refer to Sahara User Guide. by a person responsible for their safety. Unit heating and cooling (after initial — Children should be supervised to ensure fill).
