Billi Dispenser Font Installation Manual

Installation Process
6. Install X Series Dispenser
(NOTE: If installing Slimline Dispenser go to step 7.)
6.1 Fitting Dispenser Riser
(See Diagram 4)
 Screw 3 x M4 studs into the rear of the riser.
 Fit the Gasket over the studs.
 Place the riser through the cover plate and into position on the font.
 Fit and tighten 3 x M4 Flange nuts to the underside of the Font tray.
6.2 Fitting Dispenser Assembly
(See Diagram 5)
 Ensure brass nut on riser is tightened all the way.
 Feed dispenser tubing and loom through centre hole in riser in the
following order:
- Dispenser power cord
- Grey vent silicone tube. Feed tube until reducing join passes
through riser assembly.
- Red and blue silicone tubing.
Check that the tubing is not kinked or twisted.
 Turn dispenser body to 60° from the straight ahead position of
mount base. Slide dispenser body assembly onto base assembly
whilst gently pulling tubing downwards from underneath.
Dispenser mounting lugs will pass over and slide down the 3
grooves on the mounting bearing.
 Once fully down, turn dispenser head to straight ahead position. Fit
one M4 x 10mm retaining screw at the rear threaded hole and
tighten with Allen Key supplied.
7. Install Slimline Dispenser (See Diagram 6)
 Feed the dispenser tube and mounting shaft through the
hole of the font rear panel.
 Feed lock mechanism components onto the end of the
dispenser tube in the following order:
- Spacer
- Locking Nut
 Slide components into position and tighten the locking nut.
Note: Do NOT over tighten.
8. Connect Tubing to Under-bench Module
Connect dispenser tubing to under-bench module as per installation instructions supplied with your unit.
Trim the tubing to correct lengths to provide a continuous flow, ensuring tubes are not kinked or sagging.
9. Connect Drainage
Connect drainage tubing with reference to Drainage Requirement instructions on page 1. Drainage tube
must be installed with a continual fall along the entire length of the tube and must be adequately clipped
and supported.
If any problems or difficulties arise contact Billi Customer Service on 1800 812 321 or service@billi.com.au.
To validate your warranty to the warranty card or validate online at www.billi.com.au
refer
Designed and manufactured in Australia.
As Billi Australia Pty Ltd has a policy of continual improvement,
all details are subject to change without notice.
All goods are sold subject to our published terms and conditions.
Billi is a registered trademark. 610108-03

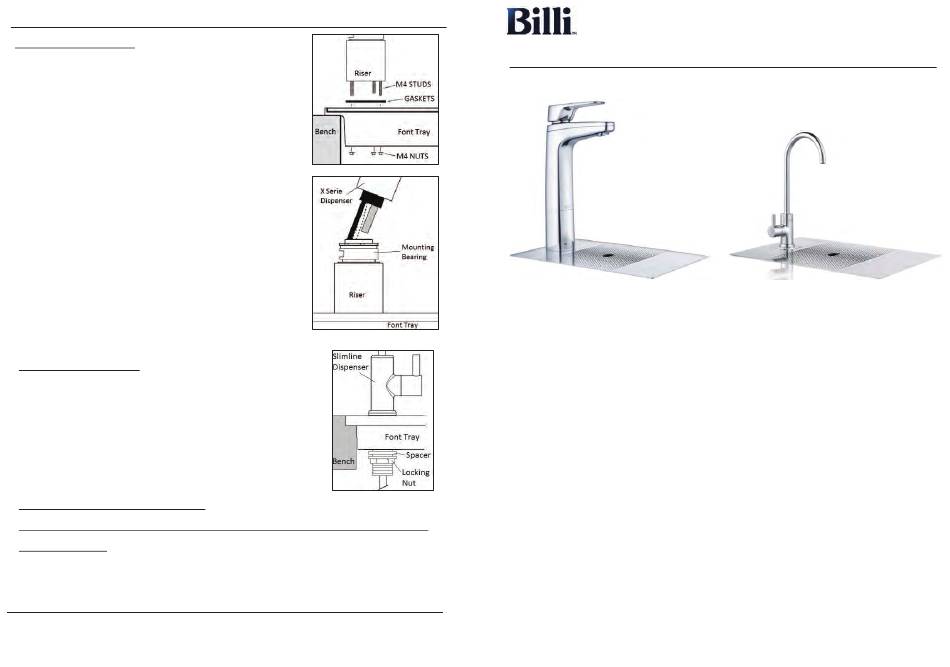

Diagram 4
s
Diagram 5
Diagram 6
Billi Australia Pty Ltd
42 Lucknow Crescent, Thomastown, Vic 3074 Australia
Phone +61 3 9469 0400 / Fax: +61 3 9469 0499
www.billi.com.au
4
FONT INSTALLATION GUIDE
X Series Dispenser Font
Components included
Before commencing installation, ensure all components are included.
Determine unit location
Plan the installation. Dispenser tube lengths, benchtop and cupboard restraints and drainage requirements
must be considered when determining location. Use template enclosed for drilling and cut-out details.
Refer also to appliance installation requirements supplied with Drinking Water System.
Drainage location
Careful design and installation is essential to provide satisfactory drainage performance and to prevent
later blockages. The Billi Font is designed to be able to be connected to a dishwasher nipple using flexile or
rigid tubing. Where a horizontal run is needed, we recommend 20mm tubing be used. An adapter bush is
supplied for use where a standard 40mm trap and drain is installed.
IMPORTANT
If drain is to be connected to a dishwasher nipple, ensure hole through nipple is drilled to at least ø12.7mm
(1/2") and de-burred, to allow adequate flow. Drain must be installed with a continual fall along the entire
length of the tube. The Billi Fixture is to be installed by a licensed tradesperson in accordance with as
3500.4 Or AS/NZ 3500.4.2 And in compliance with applicable state regulatory requirements.
Slimline Dispenser Font
1
