Summary of Contents for Billi XI Slimline Font

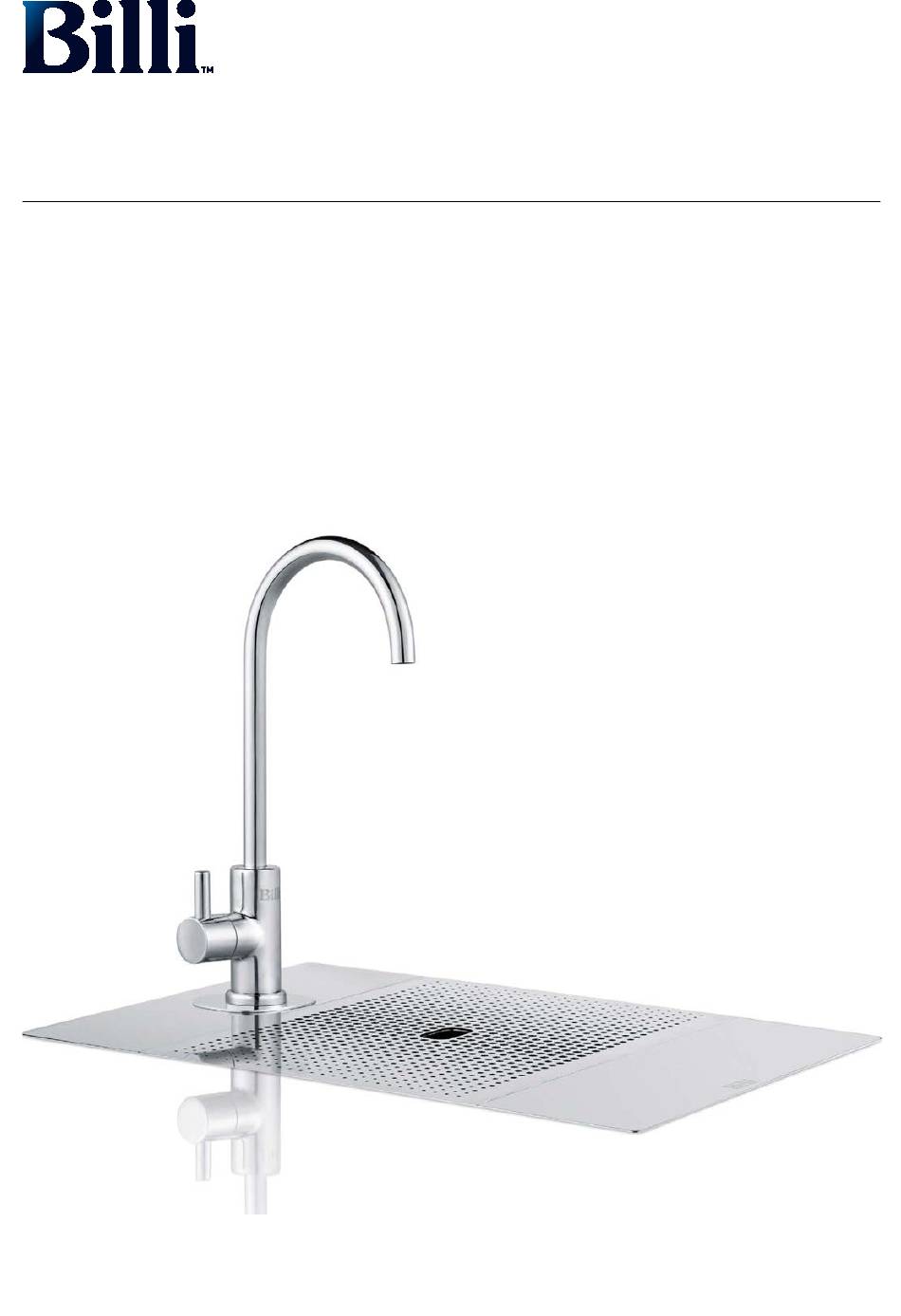

- Page 1 Installation guide XI Slimline Font – Proud & Flush Mount...
- Page 2 Installation requirements. Proud & Flush Mount Components included Before commencing installation, ensure Font tray you have identified the following pieces: 1. Font tray 2. Font cover plate set 1 set (3 piece) 3. Sealing Gaskets x 3 Drain adapter 5. O-ring 6.
- Page 3 Installation procedure. Proud Mount 1. Marking and Drilling Holes a. Cut out hole in benchtop using measurement shown in Diagram 7a on the following page. Bench Font tray 2. Fitting Drain Adapter a. Fit O-ring to Drain adapter. b. Fit Drain adapter to tray. Tighten M5 Seal between Font and Benchtop screw, Note: Do NOT over-tighten...
- Page 4 Installation procedure. Hole Cut-Out Dimensions Before using check dimensions Proud Mount – See Template for actual size, are accurate. TOP VIEW EXPLODED DIAGRAM Font Not to scale Bench 172mm FRONT Bench Diagram 7a Diagram 7b...
- Page 5 Installation procedure. Flush Mount 1. Marking and Drilling Holes a. Cut out hole in bench top according to Diagram 7a on page 6. Use appropriate router bits to give R5.0 edges. Bench Font tray 2. Apply thick coat of moisture primer to all cut surfaces Seal between Font and Benchtop...
- Page 6 Installation procedure. Hole Cut-Out Dimensions Before using check dimensions Flush Mount – See Template for actual size, are accurate. TOP VIEW 191.0mm 174.0mm 8.5mm Font cut out: 174mm (wide) x 274mm (long) Rebate cut: 5.5mm (deep) 191mm (wide) x 291mm (long) Corner Radius: 5mm Tolerance: +/- 0.2mm EXPLODED DIAGRAM...
- Page 8 If any problems or difficulties arise contact Billi Australia Pty Ltd: Phone 1800 812 321 (Free call). To validate your warranty refer to the warranty card or validate online at www.billi.com.au For information on our filtration and service contracts please contact Billi Customer Service on 1800 812 321 or service@billi.com.au.
