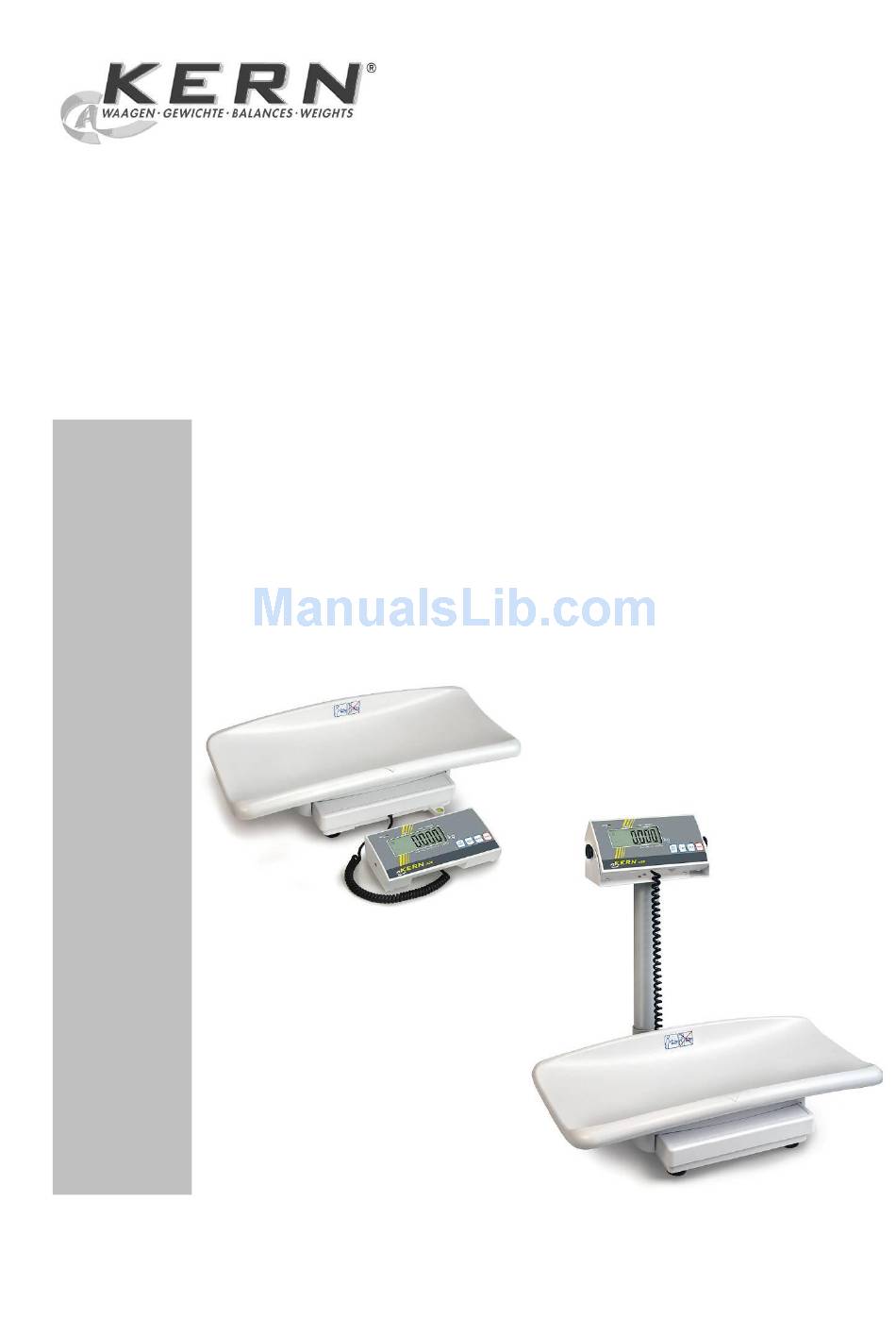

- Page 1 KERN & Sohn GmbH Ziegelei 1 Phone: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 email: info@kern-sohn.com Internet: www.kern-sohn.com Operating instructions Baby weighing scale KERN MBB-M Version 1.4 02/2013 MBB-M-BA-e-1314...
-
Page 2: Table Of Contents
KERN MBB-M Version 1.4 02/2013 Operating instructions Baby weighing scale Table of Contents Technical Data ....................4 Declaration of conformity ................5 Explanation of the graphic symbols ..................5 Basic Information (General) ................7 Specific function ........................7 Proper use ..........................7 Improper Use.......................... - Page 3 Unpacking, Setup and Commissioning ............. 14 Installation Site, Location of Use ..................14 Unpacking ..........................14 Scope of supply ........................15 Assembly and erection ......................15 Assemble the wall bracket ..................... 16 Stand assembly (optional) ..................... 17 Battery operation ........................17 Rechargeable battery operation (optional) ................
-
Page 4: Technical Data
1 Technical Data KERN MBB 15K5M MBB 15K2DM Display 6-digit Weighing range (max) 15 kg 6 kg; 15 kg Minimum load (Min) 100 g 40 g Verification value (e) 2 g; 5 g Reproducibility 2 g; 5 g Linearity 10 g 2 g;... -
Page 5: Declaration Of Conformity
Identification of the manufacturing date of the medical product. Year and month here as example 2009-10 “Please note the accompanying documents“ or “Observe operating instructions” Identification of manufacturer of medical product including address Kern & Sohn GmbH D–72336 Baligen,Germany www.kern-sohn.com MBB-M-BA-e-1314... - Page 6 “Electro-medical appliance“ with attachment for type B Device protection category II Dispose of old appliances separately from your household waste!l! Instead, take them to communal collection points. Temperature limit indicating the upper and the lower limit (storage temperature on packaging) (Temperature serving as an example) Display of supply voltage for scales with polarity display (Polarity and values serving as an example)
-
Page 7: Basic Information (General)
3 Basic Information (General) Weighing instruments have to be verified for the purposes stated below in accordance with Directive 90/384/EEC. Article 1, paragraph 4. “Determination of mass in the practice of medicine that is, weighing patients for reasons of medical supervision during medical surveillance, examination and treatment.”... -
Page 8: Improper Use
Information is available on KERN’s home page (www.kern-sohn.com with regard to the monitoring of balance test substances and the test weights required for this. In KERN’s accredited DKD calibration laboratory test weights and balances may be calibrated (return to the national standard) fast and at moderate cost. -
Page 9: Basic Safety Precautions
4 Basic Safety Precautions 4.1 Pay attention to the instructions in the Operation Manual Carefully read this operation manual before setup and commissioning, even if you are already familiar with KERN balances. 4.2 Personnel training The medical staff must apply and follow the operating instructions for proper use and care of the product. -
Page 10: Appliance Overview
5 Appliance overview 1. Weighing pan 2. Bubble level 3. Display unit 4. Stand (optional) 5. Wall bracket MBB-M-BA-e-1314... -
Page 11: Overview Of Displays
6 Overview of displays Display Designation Description Zeroing display Should the balance not display exactly zero despite empty scale pan, press the button. Your balance will be set to zero after a short standby time. Stability display Scales are in a steady state Power supply connected Illuminates in the event of power supply via mains adaptor... -
Page 12: Keyboard Overview
7 Keyboard overview Button Designation Function ON/OFF-switch Turn on/off Zero setting key Balance will be reset to 0.0 kg. Possible up to max. 2% of maximum load for verified scales or 2 % or 100% of maximum load for all other scales (selectable via menu) HOLD button Hold function/Calculation of a stable weight value... -
Page 13: Transportation & Storage
8 Transportation & Storage Testing upon acceptance When receiving the appliance, please check packaging immediately, and the appliance itself when unpacking for possible visible damage. 8.2 Packaging / return transport Keep all parts of the original packaging for a possibly required return. -
Page 14: Unpacking, Setup And Commissioning
9 Unpacking, Setup and Commissioning 9.1 Installation Site, Location of Use The balances are designed in a way that reliable weighing results are achieved in common conditions of use. You will work accurately and fast, if you select the right location for your balance. -
Page 15: Scope Of Supply
9.3 Scope of supply Balance Power unit (in conformity with EN 60601-1), including fuse and LED Wall bracket Operating instructions 9.4 Assembly and erection Make sure that the weighing pan is exactly horizontal. Set the adjustable rubber feet of the baby scale in such a way that the air bubble inside the spirit level (on the right next to the cable outlet to the control unit) is in the centre. -
Page 16: Assemble The Wall Bracket
3. Then screw in the corresponding locking screw to achieve a tight fit. 4. Use the supplied knurled screws to attach the wall bracket to the terminal. 9.5 Assemble the wall bracket MBB-M-BA-e-1314... -
Page 17: Stand Assembly (Optional)
9.6 Stand assembly (optional) Use the 4 screws to attach the stand to the bottom of the scale. Remove the two lateral rubber plugs from the display unit. Secure the display unit with the two black rotary knobs to the fixing device. -
Page 18: Rechargeable Battery Operation (Optional)
9.8 Rechargeable battery operation (optional) When an optional rechargeable battery is used, proceed as follows: On models where the back of the display unit is not directly accessible, remove the two black rotary knobs from both sides of the display unit in order to open the battery compartment and remove the display unit from the holder. - Page 19 Carefully insert the rechargeable battery block and insert plug into connection CN 3 Ensure that the cables are not squeezed Close the battery cover If the rechargeable battery is exhausted, „LO“ is displayed. The rechargeable battery is loaded via the provided plug-in power supply unit (loading time 23 h for a complete loading).
-
Page 20: Connecting The Power Supply
Power is supplied by the external power unit which also serves to isolate the mains supply from the scale. The stated voltage value must be the same as the local voltage. Only approved genuine KERN power supply units may be used in compliance with Directive EN 60601-1. 9.10 Initial Commissioning In order to obtain exact results with the electronic balances, your balance must have reached the operating temperature (see warming up time chap. -
Page 21: Menu Overview
10 Menu overview Start balance by pressing Press for 3 sec., “SETUP“ will be displayed. TARE HOLD Select parameter by using ) and ), as described. TARE Confirm the selected parameter by pressing 0.0 kg AOFF Auto off: 120 sec / 180 sec / 240 sec / 300 sec / OFF bUrr Audio signal: ON/OFF... -
Page 22: Operation
11 Operation 11.1 Weighing Start balance by pressing The balance carry out a segment test, then the program version is displayed. The scales are ready for operation as soon as the weight display for “0.0kg“ has appeared. The button can be used to set the balance to zero at any time. -
Page 23: Hold Function (Standstill Function)
The balance is able to only store one taring value. When the balance is unloaded the saved taring value is displayed with negative sign. TARE To delete the stored tare value, release scales and press 11.3 Hold function (Standstill function) The balance has an integrated standstill function (mean value calculation). -
Page 24: Error Messages
12 Error messages Display Description Underload Weight on weighing pan is too low. Please increase weight. If the error message remains inform manufacturer. The weighing pan was bearing a load during start-up; unload weighing pan Overload Weight on weighing pan too heavy MBB-M-BA-e-1314... -
Page 25: Service, Maintenance, Disposal
Remove dirt immediately. 13.2 Service, maintenance The appliance may only be opened by trained service technicians who are authorized by KERN. Disconnect the scales before opening. 13.3 Disposal Disposal of packaging and appliance must be carried out by operator according to valid national or regional law of the location where the appliance is used. -
Page 26: Instant Help
14 Instant help In case of a fault in the program sequence, the balance should be shortly switched off. The weighing process must then be restarted from the beginning. Failure: Possible cause: The displayed weight The balance is not switched on. does not glow. -
Page 27: Verification
15 Verification Verified scales bear a verification mark or one or more seals affixed by the Bureau of Standards or the manufacturer on or inside the housing which will self-destroy on removal. This makes it impossible to verify scales without damaging the seals. 15.1 Adjustment Observe stable environmental conditions. - Page 28 HOLD Press repeatedly until “CAL 0“ appears. TARE Press the display will show a numeric value. Then press “CAL 0“ appears. HOLD Press “CAL 5“ appears. TARE Press Enter the required size of the adjustment weight (See Section 1, "Technical Data"): For this select the digit to be changed HOLD...
-
Page 29: Adjustment Controls And Seals
15.2 Adjustment controls and seals After a verification the balance is sealed at the indicated positions. Verification of the balance is invalid without the "seal". Position of the official seals: 1. Rear 2. Battery compartment 3. Rear of platform MBB-M-BA-e-1314... -
Page 30: Checking The Balance Verification Settings
Position of the adjustment switch: Position of the adjustment State switch 1. to left Not documented 2. concentric Adjustment position - adjustment possible 3. to right Verification position - adjustment locked 15.3 Checking the balance verification settings For the adjustment function, the balance must be switched over to service mode. To achieve the effect, turn the adjustment switch to adjustment position. -
Page 31: Navigation In The Menu
15.4 Navigation in the menu With the balance switched on, keep the button depressed for approx. 3 sec until "SETUP" is displayed followed by "9rAd". TARE Press the button as often as necessary until the required function is displayed. - Page 32 Press the [HOLD] and [TARE] buttons to make the selection * default setting MBB-M-BA-e-1314...
- Page 33 Description: Weighing unit: kg Partition steps, weighing range (max.) and readout (d) Multi-range balance/ single-range balance selection Single-range balance Multi-range balance Filter: fast/ normal/ slow Auto Zero Tracking: 0.25d / 0.5d / 1d / 3d / OFF Stabilisation range: 0.25d / 0.5d / 1d / 3d / OFF Zero range: 2% / 100% Overload range: 9d / 2% Adjustment...
-
Page 34: Verification Validity Period (Current Status In G)
15.5 Verification validity period (current status in G) Personal scales in hospitals 4 year Personal scales if not used in hospitals unlimited Baby weighing scales and mechanical birth weight 4 year scales Bed scales 2 year ...
