Traqmate User Manual V1.02

Traqmate System Packages

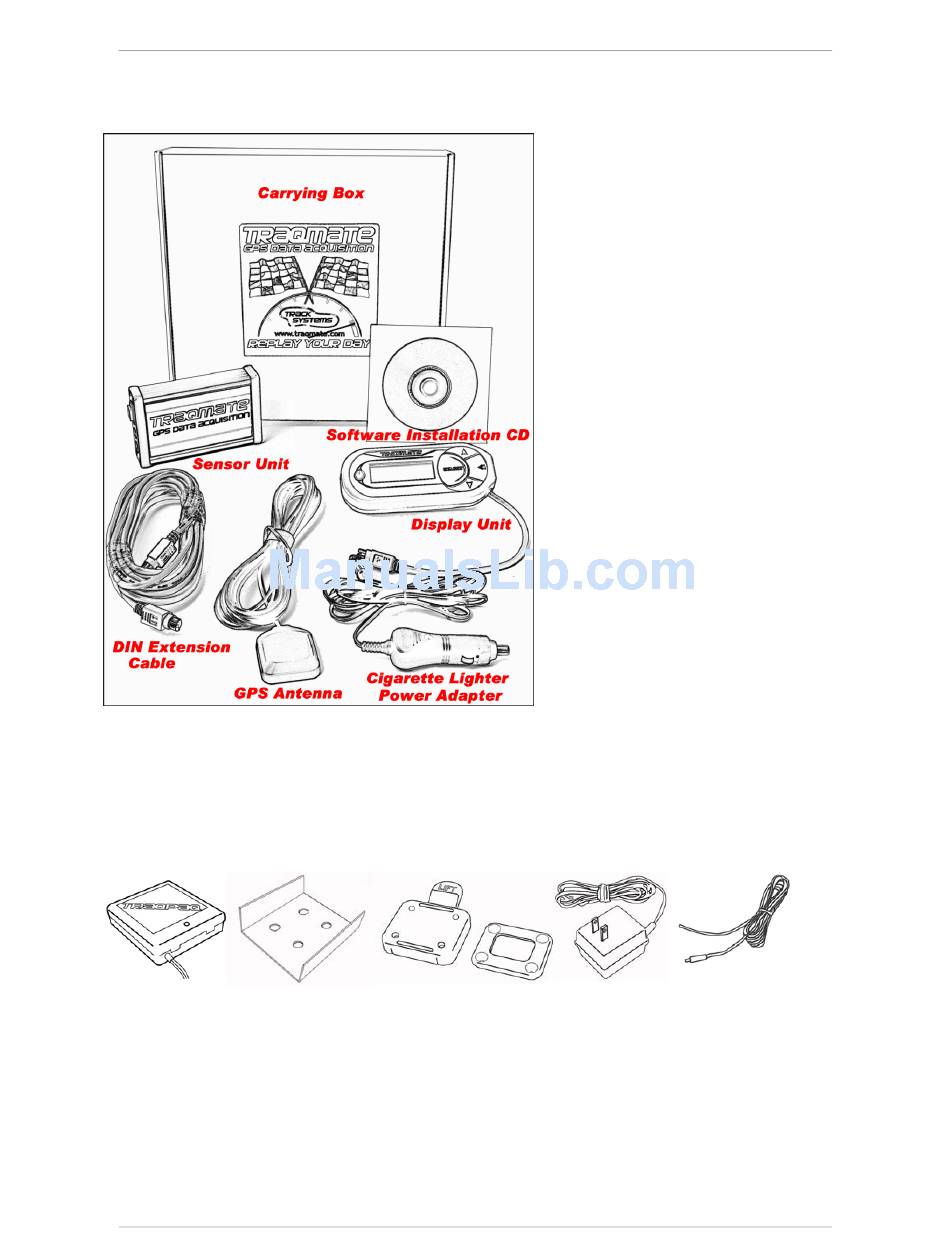

Figure 1 - Traqmate System Components

Accessories
Accessories include a TraqPaq battery pack, permanent vehicle power harness, DU mounting
bracket, TraqAC SU AC adapter, extra antennas for convenient vehicle swapping, and SU
mounting tray.
TraqPaq SU Mounting Tray
Battery
Pack
Copyright © 2005 Track Systems Technologies, LLC
This diagram will help you identify the
Traqmate Components. Traqmate
comes as two bundled packages.
Each includes everything you need to
collect and analyze your data.
Traqmate Basic
The Traqmate Basic package consists
of a Sensor Unit (SU), GPS antenna,
serial cable, cigarette lighter power
adapter, carrying box, and compact
data disc containing the Traqview
Analysis software and manual.
Traqmate Complete
The Traqmate Complete package
consists of a Sensor Unit (SU), a
Display Unit (DU), GPS antenna, USB
cable, SU-DU DIN connection cable,
cigarette lighter power adapter,
carrying box, and compact data disc
containing the Traqview Analysis
Software and User Manual.
DU Mounting TraqAC Power
Bracket Supply
June 14, 2005
Permanent
Power Cable
Page 8
