Figure 5 - Du Gauge Cluster Mount; Figure 6 - Du Console Mount - Track Systems Traqmate User Manual

Traqmate User Manual V1.0
Regardless of the mounting mechanism used to secure the DU, care should be taken to avoid
strain on the DU cable, and connecting cable, as this can put stress on the DU, the connectors,
and the cables.

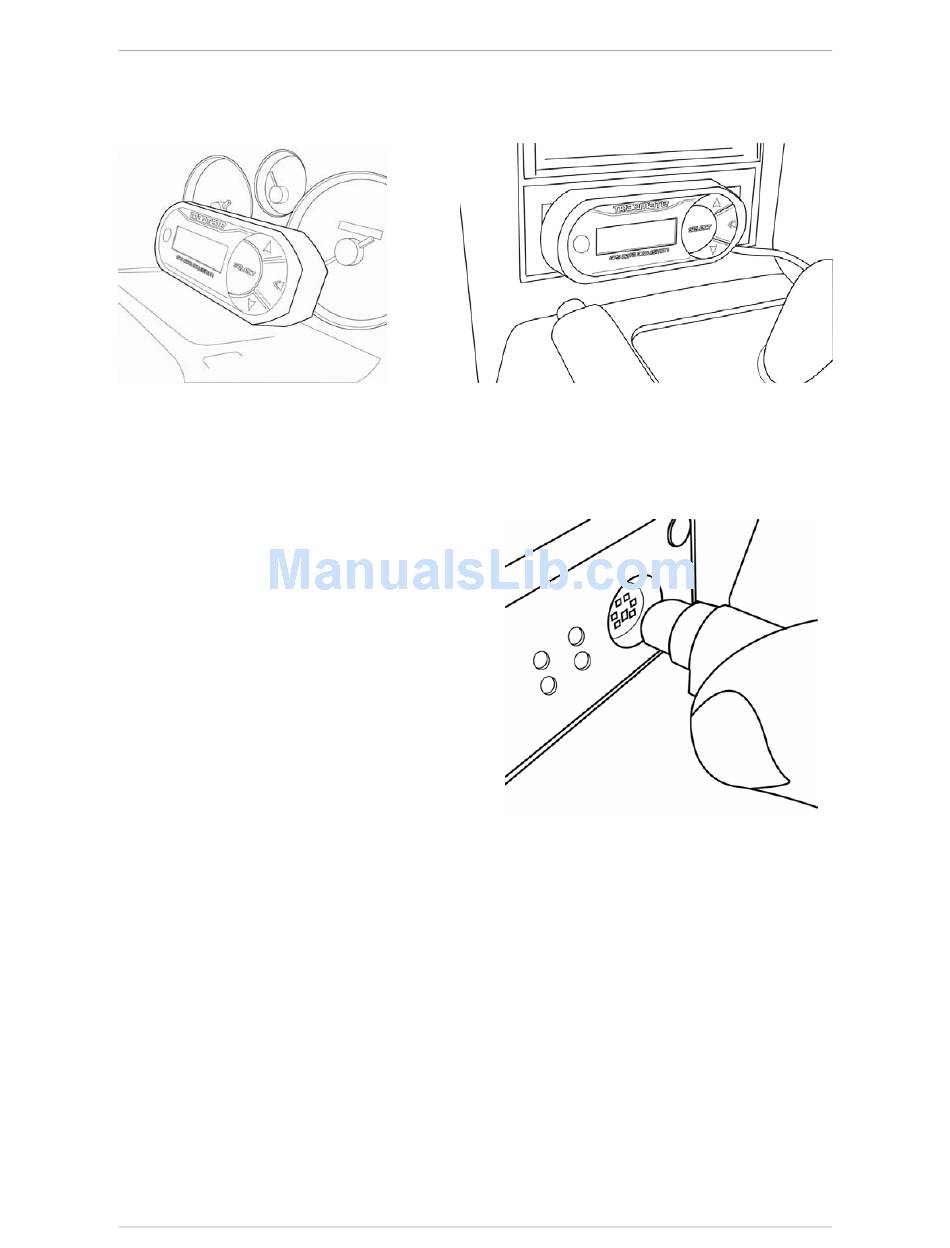

Figure 5 - DU Gauge Cluster Mount

Connecting to the Sensor Unit
After connecting the DU to the SU using the DIN
extension cable, the Display Unit will power up. It
will briefly display the Firmware revision number of
the SU and the DU. If instead,
* SU NOT CONNECTED *
is displayed, there is no communication between
the SU and DU and the system will not work for
data collection. You can still upload sessions and
download configuration to the DU.
Possible Remedies:
•
Ensure SU has power.
•
Ensure DIN Extension cable is firmly
plugged into both the DU and SU.
•
Ensure SU is in operable state. Cycle power on SU.
•
Ensure SU has proper firmware.
•
Ensure DU has proper firmware.
If you see the message
SW Mismatch, Reload
then the firmware in the DU and SU are incompatible. Reload the firmware of both the SU and
DU with the latest downloads available on the traqmate.com website and try again.
Copyright © 2005 Track Systems Technologies, LLC
June 14, 2005

Figure 6 - DU Console Mount

Page 14
