Traqmate User Manual V1.0 June 14, 2005
Once Traqmate has GPS signal, it will check to see if there is a Start/Finish position stored for the
current track. If not, you will see

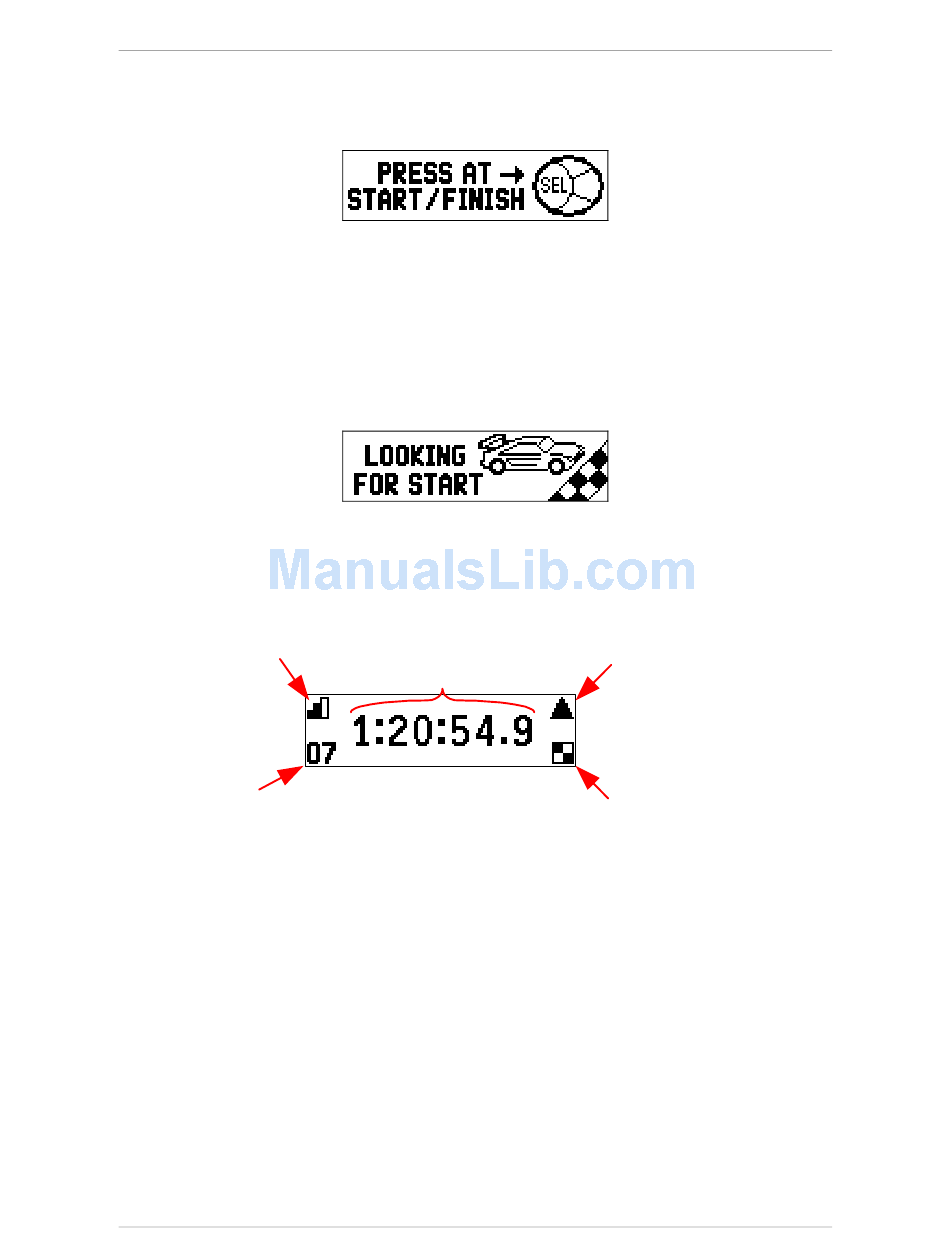

Figure 11 - Recording a Start / Finish Location

Proceed around the track until you reach the Start/Finish line. Make sure you cross the line the
same way that you will when driving at full speed. As you reach the line press the SELECT button
to record the Start / Finish line and save it in permanent memory. At this time the Timing Screen
will appear.
If you have already recorded a Start / Finish location for the chosen track, the following screen
will appear.

Figure 12 - Searching for Start / Finish Line

This will stay onscreen until you cross the Start / Finish line when the Timing Screen will appear.
Up arrow when lap is
GPS signal
better than previous,
Indicates lap time of
strength indicator
Down arrow when worse
1 hour, 20 minutes,
54.9 seconds
Flag indicates
best lap
Lap counter

Figure 13 - Lap Timer Screen

The numbers will start over whenever the Start / Finish line is crossed and the lap counter will
increment. The lap time from the previous lap will be held onscreen for 1 minute to allow time for
viewing, and then the counting will resume.
Copyright © 2005 Track Systems Technologies, LLC Page 19
