Traqview Analysis and Configuration Program

Traqview is the source for configuring, updating, and analyzing data from your Traqmate. After
installation, you can launch the program from the Windows Start Menu, a desktop icon, or from a
toolbar icon.

Toolbar Buttons and Controls

Open Save Copy

Menu Options

File
Open – opens a session file (.tqm) or an analysis file (.tqs)
Close – closes current file
Save – saves current analysis as a .tqs file
Save As – saves current analysis to a name chose by user
Add Driver – opens a session file and adds driver to dashboard
Export – saves current graph as an image for later printing or incorporation into a document
Exit – exits Traqview program
Edit
Copy – copies currently highlighted window to Windows clipboard
View
Toolbar – toggles toolbar on/off
Auto Pan – a mode that causes a selected driver to always stay within the track map and graph
windows
Driver List – choose driver for window to follow on track
Pointer – selects the pointer tool (for moving Start/Finish Line and Manipulating Segments)
Zoom – selects the Zoom In tool (for magnifying track or graphs) When Zoom tool is selected,
shift key will invert the zoom direction.
Pan – selects the Pan tool for dragging track and graphs around in the window
Refresh – resets graphs and map back to starting point, redraws screens
Tools
Session Upload – connects to Traqmate to upload session information
User Setup – connects to Traqmate to setup user information
Unit Information – connects to Traqmate to change user information
Firmware Update – connects to Traqmate to update SU or DU firmware
Options – controls Traqview local options
Window
Close All – closes all windows
Window List – choose a window to display on top
Help
About Traqview – displays Traqview version information
Copyright © 2005 Track Systems Technologies, LLC
Upload Add Pointer ZoomIn ZoomOut Pan
Driver

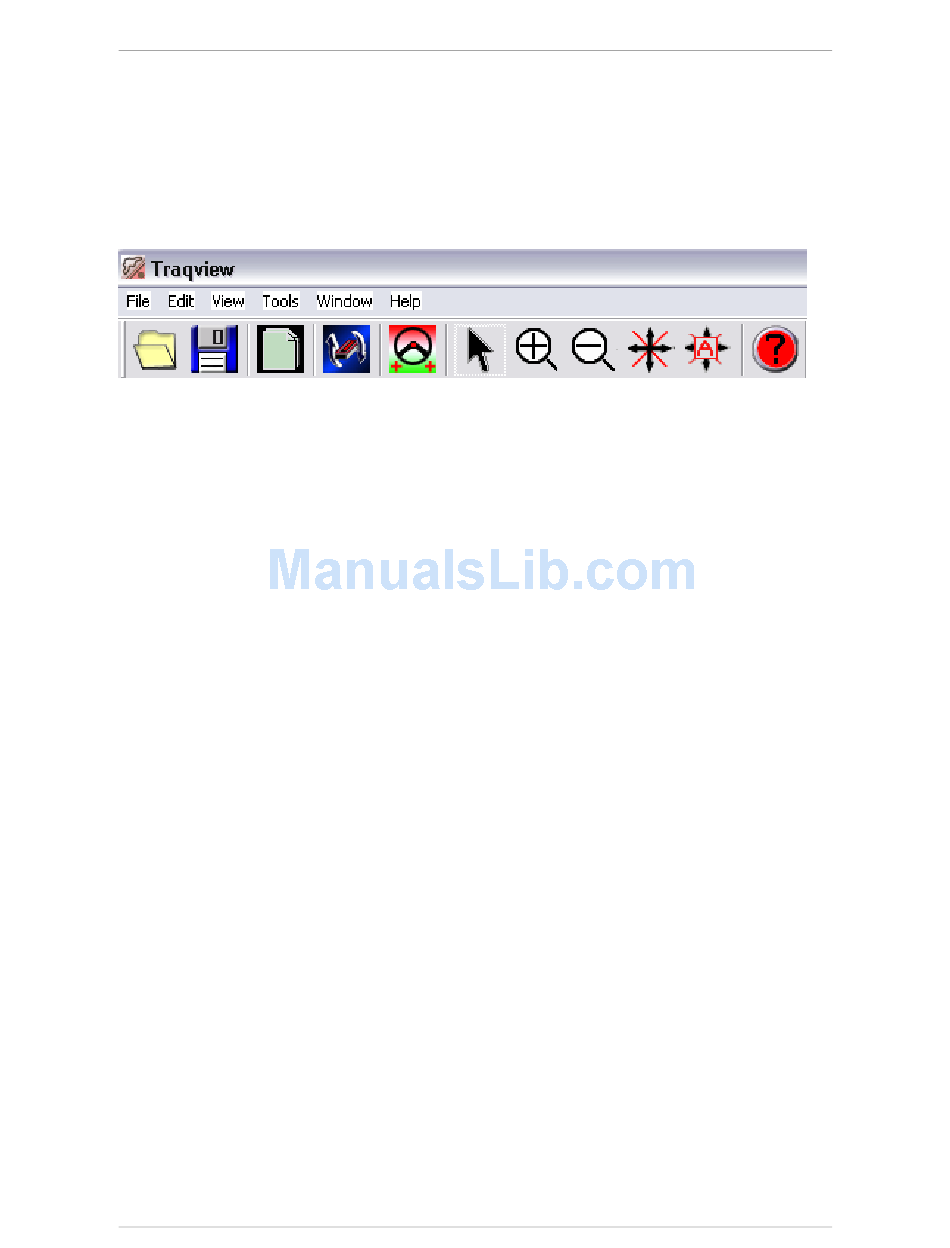

Figure 14 - Menu Bar Buttons
