Traqmate User Manual V1.0

Traqmate Complete

System Description

Traqmate Complete builds on the Traqmate Basic simplicity to add immediate feedback to the
driver in the form of lap times on a Display Unit (DU). It also provides more visibility and control of
the collected data and useful tools for vehicle performance tuning. Data is stored inside the
Display Unit and can be extracted using the mini-USB port on the end of the unit.

Controls

Indicates Top
of Menu List
Indicates More
Choices Below
Screen
The DU contains six buttons, a graphical LCD screen, a DIN cable to connect to the Sensor Unit,
and a mini-USB port for connection to a computer.
ON/OFF – Power Switch Button
•
Turns unit on - push button once, startup screen appears and "PWR" LED goes on in the
Sensor Unit
•
Turns unit off - hold button down until signoff screen appears on LCD display and "PWR"
LED goes off in the Sensor Unit
Traqmate Logo – Backlight Button
•
Turns LCD backlight on/off – toggles LCD backlight on/off
Select Button – Executes Menu Functions
•
Selects highlighted items on the LCD display screen
Back Button – Exits Menu Functions
•
Goes up one level in menus
•
Exits a mode such as lap timing and returns to menu
Up Button
•
Press to go up one item in a list
Down Button
•
Press to go down one item in a list
Copyright © 2005 Track Systems Technologies, LLC
Backlight
Main Menu
Record Data
View Sessions
Setup
Menu Choices

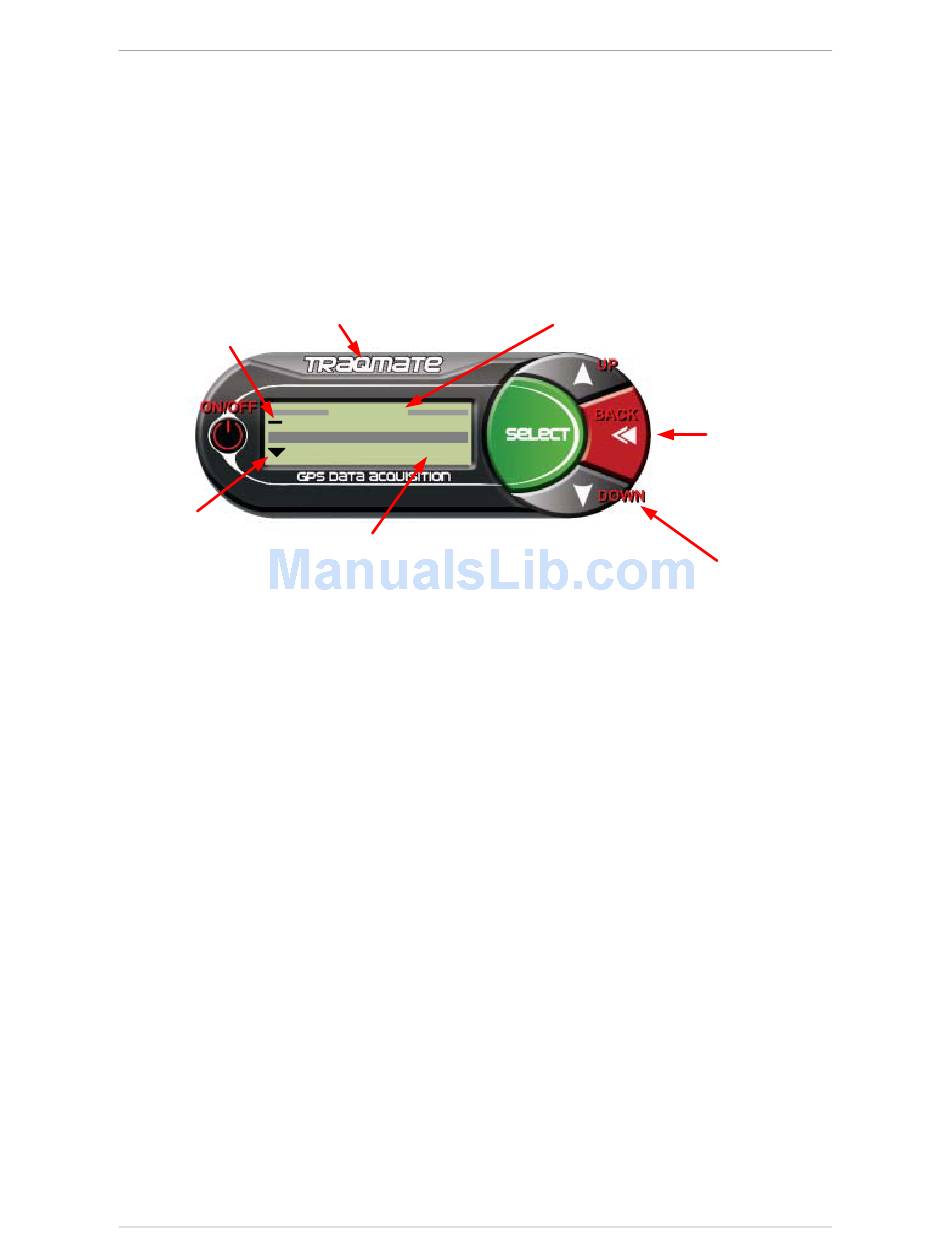

Figure 8 - Display Unit Controls

June 14, 2005
Menu
Title
Mini USB
Port
Connection to
Sensor Unit
Page 16
