6.1.2 Sanicube Solaris (SCS)

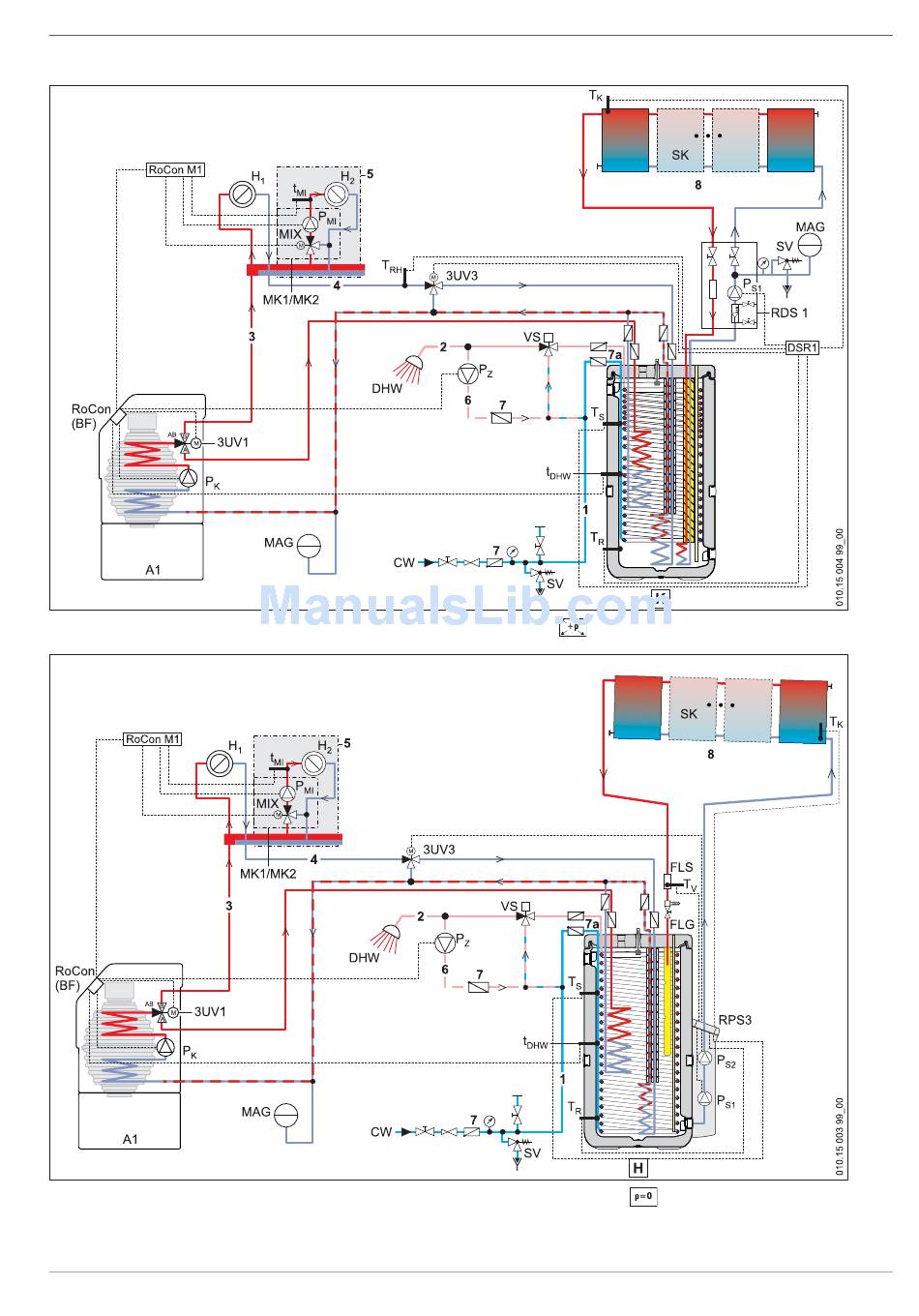

Fig. 6-2 Standard connection layout with A1 condensing boiler and pressurised solar
Fig. 6-3 Standard connection layout with A1 condensing boiler an unpressurised solar drain-back
FA ROTEX SC / SCS / HYC - 02/2013
6 x Hydraulic connection
1)
(legend see tab. 6 -1)
1)
(legend see tab. 6 -1)
