Barco ClickShare CSE-800 User Manual

Wireless presentation collaboration system
Hide thumbs Also See for ClickShare CSE-800:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual

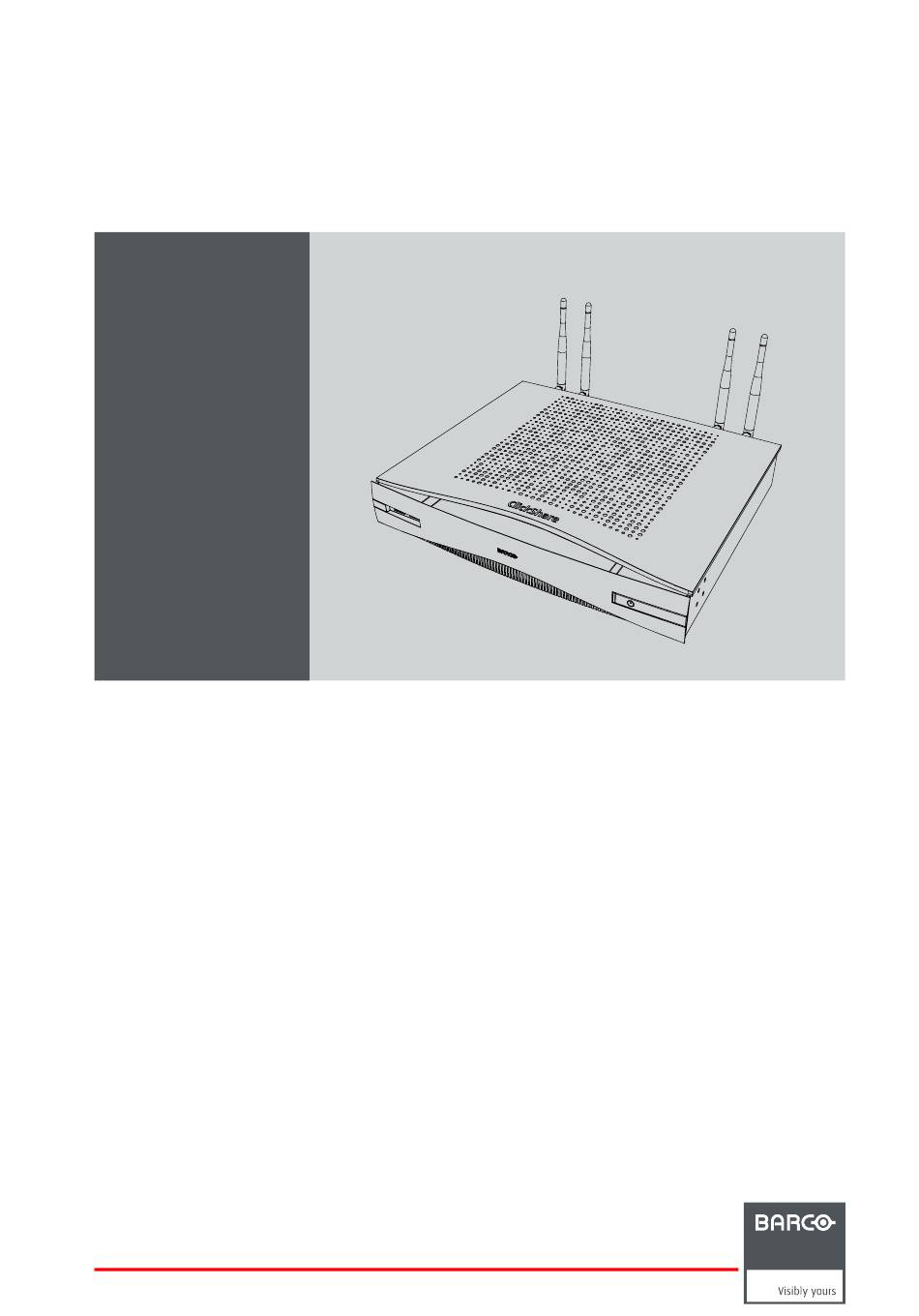

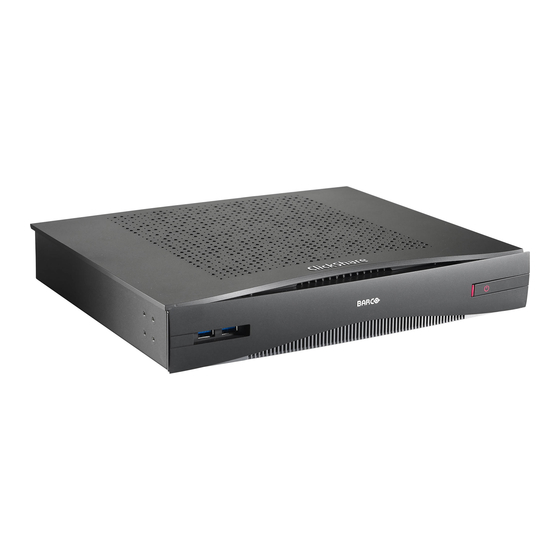

ClickShare CSE-800
User guide
R5900050/01
15/03/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ClickShare CSE-800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco ClickShare CSE-800

Summary of Contents for Barco ClickShare CSE-800

  • Page 1 ClickShare CSE-800 User guide R5900050/01 15/03/2017...
  • Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/en/support Visit us at the web: www.barco.com Registered address: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium Phone: +32 56.23.32.11 Fax: +32 56.26.22.62 Support: www.barco.com/en/support Visit us at the web: www.barco.com...
  • Page 3 Barco shall have no indemnity obligation for any Software, or any portion thereof, (i) that is based on specifications, drawings, models or other data furnished by you or, (ii) that is not provided by Barco or, (iii) that is modified, in spite of the prohibition for you to modify the software or, (iv) to the extent that you continue allegedly infringing activity after having been provided modifications that avoid the...
  • Page 4 Software, including the U.S. Export Administration Regulations, as well as end-user, end-use, and destination restrictions issued by the U.S. or other governments. 11. Barco shall be entitled to sub-contract all or any of Barco’s obligations hereunder to a third party and/or any of Barco’s affiliated companies.
  • Page 5 The identity of the product in question (such as but not limited to MAC ID, OS version, Software version, ...) • Details about the connection to Barco (such as but not limited to the first connection, last connection, # of attempts, IP address of the device, ...) •...
  • Page 6 alsa-lib http://www.gnu.org/licenses/gpl.html alsa-utils http://www.gnu.org/licenses/gpl.html busybox http://opensource.org/licenses/GPL-2.0 dropbear http://opensource.org/licenses/mit-license.php fakeroot http://www.gnu.org/licenses/gpl.html linux http://www.gnu.org/licenses/old-licenses/gpl-2.0.html http://www.gnu.org/licenses/lgpl.html iproute2 http://www.gnu.org/licenses/gpl.html kobs-ng http://www.gnu.org/licenses/gpl.html rsync (<3.0.0) http://www.gnu.org/licenses/old-licenses/gpl-2.0.html rsync (>=3.0.0) http://www.gnu.org/licenses/gpl.html uClibc http://www.gnu.org/licenses/lgpl.html wireless_tools http://www.gnu.org/licenses/gpl.html wpa_supplicant http://opensource.org/licenses/BSD-3-Clause imx-bootlets http://www.gnu.org/licenses/gpl.html Crypto++ http://www.cryptopp.com/License.txt libresample http://www.gnu.org/licenses/lgpl.html libjpeg-turbo http://opensource.org/licenses/BSD-3-Clause acpid http://www.gnu.org/licenses/gpl.html avahi http://www.gnu.org/licenses/lgpl.html crda http://opensource.org/licenses/ISC...
  • Page 7 iftop http://www.gnu.org/licenses/old-licenses/gpl-2.0.html iperf http://opensource.org/licenses/BSD-3-Clause iptables http://opensource.org/licenses/BSD-3-Clause http://opensource.org/licenses/BSD-3-Clause http://www.gnu.org/licenses/old-licenses/gpl-2.0.html attr http://www.gnu.org/licenses/old-licenses/gpl-2.0.html libcap2 http://www.gnu.org/licenses/gpl.html libdaemon0 http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html libdrm2 http://opensource.org/licenses/MIT libexpat1 http://opensource.org/licenses/MIT libfontconfig1 http://opensource.org/licenses/BSD-3-Clause libfontenc1 http://opensource.org/licenses/BSD-3-Clause freetype http://freetype.sourceforge.net/FTL.TXT http://www.gnu.org/licenses/old-licenses/gpl-2.0.html libgcc1 http://www.gnu.org/licenses/gpl.html libgcrypt11 http://www.gnu.org/licenses/gpl.html http://www.gnu.org/licenses/lgpl.html http://www.gnu.org/copyleft/fdl.html libglib-2 http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html libgnutls26 http://www.gnu.org/licenses/lgpl.html libgpg-error0 http://www.gnu.org/licenses/gpl.html http://www.gnu.org/licenses/lgpl.html http://www.gnu.org/copyleft/fdl.html libjpeg8 BSD like licensee libnl2 http://www.gnu.org/licenses/lgpl.html...
  • Page 8 libusb http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html libxml2 http://opensource.org/licenses/MIT libz1 Free license lighttpd http://opensource.org/licenses/BSD-3-Clause lmsensors http://www.gnu.org/licenses/gpl.html logrotate http://www.gnu.org/licenses/gpl.html makedevs http://www.gnu.org/licenses/gpl.html memtest86plus http://www.gnu.org/licenses/gpl.html mesa http://opensource.org/licenses/MIT module-init-tools http://www.gnu.org/licenses/old-licenses/gpl-2.0.html modutils http://www.gnu.org/licenses/old-licenses/gpl-2.0.html monit http://www.gnu.org/licenses/gpl.html ncurses http://opensource.org/licenses/MIT netbase http://www.gnu.org/licenses/old-licenses/gpl-2.0.html openssh-sftp-server http://opensource.org/licenses/BSD-3-Clause openssl http://www.openssl.org/source/license.html opkg http://www.gnu.org/licenses/old-licenses/gpl-2.0.html pciutils http://www.gnu.org/licenses/old-licenses/gpl-2.0.html perl http://perldoc.perl.org/perlartistic.html http://www.gnu.org/licenses/old-licenses/gpl-1.0.html http://www.php.net/license/3_01.txt procps http://www.gnu.org/licenses/gpl.html...
  • Page 9 ttf-dejavu-sans ttf-sazanami-gothic ttf-sazanami-mincho ttf-un-fonts udev http://www.gnu.org/licenses/old-licenses/gpl-2.0.html update-modules http://www.gnu.org/licenses/old-licenses/gpl-2.0.html update-rc http://www.gnu.org/licenses/old-licenses/gpl-2.0.html usbutils http://www.gnu.org/licenses/old-licenses/gpl-2.0.html util-linux-ng http://www.gnu.org/licenses/gpl.html xserver-xorg http://opensource.org/licenses/MIT zeroconf http://www.gnu.org/licenses/gpl.html EN55032-CISPR32 Class B ITE (Information Technology Equipment) This is a class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
  • Page 10 Informations concernant l’exposition aux fréquences radio (RF) La puissance de sortie émise par l’appareil de sans fil Barco est inférieure à la limite d’exposition aux fréquences radio d’Industry Canada (IC). Utilisez l’appareil de sans fil Barco de façon à minimiser les contacts humains lors du fonctionnement normal.
  • Page 11 Pour se conformer aux exigences de conformité RF canadienne l’exposition, cet appareil et son antenne ne doivent pas être co-lo- calisés ou fonctionnant en conjonction avec une autre antenne ou transmetteur. Pour se conformer aux exigences de conformité CNR 102 RF exposition, une distance de séparation d’au moins 20 cm doit être maintenue entre l’antenne de cet appareil et toutes les personnes.

  • Page 13: Table Of Contents

    Index........................33 R5900050 CLICKSHARE CSE-800 15/03/2017...
  • Page 14 Table of contents R5900050 CLICKSHARE CSE-800 15/03/2017...

  • Page 15: Introduction

    Click on Visit the ClickShare product page and go to tab Downloads.. Depending on the CSE-800 version, some graphics might be different to the ones used in this manual. This however does not have any effect to the functionality. R5900050 CLICKSHARE CSE-800 15/03/2017...

  • Page 16: Symbols And Fonts

    Menu items are indicated in italic. • Step related notes, tips, warnings or cautions are printed in italic. • Procedure related notes, tips, warnings or cautions are printed in bold between 2 lines preceded by the corresponding icon. R5900050 CLICKSHARE CSE-800 15/03/2017...

  • Page 17: Introduction To Cse-800

    Depending on the country where you buy the product, the following regionalized accessories are also included in the CSE-800 box. Regional version Contains Accessories included R9861580EU • R9861580EU • power cables CEE7 and BS 1363 • 4x R9861500D01 • wall/ceiling mounting brackets • R9861500T01 • antenna extension cables R5900050 CLICKSHARE CSE-800 15/03/2017...

  • Page 18: About The Base Unit

    When plugging in the Button into the Base Unit, the Button is paired to the Base Unit. The Base Unit checks whether the Button’s software and firmware are up to date. If not, the Base Unit updates the software and/or firmware. 1. touchscreen connection, blackboarding/annotation screen saving will be available in future releases R5900050 CLICKSHARE CSE-800 15/03/2017...

  • Page 19: Status Led

    2. Introduction to CSE-800 To update the Base Unit software, download the latest version of the software from the Barco website. Copy the file on a USB stick and plug it into the USB port of the Base Unit. Follow the progress and instructions on the display.
  • Page 20 Usage of antennas other than the ones provided with the unit are allowed within the restrictions on usage of other antennas defined by local regulations. Barco does not take responsibility for damage or disturbance of other devices that may be caused by using a different antenna.

  • Page 21: About The Button

    50 mm in front of all ventilation grids. Bottom layout of the Base Unit The serial number label containing the Barco part number, the revision number, production date (week-year) and the serial number. The product label with the applicable certification logos.

  • Page 22: Usb Connector

    Barco part number • the serial number • the revision number • markings for applicable standards • markings for waste regulation • “Made in...” Handle the Button cable with care. Rough handling might cause defects. R5900050 CLICKSHARE CSE-800 15/03/2017...

  • Page 23: Mobile Device Support

    Before you can use your mobile device with ClickShare, you have to connect the mobile device Wi-Fi with the ClickShare Base Unit Wi-Fi. Follow the instructions as given in your mobile device user guide. Used on Logo ClickShare App Android R5900050 CLICKSHARE CSE-800 15/03/2017...
  • Page 24 2. Introduction to CSE-800 R5900050 CLICKSHARE CSE-800 15/03/2017...

  • Page 25: Getting Started

    The Base Unit can be shut down in two ways : 1. Push the standby button until the Base Unit shuts down image 3-2. 2. Set the rocker switch at the back of the Base Unit to “0” image 3-1. R5900050 CLICKSHARE CSE-800 15/03/2017...

  • Page 26: Basic Use

    On your laptop a new drive appears. Two situations are possible now: A launcher is preinstalled on your laptop (downloaded from the Base Unit or Barco website, or deployed company-wide by your IT department). ClickShare is immediately available. You can continue with step 4.

  • Page 27: Advanced Use

    ClickShare app, four or eight persons in the meeting room can display their screens simultaneously. They appear as follows: For a meeting room with a single display: 4 users 2 users 3 users 1 user Image 3-7 Position on single display For a meeting room with a dual display: R5900050 CLICKSHARE CSE-800 15/03/2017...
  • Page 28 Your content is shown full screen on the display. If other persons were sharing their content on the display, their screens are removed. Their Button’s LEDs are now shining white again. Examples are showing the content for display mode set to clone. 4 users user 5 Image 3-9 Single display R5900050 CLICKSHARE CSE-800 15/03/2017...

  • Page 29: User Interface

    find out the ClickShare software Here you can find more information on version. the ClickShare software version. Exit to close ClickShare. The ClickShare icon disappears from the system tray and the LEDs of the Button start blinking white. R5900050 CLICKSHARE CSE-800 15/03/2017...

  • Page 30: Capture More

    Only for Window7 and Windows8 About shared desktop Depending on your selection, your primary screen or your extended screen will be captured and displayed via ClickShare. That extended screen can be a physical screen or a virtual screen. R5900050 CLICKSHARE CSE-800 15/03/2017...
  • Page 31 PC with one extended screen connected. That extended screen will be captured and displayed on the meeting room display. Image 3-15 PC with two extended screens connected. The first extended screen, screen 2 will always be captured and displayed on the meeting room display. R5900050 CLICKSHARE CSE-800 15/03/2017...

  • Page 32: Moderation

    The moderation function can be switched off at any time, returning the system into ClickShare’s normal operating mode, with content being shared upon the click of a button. How to start moderation 1. As moderator of the meeting, click on the ClickShare icon in the system tray (1). R5900050 CLICKSHARE CSE-800 15/03/2017...
  • Page 33 A context menu opens. 2. Select Start Moderation (2). The moderation application opens on his PC. All shared content is available. Image 3-19 Moderation window 3. To stop moderation, close the moderation window. About the different panes Image 3-20 R5900050 CLICKSHARE CSE-800 15/03/2017...
  • Page 34 The content will be automatically displayed on the screen. The displayed source gets a red square around its content. This red square indicates that this source is displayed on the screens. 2. To add extra sources, click on the source and drag on to the screen. R5900050 CLICKSHARE CSE-800 15/03/2017...

  • Page 35: Audio Configuration

    For some operating system, it is necessary to set ClickShare as your default output device. Once you unplug the Button, the default setting is switched back to the previous setting. Set ClickShare as default in Windows 1. Right click on the speaker icon in the system tray (1). R5900050 CLICKSHARE CSE-800 15/03/2017...
  • Page 36 3. Select Speakers ClickShare (3) and click Set default (4). 4. Click Apply or OK to activate the new setting. Set ClickShare as default on MAC 1. Click on the Apple logo on the menu bar (1) and select System Preferences..(2). R5900050 CLICKSHARE CSE-800 15/03/2017...

  • Page 37: Pairing

    Web Interface. When downgrading or updating to an older version of the Base Unit software the Buttons need to paired manually to update their software and that only in case the Button update over Wi-Fi is disabled. R5900050 CLICKSHARE CSE-800 15/03/2017...
  • Page 38 When the LEDs become static red, the Button is paired to the Base Unit and the software update has finished. You can unplug the Button from the Base Unit. Image 3-27 Pairing finished 2. Unplug the Button from the Base Unit. The Button is now ready for use. R5900050 CLICKSHARE CSE-800 15/03/2017...

  • Page 39: Troubleshooting

    Re-pair and update the software of the with that of the Base unit Button by inserting it in the front USB port of Base Unit. Wallpaper is disabled If you connect a Button and start sharing, the content should be shown. R5900050 CLICKSHARE CSE-800 15/03/2017...
  • Page 40 Some programs of Windows are not Use of overlays, 3D or hardware • Disable overlays or hardware shown on the display. acceleration in the GPU. acceleration in the GPU. • Disable AeroGlass in Windows 7 • Capture mode R5900050 CLICKSHARE CSE-800 15/03/2017...

  • Page 41: Environmental Information

    (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.

  • Page 42: Production Address

    Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products”...

  • Page 43: Importers Contact Information

    5. Environmental information Importers contact information Contact To find your local importer, contact Barco directly or one of Barco’s regional offices via the contact information given on Barco’s web site, www.barco.com. R5900050 CLICKSHARE CSE-800 15/03/2017...
  • Page 44 5. Environmental information R5900050 CLICKSHARE CSE-800 15/03/2017...

  • Page 45: Index

    Show content Regional versions Startup Shared desktop Extended Primary Shared desktop Extended Primary Standby mode Capture more Symbols Detailed Fast Client software Troubleshooting Environmental information Disposal information Rohs compliance User Interface Full screen Versions Getting started 13–14 R5900050 CLICKSHARE CSE-800 15/03/2017...
