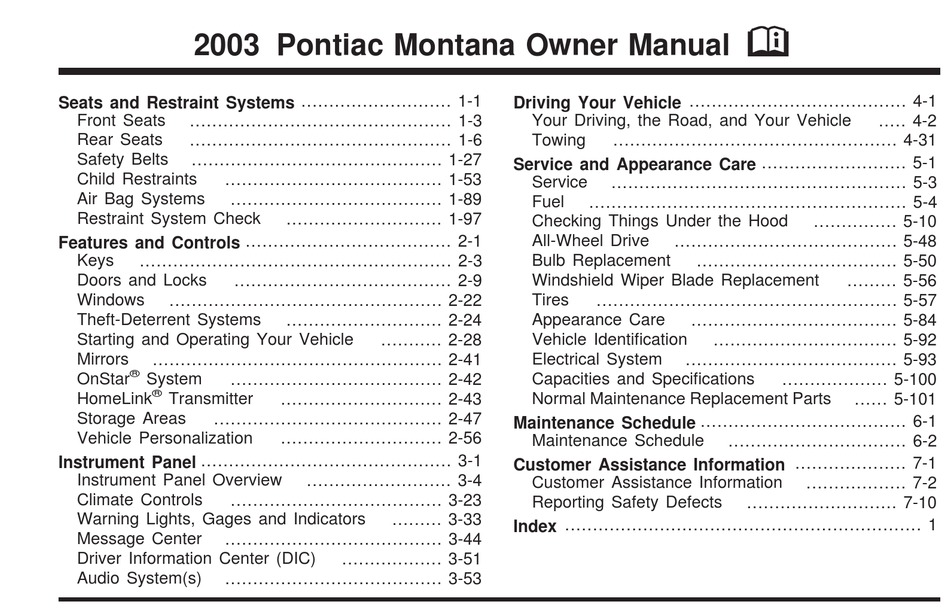

2003 Pontiac Montana Owner Manual
Seats and Restraint Systems ........................... 1-1
Front Seats
............................................... 1-3
Rear Seats
............................................... 1-6
Safety Belts
............................................. 1-27
Child Restraints
....................................... 1-53
Air Bag Systems
...................................... 1-89
Restraint System Check
Features and Controls ..................................... 2-1
Keys
........................................................ 2-3
Doors and Locks
....................................... 2-9
Windows
................................................. 2-22
Theft-Deterrent Systems
Starting and Operating Your Vehicle
Mirrors
.................................................... 2-41
®
OnStar
System
...................................... 2-42
®
HomeLink
Transmitter
Storage Areas
......................................... 2-47
Vehicle Personalization
Instrument Panel ............................................. 3-1
Instrument Panel Overview
Climate Controls
...................................... 3-23
Warning Lights, Gages and Indicators
Message Center
....................................... 3-44
Driver Information Center (DIC)
Audio System(s)
....................................... 3-53
............................ 1-97
............................ 2-24
........... 2-28
............................. 2-43
............................. 2-56
.......................... 3-4
......... 3-33
.................. 3-51
Driving Your Vehicle ....................................... 4-1
Your Driving, the Road, and Your Vehicle
Towing
................................................... 4-31
Service and Appearance Care .......................... 5-1
Service
..................................................... 5-3
Fuel
......................................................... 5-4
Checking Things Under the Hood
All-Wheel Drive
........................................ 5-48
Bulb Replacement
Windshield Wiper Blade Replacement
Tires
...................................................... 5-57
Appearance Care
..................................... 5-84
Vehicle Identification
Electrical System
...................................... 5-93
Capacities and Specifications
Normal Maintenance Replacement Parts
Maintenance Schedule ..................................... 6-1
Maintenance Schedule
Customer Assistance Information .................... 7-1
Customer Assistance Information
Reporting Safety Defects
Index ................................................................ 1
M
............... 5-10
.................................... 5-50
......... 5-56
................................. 5-92
................... 5-100
...... 5-101
................................ 6-2
.................. 7-2
........................... 7-10
..... 4-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2003 Montana and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pontiac 2003 Montana

  • Page 1 2003 Pontiac Montana Owner Manual Seats and Restraint Systems ......1-1 Driving Your Vehicle ........4-1 Front Seats Your Driving, the Road, and Your Vehicle ..........1-3 ..4-2 Rear Seats ..........1-6 Towing ........... 4-31 Safety Belts ..........1-27 Service and Appearance Care ......
  • Page 2: Canadian Owners

    Detroit, MI 48207 GENERAL MOTORS, GM, the GM Emblem, PONTIAC, How to Use This Manual the PONTIAC Emblem and the name MONTANA are registered trademarks of General Motors Corporation. Many people read their owner’s manual from beginning to end when they first receive their new vehicle. If...
  • Page 3 Safety Warnings and Symbols In the caution area, we tell you what the hazard is. Then we tell you what to do to help avoid or reduce the hazard. Please read these cautions. If you don’t, you You will find a number of safety cautions in this book. or others could be hurt.
  • Page 4: Vehicle Symbols

    Vehicle Damage Warnings Vehicle Symbols Also, in this book you will find these notices: Your vehicle has components and labels that use symbols instead of text. Symbols, used on your vehicle, Notice: These mean there is something that could are shown along with the text describing the operation damage your vehicle.
  • Page 5 These are some examples of vehicle symbols you may find on your vehicle:...
  • Page 6 NOTES...
  • Page 7: Seats And Restraint Systems

    Section 1 Seats and Restraint Systems Front Seats ............1-3 Rear Seat Passengers ........1-47 Manual Seats ..........1-3 Rear Safety Belt Comfort Guides for Children Six-Way Power Seats ........1-3 and Small Adults ........1-50 Heated Seats ..........1-4 Safety Belt Pretensioners .......1-52 Reclining Seatbacks ........1-4 Safety Belt Extender ........1-52 Head Restraints ..........1-6 Child Restraints ..........1-53...
  • Page 8: Table Of Contents

    Section 1 Seats and Restraint Systems Air Bag Systems ..........1-89 Restraint System Check ........1-97 Where Are the Air Bags? .......1-92 Checking Your Restraint Systems ....1-97 When Should an Air Bag Inflate? ....1-94 Replacing Restraint System Parts After What Makes an Air Bag Inflate? .....1-94 a Crash ...........1-98 How Does an Air Bag Restrain? .....1-95 What Will You See After an Air Bag Inflates? ..1-95...
  • Page 9: Front Seats

    Front Seats To make sure the seat is locked into place, try to move the seat back and forth with your body. Six-Way Power Seats Manual Seats Your vehicle may have this Use the lever located on feature. If it does, the the front of the seat to six-way power seat control adjust the seat forward or...
  • Page 10 Heated Seats Reclining Seatbacks Your vehicle may have this feature. If it does, the heated seat switches are located in the instrument panel switchbank. This feature will heat the lower cushions and lower back To adjust a seatback, pull up on the lever located on of the driver’s and front passenger’s seats for added the outboard side of the driver’s or front passenger’s comfort.
  • Page 11 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this. The shoulder belt can’t do its job because it won’t be against your body.
  • Page 12: Rear Seats

    Head Restraints Rear Seats Rear Seat Operation The rear seats in your vehicle have levers and straps used to adjust, remove and reinstall the seats. By using the levers and straps, in the correct order, you can easily remove the seats from the vehicle. When you put the seats back in the vehicle, be sure to follow the label on the back of the seat for proper location.
  • Page 13: Flip And Fold Feature

    Flip and Fold Feature To return the seat(s) to the normal position, do the following: The rear seats in your vehicle can be folded forward. 1. Push the seat back and firmly push the rear hooks Use this feature for exiting and entering third row seats. onto the rear floor pins by pushing down on the 1.
  • Page 14 Adjusting the Split Bench Seats The other lever is located on the rear of the seat. (Second Row) The second row bench seats are adjustable. There are two adjustment levers on each section of the split bench seats to adjust the seat forward or rearward. Lift up either lever and slide the seat forward or rearward.
  • Page 15: Removing The Split Bench Seat

    The seatbacks on each section of the split bench seat To recline the seatback, pull the nylon strap or lift the can be either folded forward or reclined. The following recliner lever. Press back on the seatback until you explains how to use the nylon strap or recliner lever reach the desired position then let go of the strap to fold or recline the seatbacks.
  • Page 16 3. Lift the seatback recliner lever or pull the nylon strap on the back of the seat to fold the seatback forward. 4. If the seat is in the second row, lift one of the adjustment levers and slide the seat fully rearward. 6.
  • Page 17: Replacing The Split Bench Seats

    Replacing the Split Bench Seats CAUTION: CAUTION: A safety belt that is improperly routed, not properly attached, or twisted won’t provide the If the seatback isn’t locked, it could move protection needed in a crash. The person forward in a sudden stop or crash. That could wearing the belt could be seriously injured.
  • Page 18 2. Make sure the bench seat is angled so that the front hooks clear the floor pins. If the front legs are not attached correctly, the rear legs will not attach to the rear set of floor pins. 1. Squeeze the angled bar toward the solid crossbar while placing the front hooks of the bench seat onto the front two floor pins.
  • Page 19: Bucket Seats

    5. Lift the seatback recliner lever or pull the nylon strap on the back of the seat and raise the seatback until it locks upright. 6. Push and pull on the seatback to check that it is locked. 7. If you have the 40/60 seat, attach the mini-buckle so that the safety belt is ready for use when a passenger uses the seat.
  • Page 20 Adjusting the Bucket Seats The other lever is located on the rear of the bucket There are two adjustment levers on each seat to adjust seat. the seat forward or rearward. Lift up either lever and slide the seat forward or rearward.
  • Page 21 Folding or Reclining the Seatbacks CAUTION: If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.
  • Page 22: Removing The Bucket Seats

    To recline the seatback, pull the nylon strap or lift the recliner lever. Press back on the seatback until you reach the desired position then let go of the strap or lever. To return the seatback to an upright position, pull on the nylon strap or lift the recliner lever without putting any pressure on the seatback.
  • Page 23 You can also lift the lever on the side of the seat to 4. To unlatch the front latches, with the seat folded release the rear latches from the floor pins. forward, squeeze the angled bar toward the straight crossbar. Do not let go of the strap or lever until the seat is folded all the way forward.
  • Page 24: Replacing The Bucket Seats

    Replacing the Bucket Seats CAUTION: CAUTION: A safety belt that is improperly routed, not properly attached, or twisted won’t provide the If the seatback isn’t locked, it could move protection needed in a crash. The person forward in a sudden stop or crash. That could wearing the belt could be seriously injured.
  • Page 25 2. Make sure the bucket seat is angled so that the front hooks clear the floor pins. If the front legs are not attached correctly, the rear legs will not attach to the rear set of floor pins. If the front latches are not attaching correctly, check that the seat is in the full rear position.
  • Page 26: Captain Chairs

    Captain Chairs Folding or Reclining the Seatbacks If your vehicle has captain’s chairs, the chairs and seatbacks can be adjusted forward or rearward. CAUTION: Adjusting the Captain’s Chairs (Second Row) If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could The second row captain’s chairs can be adjusted cause injury to the person sitting there.
  • Page 27 To recline the seatback, lift up on the recliner lever, Removing the Captain’s Chairs located on the outboard side of the seat. Use the recliner lever to move the seatback to the desired position. It is easier to raise or lower the seatback if you lean forward, taking the weight off the seatback.
  • Page 28 Replacing the Captain’s Chairs CAUTION: If the seatback isn’t locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always press rearward on the seatback to be sure it is locked.
  • Page 29 CAUTION: A safety belt that is improperly routed, not properly attached, or twisted won’t provide the protection needed in a crash. The person wearing the belt could be seriously injured. After installing the seat, always check to be sure that the safety belts are properly routed and attached, and are not twisted.
  • Page 30: Stowable Seat

    Stowable Seat Your vehicle may have a stowable seat. The stowable seat is a full bench seat and comes with the convenience center. See Convenience Center on page 2-54 for more information. The stowable seat can be removed and replaced, or with the seatback folded, it can lie flush with the convenience center.
  • Page 31 To fold down the seatback, Removing the Stowable Seat pull up on the lever located 1. Remove the convenience center, if it is in the on the back of the seat vehicle. See Convenience Center on page 2-54 and push the seatback for more information.
  • Page 32: Replacing The Stowable Seat

    5. While holding onto the crossbar at the bottom of the Replacing the Stowable Seat seat, remove the seat by rocking it slightly toward the rear of the vehicle and then pulling it out. This should be done in one motion. CAUTION: Notice: Do not use the release handles to pull the seat out.
  • Page 33: Safety Belts

    Make sure the seat is in its upright position before beginning this procedure. CAUTION: 1. Place the front hooks of the seat onto the front floor pins in the third row. To do this, the seat will need A safety belt that is improperly routed, not to be angled so the front hooks clear the floor properly attached, or twisted won’t provide the pins.
  • Page 34 CAUTION: CAUTION: Don’t let anyone ride where he or she can’t It is extremely dangerous to ride in a cargo wear a safety belt properly. If you are in a area, inside or outside of a vehicle. In a crash and you’re not wearing a safety belt, collision, people riding in these areas are more your injuries can be much worse.
  • Page 35: Why Safety Belts Work

    You never know if you’ll be in a crash. If you do have a Why Safety Belts Work crash, you don’t know if it will be a bad one. When you ride in or on anything, you go as fast as it A few crashes are mild, and some crashes can be so goes.
  • Page 36 Put someone on it. Get it up to speed. Then stop the vehicle. The rider doesn’t stop. 1-30...
  • Page 37 The person keeps going until stopped by something. In or the instrument panel... a real vehicle, it could be the windshield... 1-31...
  • Page 38: Questions And Answers About Safety Belts

    Questions and Answers About Safety Belts Won’t I be trapped in the vehicle after an accident if I’m wearing a safety belt? You could be – whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down.
  • Page 39: How To Wear Safety Belts Properly

    How to Wear Safety Belts Properly If I’m a good driver, and I never drive far from home, why should I wear safety belts? This part is only for people of adult size. You may be an excellent driver, but if you’re in an Be aware that there are special things to know about accident –...
  • Page 40 Lap-Shoulder Belt 3. Pick up the latch plate and pull the belt across you. Don’t let it get twisted. The driver has a lap-shoulder belt. Here’s how to wear it The shoulder belt may lock if you pull the belt properly.
  • Page 41 5. To make the lap part tight, pull down on the buckle The lap part of the belt should be worn low and snug on end of the belt as you pull up on the shoulder belt. the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones.
  • Page 42: Shoulder Belt Height Adjuster

    Shoulder Belt Height Adjuster To move it down, push down on the button and move the height adjuster to the desired position. You can Before you begin to drive, move the shoulder belt move the adjuster up just by pushing up on the shoulder adjuster to the height that is right for you.
  • Page 43 What’s wrong with this? CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body. The shoulder belt is too loose. It won’t give nearly as much protection this way.
  • Page 44 What’s wrong with this? CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
  • Page 45 What’s wrong with this? CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied at the abdomen, not at the pelvic bones, and that could cause serious or fatal injuries.
  • Page 46 What’s wrong with this? CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury. Also, the belt would apply too much force to the ribs, which aren’t as strong as shoulder bones.
  • Page 47 What’s wrong with this? CAUTION: You can be seriously injured by a twisted belt. In a crash, you wouldn’t have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to fix it.
  • Page 48: Safety Belt Use During Pregnancy

    Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they don’t wear safety belts. To unlatch the belt, just push the button on the buckle. The belt should go back out of the way.
  • Page 49 The best way to protect the fetus is to protect the Center Passenger Position mother. When a safety belt is worn properly, it’s more (Bucket Seat) likely that the fetus won’t be hurt in a crash. For pregnant women, as for anyone, the key to making safety belts effective is wearing them properly.
  • Page 50 Lap Belt When you sit in the center position bucket seat, you have a lap safety belt which has a retractor. If your vehicle has bucket seats, someone can sit in the 1. Pick up the latch plate and, in a single motion, pull center position bucket seat.
  • Page 51 Center Passenger Position (Bench Seat) 4. Position and release it the same way as the lap part of a lap-shoulder belt. If the belt isn’t long enough, see Safety Belt Extender on page 1-52 . Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
  • Page 52 Lap Belt If your vehicle has a third row rear bench seat, someone can sit in the center position. To make the belt shorter, pull its free end as shown until the belt is snug. Buckle, position and release it the same way as the lap part of a lap-shoulder belt.
  • Page 53: Rear Seat Passengers

    Rear Seat Passengers Lap-Shoulder Belt The positions next to the windows have lap-shoulder It’s very important for rear seat passengers to buckle belts. Here’s how to wear one properly. up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts.
  • Page 54 2. Push the latch plate into the buckle until it clicks. If the belt is not long enough, see Safety Belt Extender on page 1-52 . In the third row, if the belt stops before it reaches the buckle, tilt the latch plate and keep pulling Make sure the release button on the buckle is until you can buckle it.
  • Page 55 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body. The lap part of the belt should be worn low and snug on the hips, just touching the thighs.
  • Page 56: Rear Safety Belt Comfort Guides For Children And Small Adults

    Rear Safety Belt Comfort Guides for Children and Small Adults Your vehicle may have rear shoulder belt comfort guides. This feature will provide added safety belt comfort for older children who have outgrown booster seats and for small adults. When installed on a shoulder belt, the comfort guide better positions the belt away from the neck and head.
  • Page 57 2. Place the guide over the belt and insert the two 3. Be sure that the belt is not twisted and it lies flat. edges of the belt into the slots of the guide. The guide must be on top of the belt. 1-51...
  • Page 58: Safety Belt Pretensioners

    Safety Belt Pretensioners Your vehicle has safety belt pretensioners. You’ll find them on the buckle end of the safety belts for the driver and right front passenger. They help the safety belts reduce a person’s forward movement in a moderate to severe crash in which the front of the vehicle hits something.
  • Page 59: Child Restraints

    Child Restraints What is the proper way to wear safety belts? If possible, an older child should wear a Older Children lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should fit snugly below the hips, just touching the top of the thighs.
  • Page 60 CAUTION: Never do this. Here two children are wearing the same belt. The belt can’t properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?
  • Page 61: Infants And Young Children

    CAUTION: (Continued) this way, in a crash the child might slide under the belt. The belt’s force would then be applied right on the child’s abdomen. That could cause serious or fatal injuries. Wherever the child sits, the lap portion of the belt should be worn low and snug on the hips, just touching the child’s thighs.
  • Page 62 CAUTION: (Continued) it. For example, in a crash at only 25 mph (40 km/h), a 12-lb. (5.5 kg) baby will suddenly become a 240-lb. (110 kg) force on a person’s arms. A baby should be secured in an appropriate restraint. CAUTION: People should never hold a baby in their arms while riding in a vehicle.
  • Page 63 What are the different types of add-on child restraints? CAUTION: Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic Children who are up against, or very close to, types. Selection of a particular restraint should take any air bag when it inflates can be seriously into consideration not only the child’s weight, injured or killed.
  • Page 64 CAUTION: CAUTION: Newborn infants need complete support, The body structure of a young child is quite including support for the head and neck. This unlike that of an adult or older child, for whom is necessary because a newborn infant’s neck the safety belts are designed.
  • Page 65: Child Restraint Systems

    Child Restraint Systems A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, An infant car bed (A), a special bed made for use in a acts to keep the infant positioned in the restraint.
  • Page 66 A forward-facing child seat (C-E) provides restraint for A booster seat (F-G) is a child restraint designed to the child’s body with the harness and also sometimes improve the fit of the vehicle’s safety belt system. Some with surfaces such as T-shaped or shelf-like shields. booster seats have a shoulder belt positioner, and some high-back booster seats have a five-point harness.
  • Page 67 When choosing a child restraint, be sure the child How do child restraints work? restraint is designed to be used in a vehicle. If it is, it A child restraint system is any device designed for will have a label saying that it meets federal use in a motor vehicle to restrain, seat, or position motor vehicle safety standards.
  • Page 68: Where To Put The Restraint

    Here’s why: When securing an aftermarket child seat in a bucket seat, I am unable to get the seat fastened in snugly enough. What should I do? CAUTION: With some child seats, it may be difficult to tighten the vehicle belts so that there is less side-to-side A child in a rear-facing child restraint can be or front-to-back movement of the child seat.
  • Page 69: Top Strap

    Top Strap Some child restraints have a top strap, or “top tether”. It can help restrain the child restraint during a collision. For it to work, a top strap must be properly anchored to the vehicle. Some top strap-equipped child restraints are designed for use with or without the top strap being anchored.
  • Page 70 Don’t use a child restraint that requires a top strap in Top Strap Anchor Location the right front passenger’s position because there’s no place to anchor the top strap. Anchor the top strap to one of the following anchor points. Be sure to use an anchor point located on the same side of the vehicle as the seating position where the child restraint will be placed.
  • Page 71 Third Row Third Row (Stowable Seat) An anchor bar for a top strap is located at the rear of The anchor bar for the stowable bench seat is located the seat cushion for each second and third row outboard on the passenger’s side of the crossbar. Use the center seating position, and for the center position of the seating position to use the anchor bar properly.
  • Page 72 Lower Anchorages and Top Tethers In order to use the system, you need either a forward-facing child restraint that has attaching points for Children (LATCH System) (B) at its base and a top tether anchor (C), or a rear-facing child restraint that has attaching points (B), Your vehicle has the LATCH system.
  • Page 73 CAUTION: If a LATCH-type child restraint isn’t attached to its anchorage points, the restraint won’t be able to protect the child correctly. In a crash, the child could be seriously injured or killed. Make sure that a LATCH-type child restraint is properly installed using the anchorage points, or use the vehicle’s safety belts to secure the restraint.
  • Page 74: Securing A Child Restraint Designed For The Latch System

    Securing a Child Restraint Designed Securing a Child Restraint in a Rear for the LATCH System Outside Seat Position 1. Find the anchors for the seating position you want to use, where the bottom of the seatback meets the back of the seat cushion. 2.
  • Page 75 For vehicles with a full bench seat in the third row, there is no top strap anchor in the driver’s side position. Do not secure a child seat in this position if a national or local law requires that the top strap be anchored, or if the instructions that come with the child restraint say that the top strap must be anchored.
  • Page 76 3. Buckle the belt. Make sure the release button is 4. Pull the rest of the shoulder belt all the way out of positioned so you would be able to unbuckle the the retractor to set the lock. safety belt quickly if you ever had to. 1-70...
  • Page 77 5. To tighten the belt, feed the shoulder belt back into the retractor while you push down on the child restraint. If you’re using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
  • Page 78 Securing a Child Restraint in a Center Seat Position (Third Row Bench Seat) 1. Make the belt as long as possible by tilting the latch plate and pulling it along the belt. 2. Put the restraint on the seat. You’ll be using the lap belt. Be sure to follow the instructions that came with the child restraint.
  • Page 79 To remove the child restraint, just unbuckle the vehicle’s safety belt. It will be ready to work for an adult or larger child passenger. Securing a Child Restraint in a Center Seat Position (Bucket Seat) 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
  • Page 80 2. Pull the lap belt all the way out without stopping. 4. Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the 3. While holding it out, run the belt through or around safety belt quickly if you ever had to.
  • Page 81: Securing A Child Restraint In The Right Front Seat Position

    Securing a Child Restraint in the Right Front Seat Position 5. To tighten the belt, feed it back into the retractor while you push down on the child restraint. If you’re using a forward-facing child restraint, you may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
  • Page 82 Your vehicle has a front passenger air bag. Never put a 2. Put the restraint on the seat. rear-facing child restraint in this seat. Here’s why: 3. Pick up the latch plate, and run the lap and shoulder portions of the vehicle’s safety belt through or around the restraint.
  • Page 83 5. Pull the rest of the lap belt all the way out of the 6. To tighten the belt, feed the shoulder belt back into retractor to set the lock. the retractor while you push down on the child restraint. You may find it helpful to use your knee to push down on the child restraint as you tighten the belt.
  • Page 84 Built-In Child Restraint 60/40 Bench Seat Bucket Seat If your vehicle has this option in a bucket seat, each bucket seat that has the built-in child restraint fits in only one location in your vehicle. To find out where a bucket seat that has a built-in child restraint must be located in your vehicle see Rear Seat Operation on page 1-6 .
  • Page 85 This child restraint system conforms to all applicable Federal Motor Vehicle Safety Standards. CAUTION: Each child restraint is designed for use only by children who weigh between 22 and 40 pounds (10 and 18 kg) BEFORE YOU USE THIS CHILD RESTRAINT, and whose height is between 33.5 and 40 inches BE SURE THE TOP OF THE CHILD’S (850 and 1 016 mm) and who are capable of sitting...
  • Page 86 Securing a Child in the Built-In Child Restraint 2. Rotate the head restraint rearward until it touches the top of the seatback. Make sure there is no gap between the lower edge of the head restraint and the top of the seatback. 1.
  • Page 87 You’ll be using the child restraint’s harness (A) to 3. Lower the child restraint cushion. secure your child. Don’t use the vehicle’s safety belts. 1-81...
  • Page 88 CAUTION: Using the vehicle’s regular safety belts on a child seated on the child restraint cushion can cause serious injury to the child in a sudden stop or crash. If a child is the proper size for the built-in child restraint, secure the child using the child restraint’s harness.
  • Page 89 5. Place the child on the child restraint cushion. 8. Place the other side of the harness over the child’s shoulder. 9. Push the latch plate into the buckle until it clicks. 6. Select only one side of the harness. Place the harness over the child’s shoulder.
  • Page 90 CAUTION: An unfastened shoulder harness clip won’t help keep the harness in place on the child’s shoulders. If the harness isn’t on the child’s shoulders, it won’t be able to restrain the child’s upper body in a sudden stop or crash. The child could be seriously injured.
  • Page 91 12. Pull the shoulder harness adjustment strap (C) 13. Adjust the position of the harness on the child’s firmly until the harness is snugly adjusted around shoulder by moving the clip along the harness the child. You should not be able to put more than until it is level with the child’s armpits.
  • Page 92 Removing the Child from the Built-In Child Restraint 2. Unlatch the harness by pushing the button on the buckle. 3. Move one side of the harness off the child’s 1. Unfasten the shoulder harness clip. shoulder. 4. Move the other side of the harness off the child’s shoulder.
  • Page 93 Storing the Built-In Child Restraint Always properly store the built-in child restraint before using the vehicle’s lap-shoulder belt. 2. Fold the child restraint cushion and leg rest up into the seatback. 3. Press the child restraint cushion firmly into the seatback.
  • Page 94 4. Then press the leg rest firmly into the seatback, 5. Rotate the head restraint forward and push it all the and secure it by pressing the upper corners way down. against the fastener strips on the seatback. Just like the other restraint systems in your vehicle, your built-in child restraint needs to be periodically checked and may need to have parts replaced after a crash.
  • Page 95: Air Bag Systems

    Air Bag Systems This part explains the frontal and side impact air bag systems. Your vehicle has air bags – a frontal air bag for the driver and another frontal air bag for the right front passenger. Your vehicle may also have a side impact air bag.
  • Page 96 Here are the most important things to know about the air bag systems: CAUTION: (Continued) CAUTION: The side impact air bags for the driver and right front passenger are designed to inflate only in moderate to severe crashes where You can be severely injured or killed in a crash something hits the side of your vehicle.
  • Page 97 CAUTION: (Continued) CAUTION: (Continued) Safety belts help keep you in position for air Neither the vehicle’s safety belt system nor its bag inflation before and during a crash. air bag system is designed for them. Young Always wear your safety belt, even with frontal children and infants need the protection that a air bags.
  • Page 98: Where Are The Air Bags

    Where Are the Air Bags? The driver’s frontal air bag is in the middle of the steering wheel. The right front passenger’s frontal air bag is in the instrument panel on the passenger’s side. If your vehicle has one, the driver’s side impact air bag is in the side of the driver’s seatback closest to the door.
  • Page 99 CAUTION: If something is between an occupant and an air bag, the bag might not inflate properly or it might force the object into that person causing severe injury or even death. The path of an inflating air bag must be kept clear. Don’t put anything between an occupant and an air bag, and don’t attach or put anything on the steering wheel hub or on or near any other air...
  • Page 100: When Should An Air Bag Inflate

    When Should an Air Bag Inflate? the crash severity is above the system’s designed “threshold level.” The threshold level can vary with specific vehicle design. Side impact air bags are The driver’s and right front passenger’s frontal air bags not designed to inflate in frontal or near-frontal impacts, are designed to inflate in moderate to severe frontal rollovers or rear impacts, because inflation would not or near-frontal crashes.
  • Page 101: How Does An Air Bag Restrain

    How Does an Air Bag Restrain? What Will You See After an Air Bag Inflates? In moderate to severe frontal or near frontal collisions, even belted occupants can contact the steering wheel or After the air bag inflates, it quickly deflates, so quickly the instrument panel.
  • Page 102 • Your vehicle is equipped with two electronic frontal sensors, which help the sensing system distinguish CAUTION: between a moderate frontal impact and a more severe frontal impact. Your vehicle is also equipped with a crash sensing and diagnostic module, When an air bag inflates, there is dust in the which records information about the frontal air bag air.
  • Page 103: Servicing Your Air Bag-Equipped Vehicle

    Servicing Your Air Bag-Equipped Restraint System Check Vehicle Checking Your Restraint Systems Air bags affect how your vehicle should be serviced. There are parts of the air bag systems in several places Now and then, make sure the safety belt reminder light around your vehicle.
  • Page 104: Replacing Restraint System Parts After A Crash

    Replacing Restraint System Parts If you’ve had a crash, do you need new safety belts or built-in child restraint parts or LATCH system parts? After a Crash After a very minor collision, nothing may be necessary. But if the safety belts or built-in child restraint harness straps were stretched, as they would be if worn during a CAUTION: more severe crash, then you need new parts.
  • Page 105: Features And Controls

    Section 2 Features and Controls Keys ...............2-3 Starting and Operating Your Vehicle ....2-28 Remote Keyless Entry System ......2-5 New Vehicle Break-In ........2-28 Remote Keyless Entry System Operation ...2-6 Ignition Positions ..........2-28 Starting Your Engine ........2-29 Doors and Locks ..........2-9 Engine Coolant Heater ........2-30 Door Locks ............2-9 Automatic Transaxle Operation .......2-31 Power Door Locks ........2-10...
  • Page 106 Section 2 Features and Controls Storage Areas ..........2-47 Vehicle Personalization ........2-56 Glove Box ...........2-47 Entering Programming Mode ......2-57 Cupholder(s) ..........2-47 Delayed Illumination and Exit Lighting ....2-57 Compact Overhead Console ......2-48 Automatic Door Locks ........2-58 Overhead Console ........2-48 Last Door Locking and Lockout Deterrent ..2-59 Front Seat Storage Net .........2-50 Remote Driver Unlock Control ......2-60 Luggage Carrier ...........2-51...
  • Page 107: Keys

    Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. A child or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. Do not leave the keys in a vehicle with children.
  • Page 108 So be sure you have spare keys. If you ever do get locked out of your vehicle, call the Pontiac Roadside Assistance center. See Roadside Assistance Program on page 7-6 . If you need a new key, contact your dealer, who can ®...
  • Page 109: Remote Keyless Entry System

    Remote Keyless Entry System At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer Your keyless entry system operates on a radio to your vehicle for the transmitter to work, try this: frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada.
  • Page 110: Remote Keyless Entry System Operation

    Remote Keyless Entry System When you use your remote keyless entry transmitter to unlock your vehicle or to operate the power sliding Operation door(s), the parking lamps will flash to let you know the command was received. You can lock and unlock If you would like to change the way the parking lamps your doors and the liftgate operate with remote unlock confirmation, see Vehicle...
  • Page 111: Remote Alarm

    Remote Alarm You can operate the power sliding door(s) with the remote keyless entry transmitter only when the power When you press the horn button on the remote keyless sliding door override switch(es) on the overhead console entry transmitter, the parking lamps will flash and the is turned off.
  • Page 112: Battery Replacement

    Battery Replacement Under normal use, the battery in your remote keyless entry transmitter should last about three years. You can tell the battery is weak if the transmitter won’t work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it’s probably time to change the battery.
  • Page 113: Doors And Locks

    Doors and Locks CAUTION: (Continued) Door Locks • Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. Locking your doors can CAUTION: help prevent this from happening. Unlocked doors can be dangerous. There are several ways to lock and unlock your vehicle. •...
  • Page 114: Power Door Locks

    Power Door Locks From the inside, use the manual or power door locks. To unlock either front door from the inside, pull back on From the inside, press the front of the power door lock the manual lever. To lock either front door from the switch (on either front door) to unlock all doors and inside, push the manual lever forward.
  • Page 115: Last Door Closed Locking

    Also, when the doors are locked with the power door If the ignition is in RUN or ACCESSORY, this feature locks, the inside as well as the outside door handle will not lock the doors. cannot open the doors. This safety feature prevents a To turn the last door closed locking feature off or on, door from being accidentally opened from the inside see Vehicle Personalization on page 2-56 .
  • Page 116: Sliding Door Delayed Locking

    Sliding Door Delayed Locking Leaving Your Vehicle If either sliding door is open when you use the power If you are leaving the vehicle, take your keys, open your door locks to lock the vehicle, the sliding door that door and set the locks from the inside. Then get out is open will not lock.
  • Page 117: Sliding Door Lock

    Sliding Door Lock CAUTION: If your vehicle is facing downward on a steep grade (15 percent or more), the door may not stay open and could slam shut, possibly injuring someone. To make sure the door does not slam shut be sure to hold it open until everyone is clear of the door, and only then allow it to slowly close.
  • Page 118: Sliding Door Security Lock

    Sliding Door Security Lock Your vehicle is equipped with a sliding door security lock that helps prevent young children or other passengers from opening the sliding door(s) using the inside door handle. To use one of these locks, do the following: 1.
  • Page 119: Power Sliding Door (Psd)

    If your vehicle has the power sliding door(s), you can Power Sliding Door (PSD) override the security lock by pressing either power door lock switch while the power sliding door override If your vehicle has this feature, you can open and close switch(es) is turned off.
  • Page 120 To help avoid accidental operation of the sliding door(s), If you have the dual sliding press the part of the power sliding door override doors, your vehicle has switch(es) with the don’t symbol. these switches. The left switch is for the driver’s To open or close the sliding door(s), press and release side power sliding door one of the following power door switches.
  • Page 121 This switch is in front of the driver’s or the CAUTION: passenger’s side sliding door. If you shift the transaxle out of PARK (P) and accelerate before the power sliding door latches closed, the door may reverse to the open position. A child or others could fall out of the vehicle and be injured.
  • Page 122 If an object obstructs the power sliding door(s) while it is closing, the door will automatically reverse to the CAUTION: open position, provided it meets sufficient resistance. Resistance must be as strong as the force of the closing door, or stronger. The force of the closing door You or others could be injured if caught in the increases significantly as the door approaches the path of the sliding door.
  • Page 123 CAUTION: If your vehicle is facing downward on a steep grade (15 percent or more), the door may not stay open and could slam shut, possibly injuring someone. To make sure the door does not slam shut, turn on the power sliding door feature.
  • Page 124: Liftgate

    Resetting the Power Sliding Door 7. Press the power sliding door switch(es) to open the power sliding door. The power sliding door may operate incorrectly or not at 8. Open the door all of the way. all because of the following conditions: 9.
  • Page 125 CAUTION: It can be dangerous to drive with the liftgate open because carbon monoxide (CO) gas can come into your vehicle. You can’t see or smell CO. It can cause unconsciousness and even death. If you must drive with the liftgate open or if electrical wiring or other cable connections must pass through the seal between the body and the liftgate:...
  • Page 126: Windows

    Windows CAUTION: Leaving children in a vehicle with the windows closed is dangerous. A child can be overcome by the extreme heat and can suffer permanent injuries or even death from heat stroke. Never leave a child alone in a vehicle, especially with the windows closed in warm or hot weather.
  • Page 127: Power Windows

    Power Windows Express-Down Window To activate the express-down feature, push the AUTO switch all the way down to the second position, then release it. The window will lower completely. To stop the window from lowering all the way, pull up on the front of the switch.
  • Page 128: Sun Visors

    Press the part of the switch with the symbol to close Theft-Deterrent Systems both windows. The windows can be closed fully or partway depending on how long the switch is pressed. Vehicle theft is big business, especially in some cities. Although your vehicle has a number of theft-deterrent The ignition must be in RUN, ACCESSORY or features, we know that nothing we put on it can make it...
  • Page 129 While armed, the doors will not unlock with the power Arming with the Remote Keyless Entry door lock switch. Transmitter Once armed, the alarm will go off if someone tries to Your alarm system will arm when you use your remote enter the vehicle (without using the remote keyless entry keyless entry transmitter to lock the doors, if the key transmitter or a key) or turns the ignition to ON.
  • Page 130: Theft-Deterrent Systems

    Disarming with the Remote Keyless This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: Entry Transmitter (1) this device may not cause interference, and (2) this device must accept any interference received, Your alarm system will disarm when you use your including interference that may cause undesired remote keyless entry transmitter to unlock the doors.
  • Page 131 ® When the PASS-Key III system senses that someone See your dealer or a locksmith who can service ® is using the wrong key, it shuts down the vehicle’s PASS-Key III to get a new key blank that is cut exactly starter and fuel systems.
  • Page 132: Starting And Operating Your Vehicle

    If you are ever driving and the security message comes • Don’t tow a trailer during break-in. See “Towing on and stays on, you will be able to restart your a Trailer” in the Index for more information. ® engine if you turn it off. Your PASS-Key III system, however, is not working properly and must be serviced Ignition Positions...
  • Page 133: Starting Your Engine

    Notice: If your key seems stuck in LOCK and you Retained Accessory Power (RAP) can’t turn it, be sure you are using the correct key; if With RAP, the power windows, power rear quarter so, is it all the way in? If it is, then turn the steering windows, audio system and the automatic level control wheel left and right while you turn the key hard.
  • Page 134: Engine Coolant Heater

    2. If the engine doesn’t start in 10 seconds, push the Engine Coolant Heater accelerator pedal about one-quarter of the way down while you turn the key to START. Do this until the engine starts. As soon as it does, let go of the key.
  • Page 135: To Use The Engine Coolant Heater

    To Use the Engine Coolant Heater How long should you keep the coolant heater plugged in? The answer depends on the outside temperature, the 1. Turn off the engine. kind of oil you have, and some other things. Instead of trying to list everything here, we ask that you contact 2.
  • Page 136 Ensure the shift lever is fully in PARK (P) before starting the engine. Your vehicle has an automatic transaxle CAUTION: (Continued) shift lock control system. You have to fully apply your regular brakes before you can shift from PARK (P) To be sure your vehicle will not move, even when the ignition key is in RUN.
  • Page 137 AUTOMATIC OVERDRIVE (D): This position is for normal driving. If you need more power for passing, and CAUTION: you’re: • Going less than 35 mph (55 km/h), push your Shifting into a drive gear while your engine is accelerator pedal about halfway down. “racing”...
  • Page 138 Warm-Up Shift Notice: Don’t drive in SECOND (2) for more than 25 miles (40 km), or at speeds over 55 mph (90 km/h), Your vehicle has a computer controlled transaxle or you can damage your transaxle. Use THIRD (3) or designed to warm up the engine faster when the outside AUTOMATIC OVERDRIVE (D) as much as possible.
  • Page 139: Parking Brake

    Parking Brake If the ignition is on, the brake system warning light will come on. See Brake System Warning Light on page 3-38 . The parking brake is To release the parking brake, hold the regular brake located on the driver’s side pedal down with your right foot while you push down on under the instrument the parking brake pedal with your left foot.
  • Page 140: Shifting Into Park (P)

    Shifting Into Park (P) 2. Move the shift lever into PARK (P) like this: CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake firmly set. Your vehicle can roll.
  • Page 141: Leaving Your Vehicle With The Engine Running

    Leaving Your Vehicle With the Engine Running CAUTION: It can be dangerous to leave your vehicle with the engine running. Your vehicle could move suddenly if the shift lever is not fully in PARK (P) with the parking brake firmly set. And, if you leave the vehicle with the engine running, it could overheat and even catch fire.
  • Page 142: Shifting Out Of Park (P)

    Torque Lock Shifting Out of Park (P) If you are parking on a hill and you don’t shift your Your vehicle has an automatic transaxle shift lock transaxle into PARK (P) properly, the weight of control system. You have to fully apply your regular the vehicle may put too much force on the parking pawl brakes before you can shift from PARK (P), when in the transaxle.
  • Page 143: Parking Over Things That Burn

    Parking Over Things That Burn Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you can not see or smell. It can cause unconsciousness and death. You might have exhaust coming in if: • Your exhaust system sounds strange or different.
  • Page 144: Running Your Engine While You Are Parked

    Running Your Engine While You CAUTION: Are Parked It’s better not to park with the engine running. But if you It can be dangerous to get out of your vehicle ever have to, here are some things to know. if the shift lever is not fully in PARK (P) with the parking brake firmly set.
  • Page 145: Mirrors

    Mirrors Then use the control to adjust each mirror so that you can see a little of the side of your vehicle and the area beside and behind your vehicle when you are Manual Rearview Mirror sitting in a comfortable driving position. If you are not adjusting either mirror, leave the control in To reduce glare from lights behind you, pull the lever the center off position.
  • Page 146: Outside Heated Mirrors

    Outside Heated Mirrors A completed Subscription Service Agreement is required ® prior to delivery of OnStar services and prepaid ® calling minutes are also required for OnStar Personal If your vehicle has the outside rearview mirrors, they are ® Calling and OnStar Virtual Advisor use.
  • Page 147: Homelink Transmitter

    ® Directions and Connections Plan HomeLink Transmitter • All Safe and Sound Plan services • Route Support • RideAssist • Information and Convenience Services Luxury and Leisure Plan • All Directions and Connections Plan services • Personal Concierge ® OnStar Personal Calling HomeLink, a combined universal transmitter and ®...
  • Page 148: Programming The Homelink

    This device complies with RSS-210 of Industry Canada. Keep the original transmitter for use in other vehicles as ® Operation is subject to the following two conditions: well as for future HomeLink programming. It is also (1) this device may not cause interference, and (2) this recommended that upon the sale of the vehicle, ®...
  • Page 149 3. Simultaneously press and hold both the desired 6. Locate in the garage, the garage door opener ® button on HomeLink and the hand-held transmitter receiver (motor-head unit). Locate the “Learn” button. Do not release the buttons until Step 4 or “Smart”...
  • Page 150: Gate Operator And Canadian Programming

    ® Gate Operator and Canadian Erasing HomeLink Buttons Programming To erase programming from the three buttons do the following: Canadian radio-frequency laws require transmitter signals to “time out” or quit after several seconds of 1. Press and hold down the two outside buttons until transmission.
  • Page 151: Storage Areas

    Resetting Defaults Glove Box ® To reset HomeLink to default settings do the following: Your vehicle has a glove box below the instrument panel. To open the glove box, lift the latch release. 1. Hold down the two outside buttons for about 20 seconds until the indicator light begins to flash.
  • Page 152: Compact Overhead Console

    Compact Overhead Console Overhead Console The front overhead console includes two reading lamps, a storage compartment and a switchbank. Your vehicle may have this feature. The front overhead console has reading lamps, a switchbank, storage compartments, a garage door opener compartment, ®...
  • Page 153 ® If your vehicle has the HomeLink transmitter buttons, they will take the place of the garage door opener compartment. The garage door opener compartment is explained next. For information on the other features listed, see each of them in the Index. Garage Door Opener Compartment You can store your garage door opener in the rear compartment of your overhead console, and operate it...
  • Page 154: Front Seat Storage Net

    Front Seat Storage Net 5. Add one peg at a time until your garage door opener operates with the compartment door closed when you press on it. There may be a storage net that stretches between the front seats. Pull the hooks towards the passenger’s seat and insert them into the holes.
  • Page 155: Luggage Carrier

    Luggage Carrier CAUTION: If you try to carry something on top of your vehicle that is longer or wider than the luggage carrier — like paneling, plywood, a mattress and so forth — the wind can catch it as you drive along.
  • Page 156 Don’t exceed the maximum vehicle capacity when loading your vehicle. For more information on vehicle capacity and loading, see Loading Your Vehicle on page 4-32 . To prevent damage or loss of cargo as you’re driving, check now and then to make sure the luggage carrier and cargo are still securely fastened.
  • Page 157: Rear Storage Area

    Use the tie-down loops on Convenience Net the slider to help secure large loads. Your vehicle may have a convenience net. The convenience net is designed to help keep small loads, like grocery bags, from falling over. Install the convenience net at the rear of your vehicle, inside the liftgate.
  • Page 158: Convenience Center

    Convenience Center CAUTION: If any removable convenience item isn’t secured properly, it can move around in a collision or sudden stop. People in the vehicle could be injured. Be sure to secure any such item properly. Your vehicle may have a convenience center. It comes with the stowable seat.
  • Page 159: Removing The Convenience Center

    Removing the Convenience Center 1. Make sure that all items are off of the convenience center and that it is empty. 2. Turn the hand knob counterclockwise until the knob is loose. 3. Lift up on the hand knob, then grip the convenience center to lift it up.
  • Page 160: Vehicle Personalization

    The tray sill can be folded down onto the stowable seat Vehicle Personalization to close the space between the two while the stowable seat is folded down. To do this, flip the sill plate up and Your vehicle’s locks and lighting systems can be over toward the stowable seat.
  • Page 161: Entering Programming Mode

    Entering Programming Mode Delayed Illumination and Exit Lighting To program features, your vehicle must be in the programming mode. Follow these steps: This feature allows you to customize the interior lamps 1. The content theft-deterrent system must be when entering and exiting the vehicle. disarmed.
  • Page 162: Automatic Door Locks

    To determine the current mode, or to change the mode, Automatic Door Locks do the following: This feature allows you to customize the automatic 1. Follow the instructions for “Entering Programming locking and unlocking of the doors when using the shift Mode”...
  • Page 163: Last Door Locking And Lockout Deterrent

    Mode 4: Automatic Unlocking with Transaxle in Last Door Locking and Lockout PARK (P) Deterrent • Shift into PARK (P) with the ignition on; all doors will unlock automatically. This feature allows you to customize the automatic locking of the doors when exiting the vehicle. •...
  • Page 164: Remote Driver Unlock Control

    To determine the current mode, or to change the mode, Remote Driver Unlock Control do the following: This feature allows you to customize the UNLOCK 1. Follow the instructions for Entering Programming button on the remote keyless entry transmitter. Mode on page 2-57 . Programmable Modes 2.
  • Page 165: Remote Lock And Unlock Confirmation

    To determine the current mode, or to change the mode, Remote Lock and Unlock do the following: Confirmation 1. Follow the instructions for Entering Programming Mode on page 2-57 . If your vehicle has this feature, it allows you to customize the feedback received when locking or 2.
  • Page 166 Mode 3: Exterior Lamps Flash and Horn Sounds To determine the current mode, or to change the mode, do the following: • When you use the remote keyless entry transmitter 1. Follow the instructions for Entering Programming to lock your vehicle, the horn will sound and your Mode on page 2-57 .
  • Page 167: Content Theft-Deterrent System

    Content Theft-Deterrent System To determine the current mode, or to change the mode, do the following: This feature allows you to turn the content theft deterrent 1. Follow the instructions for Entering Programming on and off. Mode on page 2-57 . Programmable Modes 2.
  • Page 168: Arming And Disarming The Content

    Arming and Disarming the Content While this mode provides increased security, it can be a problem if your remote keyless entry transmitter is Theft-Deterrent System damaged, lost or if it fails to operate for any reason while the content theft-deterrent system is armed. The To arm or disarm the content theft-deterrent system, the content theft-deterrent system must be disarmed for the system must be turned on by using Modes 1, 2 or 4...
  • Page 169: Exiting Programming Mode

    To determine the current mode, or to change the mode, 5. Press the panic button to change the current mode. do the following: 6. Press the panic button until you hear the number 1. Follow the instructions for Entering Programming of chimes corresponding to the mode selection you Mode on page 2-57 .
  • Page 170 NOTES 2-66...
  • Page 171: Instrument Panel

    Section 3 Instrument Panel Instrument Panel Overview .......3-4 Tachometer ..........3-36 Hazard Warning Flashers ........3-6 Safety Belt Reminder Light ......3-37 Other Warning Devices ........3-6 Air Bag Readiness Light ........3-37 Horn .............3-7 Brake System Warning Light ......3-38 Tilt Wheel .............3-7 Anti-Lock Brake System Warning Light .....3-39 Turn Signal/Multifunction Lever ......3-7 Traction Control System (TCS) Warning Light ..3-39 Exterior Lamps ..........3-14...
  • Page 172 Section 3 Instrument Panel Driver Information Center (DIC) .......3-51 Theft-Deterrent Feature ........3-91 Audio Steering Wheel Controls .......3-92 Audio System(s) ..........3-53 DVD Distortion ..........3-93 Setting the Time ...........3-54 Understanding Radio Reception ......3-93 Radio with CD ..........3-54 Care of Your Cassette Tape Player ....3-93 Radio with Cassette and CD ......3-61 Care of Your CDs and DVDs ......3-95 Radio with Six-Disc CD .........3-71...
  • Page 173 NOTES...
  • Page 174: Instrument Panel Overview

    Instrument Panel Overview...
  • Page 175 The main components of the instrument panel are the following: A. Side Outlets. See Outlet Adjustment on page 3-26 . M. Ignition Switch. See Ignition Positions on page 2-28 . B. Front Outlets. See Outlet Adjustment on page 3-26 . N.
  • Page 176: Hazard Warning Flashers

    Hazard Warning Flashers Your hazard warning flashers button is located on top of the steering column. Your hazard warning flashers work no matter what position your key is in, and even if the key isn’t in. Press the button to make the front and rear turn signal lamps flash on and off.
  • Page 177: Horn

    Horn Turn Signal/Multifunction Lever You can sound the horn by pressing the horn symbols on your steering wheel. Tilt Wheel A tilt wheel allows you to adjust the steering wheel before you drive. You can raise it to the highest level to give your legs more room when you exit and enter the vehicle.
  • Page 178 Turn and Lane-Change Signals If you have a trailer towing option with added wiring for the trailer lamps, the signal indicator will flash at a The turn signal has two upward (for right) and two normal rate even if a turn signal bulb is burned downward (for left) positions.
  • Page 179: Windshield Wipers

    Flash-to-Pass Remember that damaged wiper blades may prevent you from seeing well enough to drive safely. To avoid When the headlamps are off, pull the lever toward you damage, be sure to clear ice and snow from the wiper to momentarily switch on the high beams (to signal blades before using them.
  • Page 180: Cruise Control

    Rear Window Washer/Wiper When the top of the switch is released, the wiper will continue to cycle three more times. There is only Your vehicle may have a one washer fluid reservoir for the front and rear rear window wiper. If it windshield wipers.
  • Page 181 Setting Cruise Control CAUTION: CAUTION: • Cruise control can be dangerous where you can’t drive safely at a steady speed. If you leave your cruise control on when you’re So, don’t use your cruise control on not using cruise, you might hit a button and go winding roads or in heavy traffic.
  • Page 182 You’ll go right back up to your chosen speed and stay there. If you hold the switch at R/A, the vehicle will keep going faster until you release the switch or apply the brake. So unless you want to go faster, don’t hold the switch at R/A.
  • Page 183 Reducing Speed While Using Cruise Using Cruise Control on Hills Control How well your cruise control will work on hills depends upon your speed, load and the steepness of the There are two ways to reduce speed while using cruise hills.
  • Page 184: Exterior Lamps

    Exterior Lamps (Parking Lamps): Turning the control to this setting turns on the parking lamps together with the following: • Sidemarker Lamps • Taillamps • Instrument Panel Lights (Headlamps): Turning the control to this setting turns on the headlamps, together with the previously listed lamps and lights.
  • Page 185: Fog Lamps

    A light sensor on top of the instrument panel makes the To idle your vehicle with the DRL and automatic DRL work, so be sure it isn’t covered. The DRL headlamp control off, set the parking brake while the system will make your front parking and turn signal ignition is in OFF or LOCK.
  • Page 186: Interior Lamps

    When your DRL are on, the exterior lamps control must Interior Lamps Override first be turned from the off position before the fog lamps can be turned on. This switch is located in the overhead console Your parking lamps or headlamps must be on for your switchbank.
  • Page 187: Entry Lighting

    Entry Lighting Delayed Lighting With entry lighting, the interior of your vehicle is The delayed lighting feature will continue to illuminate illuminated so that you can see inside before you enter the interior for 25 seconds after all doors have been your vehicle.
  • Page 188: Rear Reading Lamps

    When any door is opened, exit lighting is cancelled. The To turn either reading lamp on or off, press the lens of interior lamps will stay on while any door or the liftgate the lamp. These lamps will come on each time you is open, and slowly fade out when all doors and the open a door, unless you turn on the interior lamps liftgate are closed.
  • Page 189: Switchbanks

    Battery Run-Down Protection Instrument Panel Switchbank Your vehicle has a feature to help prevent you from draining the battery, in case you accidentally leave the interior lamps on. If you leave any interior lamps on while the ignition is in LOCK or OFF, they will automatically turn off after 10 minutes.
  • Page 190: Overhead Console Switchbank

    Overhead Console Switchbank Ultrasonic Rear Parking Assist (URPA) The Ultrasonic Rear Parking Assist (URPA) system is designed to help you park, while the vehicle is in REVERSE (R). It operates only at very low speeds, less than 3 mph (5 km/h). URPA can help make parking easier and to help you avoid colliding with objects such as parked vehicles.
  • Page 191: How The System Works

    URPA can be turned off by pressing the rear park aid CAUTION: disable switch located in the instrument panel switchbank. While Even with the Ultrasonic Rear Park Assist the system is disabled, an system, the driver must check carefully before indicator light will be lit backing up.
  • Page 192: Accessory Power Outlets

    If an object is detected at a REVERSE (R) speed of rear bumper and then driving forward at least 15 mph less than 3 mph (5 km/h), one of the following will occur: (25 km/h), the display continues to flash red, see your dealer.
  • Page 193: Climate Controls

    To remove the cover, pull the tab on the cover and pull Notice: Power outlets are designed for accessory it off. To put the cover back on, line up the tabs at plugs only. Do not hang any type of accessory the back of the cover and put the cover in place.
  • Page 194 Operation (Outside Air): Press this button to turn the outside air mode on or off. When this mode is on, Turn the right knob clockwise or counterclockwise to outside air will circulate throughout your vehicle. When direct the airflow inside of your vehicle. this mode is on, an indicator light in the button will To change the current mode, select one of the following: come on to let you know that it is activated.
  • Page 195: Defogging And Defrosting

    You may notice a slight change in engine performance Defogging and Defrosting when the air-conditioning compressor shuts off and Fog on the inside of windows is a result of high humidity turns on again. This is normal. The system is designed (moisture) condensing on the cool window glass.
  • Page 196: Rear Window Defogger

    Rear Window Defogger Outlet Adjustment The rear window defogger uses a warming grid to remove fog from the rear window. < REAR: Press this button to turn the rear window defogger on or off. An indicator light in the button will come on to let you know that the rear window defogger is activated.
  • Page 197: Rear Climate Control System

    Rear Climate Control System (Without Entertainment System) Your vehicle may have a rear climate-control system that allows the driver to adjust the fan speed or a rear-seat passenger to set a separate temperature and adjust the fan speed, for the rear-seating area. This system works with the main climate-control system in your vehicle.
  • Page 198 Directing the Airflow If using the main climate-control panel, then the air-conditioning system must be on to direct cooled air To direct the airflow to the rear-seating area, use the to the rear of the vehicle. If it is not on, then the right knob located on the main climate-control panel.
  • Page 199: Entertainment System)

    Rear Climate Control System (With Entertainment System) Your vehicle may have a rear climate-control system that allows the driver to adjust the fan speed or a rear-seat passenger to set a separate temperature and adjust the fan speed, for the rear-seating area. This system works with the main climate-control system in These controls are overhead, on the control panel your vehicle.
  • Page 200 Directing the Airflow If a rear-seat passenger is adjusting the fan speed, use the following control: To direct the airflow to the rear-seating area, use the FAN: Press the FAN button on the rear control panel. right knob located on the main climate-control panel. The display will show the current setting.
  • Page 201: Passenger Compartment Air Filter

    Rear Air Outlets Passenger Compartment Air Filter To increase airflow through the rear floor outlets, place Passenger compartment air, both outside and the left bucket seat in the second row in the forward recirculated air, is routed through a passenger position.
  • Page 202 The access panel for the passenger compartment air filter is located in the back of the glove box. To replace the filter, do the following: 2. Then push the tab, located on the left of the inner access panel, to the right. 3.
  • Page 203: Warning Lights, Gages And Indicators

    Warning Lights, Gages and Gages can indicate when there may be or is a problem with one of your vehicle’s functions. Often gages Indicators and warning lights work together to let you know when there’s a problem with your vehicle. This part describes the warning lights and gages that When one of the warning lights comes on and stays on may be on your vehicle.
  • Page 204: Instrument Panel Cluster

    Instrument Panel Cluster Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re going, how much fuel you’re using, and many other things you’ll need to drive safely and economically. The indicator warning lights and gages are explained on the following pages.
  • Page 205: Speedometer And Odometer

    Speedometer and Odometer OIL in the display window). The display can be toggled between the odometer, the trip odometers and engine oil life by quickly pressing and releasing the trip/reset Your speedometer lets you see your speed in both button located to the right of the temperature gage. The miles per hour (mph) and kilometers per hour (km/h).
  • Page 206: Tachometer

    Retro-Active Reset Tachometer Each of the two trip odometers has a feature called The tachometer displays retro-active reset. This feature can be used to set either the engine speed in (or both) trip odometer(s) to the number of miles revolutions per minute (kilometers) driven since the ignition was last turned on.
  • Page 207: Safety Belt Reminder Light

    Safety Belt Reminder Light This light will come on when you start your vehicle, and it will flash for When the key is turned to RUN or START, a chime will a few seconds. Then come on for several seconds to remind people to the light should go out.
  • Page 208: Brake System Warning Light

    The air bag readiness light should flash for a few This light should come on briefly when you turn the seconds when you turn the ignition key to RUN. If the ignition key to RUN. If it doesn’t come on then, have it light doesn’t come on then, have it fixed so it will fixed so it will be ready to warn you if there’s a be ready to warn you if there is a problem.
  • Page 209: Anti-Lock Brake System Warning Light

    Anti-Lock Brake System Warning Traction Control System (TCS) Light Warning Light Your vehicle may have this light. If it does, the anti-lock brake system warning light should come on for a few seconds when you turn the ignition key to RUN. United States Canada Your vehicle may have a traction control system...
  • Page 210: Engine Coolant Temperature Gage

    • Engine Coolant Temperature Gage If there’s a brake system problem that is specifically related to traction control, the traction control system will turn off and the warning light will come on. If your brakes begin to overheat, the traction control system will turn off and the warning light will come on until your brakes cool down.
  • Page 211: Malfunction Indicator Lamp

    Malfunction Indicator Lamp The SERVICE ENGINE SOON or CHECK ENGINE light comes on to indicate that there is a problem and service is required. Malfunctions often will be indicated Service Engine Soon Light in the by the system before any problem is apparent. This United States or Check Engine Light in may prevent more serious damage to your vehicle.
  • Page 212: If The Light Is On Steady

    This light should come on, as a check to show you it is If the light continues to flash, when it is safe to do so, stop the vehicle. Find a safe place to park your vehicle. working, when the ignition is on and the engine is not running.
  • Page 213: Emissions Inspection And Maintenance Programs

    Have you recently changed brands of fuel? Emissions Inspection and Maintenance Programs If so, be sure to fuel your vehicle with quality fuel. See Gasoline Octane on page 5-4 . Poor fuel quality will Some state/provincial and local governments have or cause your engine not to run as efficiently as designed.
  • Page 214: Fuel Gage

    Fuel Gage Here are four things some owners ask about. All these things are normal and do not indicate that anything is wrong with the fuel gage. • At the gas station, the gas pump shuts off before the gage reads full. •...
  • Page 215: Service Traction System Warning Message

    Service Traction System Warning • If the traction control system is affected by an engine-related problem, the system will turn off and Message the warning message will come on. If the traction control system warning message comes on and stays on for an extended period of time when the system is turned on, your vehicle needs service.
  • Page 216: Charging System Indicator Message

    Engine Coolant Temperature Charging System Indicator Message Warning Message The charging system battery symbol will come on in the message center when you turn on the ignition as a check to show you it is working. It will remain on as long as the engine is not running. It United States Canada should go out once the engine is running.
  • Page 217: Low Oil Pressure Message

    Low Oil Pressure Message CAUTION: Don’t keep driving if the oil pressure is low. If you do, your engine can become so hot that it catches fire. You or others could be burned. Check your oil as soon as possible and have your vehicle serviced.
  • Page 218: Change Engine Oil Message

    Change Engine Oil Message Power Sliding Door Warning Message United States Canada United States Canada If this message comes on and stays on after you started the engine, have the oil changed. This message will come on if the power sliding door is For additional information on when to change the oil not completely closed and the ignition is turned to and resetting the system, see Engine Oil on page 5-13 .
  • Page 219: Door Ajar Warning Message

    Rear Hatch Ajar Warning Message CAUTION: If you shift the transaxle out of PARK (P) and accelerate before the power sliding door latches closed, the door may reverse to the open position. A child or others could fall out of the vehicle and be injured. Always make sure the power sliding door is closed and United States Canada...
  • Page 220: All-Wheel Drive Disable Warning Message

    ® Your PASS-Key III system, however, is not working The all-wheel drive system will be disabled until the properly and must be serviced by your dealer. Your compact spare tire is replaced by a full-size tire. If the ® vehicle is not protected by the PASS-Key III system at warning message is still on after putting on the full-size ®...
  • Page 221: Driver Information Center (Dic)

    Driver Information Center (DIC) MODE: Press this button to cycle through three modes of operation – off, compass/temperature and trip computer mode. Off: No driver information is displayed in this mode of operation. Compass/Temperature Mode: One of eight compass readings and the outside temperature are displayed. If the temperature is below 38°F (3°C), the temperature reading will toggle between displaying the outside temperature and the word ICE for two minutes.
  • Page 222 Setting the Variance The display will show all the display segments briefly to acknowledge the change in the zone number. Automatic Compass Calibration The compass is self-calibrating, which eliminates the need to manually set the compass. When the vehicle is new, the calibration process may not be complete.
  • Page 223: Audio System(S)

    Error Displays Resetting the Trip Computer • An error of the vehicle’s speed sensor or fuel Press and hold the MODE and E/M buttons for at least two seconds. The reset is acknowledged with the sender will cause -E- to be displayed. display showing all segments briefly.
  • Page 224: Setting The Time

    Figure out which radio you have in your vehicle, find out Radio with CD what your audio system can do and how to operate all of its controls to be sure you’re getting the most out of the advanced engineering that went into it. Your vehicle has a feature called Retained Accessory Power (RAP).
  • Page 225 Set the volume at the desired level. Press this button to SCAN : Press and hold one of the SCAN arrows select MIN, MED or MAX. Each higher choice allows for for two seconds until SCAN appears on the display more volume compensation at faster vehicle speeds.
  • Page 226 5. Press and hold one of the six numbered 4. Press EQ or turn the SELECT knob to select the pushbuttons until you hear a beep. Whenever you desired EQ number. press that numbered pushbutton, the station 5. Press and hold the EQ button or push the SELECT you set will return and the equalization that you knob to store the equalization setting and the selected will also be automatically selected for that...
  • Page 227 Using RDS Finding a PTY Station Your audio system is equipped with a Radio Data To select and find a desired PTY perform the following: System (RDS). RDS features are available for use only 1. Press PROG TYPE. The PTY symbol will be on FM stations that broadcast RDS information.
  • Page 228 BAND (Alternate Frequency): Alternate frequency RDS Messages allows the radio to switch to a stronger station with the same programming. Press and hold BAND for two ALERT!: Alert warns of national or local emergencies. seconds to turn alternate frequency on. AF ON When an alert announcement comes on the current will appear on the display.
  • Page 229 TRAF (Traffic): If TRAF appears on the display, the Radio Messages tuned station broadcasts traffic announcements. To receive the traffic announcement from the tuned CALIBRATE: Your audio system has been calibrated station, press this button. Brackets will be displayed for your vehicle from the factory. If CALIBRATE appears around TRAF and when a traffic announcement comes on the display, it means that your radio has not been on the tuned radio station you will hear it.
  • Page 230 If playing a CD-R the sound quality may be reduced EQ (Equalizer): Press EQ to select the desired due to CD-R quality, the method of recording, the quality customized equalization setting while playing a compact of the music that has been recorded and the way the disc.
  • Page 231: Radio With Cassette And Cd

    CD AUX (Auxiliary): Press this button to play a Radio with Cassette and CD compact disc when listening to the radio. CD will appear on the display when a compact disc is loaded. (Eject): Press this button to eject a CD. Eject may be activated with either the ignition or radio off.
  • Page 232 The volume level should always sound the same to you To scan preset stations, press and hold one of the as you drive. If you don’t want to use SCV, select OFF. SCAN arrows for more than four seconds until PSCAN and the preset number appear on the display.
  • Page 233 Setting the Tone (Bass/Treble) 5. Press and hold the EQ button or push the SELECT knob to store the equalization setting and the number. You will hear a beep and EQ SAVED will TONE: Press and release this button until BASS, MID appear on the display.
  • Page 234 Using RDS Finding a PTY Station Radio Data System (RDS): Your audio system is To select and find a desired PTY perform the following: equipped with a Radio Data System (RDS). RDS 1. Press PROG TYPE. The PTY symbol will be features are available for use only on FM stations that displayed on the screen.
  • Page 235 BAND (Alternate Frequency): Alternate frequency RDS Messages allows the radio to switch to a stronger station with the same programming. Press and hold BAND for two ALERT!: Alert warns of local or national emergencies. seconds to turn alternate frequency on. AF ON When an alert announcement comes on the current will appear on the display.
  • Page 236: Playing A Cassette Tape

    TRAF (Traffic): If TRAF appears on the display, the Radio Messages tuned station broadcasts traffic announcements. To receive the traffic announcement from the tuned CALIBRATE: Your audio system has been calibrated station, press this button. Brackets will be displayed for your vehicle from the factory. If CALIBRATE appears around TRAF and when a traffic announcement comes on the display, it means that your radio has not been on the tuned radio station you will hear it.
  • Page 237 Your tape bias is set automatically when a metal or SEEK : Your tape must have at least three chrome tape is inserted. If you want to insert a seconds of silence between each selection for seek to tape while the ignition is off, first press the eject button work.
  • Page 238: Cassette Tape Messages

    Cassette Tape Messages CD Adapter Kits If an error occurs while trying to play a cassette tape, it It is possible to use a portable CD player adapter kit could be for one of the following reasons: with your cassette tape player after disabling the tight/loose tape sensing feature on your tape player.
  • Page 239 As each new track starts to play, the track number will (Reverse): Press and hold this pushbutton to appear on the display. reverse quickly within a track. You will hear sound at a reduced volume. Release it to play the passage. The integral CD player can play the smaller 8 cm single The display will show elapsed time.
  • Page 240 RCL (Recall): Push this knob to see how long the Compact Disc Messages current track has been playing. To change the default on the display (track or elapsed time), push the CHECK CD: If this message appears on the radio knob until you see the display you want, then hold the display and the disc comes out, it could be for one of knob until the display flashes.
  • Page 241: Radio With Six-Disc Cd

    Radio with Six-Disc CD the volume, as necessary, to overcome noise at any speed. The volume level should always sound the same to you as you drive. If you don’t want to use automatic volume, select OFF. RCL (Recall): Push this knob to switch the display between the time and the radio station frequency.
  • Page 242 4. Press AUTO EQ to select the equalization that best SCAN : Press and hold either SCAN arrow for suits the type of station selected. two seconds until SC appears on the display and you hear a beep. The radio will go to a station, play for 5.
  • Page 243 AUTO EQ (Automatic Equalization): Press this button Using RDS to choose between bass, midrange and treble Your audio system is equipped with a Radio Data equalization settings designed for country, jazz, talk, System (RDS). RDS features are available for use only pop, rock and classical program types.
  • Page 244 Finding a PTY Station SCAN: You can also scan through the channels within a category by performing the following: To select and find a desired PTY perform the following: 1. Press the P-TYPE button. P-TYPE and the last 1. Press the P-TYPE button. P-TYPE and the last selected PTY will be displayed on the screen.
  • Page 245 Setting Preset PTYs INFO (Information): If the current station has a message, INFO will appear on the display. Press this The six numbered pushbuttons let you return to your button to see the message. The message may display favorite PTYs. These buttons have factory PTY presets. the artist and song title, call in phone numbers, etc.
  • Page 246 If the brackets are on the display and TRAF is not, you Do not add paper labels to discs, they could get caught can then press the TRAF button to remove the in the CD player. brackets or use the TUNE knob or the SEEK arrows to Do not play 3 inch discs without a standard adapter disc.
  • Page 247 To insert multiple discs, do the following: If the radio is on or off, the last disc loaded will begin to play automatically. 1. Turn the ignition on. As each new track starts to play, the track number will 2. Press and hold the LOAD side of the LOAD CD appear on the display.
  • Page 248 REMOVE CD will be displayed. You can now remove RPT (Repeat): With repeat, you can repeat one track the disc. If the disc is not removed, after 25 seconds, the or an entire disc. To use repeat, do the following: disc will be automatically pulled back into the receiver.
  • Page 249: Using Song List Mode

    AUTO EQ (Automatic Equalization): Press AUTO EQ RCL (Recall): Push this knob to see how long the to select the desired equalization setting while playing current track has been playing. To change the default a compact disc. The equalization will be automatically on the display (track and elapsed time), push the set whenever you play a compact disc.
  • Page 250 4. Press and hold the SONG LIST button for two or 4. Press and hold the SONG LIST button for two more seconds to save the track into memory. seconds. When pressing SONG LIST, one beep When SONG LIST is pressed a beep will be heard will be heard immediately.
  • Page 251: Before You Drive

    Compact Disc Messages Entertainment System Your vehicle may have an optional Digital Video Disc CHECK CD: If this message appears on the radio (DVD) entertainment system. The entertainment system display, it could be due to one of the following reasons: works with the vehicle’s audio system and includes a •...
  • Page 252 Headphones If the channel switch located on the right side is on A, the headphones will play the DVD or auxiliary device. See “Stereo RCA Jacks” later in this section for The entertainment system more information. If the channel switch is on B, the includes dual channel, headphones will play the rear seat audio system.
  • Page 253: Stereo Rca Jacks

    Stereo RCA Jacks Sound from the DVD player or an auxiliary device can be heard through all speakers when the front audio The RCA jacks are located on the faceplate of the DVD system and rear seat audio are off and a DVD or player.
  • Page 254: Dvd Player

    To use the video screen, do the following: DVD Player 1. Push forward on the release button and the screen will fold down. 2. Pull the screen toward you and adjust its position as desired. When the video screen is not in use, push it up into its locked position.
  • Page 255 DVD Player Buttons Some DVDs will not allow you to fast forward or skip the copyright or previews. Some DVDs will begin playing SOURCE: Press this button to switch the source for the the movie automatically after the previews have entertainment system between the auxiliary device finished (although there may be a delay of up to 30 (connected to the RCA jacks) and the DVD player.
  • Page 256: Remote Control

    Remote Control Remote Control Buttons Volume : Press the To use the remote control, aim it at the display above the video screen and press the desired button. up or the down arrow to increase or to decrease Direct sunlight or very bright light may affect the ability volume.
  • Page 257 Battery Replacement Fwd/ Rev (Fast Forward/Reverse): Press the right or left arrow once to fast forward or reverse To change the batteries, do the following: the DVD. To resume play, press the button again or press the Play/Pause button. Pressing and holding an 1.
  • Page 258: Entertainment System

    Rear Seat Audio (RSA) (Without Rear Seat Radio Controls Entertainment System) This feature allows rear seat passengers to listen to and control any of the music sources: radio, cassette tapes and CDs. However, the rear seat passengers can only control the music sources that the front seat passengers are not listening to.
  • Page 259 P.SET PROG (Preset Program): The front passengers SEEK : While listening to the radio, press the up must be listening to something different for each of or the down arrow to tune to the next or the previous these functions to work: station and stay there.
  • Page 260: Rear Seat Audio (Rsa) (With

    Rear Seat Audio (RSA) (With Rear Seat Radio Controls Entertainment System) This feature allows rear seat passengers to listen to and control any of the music sources: radio, cassette tapes and CDs. However, the rear seat passengers can only control the music sources that the front seat passengers are not listening to.
  • Page 261 While listening to a cassette tape, press the right arrow to • If your vehicle has the AM-FM Radio with Six-Disc hear the next selection on the tape. Press the left arrow to Compact Disc Player with Equalization and Radio go back to the previous selection.
  • Page 262: Audio Steering Wheel Controls

    Audio Steering Wheel Controls AM FM: Press this button to choose AM, FM1 or FM2. If a cassette tape or a compact disc is playing, it will stop and the radio will play. If your vehicle has this feature, you can control certain radio and remote playback functions using the SEEK : Press the up or the down arrow to tune...
  • Page 263: Dvd Distortion

    DVD Distortion Care of Your Cassette Tape Player You may experience video distortion when operating A tape player that is not cleaned regularly can cause cellular phones, scanners, CB radios, Global Position reduced sound quality, ruined cassettes or a damaged Systems (GPS)*, two-way radios, mobile fax, or mechanism.
  • Page 264 The cut tape detection feature of your cassette tape You may also choose a non-scrubbing action, wet-type player may identify the cleaning cassette as a damaged cleaner which uses a cassette with a fabric belt to tape, in error. To prevent the cleaning cassette from clean the tape head.
  • Page 265: Care Of Your Cds And Dvds

    Care of Your CDs and DVDs Cleaning Your DVD Player Handle discs carefully. Store them in their original cases When cleaning the outside DVD cabinet face and or other protective cases and away from direct sunlight buttons, use only a clean cloth dampened with clean and dust.
  • Page 266 NOTES 3-96...
  • Page 267: Driving Your Vehicle

    Section 4 Driving Your Vehicle Your Driving, the Road, and Your Vehicle ..4-2 City Driving ..........4-20 Defensive Driving ...........4-2 Freeway Driving ...........4-21 Drunken Driving ..........4-2 Before Leaving on a Long Trip .......4-22 Control of a Vehicle ........4-5 Highway Hypnosis ........4-23 Braking ............4-6 Hill and Mountain Roads ........4-24 Traction Control System (TCS) ......4-8...
  • Page 268: Your Driving, The Road, And Your Vehicle

    Your Driving, the Road, and Defensive driving requires that a driver concentrate on the driving task. Anything that distracts from the driving Your Vehicle task — such as concentrating on a cellular telephone call, reading, or reaching for something on the floor — makes proper defensive driving more difficult and can even Defensive Driving cause a collision, with resulting injury.
  • Page 269 Police records show that almost half of all motor According to the American Medical Association, a vehicle-related deaths involve alcohol. In most cases, 180 lb (82 kg) person who drinks three 12 ounce these deaths are the result of someone who was (355 ml) bottles of beer in an hour will end up with a drinking and driving.
  • Page 270 BAC would be close to 0.12 percent. A person who Statistics show that the chance of being in a collision consumes food just before or during drinking will have a increases sharply for drivers who have a BAC of somewhat lower BAC level. 0.05 percent or above.
  • Page 271: Control Of A Vehicle

    Control of a Vehicle CAUTION: You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering and the accelerator. All three systems have to do their work at Drinking and then driving is very dangerous. the places where the tires meet the road.
  • Page 272: Braking

    Braking with the traffic and allow realistic following distances, you will eliminate a lot of unnecessary braking. That means better braking and longer brake life. Braking action involves perception time and reaction time. If your engine ever stops while you’re driving, brake normally but don’t pump your brakes.
  • Page 273 The anti-lock system can change the brake pressure faster than any driver could. The computer is programmed to make the most of available tire and road conditions. This can help you steer around the obstacle while braking hard. Let’s say the road is wet and you’re driving safely. Suddenly, an animal jumps out in front of you.
  • Page 274: Traction Control System (Tcs)

    Remember: Anti-lock doesn’t change the time you need If you don’t have anti-lock, use a “squeeze” braking to get your foot up to the brake pedal or always technique. This will give you maximum braking while decrease stopping distance. If you get too close to the maintaining steering control.
  • Page 275 If your vehicle is in cruise control when the traction You should turn the system off if your vehicle ever gets control system begins to limit wheel spin, the cruise stuck in sand, mud or snow and rocking the vehicle control will automatically disengage.
  • Page 276: All-Wheel Drive (Awd) System

    All-Wheel Drive (AWD) System Steering If your vehicle has all-wheel drive (AWD), the AWD Power Steering system operates automatically without any action required by the driver. If the front drive wheels begin to If you lose power steering assist because the engine slip, the rear wheels will automatically begin to drive stops or the system is not functioning, you can steer but the vehicle as required.
  • Page 277: Steering In Emergencies

    Suppose you’re steering through a sharp curve. Then Steering in Emergencies you suddenly apply the brakes. Both control There are times when steering can be more effective systems — steering and braking — have to do their than braking. For example, you come over a hill and find work where the tires meet the road.
  • Page 278: Off-Road Recovery

    Off-Road Recovery You may find that your right wheels have dropped off the edge of a road onto the shoulder while you’re driving. An emergency like this requires close attention and a quick decision. If you are holding the steering wheel at the recommended 9 and 3 o’clock positions, you can turn it a full 180 degrees very quickly without removing either hand.
  • Page 279: Passing

    Passing • Do not get too close to the vehicle you want to pass while you’re awaiting an opportunity. For The driver of a vehicle about to pass another on a one thing, following too closely reduces your area two-lane highway waits for just the right moment, of vision, especially if you’re following a larger accelerates, moves around the vehicle ahead, then vehicle.
  • Page 280: Loss Of Control

    • Loss of Control Check your mirrors, glance over your shoulder, and start your left lane change signal before moving out Let’s review what driving experts say about what of the right lane to pass. When you are far happens when the three control systems (brakes, enough ahead of the passed vehicle to see its front steering and acceleration) don’t have enough friction in your inside mirror, activate your right lane...
  • Page 281 A cornering skid is best handled by easing your foot off While driving on a surface with reduced traction, try the accelerator pedal. your best to avoid sudden steering, acceleration or braking (including engine braking by shifting to a If you have the Traction Control System, remember: It lower gear).
  • Page 282: Driving At Night

    Driving at Night Here are some tips on night driving. • Drive defensively. • Don’t drink and drive. • Adjust your inside rearview mirror to reduce the glare from headlamps behind you. • Since you can’t see as well, you may need to slow down and keep more space between you and other vehicles.
  • Page 283: Driving In Rain And On Wet Roads

    You can be temporarily blinded by approaching Driving in Rain and on Wet Roads headlamps. It can take a second or two, or even several seconds, for your eyes to readjust to the dark. When you are faced with severe glare (as from a driver who doesn’t lower the high beams, or a vehicle with misaimed headlamps), slow down a little.
  • Page 284 The heavier the rain, the harder it is to see. Even if your Driving too fast through large water puddles or even windshield wiper blades are in good shape, a heavy going through some car washes can cause problems, rain can make it harder to see road signs and too.
  • Page 285: Driving Through Flowing Water

    Hydroplaning Driving Through Flowing Water Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the CAUTION: water. This can happen if the road is wet enough and you’re going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road.
  • Page 286: City Driving

    City Driving Here are ways to increase your safety in city driving: • Know the best way to get to where you are going. Get a city map and plan your trip into an unknown part of the city just as you would for a cross-country trip.
  • Page 287: Freeway Driving

    Freeway Driving The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving. Too-fast or too-slow driving breaks a smooth traffic flow. Treat the left lane on a freeway as a passing lane.
  • Page 288: Before Leaving On A Long Trip

    Before changing lanes, check your mirrors. Then use Before Leaving on a Long Trip your turn signal. Make sure you’re ready. Try to be well rested. If you Just before you leave the lane, glance quickly over your must start when you’re not fresh — such as after a day’s shoulder to make sure there isn’t another vehicle in work —...
  • Page 289: Highway Hypnosis

    Here are some things you can check before a trip: Highway Hypnosis • Windshield Washer Fluid: Is the reservoir full? Are Is there actually such a condition as “highway all windows clean inside and outside? hypnosis”? Or is it just plain falling asleep at the wheel? •...
  • Page 290: Hill And Mountain Roads

    Hill and Mountain Roads If you drive regularly in steep country, or if you’re planning to visit there, here are some tips that can make your trips safer and more enjoyable. • Keep your vehicle in good shape. Check all fluid levels and also the brakes, tires, cooling system and transaxle.
  • Page 291 • Know how to go uphill. You may want to shift down to a lower gear. The lower gears help cool your CAUTION: engine and transaxle, and you can climb the hill better. Coasting downhill in NEUTRAL (N) or with the •...
  • Page 292: Winter Driving

    Winter Driving Include an ice scraper, a small brush or broom, a supply of windshield washer fluid, a rag, some winter outer clothing, a small shovel, a flashlight, a red cloth and a couple of reflective warning triangles. And, if you will be driving under severe conditions, include a small bag of sand, a piece of old carpet or a couple of burlap bags to help provide traction.
  • Page 293: If You Are Stuck: In Sand, Mud, Ice Or Snow

    If you have traction control, keep the system on. It will improve your ability to accelerate when driving on a slippery road. But you can turn the traction system off if you ever need to. You should turn the system off if your vehicle ever gets stuck in sand, mud, ice, or snow.
  • Page 294 Remember, unless you have anti-lock, if you brake so If You’re Caught in a Blizzard hard that your wheels stop rolling, you’ll just slide. Brake so your wheels always keep rolling and you can still steer. • Whatever your braking system, allow greater following distance on any slippery road.
  • Page 295 Here are some things to do to summon help and keep You can run the engine to keep warm, but be careful. yourself and your passengers safe: • Turn on your hazard flashers. CAUTION: • Tie a red cloth to your vehicle to alert police that you’ve been stopped by the snow.
  • Page 296 Then, shut the engine off and close the window almost all the way to preserve the heat. Start the engine CAUTION: again and repeat this only when you feel really uncomfortable from the cold. But do it as little as possible.
  • Page 297: Towing

    Rocking Your Vehicle To Get It Out Recreational Vehicle Towing First, turn your steering wheel left and right. That will Recreational vehicle towing means towing your vehicle clear the area around your front wheels. If your vehicle behind another vehicle – such as behind a motorhome. has traction control, you should turn your traction The two most common types of recreational vehicle control system off.
  • Page 298: Dinghy Towing

    Dinghy Towing If you have an all-wheel-drive vehicle, it cannot be towed with any of its wheels on the ground. It can be Your vehicle was not designed to be towed with all of its towed with car carrier equipment. wheels on the ground.
  • Page 299 The label shows the size of your original tires and the Notice: Your warranty does not cover parts or inflation pressures needed to obtain the gross weight components that fail because of overloading. capacity of your vehicle. This is called the Gross Vehicle If you put things inside your vehicle –...
  • Page 300: Automatic Level Control

    Automatic Level Control Towing a Trailer On vehicles equipped with the automatic level control, the rear of the vehicle is automatically kept level as you CAUTION: load or unload your vehicle. However, you should still not exceed the GVWR or the GAWR. If the engine is running or the ignition key is in If you do not use the correct equipment and ACCESSORY or when Retained Accessory Power...
  • Page 301: If You Do Decide To Pull A Trailer

    Your vehicle can tow a trailer. To identify what the • Consider using a sway control if your trailer will vehicle trailering capacity is for your vehicle, you should weigh 2,000 lbs. (900 kg) or less. You should read the information in “Weight of the Trailer” that always use a sway control if your trailer will weigh appears later in this section.
  • Page 302: P.o. Box

    You can ask your dealer for our trailering information or advice, or you can write us at: Pontiac - GMC Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 In Canada, write to:...
  • Page 303: Safety Chains

    If you’re using a weight-carrying or a weight-distributing • If you’ll be pulling a trailer that, when loaded, will hitch, the trailer tongue weight (A) should be 10 percent weigh more than 2,000 lbs. (900 kg), be sure to use to 15 percent of the total loaded trailer weight (B).
  • Page 304: Trailer Brakes

    Trailer Brakes CAUTION: (Continued) If your trailer weighs more than 1,000 lbs. (450 kg) loaded, then it needs its own brakes - and they must be See “Engine Exhaust” in the Index. To adequate. Be sure to read and follow the instructions maximize your safety when towing a trailer: for the trailer brakes so you’ll be able to install, •...
  • Page 305: Making Turns

    Before you start, check the trailer hitch and platform Backing Up (and attachments), safety chains, electrical connector, Hold the bottom of the steering wheel with one hand. lamps, tires and mirror adjustment. If the trailer has Then, to move the trailer to the left, just move that hand electric brakes, start your vehicle and trailer moving and to the left.
  • Page 306: Parking On Hills

    Turns Signals When Towing a Trailer Parking on Hills When you tow a trailer, your vehicle has to have extra wiring. CAUTION: The arrows on your instrument panel will flash whenever you signal a turn or lane change. Properly hooked up, You really should not park your vehicle, with a the trailer lamps will also flash, telling other drivers you’re about to turn, change lanes or stop.
  • Page 307 When You Are Ready to Leave After Maintenance When Trailer Towing Parking on a Hill Your vehicle will need service more often when you’re pulling a trailer. See the Maintenance Schedule for more 1. Apply your regular brakes and hold the pedal down on this.
  • Page 308 NOTES 4-42...
  • Page 309: Service And Appearance Care

    Section 5 Service and Appearance Care Service ............5-3 Battery ............5-41 Doing Your Own Service Work ......5-3 Jump Starting ..........5-42 Adding Equipment to the Outside of Your All-Wheel Drive ..........5-48 Vehicle ............5-4 Bulb Replacement ..........5-50 Fuel ..............5-4 Halogen Bulbs ..........5-50 Gasoline Octane ..........5-4 Headlamps ..........5-50 Gasoline Specifications ........5-5 Front Turn Signal, Sidemarker and Parking...
  • Page 310 Section 5 Service and Appearance Care Appearance Care ..........5-84 Vehicle Identification ........5-92 Cleaning the Inside of Your Vehicle ....5-84 Vehicle Identification Number (VIN) ....5-92 Care of Safety Belts and Built-in Child Service Parts Identification Label .....5-92 Restraint Harness ........5-87 Electrical System ..........5-93 Weatherstrips ..........5-87 Add-On Electrical Equipment ......5-93 Cleaning the Outside of Your Vehicle ....5-87...
  • Page 311: Service

    Service Doing Your Own Service Work If you want to do some of your own service work, you’ll Your dealer knows your vehicle best and wants you to want to use the proper service manual. It tells you be happy with it. We hope you will go to your dealer much more about how to service your vehicle than this for all your service needs.
  • Page 312: Adding Equipment To The Outside Of Your

    Fuel CAUTION: (Continued) Use of the recommended fuel is an important part of the proper maintenance of your vehicle. • Be sure to use the proper nuts, bolts and other fasteners. “English” and “metric” Gasoline Octane fasteners can be easily confused. If you use the wrong fasteners, parts can later Use regular unleaded gasoline with a posted octane break or fall off.
  • Page 313: Gasoline Specifications

    Gasoline Specifications California Fuel It is recommended that gasoline meet specifications If your vehicle is certified to meet California Emission which were developed by the American Automobile Standards (see the underhood emission control label), it Manufacturers Association and endorsed by the is designed to operate on fuels that meet California Canadian Vehicle Manufacturers Association for better specifications.
  • Page 314: Fuels In Foreign Countries

    Notice: Your vehicle was not designed for fuel that Fuels in Foreign Countries contains methanol. Do not use fuel containing methanol. It can corrode metal parts in your fuel If you plan on driving in another country outside the system and also damage the plastic and rubber United States or Canada, the proper fuel may be hard parts.
  • Page 315: Filling Your Tank

    Filling Your Tank CAUTION: Fuel vapor is highly flammable. It burns violently, and that can cause very bad injuries. Do not smoke if you are near fuel or refueling your vehicle. Keep sparks, flames and smoking materials away from fuel. The fuel door is located on the driver’s side of the vehicle.
  • Page 316 CAUTION: If you get fuel on yourself and then something ignites it, you could be badly burned. Fuel can spray out on you if you open the fuel cap too quickly. This spray can happen if your tank is nearly full, and is more likely in hot weather. Open the fuel cap slowly and wait for any “hiss”...
  • Page 317: Filling A Portable Fuel Container

    When you put the fuel cap back on, turn it to the right Filling a Portable Fuel Container (clockwise) until you hear a clicking sound. Make sure you fully install the cap. The diagnostic system can determine if the fuel cap has been left off or improperly CAUTION: installed.
  • Page 318: Checking Things Under The Hood

    Checking Things Under the CAUTION: Hood Things that burn can get on hot engine parts CAUTION: and start a fire. These include liquids like fuel, oil, coolant, brake fluid, windshield washer and other fluids, and plastic or rubber. You or An electric fan under the hood can start up others could be burned.
  • Page 319: Hood Release

    Hood Release 4. Pull forward on the hood prop to release it from its storage clip. To open the hood, do the following: The hood prop may be hot due to increased engine temperatures under the hood, so be careful when handling it.
  • Page 320: Engine Compartment Overview

    Engine Compartment Overview When you lift the hood, you’ll see these items: 5-12...
  • Page 321: Engine Oil

    A. Underhood Fuse Block. See Fuses and Circuit Engine Oil Breakers on page 5-93 . B. Remote Positive (+) Terminal. See Jump Starting on page 5-42 . C. Windshield Washer Fluid Reservoir. See Windshield Washer Fluid on page 5-37 . D.
  • Page 322: Checking Engine Oil

    Checking Engine Oil Turn off the engine and give the oil several minutes to drain back into the oil pan. If you don’t, the oil It’s a good idea to check your engine oil every time you dipstick might not show the actual level. get fuel.
  • Page 323: When To Add Engine Oil

    When to Add Engine Oil The engine oil fill cap is located behind the engine If the oil is at or below the cross-hatched area at the tip oil dipstick. See Engine of the dipstick, then you’ll need to add at least one Compartment Overview on quart of oil.
  • Page 324: What Kind Of Engine Oil To Use

    What Kind of Engine Oil to Use Oils recommended for your vehicle can be identified by looking for the starburst symbol. This symbol indicates that the oil has been certified by the American Petroleum Institute (API). Do not use any oil which does not carry this starburst symbol. If you choose to perform the engine oil change service yourself, be sure...
  • Page 325: Engine Oil Additives

    As in the chart shown previously, SAE 5W-30 is the When to Change Engine Oil (GM Oil only viscosity grade recommended for your vehicle. You Life System) should look for and use only oils which have the API Starburst symbol and which are also identified as Your vehicle has a computer system that lets you know SAE 5W-30.
  • Page 326: Engine Air Cleaner/Filter

    How to Reset the Change Engine Oil hand cleaner. Wash or properly dispose of clothing or rags containing used engine oil. See the manufacturer’s Message warnings about the use and disposal of oil products. The GM Oil Life System calculates when to change Used oil can be a threat to the environment.
  • Page 327 How to Inspect the Engine Air 4. Remove and replace the engine air cleaner/filter. Cleaner/Filter 5. Align the tabs located on the bottom of the panel with the slots at the bottom of the housing. To inspect the air cleaner/filter, remove the filter from 6.
  • Page 328: Automatic Transaxle Fluid

    Automatic Transaxle Fluid How to Check Automatic Transaxle Fluid When to Check and Change Automatic Because this operation can be a little difficult, you may Transaxle Fluid choose to have this done at the dealership service department. A good time to check your automatic transaxle fluid If you do it yourself, be sure to follow all the instructions level is when the engine oil is changed.
  • Page 329 Checking the Fluid Level Then, without shutting off the engine, follow these steps: Prepare your vehicle as follows: • Park your vehicle on a level place. Keep the engine running. • With the parking brake applied, place the shift lever in PARK (P).
  • Page 330: Engine Coolant

    Notice: We recommend you use only fluid labeled ® DEXRON –III, because fluid with that label is made especially for your automatic transaxle. ® Damage caused by fluid other than DEXRON –III is not covered by your new vehicle warranty. 3.
  • Page 331: What Engine Coolant To Use

    • Help keep the proper engine temperature. • Let the warning messages and gages work as they CAUTION: should. Notice: When adding coolant, it is important that Adding only plain water to your cooling ® you use only DEX-COOL (silicate-free) coolant. system can be dangerous.
  • Page 332: Checking Coolant

    Checking Coolant CAUTION: The coolant recovery tank is located on the driver’s Turning the radiator pressure cap when the side of the vehicle, engine and radiator are hot can allow steam above the engine air cleaner/filter. See Engine and scalding liquids to blow out and burn you Compartment Overview badly.
  • Page 333: Radiator Pressure Cap

    Radiator Pressure Cap Overheated Engine Protection Operating Mode Notice: Your radiator cap is a pressure-type cap and must be tightly installed to prevent coolant loss This emergency operating mode allows your vehicle to and possible engine damage from overheating. be driven to a safe place in an emergency situation. Be sure the arrows on the cap line up with the If an overheated engine condition exists, an overheat overflow tube on the radiator filler neck.
  • Page 334: If Steam Is Coming From Your Engine

    If Steam Is Coming From Your Engine CAUTION: Steam from an overheated engine can burn you badly, even if you just open the hood. Stay away from the engine if you see or hear steam coming from it. Just turn it off and get everyone away from the vehicle until it cools down.
  • Page 335: If No Steam Is Coming From Your Engine

    If No Steam Is Coming From Your If you no longer have the overheat warning, you can drive. Just to be safe, drive slower for about 10 minutes. Engine If the warning doesn’t come back on, you can drive normally. If you get an engine overheat warning but see or hear no steam, the problem may not be too serious.
  • Page 336: Cooling System

    Cooling System CAUTION: When you decide it’s safe to lift the hood, here’s what you’ll see: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you. Keep hands, clothing and tools away from any underhood electric fan.
  • Page 337 CAUTION: Heater and radiator hoses, and other engine parts, can be very hot. Don’t touch them. If you do, you can be burned. Don’t run the engine if there is a leak. If you run the engine, it could lose all coolant. That could cause an engine fire, and you could be burned.
  • Page 338 Notice: When adding coolant, it is important that ® you use only DEX-COOL (silicate-free) coolant. CAUTION: ® If coolant other than DEX-COOL is added to the system, premature engine, heater core or radiator corrosion may result. In addition, the engine Adding only plain water to your cooling coolant will require change sooner —...
  • Page 339 CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Don’t spill coolant on a hot engine. When the coolant in the coolant recovery tank is at or above the FULL COLD mark, start your vehicle.
  • Page 340: How To Add Coolant To The Radiator

    How to Add Coolant to the Radiator CAUTION: Notice: Your engine has a specific radiator fill procedure. Failure to follow this procedure could cause your engine to overheat and be severely Steam and scalding liquids from a hot cooling damaged. system can blow out and burn you badly.
  • Page 341 Housing Bypass Tube 3. After the engine cools, open the coolant air bleed valves. 2. Then keep turning the pressure cap, but now push There are two bleed valves. One is located on the down as you turn it. Remove the pressure cap. thermostat housing.
  • Page 342 ® 4. Fill the radiator with the proper DEX-COOL 6. Start the engine and let it run until you can feel the coolant mixture, up to the base of the filler upper radiator hose getting hot. Watch out for the neck.
  • Page 343 8. Then replace the pressure cap. At any time during 9. Then fill the coolant recovery tank to the FULL this procedure if coolant begins to flow out of the COLD mark. filler neck, reinstall the pressure cap. Be sure 10.
  • Page 344: Power Steering Fluid

    Power Steering Fluid How to Check Power Steering Fluid Turn the key off, let the engine compartment cool down, wipe the cap and the top of the reservoir clean, then unscrew the cap and wipe the dipstick with a clean rag. Replace the cap and completely tighten it.
  • Page 345: Windshield Washer Fluid

    Windshield Washer Fluid Notice: • When using concentrated washer fluid, follow What Washer Fluid to Use the manufacturer’s instructions for adding water. When you need windshield washer fluid, be sure to read • Don’t mix water with ready-to-use washer fluid. the manufacturer’s instructions before use.
  • Page 346: Brakes

    Brakes If it is, you should have your brake system fixed, since a leak means that sooner or later your brakes won’t work well, or won’t work at all. Brake Fluid So, it isn’t a good idea to “top off” your brake fluid. Adding brake fluid won’t correct a leak.
  • Page 347 CAUTION: With the wrong kind of fluid in your brake system, your brakes may not work well, or they may not even work at all. This could cause a crash. Always use the proper brake fluid. When your brake fluid falls to a low level, your brake warning light will come on.
  • Page 348: Brake Wear

    Brake Wear Properly torqued wheel nuts are necessary to help prevent brake pulsation. When tires are rotated, inspect Your vehicle has front disc brakes and may have rear brake pads for wear and evenly tighten wheel nuts in drum brakes or rear disc brakes. the proper sequence to GM torque specifications.
  • Page 349: Battery

    Replacing Brake System Parts Battery The braking system on a vehicle is complex. Its many Your new vehicle comes with a maintenance free parts have to be of top quality and work well together if ® ACDelco battery. When it’s time for a new battery, get the vehicle is to have really good braking.
  • Page 350: Vehicle Storage

    Vehicle Storage Jump Starting If you’re not going to drive your vehicle for 25 days or If your battery has run down, you may want to use more, remove the black, negative (−) cable from another vehicle and some jumper cables to start your the battery.
  • Page 351 Notice: Ignoring these steps could result in costly Notice: If you leave your radio on, it could be badly damage to your vehicle that wouldn’t be covered damaged. The repairs wouldn’t be covered by by your warranty. your warranty. Trying to start your vehicle by pushing or pulling it 3.
  • Page 352 The terminal is located under a tethered cap at CAUTION: the front of the underhood fuse block. See Engine Compartment Overview on Using a match near a battery can cause battery page 5-12 for more gas to explode. People have been hurt doing information on location.
  • Page 353 6. Connect the red positive (+) cable to the positive (+) terminal of the dead battery. Use a remote CAUTION: positive (+) terminal if the vehicle has one. 7. Don’t let the other end Fans or other moving engine parts can injure touch metal.
  • Page 354 8. Now connect the black 9. Connect the other end negative (−) cable to of the negative (−) the negative (−) cable at least 18 inches terminal of the good (45 cm) away from battery. Use a remote the dead battery, but negative (−) terminal not near engine if the vehicle has one.
  • Page 355 To disconnect the jumper cables from both vehicles, do the following: 1. Disconnect the black negative (−) cable from the vehicle that had the dead battery. 2. Disconnect the black negative (−) cable from the vehicle with the good battery. 3.
  • Page 356: All-Wheel Drive

    All-Wheel Drive How to Check Lubricant If you have an all-wheel-drive vehicle, be sure to perform the lubricant checks described in this section. However, they have two additional systems that need lubrication. Transfer Case (Power Transfer Unit) When to Check Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant.
  • Page 357 Carrier Assembly-Differential (Rear If the level is below the bottom of the filler plug hole, you’ll need to add some lubricant. Add enough lubricant Drive Module) to raise the level to the bottom of the filler plug hole. When to Check and Change Lubricant A fluid loss could indicate a problem;...
  • Page 358: Bulb Replacement

    Bulb Replacement Headlamps 1. Open the hood. For the type of bulbs, see Replacement Bulbs on 2. Remove the front turn signal/parking lamp page 5-55 . assembly. See Front Turn Signal, Sidemarker and For any bulb changing procedure not listed in this Parking Lamps on page 5-52 .
  • Page 359 7. Install the new bulb through the black retainer ring 8. Carefully put the bulb assembly back into the lamp and into the electrical connector. Tighten the black housing. Be careful not to damage the bulb on the retainer ring in place. Push the bulb firmly headlamp aiming bar.
  • Page 360: Front Turn Signal, Sidemarker And Parking Lamps

    Front Turn Signal, Sidemarker and Parking Lamps 1. Open the hood. 9. Align the pins on the bottom of the headlamp assembly with the holes in the lamp support bracket. 10. To reinstall the front turn signal/parking lamp assembly. See Front Turn Signal, Sidemarker 2.
  • Page 361 Front Turn Signal/Parking Lamp Front Sidemarker Lamp 4. Unscrew the bulb socket from the lamp assembly by pressing the tab while turning it counterclockwise. 5. Replace the bulb by pulling the old one out and gently pushing the new one into the lamp socket. 6.
  • Page 362: Taillamps, Turn Signal, Stoplamps And Back-Up Lamps

    Taillamps, Turn Signal, Stoplamps and Back-up Lamps 1. Open the liftgate. 2. Remove the two screws from the taillamp housing on the inboard side. 3. Pull off the entire taillamp housing. The locator/retaining pins on the outboard side are part of the lamp assembly and will remain intact during removal.
  • Page 363: Replacement Bulbs

    5. Replace the bulb by pulling the old bulb out and gently pushing the new bulb into the bulb holder socket. 6. Snap the bulb holder back into place, making sure all retaining tabs are properly over the bulb holder tabs. 7.
  • Page 364: Windshield Wiper Blade Replacement

    Windshield Wiper Blade 4. While holding the wiper arm away from Replacement the glass, push the release clip from Windshield wiper blades should be inspected at least under the blade. twice a year for wear or cracking. See “Wiper Blade Check”...
  • Page 365: Tires

    Tire pressure should be checked see your Pontiac Warranty booklet for details. when your tires are cold. • Overinflated tires are more likely to be cut, punctured or broken by a sudden impact —...
  • Page 366: Inflation -- Tire Pressure

    Inflation -- Tire Pressure When to Check Check your tires once a month or more. The Certification/Tire label, which is on the rear edge of the driver’s door, shows the correct inflation pressures Don’t forget your compact spare tire. It should be at for your tires when they’re cold.
  • Page 367 The purpose of regular rotation is to achieve more uniform wear for all tires on the vehicle. The first rotation CAUTION: is the most important. See “Part A: Scheduled Maintenance Services,” in Section 6, for scheduled rotation intervals. Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after a time.
  • Page 368: When It Is Time For New Tires

    When It Is Time for New Tires Buying New Tires To find out what kind and size of tires you need, look at One way to tell when it’s the Certification/Tire label. time for new tires is to check the treadwear The tires installed on your vehicle when it was new had indicators, which will a Tire Performance Criteria Specification (TPC Spec)
  • Page 369: Uniform Tire Quality Grading

    Uniform Tire Quality Grading CAUTION: Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Mixing tires could cause you to lose control while driving. If you mix tires of different sizes Treadwear 200 Traction AA Temperature A or types (radial and bias-belted tires), the The following information relates to the system...
  • Page 370: Wheel Alignment And Tire Balance

    Treadwear Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive The treadwear grade is a comparative rating based on temperature can lead to sudden tire failure. The grade the wear rate of the tire when tested under controlled C corresponds to a level of performance which all conditions on a specified government test course.
  • Page 371: Wheel Replacement

    Wheel Replacement CAUTION: Replace any wheel that is bent, cracked or badly rusted or corroded. If wheel nuts keep coming loose, the wheel, wheel bolts and wheel nuts should be replaced. Using the wrong replacement wheels, wheel If the wheel leaks air, replace it (except some bolts or wheel nuts on your vehicle can be aluminum wheels, which can sometimes be repaired).
  • Page 372: Used Replacement Wheels

    Used Replacement Wheels Accessory Inflator Your vehicle may have an accessory inflator. With it, you can inflate things like air mattresses and CAUTION: basketballs, and you can also use it to bring your tires up to the proper pressure. Putting a used wheel on your vehicle is The accessory inflator is located in the rear dangerous.
  • Page 373 Your accessory inflator will automatically shut off after about 10 minutes. The light in the switch will blink. After CAUTION: about one minute you can use the system again. Press the switch and the indicator light will come on. Inflating something too much can make it Notice: Don’t run your accessory inflator for longer explode, and you or others could be injured.
  • Page 374: If A Tire Goes Flat

    If a Tire Goes Flat CAUTION: It’s unusual for a tire to “blowout” while you’re driving, especially if you maintain your tires properly. If air goes out of a tire, it’s much more likely to leak out slowly. Lifting a vehicle and getting under it to do But if you should ever have a “blowout,”...
  • Page 375: Changing A Flat Tire

    Changing a Flat Tire If a tire goes flat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning flashers. CAUTION: Changing a tire can cause an injury. The vehicle can slip off the jack and roll over you or other people.
  • Page 376: Removing The Spare Tire And Tools

    Removing the Spare Tire and Tools The tools you’ll need are located in the storage compartment at the rear of the vehicle, on the passenger’s side. A. Jack E. Jacking To remove the tools, do the following: B. Strap Instructions C.
  • Page 377 3. Remove the jack and jacking tools by loosening the wing nut and bracket. 4. Separate the plastic pouch from the jack and remove the jacking tools (folding wrench and extension) from the pouch. The tools you’ll be using include the jack (A), extension (B) and folding wrench (C).
  • Page 378 To remove the compact spare tire, do the following: 2. Turn the folding wrench counterclockwise to lower the compact spare tire to the ground. Continue to turn the wrench so the compact spare tire can be pulled out from under the vehicle. A.
  • Page 379 4. If your vehicle is an all-wheel-drive vehicle, after Secondary Latch System removing the compact spare tire turn the wrench Your vehicle may have an underbody mounted tire hoist clockwise to raise the cable back up. assembly equipped with a secondary latch system. On an AWD vehicle, you can not store a full-size It’s designed to stop a tire from suddenly falling off your tire under the vehicle.
  • Page 380 If your vehicle is equipped with all-wheel-drive, the To release the spare tire from the secondary latch, do underbody tire hoist assembly stores only the compact the following: spare tire. See “Storing the Spare Tire and Tools” later in this section for instructions. To store a flat CAUTION: full-size tire correctly, see “Storing the Flat Tire on an All-Wheel-Drive Vehicle”...
  • Page 381 1. Place the jack under the vehicle, ahead of the rear bumper. Position the center lift point of the jack under the center of the compact spare tire. 2. Turn the folding wrench clockwise to raise the jack until it lifts the secondary latch device under the wheel plate.
  • Page 382: Removing The Wheel Covers

    Removing the Wheel Covers Removing the Flat Tire and Installing the Spare Tire If the wheel has a center cap, use the handle of the folding wrench to pry it off. Then, with the other end of 1. Loosen the wheel nuts the folding wrench, loosen the nuts.
  • Page 383 2. Near each wheel, there is a notch in the CAUTION: vehicle’s body. Position the jack and raise the jack head until it Getting under a vehicle when it is jacked up is fits firmly into the notch dangerous. If the vehicle slips off the jack you in the vehicle’s frame could be badly injured or killed.
  • Page 384 3. Attach the folding 5. Remove all the wheel nuts and take off the flat tire. wrench to the jack, and 6. Remove any rust or dirt turn the wrench from the wheel bolts, clockwise to raise the mounting surfaces jack head a few and spare wheel.
  • Page 385 CAUTION: Never use oil or grease on studs or nuts. If you do, the nuts might come loose. Your wheel could fall off, causing a serious accident. 7. Install the compact spare tire and put the wheel nuts back on with the rounded end of the nuts toward the wheel.
  • Page 386 9. Tighten the wheel nuts Notice: Improperly tightened wheel nuts can lead firmly in a crisscross to brake pulsation and rotor damage. To avoid sequence, as shown. expensive brake repairs, evenly tighten the wheel nuts in the proper sequence and to the proper torque specification.
  • Page 387: Storing A Flat Or Spare Tire And Tools

    Storing a Flat or Spare Tire and Tools CAUTION: CAUTION: The underbody-mounted spare tire needs to be stored with the valve stem pointing down. If Storing a jack, a tire, or other equipment in the the spare tire is stored with the valve stem passenger compartment of the vehicle could pointing upwards, its secondary latch won’t cause injury.
  • Page 388: Storing The Spare Tire And Tools

    Storing the Spare Tire and Tools 1. Lay the tire near the rear of the vehicle with the valve stem down. 2. If the vehicle has aluminum wheels, remove the small center cap by tapping the back of the cap with the extension of the shaft.
  • Page 389 To put the cover back on, line up the tabs on the right Store the center cap or the plastic “bolt-on” wheel of the cover with the slots in the cover opening. Push the covers until a full size tire is put back on the vehicle. cover in place and push down the tab so that it rests When you replace the compact spare with a full-size tire, in the groove.
  • Page 390 5. Hook the cable onto the outside portion of the liftgate hinges. 6. Pull on the cable to make sure it is secure. 7. Make sure the metal tube is centered at the A. Cable striker. Push the B. Liftgate Hinges tube towards the front C.
  • Page 391: Compact Spare Tire

    Compact Spare Tire Notice: Tire chains won’t fit your compact spare. Using them can damage your vehicle and can damage the chains too. Don’t use tire chains on Although the compact spare tire was fully inflated when your compact spare. your vehicle was new, it can lose air after a time.
  • Page 392: Appearance Care

    Appearance Care Do not use any of these unless this manual says you can. In many uses, these will damage your vehicle: Remember, cleaning products can be hazardous. Some • Alcohol are toxic. Others can burst into flames if you strike a •...
  • Page 393: Special Fabric Cleaning Problems

    • Special Fabric Cleaning Problems Use a clean cloth or sponge, and change to a clean area often. A soft brush may be used if stains are Stains caused by such things as catsup, coffee (black), stubborn. egg, fruit, fruit juice, milk, soft drinks, vomit, urine •...
  • Page 394: Cleaning Vinyl

    Cleaning Vinyl Cleaning the Top of the Instrument Panel Use warm water and a clean cloth. • Rub with a clean, damp cloth to remove dirt. You Use only mild soap and water to clean the top surfaces of the instrument panel. Sprays containing silicones may have to do this more than once.
  • Page 395: Care Of Safety Belts And Built-In Child Restraint Harness

    Cleaning Built-In Child Restraint Pad Weatherstrips The built-in child restraint pad is attatched to the Silicone grease on weatherstrips will make them last seat frame with fastener strips. You can remove the pad longer, seal better, and not stick or squeak. Apply and hand wash it with mild soap and water.
  • Page 396: Washing Your Vehicle

    Washing Your Vehicle Cleaning Exterior Lamps/Lenses The best way to preserve your vehicle’s finish is to keep it Use only lukewarm or cold water, a soft cloth and a car clean by washing it often with lukewarm or cold water. washing soap to clean exterior lamps and lenses.
  • Page 397: Cleaning Aluminum Wheels

    Exterior painted surfaces are subject to aging, weather Cleaning Aluminum Wheels and chemical fallout that can take their toll over a Keep your wheels clean using a soft clean cloth with period of years. You can help to keep the paint finish mild soap and water.
  • Page 398: Sheet Metal Damage

    Sheet Metal Damage At least every spring, flush these materials from the underbody with plain water. Clean any areas where mud and debris can collect. Dirt packed in close areas of If your vehicle is damaged and requires sheet metal the frame should be loosened before being flushed.
  • Page 399: Vehicle Care/Appearance Materials

    Vehicle Care/Appearance Materials Vehicle Care/Appearance Materials (cont’d) See your GM dealer for more information on purchasing Description Usage the following products. Removes swirl marks, Vehicle Care/Appearance Materials fine scratches and other Swirl Remover Polish light surface Description Usage contamination. Polishing Cloth Interior and exterior Removes light scratches Wax-Treated...
  • Page 400: Vehicle Identification

    Vehicle Identification Engine Identification The 8th character in your VIN is the engine code. This code will help you identify your engine, specifications Vehicle Identification Number (VIN) and replacement parts. Service Parts Identification Label You’ll find this label on the inside of the glove box door. It’s very helpful if you ever need to order parts.
  • Page 401: Electrical System

    Electrical System Windshield Wiper Fuses The windshield wiper motor is protected by an internal Add-On Electrical Equipment circuit breaker and a fuse. If the motor overheats due to heavy snow, etc., the wiper will stop until the motor Notice: Don’t add anything electrical to your cools.
  • Page 402: Instrument Panel Fuse Block

    If you ever have a problem on the road and don’t have a spare fuse, you can borrow one that has the same amperage or use one of the spare fuses in the underhood fuse block. Just pick some feature of your vehicle that you can get along without –...
  • Page 403 Fuse Usage Fuse Usage HTD MIRROR Heated Mirrors Instrument Cluster, Body Control MALL Module, Electronic Level Control RH T/LP Driver’s Side Taillamp (Export Only) CLUSTER (ELC) Sensor and Relay, Theft, RR FOG LP Fog Lamps (Export Only) Door Ajar CIGAR/DIC/ Cigarette Lighter, DIC, Front STOP LAMP Stoplamp Switch...
  • Page 404 Fuse Usage Circuit Breaker Usage LH HEADLP Passenger’s Side High Beam Daytime Running Lamps (DRL) HIGH Headlamp (Export Only) HEADLAMP Control Module, Headlamp and Instrument Panel Dimmer Switch Blank Not Used PWR SLD DR Power Sliding Door Blank Not Used PWR WDO Front Power Windows Blank...
  • Page 405: Underhood Fuse Block

    Underhood Fuse Block This fuse block is located in the engine compartment, in front of the windshield washer fluid reservoir. See Engine Compartment Overview on page 5-12 for more information on location. Fuse Usage Coolant Fans Not Used The fuses marked spare are available if a replacement Circuit Breakers: Front Comfort fuse is needed.
  • Page 406 Fuse Usage Fuse Usage Ignition Switch to Fuses (Instrument Evaporative Emissions (EVAP) Panel): ABS/TCS Ignition, Cruise, Canister Purge Valve, Heated DRL, Electronic PRNDL, Ignition 1, Oxygen Sensors 1 and 2, Mass Air AWD, PSD, Air Bag, Turn Signal Flow (MAF) Sensor and Powertrain Control Module [IGN Not Used MAIN Relay (Underhood Fuse...
  • Page 407 Fuse Usage Relay Usage Not Used Right Fan 1, Left Fan 2 Fog Lamp Relay Left Fan 2 Horn Relay Fuses: A/C Clutch, Ignition 1-U/H, Electronic Ignition, TCC, Injectors Daytime Running Lamps (DRL) Control Module, Headlamps and Right Fan 1, Left Fan 2 Instrument Panel Dimmer Switch A/C Clutch Theft-Deterrent Relay to Headlamps...
  • Page 408: Capacities And Specifications

    Capacities and Specifications The following approximate capacities are given in English and metric measurements. Please refer to Part D: Recommended Fluids and Lubricants on page 6-16 for more information. Capacities Application English Metric Air Conditioning Refrigerant Systems 1.7 lbs. 0.8 kg Front A/C 2.2 lbs.
  • Page 409: Normal Maintenance Replacement Parts

    Engine Specifications Engine VIN Code Transaxle Spark Plug Gap Firing Order 0.060 inches Automatic 1–2–3–4–5–6 (1.52 mm) Normal Maintenance Replacement Parts Part Number Engine Air Cleaner/Filter A-1208C* Engine Oil Filter PF47 Passenger Compartment Air Filter Kit GM Part No. 52482929 Spark Plugs 41-101* Windshield Wiper Blades...
  • Page 410 NOTES 5-102...
  • Page 411 Section 6 Maintenance Schedule Maintenance Schedule ........6-2 At Least Once a Year ........6-11 Introduction ...........6-2 Part C: Periodic Maintenance Inspections ..6-14 Your Vehicle and the Environment ....6-2 Steering, Suspension and Front Drive Axle Maintenance Requirements ......6-2 Boot and Seal Inspection ......6-14 How This Section is Organized ......6-3 Exhaust System Inspection ......6-14 Part A: Scheduled Maintenance Services ...6-4...
  • Page 412: Maintenance Schedule

    Maintenance Schedule Your Vehicle and the Environment Proper vehicle maintenance not only helps to keep your Introduction vehicle in good working condition, but also helps the environment. Improper vehicle maintenance can Important: Keep engine oil at the proper level and even affect the quality of the air we breathe.
  • Page 413: How This Section Is Organized

    How This Section is Organized If you want to get the service information, see Service Publications Ordering Information on page 7-11 . This maintenance schedule is divided into five parts: “Part B: Owner Checks and Services” tells you what should be checked and when. It also explains what “Part A: Scheduled Maintenance Services”...
  • Page 414: Part A: Scheduled Maintenance Services

    Part A: Scheduled Maintenance This part tells you the maintenance services you should have done and when to schedule them. Services When you go to your dealer for your service needs, you’ll know that GM-trained and supported service This part contains engine oil and chassis lubrication people will perform the work using GM parts.
  • Page 415: Scheduled Maintenance

    Scheduled Maintenance Engine Oil and Chassis Lubrication Scheduled Maintenance The services shown in this schedule up to 100,000 miles (166 000 km) should be repeated after 100,000 miles Change engine oil and filter as indicated by the GM (166 000 km) at the same intervals for the life of Oil Life System (or every 12 months, whichever this vehicle.
  • Page 416 It is also important to check your oil regularly and keep 7,500 Miles (12 500 km) it at the proper level. Rotate tires. See Tire Inspection and Rotation on If the system is ever reset accidentally, you must page 5-58 for proper rotation pattern and additional change your oil at 3,000 miles (5 000 km) since your information.
  • Page 417 22,500 Miles (37 500 km) 45,000 Miles (75 000 km) Rotate tires. See Tire Inspection and Rotation on Inspect engine air cleaner filter. If necessary, replace page 5-58 for proper rotation pattern and additional the filter. If vehicle is driven in dusty/dirty conditions, information.
  • Page 418 52,500 Miles (87 500 km) 75,000 Miles (125 000 km) Inspect engine air cleaner filter. If necessary, replace Rotate tires. See Tire Inspection and Rotation on the filter. If vehicle is driven in dusty/dirty conditions, page 5-58 for proper rotation pattern and additional inspect filter at every engine oil change.
  • Page 419 97,500 Miles (162 500 km) 150,000 Miles (240 000 km) Rotate tires. See Tire Inspection and Rotation on Drain, flush and refill cooling system (or every page 5-58 for proper rotation pattern and additional 60 months since last service, whichever occurs first). information.
  • Page 420: Part B: Owner Checks And Services

    Part B: Owner Checks and Services At Least Once a Month Listed in this part are owner checks and services Tire Inflation Check which should be performed at the intervals specified to help ensure the safety, dependability and emission Visually inspect your tires and make sure tires are inflated control performance of your vehicle.
  • Page 421: Wiper Blade Check

    Also look for any opened or broken air bag coverings, Automatic Transaxle Check and have them repaired or replaced. (The air bag Check the transaxle fluid level; add if needed. See system does not need regular maintenance.) Automatic Transaxle Fluid on page 5-20 . A fluid loss Wiper Blade Check may indicate a problem.
  • Page 422: Starter Switch Check

    Starter Switch Check Automatic Transaxle Shift Lock Control System Check CAUTION: CAUTION: When you are doing this check, the vehicle could move suddenly. If it does, you or others When you are doing this check, the vehicle could be injured. Follow the steps below. could move suddenly.
  • Page 423: Ignition Transaxle Lock Check

    Ignition Transaxle Lock Check Park on a fairly steep hill, with the vehicle facing downhill. Keeping your foot on the regular brake, set the While parked, and with the parking brake set, try to turn parking brake. the ignition key to LOCK in each shift lever position. •...
  • Page 424: Part C: Periodic Maintenance Inspections

    Part C: Periodic Exhaust System Inspection Maintenance Inspections Inspect the complete exhaust system. Inspect the body near the exhaust system. Look for broken, damaged, Listed in this part are inspections and services which missing or out-of-position parts as well as open seams, should be performed at least twice a year (for instance, holes, loose connections or other conditions which each spring and fall).
  • Page 425: Throttle System Inspection

    Throttle System Inspection Brake System Inspection Inspect the throttle system for interference or binding, Inspect the complete system. Inspect brake lines and and for damaged or missing parts. Replace parts hoses for proper hook-up, binding, leaks, cracks, as needed. Replace any components that have high chafing, etc.
  • Page 426: Part D: Recommended Fluids And Lubricants

    Part D: Recommended Fluids and Usage Fluid/Lubricant Lubricants GM Power Steering Fluid (GM Part Power Steering No. U.S. 1052884, in Canada System Fluids and lubricants identified below by name, part 993294, or equivalent). number or specification may be obtained from your ®...
  • Page 427 Usage Fluid/Lubricant Usage Fluid/Lubricant Hood Latch Lubriplate Lubricant Aerosol (GM Assembly, Lubriplate Lubricant Aerosol (GM Part No. U.S. 12346293, in Canada Sliding Door Secondary Part No. U.S. 12346293, in Canada 992723, or equivalent) or lubricant Track Latch, Pivots, 992723, or equivalent) or lubricant meeting requirements of NLGI #2, Spring Anchor meeting requirements of NLGI #2,...
  • Page 428: Part E: Maintenance Record

    Part E: Maintenance Record After the scheduled services are performed, record the date, odometer reading and who performed the service and any additional information from “Owner Checks and Services” or “Periodic Maintenance” on the following record pages. Also, you should retain all maintenance receipts. Maintenance Record Odometer Maintenance Record...
  • Page 429 Maintenance Record (cont’d) Odometer Maintenance Record Date Serviced By Reading 6-19...
  • Page 430 Maintenance Record (cont’d) Odometer Maintenance Record Date Serviced By Reading 6-20...
  • Page 431: Customer Assistance Information

    Section 7 Customer Assistance Information Customer Assistance Information ......7-2 Reporting Safety Defects ........7-10 Customer Satisfaction Procedure ......7-2 Reporting Safety Defects to the United States Online Owner Center ........7-4 Government ..........7-10 Customer Assistance for Text Telephone Reporting Safety Defects to the Canadian (TTY) Users ..........7-4 Government ..........7-11 Customer Assistance Offices ......7-4...
  • Page 432: Customer Assistance Information

    Your satisfaction and goodwill are important to We encourage you to call the toll-free number in order to your dealer and to Pontiac. Normally, any concerns with give your inquiry prompt attention. Please have the the sales transaction or the operation of your vehicle following information available to give the Customer will be resolved by your dealer’s sales or service...
  • Page 433 STEP THREE: Both General Motors and your dealer You may contact the BBB using the toll-free telephone are committed to making sure you are completely number or write them at the following address: satisfied with your new vehicle. However, if you continue BBB Auto Line to remain unsatisfied after following the procedure Council of Better Business Bureaus, Inc.
  • Page 434: Online Owner Center

    If a U.S. customer wishes to • Find GM dealers for service nationwide. write to Pontiac, the letter should be addressed to • Pontiac’s Customer Assistance Center. Receive special promotions and privileges only available to members. (United States only) Refer to the web for updated information.
  • Page 435: Detroit, Mi

    United States – Customer Assistance Overseas – Customer Assistance Pontiac-GMC Customer Assistance Center Please contact the local General Motors Business Unit. P.O. Box 33172 Mexico, Central America and Detroit, MI 48232-5172 Caribbean Islands/Countries (Except 1-800-762-2737 or 1-800-833-7668 (For Text Telephone devices (TTYs)) Puerto Rico and U.S.
  • Page 436: Gm Mobility Program For Persons With Disabilities

    Security While You Travel 1-800-ROADSIDE (1-800-762-3743) This program, available to qualified applicants, can As the proud owner of a new Pontiac vehicle, you are reimburse you up to automatically enrolled in the Pontiac Roadside $1,000 toward aftermarket Assistance program. This value-added service is...
  • Page 437 Vehicle license plate number the following additional services depending on your Pontiac reserves the right to limit services or needs: reimbursement to an owner or driver when, in Pontiac’s • Hotels judgement, the claims become excessive in frequency or type of occurrence.
  • Page 438: Canadian Roadside Assistance

    If your vehicle cannot be scheduled into the service department immediately, keep driving it until it can be Pontiac has always exemplified quality and value in its scheduled for service, unless, of course, the problem is offering of motor vehicles. To enhance your ownership safety-related.
  • Page 439: Transportation Options

    Warranty service can generally be completed while you warranty repairs, your dealer may arrange to provide wait. However, if you are unable to wait Pontiac you with a courtesy rental vehicle or reimburse you for a helps minimize your inconvenience by providing several rental vehicle you obtained, at actual cost, up to a transportation options.
  • Page 440: Reporting Safety Defects

    Additional Program Information Reporting Safety Defects Courtesy Transportation is available during the Bumper-to-Bumper warranty coverage period, but it is Reporting Safety Defects to the not part of the New Vehicle Limited Warranty. A United States Government separate booklet entitled Warranty and Owner Assistance Information furnished with each new vehicle If you believe that your vehicle has a defect which could provides detailed warranty coverage information.
  • Page 441: Reporting Safety Defects To The Canadian Government

    RETAIL SELL PRICE: $50.00 a situation like this, we certainly hope you’ll notify us. Please call us at 1-800-762-2737, or write: Service Bulletins Pontiac-GMC Customer Assistance Center Service Bulletins give technical service information P.O. Box 33172 needed to knowledgeably service General Motors cars Detroit, MI 48232-5172 and trucks.
  • Page 442: Current And Past Model Order Forms

    Owner’s Information ORDER TOLL FREE: 1-800-551-4123 Monday-Friday 8:00 AM - 6:00 PM Owner publications are written specifically for owners Eastern Time and intended to provide basic operational information about the vehicle. The owner’s manual will include For Credit Card Orders Only the Maintenance Schedule for all models.
  • Page 443 Anti-Lock Brake, System Warning Light ....3-39 Appearance Care ..........5-84 Accessory Inflator ........... 5-64 Care of Safety Belts and Built-in Child Accessory Power Outlets ......... 3-22 Restraint Harness ........5-87 Adding Washer Fluid ........5-37 Chemical Paint Spotting ....... 5-90 Additional Program Information ......
  • Page 444 Audio System(s) (cont.) Brake (cont.) Setting the Time .......... 3-54 System Warning Light ........3-38 Theft-Deterrent Feature ........ 3-91 Brakes ............5-38 Understanding Radio Reception ..... 3-93 Braking in Emergencies ........4-8 Automatic Door Locks ........2-58 Braking ............4-6 Automatic Level Control ........
  • Page 445 Carbon Monoxide ....4-26, 4-34, 2-20, 2-39 Child Restraints (cont.) Care of ............5-87 Older Children ..........1-53 Safety Belts and Built-in Child Restraint Securing a Child Restraint Designed for the Harness ..........5-87 LATCH System ........1-68 Your Cassette Tape Player ......3-93 Securing a Child Restraint in a Center Seat Your CD and DVD Player ......
  • Page 446 Cleaning (cont.) Customer Assistance Information (cont.) Weatherstrips ..........5-87 Customer Assistance Offices ......7-4 Your DVD Player ......... 3-95 Customer Satisfaction Procedure ..... 7-2 Climate Control System ........3-23 GM Mobility Program for Persons with Air Filter, Passenger Compartment ....3-31 Disabilities ..........
  • Page 447 Door ............. 3-49 DVD Player ............ 3-84 Ajar Warning Message ......... 3-49 DVD ............. 3-95 Dual Sliding Doors ........2-12 Cleaning the Video Screen ......3-95 Last Door Closed Locking ......2-11 Cleaning Your DVD Player ......3-95 Locks ............2-9 Distortion ............
  • Page 448 Engine (cont.) Change Oil Message ........3-48 Filter ............. 5-18 Check and Service Engine Soon Light .... 3-41 Engine Air Cleaner ........5-18 Compartment Overview ........ 5-12 Finding a PTY Station ..... 3-57, 3-64, 3-74 Coolant Heater ..........2-30 Finding a Station ......3-55, 3-62, 3-71 Coolant Temperature Gage ......
  • Page 449 Fuel ............... 5-4 Gasoline (cont.) Additives ............5-5 Gate Operator and Canadian Programming ..2-46 California Fuel ..........5-5 Glove Box ............. 2-47 Filling a Portable Fuel Container ..... 5-9 GM Mobility Program for Persons with Filling Your Tank ........... 5-7 Disabilities ............
  • Page 450 Hood (cont.) Inflation -- Tire Pressure ........5-58 Horn ............... 3-7 Inspection ............6-15 How the System Works ........3-21 Brake System ..........6-15 How to Add Coolant to the Coolant Engine Cooling System ........ 6-14 Recovery Tank ..........5-30 Exhaust System ..........
  • Page 451 Light ............. 3-37 Air Bag Readiness ........3-37 Key Lock Cylinders Service ......6-11 Anti-Lock Brake System Warning ....3-39 Keyless Entry System ........2-5 Brake System Warning ......... 3-38 Keys ............... 2-3 Malfunction Indicator ........3-41 Safety Belt Reminder ........3-37 TCS Warning Light ........
  • Page 452 Maintenance Schedule (cont.) Using Your ........... 6-4 Maintenance, Normal Replacement Parts ..5-101 Your Vehicle and the Environment ....6-2 Maintenance Schedule ........6-10 Maintenance When Trailer Towing ..... 4-41 At Each Fuel Fill ......... 6-10 Making Turns ..........4-39 At Least Once a Month ........
  • Page 453 Mirrors ............2-41 Outside ............2-41 Manual Rearview Mirror ........ 2-41 Convex Mirror ..........2-41 Outside Convex Mirror ......... 2-41 Heated Mirrors ..........2-42 Outside Heated Mirrors ........ 2-42 Power Mirrors ..........2-41 Outside Power Mirrors ........2-41 Overhead Console Switchbank ......3-20 MyGMLink.com ..........
  • Page 454 Passenger Compartment Air Filter ..... 3-31 Programming Mode ......... 2-57 Passing ..........4-13, 4-39 Entering ............. 2-57 ® PASS-Key III Operation ........2-26 Exiting ............2-65 ® PASS-Key III Security Message ....... 3-49 Programming the HomeLink Transmitter ..... 2-44 ® PASS-Key III ..........
  • Page 455 Radios (cont.) Removing the Convenience Center ....2-55 RDS Messages ......3-58, 3-65, 3-75 Removing the Flat Tire and Installing the Rear Climate Control System ....3-27, 3-29 Spare Tire ..........5-74 Rear Hatch Ajar Warning Message ....3-49 Removing the Spare Tire and Tools ....5-68 Rear Reading Lamps ........
  • Page 456 Restraint System Check (cont.) Safety Belts (cont.) Restraint Systems ........... 1-97 Rear Seat Passengers ......... 1-47 Checking ............ 1-97 Right Front Passenger Position ...... 1-43 Replacing Parts ........... 1-98 Safety Belt Extender ........1-52 Retained Accessory Power (RAP) ...... 2-29 Safety Belt Use During Pregnancy ....
  • Page 457 Securing a Child Restraint (cont.) Sliding Door, Power ........2-15 Rear Outside Seat Position ......1-68 Sliding Door Security Lock ....... 2-14 Right Front Seat Position ......1-75 Sliding Doors, Dual ......... 2-12 ® Security Message, PASS-Key III ...... 3-49 Some Other Rainy Weather Tips .......
  • Page 458 Storage Areas (cont.) Tires (cont.) Storing a Flat or Spare Tire and Tools ....5-79 Changing a Flat Tire ........5-67 Storing the Built-In Child Restraint ..... 1-87 Compact Spare Tire ........5-83 Storing the Spare Tire and Tools ....... 5-80 If a Tire Goes Flat ........
  • Page 459 Transaxle ............5-20 Fluid, Automatic ........... 5-20 Vehicle Identification ........5-92 Transfer Case (Power Transfer Unit) ....5-48 Number (VIN) ..........5-92 Transmission, Transaxle, Transfer Case Unit Service Parts Identification Label ....5-92 Repair Manual ..........7-11 Vehicle Personalization ........2-56 Transportation Options ........
  • Page 460 When to Check Power Steering Fluid ....5-36 When to Check ..........5-58 Warm-Up Shift ..........2-34 When to Inspect the Engine Air Cleaner/Filter ..5-18 Warning Lights, Gages and Indicators ....3-33 When You Are Ready to Leave After Parking Warnings ............

Table of Contents
