Page 2: How To Use This Manual
GENERAL MOTORS, GM, the GM Emblem, PONTIAC, the PONTIAC Emblem and the name VIBE are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. We reserve the right to make changes after that time without further notice.
Page 3 Safety Warnings and Symbols There are a number of safety cautions in this book. We use a box and the word CAUTION to tell about things that could hurt you if you were to ignore the warning. CAUTION: These mean there is something that could hurt you or other people.
Page 4 Vehicle Damage Warnings Also, in this manual you will ﬁnd these notices: Notice: These mean there is something that could damage your vehicle. A notice tells about something that can damage the vehicle. Many times, this damage would not be covered by your vehicle’s warranty, and it could be costly.
Page 5 These are some examples of symbols that may be found on the vehicle:...
Page 6 NOTES...
Page 7: Table Of Contents
Section 1 Front Seats ...1-2 Manual Seats ...1-2 Driver Seat Height Adjuster ...1-3 Reclining Seatbacks ...1-3 Head Restraints ...1-5 Passenger Folding Seatback ...1-6 Rear Seats ...1-7 Rear Seat Operation ...1-7 Safety Belts ...1-9 Safety Belts: They Are for Everyone ...1-9 Questions and Answers About Safety Belts ...1-13 How to Wear Safety Belts Properly ...1-14 Driver Position ...1-14...
Page 8: Front Seats
Front Seats Manual Seats CAUTION: You can lose control of the vehicle if you try to adjust a manual driver’s seat while the vehicle is moving. The sudden movement could startle and confuse you, or make you push a pedal when you do not want to.
Page 9: Driver Seat Height Adjuster
Driver Seat Height Adjuster The driver seat height adjuster is located on the outboard side of the seat. To raise the seat, pull up on the lever repeatedly until the seat is at the desired height. To lower the seat, push down on the lever repeatedly until the seat is at the desired height.
Page 10 Do not have a seatback reclined if your vehicle is moving. CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job because it will not be against your body.
Page 11: Head Restraints
Head Restraints Press the release button at the base of the head restraint and push the restraint down to lower it. Pull up on the head restraint to raise it. Adjust your head restraint so that the top of the restraint is closest to the top of your head.
Page 12: Passenger Folding Seatback
Passenger Folding Seatback CAUTION: If you fold the seatback forward to carry longer objects, such as skis, be sure any such cargo is not near an airbag. In a crash, an inﬂating airbag might force that object toward a person. This could cause severe injury or even death.
Page 13: Rear Seats
3. Fold the seatback down. To raise the seatback, do the following: 1. Pull up on one of the levers located on either side of the back of the passenger’s seatback. 2. Pull the seatback up and push it back to lock it into place.
Page 14 CAUTION: If the seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatback to be sure it is locked. CAUTION: A safety belt that is improperly routed, not properly attached, or twisted will not provide the protection needed in a crash.
Page 15 Safety Belts Safety Belts: They Are for Everyone This part of the manual tells you how to use safety belts properly. It also tells you some things you should not do with safety belts. CAUTION: Do not let anyone ride where he or she cannot wear a safety belt properly.
Page 16: Why Safety Belts Work
In most states and in all Canadian provinces, the law says to wear safety belts. Here is why: They work. You never know if you will be in a crash. If you do have a crash, you do not know if it will be a bad one. A few crashes are mild, and some crashes can be so serious that even buckled up, a person would not survive.
Page 17 Put someone on it. Get it up to speed. Then stop the vehicle. The rider does not stop. 1-11...
Page 18 The person keeps going until stopped by something. or the instrument panel... In a real vehicle, it could be the windshield... 1-12...
Page 19 or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. Questions and Answers About Safety Belts Will I be trapped in the vehicle after an accident...
Page 20 If I am a good driver, and I never drive far from home, why should I wear safety belts? You may be an excellent driver, but if you are in an accident — even one that is not your fault — you and your passengers can be hurt.
Page 21 3. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly. If this happens, let the belt go back slightly to unlock it. Then pull the belt across you more slowly.
Page 22 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you would be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 23 What is wrong with this? The shoulder belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 24 What is wrong with this? The belt is buckled in the wrong place. 1-18 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 25 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 26 What is wrong with this? The belt is twisted across the body. 1-20 CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to ﬁx it.
Page 27 To unlatch the belt, just push the button on the buckle. The belt should go back out of the way. Before you close the door, be sure the belt is out of the way. If you slam the door on it, you can damage both the belt and your vehicle.
Page 28 Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 29 Lap-Shoulder Belt All rear seat positions have lap-shoulder belts. Here is how to wear one properly. 1. Pick up the latch plate and pull the belt across you. Do not let it get twisted. The shoulder belt may lock if you pull the belt across you very quickly.
Page 30 3. To make the lap part tight, pull up on the shoulder belt. The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the pelvic bones. And you would be less likely to slide under the lap belt.
Page 31 Safety Belt Pretensioners Your vehicle has safety belt pretensioners. Although you cannot see them, they are located on the retractor part of the safety belts for the driver and right front passenger. They help the safety belts reduce a person’s forward movement in a moderate to severe frontal or near frontal crash.
Page 32: Safety Belts
Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. 1-26 What is the proper way to wear safety belts? If possible, an older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide.
Page 33 CAUTION: Never do this. Here two children are wearing the same belt. The belt can not properly spread the impact forces. In a crash, the two children can be crushed together and seriously injured. A belt must be used by only one person at a time. What if a child is wearing a lap-shoulder belt, but the child is so small that the shoulder belt is very close to the child’s face or neck?
Page 34 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt.
Page 35 CAUTION: People should never hold a baby in their arms while riding in a vehicle. A baby does not weigh much — until a crash. During a crash a baby will become so heavy it is not possible to hold it. For example, in a crash at only 25 mph (40 km/h), a 12 lb (5.5 kg) baby will suddenly become a 240 lb (110 kg) force on a person’s arms.
Page 36 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 37: Child Restraint Systems
CAUTION: The body structure of a young child is quite unlike that of an adult or older child, for whom the safety belts are designed. A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should.
Page 38 A rear-facing infant seat (B) provides restraint with the seating surface against the back of the infant. The harness system holds the infant in place and, in a crash, acts to keep the infant positioned in the restraint. 1-32 A forward-facing child seat (C-E) provides restraint for the child’s body with the harness and also sometimes with surfaces such as T-shaped or shelf-like shields.
Page 39 A booster seat (F-G) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. Some booster seats have a shoulder belt positioner, and some high-back booster seats have a ﬁve-point harness. A booster seat can also help a child to see out the window.
Page 40 Securing an Add-on Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the vehicle. Make sure the child restraint is properly installed in the vehicle using the vehicle’s safety belt or LATCH system, following the instructions that came with that restraint, and also the instructions in...
Page 41 Securing the Child Within the Child Restraint There are several systems for securing the child within the child restraint. One system, the three-point harness, has straps that come down over each of the infant’s shoulders and buckle together at the crotch. The ﬁve-point harness system has two shoulder straps, two hip straps, and a crotch strap.
Page 42: Where To Put The Restraint
Where to Put the Restraint Accident statistics show that children are safer if they are restrained in the rear rather than the front seat. General Motors recommends that child restraints be secured in a rear seat, including an infant riding in a rear-facing infant seat, a child riding in a forward-facing child seat and an older child riding in a booster seat.
Page 43 Wherever you install a child restraint, be sure to secure the child restraint properly. Keep in mind that an unsecured child restraint can move around in a collision or sudden stop and injure people in the vehicle. Be sure to properly secure any child restraint in your vehicle –...
Page 44 Lower Anchors Lower anchors (A) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (B). 1-38 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle.
Page 45 Some top tether-equipped child restraints are designed for use with or without the top tether being attached. Others require the top tether always to be attached. In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached.
Page 46 The top tether anchors are located on the ﬂoor of the rear cargo area. Flip open the trim cover to access the anchors. Be sure to use an anchor located on the same side of the vehicle as the seating position where the child restraint will be placed.
Page 47 CAUTION: Each top tether anchor and lower anchor in the vehicle is designed to hold only one child restraint. Attaching more than one child restraint to a single anchor could cause the anchor or attachment to come loose or even break during a crash.
Page 48: Securing A Child Restraint In A Rear Seat Position
If the position you are using has an adjustable head restraint and you are using a dual tether, route the tether around the head restraint. If the position you are using has an adjustable head restraint and you are using a single tether, route the tether under the head restraint and in between the...
Page 49 3. Buckle the belt. If the buckle does not click, check to be sure that you are using the correct buckle. The buckle for the center rear passenger position has the word CENTER on it. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 50 5. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 51: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position Your vehicle has a right front passenger’s airbag. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint on page 1-36. In addition, your vehicle has the passenger sensing system.
Page 52 If you need to secure a forward-facing child restraint in the right front seat position, move the seat as far back as it will go before securing the forward-facing child restraint. See Manual Seats on page 1-2. If your child restraint is equipped with the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-37.
Page 53 4. Buckle the belt. Make sure the release button is 5. Pull the rest of the shoulder belt all the way out of positioned so you would be able to unbuckle the the retractor to set the lock. safety belt quickly if you ever had to. 1-47...
Page 54 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor. If you are using a forward-facing child restraint, you may ﬁnd it helpful to use your knee to push down on the child restraint as you tighten the belt.
Page 55: Airbag System
If the on indicator is still lit, secure the child in the child restraint in a rear seat position in the vehicle and check with your dealer. If the airbag readiness light and the OFF light in the passenger airbag status indicator come on together, it may mean there is a malfunction in the passenger sensing system.
Page 56 Frontal airbags are designed to help reduce the risk of injury from the force of an inﬂating frontal airbag. But these airbags must inﬂate very quickly to do their job and comply with federal regulations. Here are the most important things to know about the airbag system: CAUTION: You can be severely injured or killed in a crash...
Page 57 CAUTION: Both frontal and side impact airbags inﬂate with great force, faster than the blink of an eye. If you are too close to an inﬂating airbag, as you would be if you were leaning forward, it could seriously injure you. Safety belts help keep you in position for airbag inﬂation before and during a crash.
Page 58: Where Are The Airbags
Where Are the Airbags? The driver’s frontal airbag is in the middle of the steering wheel. 1-52 The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side.
Page 59 If your vehicle has a seat-mounted side impact airbag for the driver, it is in the side of the driver’s seatback closest to the door. If your vehicle has a seat-mounted side impact airbag for the right front passenger, it is in the side of the passenger’s seatback closest to the door.
Page 60 If your vehicle has a roof-mounted side impact airbag for the driver and the passenger seated directly behind the driver, it is in the ceiling above the side windows. 1-54 If your vehicle has a roof-mounted side impact airbag for the right front passenger and the passenger seated directly behind that passenger, it is in the ceiling above the side windows.
Page 61: When Should An Airbag Inﬂate
CAUTION: If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death. The path of an inﬂating airbag must be kept clear. Do not put anything between an occupant and an airbag, and do not attach or put anything on the steering wheel hub or on or near any other...
Page 62 Frontal airbags may inﬂate at different crash speeds. For example: • If the vehicle hits a stationary object, the airbags could inﬂate at a different crash speed than if the vehicle hits a moving object. • If the vehicle hits an object that deforms, the airbags could inﬂate at a different crash speed than if the vehicle hits an object that does not deform.
Page 63: What Makes An Airbag Inﬂate
What Makes an Airbag Inﬂate? In an impact of sufficient severity, the airbag sensing system detects that the vehicle is in a crash. The sensing system triggers a release of gas from the inﬂator, which inﬂates the airbag. The inﬂator, airbag and related hardware are all part of the airbag modules.
Page 64: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After the frontal airbags and seat-mounted side impact airbags inﬂate, they quickly deﬂate, so quickly that some people may not even realize the airbags inﬂated. Roof-mounted side impact airbags deﬂate more slowly and may still be at least partially inﬂated minutes after the vehicle comes to rest.
Page 65: Passenger Sensing System
In many crashes severe enough to inﬂate the airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for your airbag system.
Page 66 The passenger sensing system works with sensors that are part of the right front passenger’s seat assembly and safety belt assembly. The sensors are designed to detect the presence of a properly-seated occupant and determine if the passenger’s frontal airbag and seat-mounted side impact airbag (if equipped) and safety belt pretensioner should be enabled (may inﬂate) or not.
Page 67 The passenger sensing system is designed to turn off the right front passenger’s frontal airbag and seat-mounted side impact airbag (if equipped) if: • the right front passenger seat is unoccupied • the system determines that a small child is present in a child restraint •...
Page 68 The passenger sensing system is designed to enable (may inﬂate) the right front passenger’s frontal airbag and seat-mounted side impact airbag (if equipped) and safety belt pretensioner anytime the system senses that a person of adult size is sitting properly in the right front passenger’s seat.
Page 69 CAUTION: If the airbag readiness light in the instrument panel cluster ever comes on and stays on, it means that something may be wrong with the airbag system. If this ever happens, have the vehicle serviced promptly, because an adult-size person sitting in the right front passenger’s seat may not have the protection of the frontal airbag.
Page 70: Servicing Your Airbag-Equipped Vehicle
Servicing Your Airbag-Equipped Vehicle Airbags affect how your vehicle should be serviced. There are parts of the airbag system in several places around your vehicle. Your dealer and the service manual have information about servicing your vehicle and the airbag system. To purchase a service manual, see Service Publications Ordering Information on page 7-14.
Page 71 Do not perform any of the following changes without consulting your dealer. Such changes can interfere with the proper operation of the airbag system, passenger sensing system and/or safety belt pretensioners. • Repairs on or near the front seat belt retractor assemblies •...
Page 72: Restraint System Check
Restraint System Check Checking the Restraint Systems Now and then, make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 73: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as possible.
Page 74 NOTES 1-68...
Page 75: Features And Controls
Section 2 Keys ...2-2 Remote Keyless Entry System ...2-3 Remote Keyless Entry System Operation ...2-4 Doors and Locks ...2-6 Door Locks ...2-6 Power Door Locks ...2-7 Rear Door Security Locks ...2-8 Liftgate/Liftglass ...2-9 Windows ...2-10 Manual Windows ...2-11 Power Windows ...2-11 Sun Visors ...2-12 Theft-Deterrent Systems ...2-12 Content Theft-Deterrent ...2-12...
Page 76: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons. They could operate the power windows or other controls or even make the vehicle move. The children or others could be badly injured or even killed.
Page 77: Remote Keyless Entry System
One key is used for the ignition, the doors and all other locks. When a new vehicle is delivered, the dealer removes the key tag from the key and gives it to the ﬁrst owner. Each tag has a code on it that tells your dealer or a qualiﬁed locksmith how to make extra keys.
Page 78: Remote Keyless Entry System Operation
At times you may notice a decrease in range. This is normal for any remote keyless entry system. If the transmitter does not work or if you have to stand closer to your vehicle for the transmitter to work, try this: •...
Page 79: Battery Replacement
Matching Transmitter(s) to Your Vehicle Each remote keyless entry transmitter is coded to prevent another transmitter from unlocking your vehicle. If a transmitter is lost or stolen, a replacement can be purchased through your dealer. Remember to bring any remaining transmitters with you when you go to your dealer.
Page 80: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers — especially children — can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. You increase the chance of being thrown out of the vehicle in a crash if the doors are not locked.
Page 81: Power Door Locks
To manually lock the door from the inside, press the knob on the door forward. To unlock the door, press the knob rearward. With manual locks, you must use the key to lock and unlock the liftgate. Power Door Locks If your vehicle has this feature, the power door lock switch is located...
Page 82: Rear Door Security Locks
Rear Door Security Locks Your vehicle is equipped with rear door security locks that help prevent passengers from opening the rear doors on your vehicle from the inside. The security locks are located on the inside of the rear door trim. To use these locks, do the following: 1.
Page 83: Liftgate/Liftglass
Liftgate/Liftglass CAUTION: It can be dangerous to drive with the liftgate or liftglass open because carbon monoxide (CO) gas can come into your vehicle. You cannot see or smell CO. It can cause unconsciousness and even death. If you must drive with the liftgate open or if electrical wiring or other cable connections must pass through the seal between the body and the liftgate or liftglass:...
Page 84: Windows
To open the liftglass using the key, insert the key into the keyhole and turn clockwise to the second position. Use the handle in the center of the liftglass to help in lifting the glass. Your vehicle may have a liftglass release button which is located on the instrument panel to the...
Page 85: Manual Windows
Manual Windows Use the window crank to open and close each window. Power Windows If your vehicle has this feature, the switches controlling the driver’s and passenger’s windows are located on the driver’s door. The power window switch on each passenger door controls that window only.
Page 86: Sun Visors
Sun Visors To block out glare, swing down the sun visors. You can also swing them to the side. The visors can be slid along the rod for extended coverage for the side windows unless your vehicle has roof-mounted side impact airbags. Visor Vanity Mirror Swing down the sun visor to expose the vanity mirror.
Page 87: How The System Alarm Is Activated
3. After the indicator light starts ﬂashing, you may leave the vehicle. Do not leave anyone in the vehicle when you set the system, because unlocking the vehicle from the inside will activate the system. Testing the Alarm To test the alarm, do the following: 1.
Page 88: Starting And Operating Your Vehicle
Reactivating the System Once the system is set, it will automatically reset the alarm after the alarm stops. The alarm will activate again under the same conditions as described earlier. Disarming the System The alarm can be disarmed by doing one of the following: •...
Page 89: Ignition Positions
Ignition Positions With the key in the ignition switch, you can turn it to four different positions. Notice: If your key seems stuck in LOCK and you cannot turn it, be sure you are using the correct key; if so, is it all the way in? If it is, then turn the steering wheel left and right while you turn the key hard.
Page 90: Starting The Engine
(C) ON: This is the position the switch returns to after you start your engine and release the switch. The switch stays in the ON position when the engine is running. But even when the ignition is not running, you can use ON to operate your electrical accessories, including the ventilation fan and 115 volt power outlet, and to display some warning and indicator lights.
Page 91: Engine Coolant Heater
Starting Procedure 1. With your foot off the accelerator pedal, turn the ignition to START. When the engine starts, let go of the key. The idle speed will go down as your engine gets warm. Notice: Holding your key in START for longer than 15 seconds at a time will cause your battery to be drained much sooner.
Page 92: Automatic Transaxle Operation
3. Plug it into a normal, grounded 110-volt AC outlet. CAUTION: Plugging the cord into an ungrounded outlet could cause an electrical shock. Also, the wrong kind of extension cord could overheat and cause a ﬁre. You could be seriously injured.
Page 93 CAUTION: It is dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. Do not leave your vehicle when the engine is running unless you have to. If you have left the engine running, the vehicle can move suddenly.
Page 94 NEUTRAL (N): In this position, your engine does not connect with the wheels. To restart when you are already moving, use NEUTRAL (N) only. CAUTION: Shifting into a drive gear while your engine is running at high speed is dangerous. Unless your foot is ﬁrmly on the brake pedal, your vehicle could move very rapidly.
Page 95: Overdrive Off
Overdrive Off Your automatic transaxle has an O/D (overdrive off) button located on the left side of the shift lever. Press the O/D button to turn off overdrive. A light on the instrument panel cluster will come on when this feature is used.
Page 96 THIRD (3), FOURTH (4), FIFTH (5): Shift into THIRD (3), FOURTH (4) and FIFTH (5) the same way you do for SECOND (2). Slowly let up on the clutch pedal as you press the accelerator pedal. To stop, let up on the accelerator pedal and press the brake pedal.
Page 97: Shift Speeds
FOURTH (4), FIFTH (5), SIXTH (6): Shift into FOURTH (4) and FIFTH (5) and SIXTH (6) the same way you do for THIRD (3). Slowly let up on the clutch pedal as you press the accelerator pedal. To stop, let up on the accelerator pedal and press the brake pedal.
Page 98: Parking Brake
Parking Brake To set the parking brake, hold the brake pedal down and pull up on the parking brake lever. If the ignition is on, the brake system warning light will come on. To release the parking brake, hold the brake pedal down.
Page 99: Shifting Into Park (P) (Automatic Transaxle)
Shifting Into Park (P) (Automatic Transaxle) CAUTION: It can be dangerous to get out of your vehicle if the shift lever is not fully in PARK (P) with the parking brake ﬁrmly set. Your vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 100: Shifting Out Of Park (P) (Automatic
Torque Lock (Automatic Transaxle) If you are parking on a hill and you do not shift into PARK (P) properly, the weight of the vehicle may put too much force on the parking pawl in the transaxle. You may ﬁnd it difficult to pull the shift lever out of PARK (P).
Page 101: Shift Lock Release
Shift Lock Release If you ever hold the brake pedal down but still cannot shift out of PARK (P), try this: 1. Turn the ignition to LOCK. Make sure the parking brake is applied. 2. Carefully pry the cover from the shift lock override, located to the right of the shift lever.
Page 102: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn. 2-28 Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you cannot see or smell.
Page 103: Running The Engine While Parked
Running the Engine While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling the engine with the climate control system off could allow dangerous exhaust into your vehicle.
Page 104: Mirrors
Mirrors Manual Rearview Mirror While sitting in a comfortable driving position, adjust the mirror so you can see clearly behind your vehicle. Grip the mirror in the center to move it up or down and side to side. The control at the bottom of the mirror is the day/night feature that allows adjustment to the mirror so that the glare of headlamps from behind is reduced.
Page 105: Outside Remote Control Mirrors
Outside Remote Control Mirrors Your vehicle has outside power adjustable mirrors. The controls are located to the left of the steering wheel on the instrument panel. To adjust either mirror, push the button labeled L (left) or R (right). Use the arrows on the control pad to adjust the direction of the mirror.
Page 106: Onstar System
® OnStar System ® OnStar uses global positioning system (GPS) satellite technology, wireless communications, and live advisors to provide you with a wide range of safety, security, information, and convenience services. If your airbags deploy, the system is designed to make an ®...
Page 107 Safe and Sound Plan • Advanced Automatic Collision Notiﬁcation • Automatic Notiﬁcation of Airbag Deployment • Emergency Services • Roadside Assistance • Stolen Vehicle Tracking • AccidentAssist • Remote Door Unlock/Vehicle Alert • Online Concierge Directions and Connections • All Safe and Sound Plan Services •...
Page 108: Storage Areas
Storage Areas Glove Box Open the glove box by pulling the bottom of the handle upward. Cupholder(s) There are two ﬁxed cupholders located in the console area between the two front seats. There are also two cupholders that fold out of the rear of the console storage unit.
Page 109: Rear Storage Area
How to Remove and Replace the Floor Mat To remove the ﬂoor mat, pull up on the rear of the mat to disconnect it from the locator hooks. To reinstall the ﬂoor mat, line up the openings in the ﬂoor mat over the locator hooks and push down into place.
Page 110: Rear Cargo Accessory Track System
Rear Cargo Accessory Track System Your vehicle has a track system located on the ﬂoor of the rear cargo area. This system can be used to carry accessories in your vehicle in many ways by using the tie-down anchors provided in your vehicle or accessory packages available from your GM dealer.
Page 111: Cargo Tie Downs
Cargo Tie Downs The tire tie-down straps are designed to secure a ﬂat tire. You can also use the straps and hooks to secure your luggage. There are eight tie-down hooks located in the rear of the vehicle. The straps are located under the cargo area ﬂoor panel.
Page 112 NOTES 2-38...
Page 113 Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Other Warning Devices ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-7 Headlamp High/Low-Beam Changer ...3-8 Flash-to-Pass ...3-8 Windshield Wipers ...3-8 Windshield Washer ...3-9 Rear Window Wiper/Washer ...3-10 Cruise Control ...3-10 Exterior Lamps ...3-13...
Page 114 Section 3 Overdrive Off Light ...3-40 Highbeam On Light ...3-40 Low Washer Fluid Warning Light ...3-40 Door Ajar Light ...3-40 Fuel Gage ...3-41 Low Fuel Warning Light ...3-41 Audio System(s) ...3-42 Setting the Time ...3-43 Radio with CD (Base Level) ...3-43 Instrument Panel Radio with CD (MP3) ...3-54 Radio with Six-Disc CD ...3-66...
Page 115 NOTES...
Page 116: Instrument Panel Overview
Instrument Panel Overview...
Page 117 The main components of your instrument panel are the following: A. Air Outlets. See Outlet Adjustment on page 3-21. B. Instrument Panel Cluster. See Instrument Panel Cluster on page 3-25. C. Climate Control System. See Climate Control System on page 3-18. D.
Page 118: Hazard Warning Flashers
Hazard Warning Flashers Your hazard warning ﬂashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will ﬂash on and off. The hazard warning ﬂasher button is located in the center of the instrument panel.
Page 119: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The turn signal/multifunction lever is located on the left side of the steering column. This lever operates the following: • Exterior Lamps. See Exterior Lamps on page 3-13. • Turn and Lane-Change Signals. See Turn and Lane-Change Signals on page 3-7. •...
Page 120: Headlamp High/Low-Beam Changer
Headlamp High/Low-Beam Changer The headlamps must be on for this feature to work. For high beams, push the turn signal lever away from you. When the high beams are on, this light on the instrument panel cluster also will be on. It will go off when you switch to the low beams.
Page 121: Windshield Washer
INT (Intermittent): Move the lever to INT to choose a delayed wiping cycle. In light rain or snow, you might want to use this position rather than continuous wiping. You can change the time between wipes by turning the INT band. Turn the band forward or rearward for longer or shorter delay interval.
Page 122: Rear Window Wiper/Washer
Rear Window Wiper/Washer To squirt washer ﬂuid on the rear window, twist the knob upward or downward as far as it will go. The knob automatically returns from these positions after you release it. The rear window washer uses the same ﬂuid bottle as the windshield washer.
Page 123 CAUTION: Cruise control can be dangerous where you cannot drive safely at a steady speed. So, do not use your cruise control on winding roads or in heavy traffic. Cruise control can be dangerous on slippery roads. On such roads, fast changes in tire traction can cause excessive wheel slip, and you could lose control.
Page 124 Resuming a Set Speed Suppose the cruise control is set at a desired speed and then you apply the brake. This will shut off cruise control. But you won’t need to reset it. If the vehicle speed is 25 mph (40 km/h) or greater, push the lever up to +RES (Resume/Accelerate).
Page 125: Exterior Lamps
Ending Cruise Control There are several ways to turn off the cruise control: • Step lightly on the brake pedal or push the clutch pedal, if you have a manual transaxle. • Press the ON-OFF button again. • Pull the cruise control lever toward you. Erasing Speed Memory When you turn off the cruise control or the ignition, your cruise control set speed memory is erased.
Page 126: Headlamps On Reminder
Headlamps on Reminder If you turn the ignition to LOCK or ACC and leave the lamps on, you’ll hear a tone when you open the driver’s door. Daytime Running Lamps (DRL) Daytime Running Lamps (DRL) can make it easier for others to see the front of your vehicle during the day.
Page 127: Fog Lamps
Fog Lamps (Fog Lamps): Turn the band on the turn signal/ multifunction lever to the fog lamp symbol to turn the fog lamps on. They will come on only when the headlamps are on low beam. Some localities have laws that require the headlamps to be on along with the fog lamps.
Page 128: Entry Lighting
Entry Lighting While the interior lights control is in the door position, the light will come on when any side door, the liftgate or the liftglass is opened. After all the doors, liftgate and liftglass are closed, and the key is out of the ignition, in LOCK or ACC, the light will remain on for about 15 seconds and then go out except under the following conditions:...
Page 129: Power Outlet 115 Volt Alternating Current
When adding electrical equipment, be sure to follow the proper installation instructions included with the equipment. Notice: Improper use of the power outlet can cause damage not covered by your warranty. Do not hang any type of accessory or accessory bracket from the plug because the power outlets are designed for accessory power plugs only.
Page 130: Ashtray(S) And Cigarette Lighter
Ashtray(s) and Cigarette Lighter Notice: If you put papers, pins, or other ﬂammable items in the ashtray, hot cigarettes or other smoking materials could ignite them and possibly damage your vehicle. Never put ﬂammable items in the ashtray. To use the lighter, if your vehicle has one, push the lighter in all the way and let go.
Page 131 To change the current mode, select one of the following: (Vent): This mode directs air to the upper instrument panel outlets. (Bi-Level): This mode directs the air to the upper instrument panel outlets, and to the ﬂoor outlets. (Floor): This mode directs the air to the ﬂoor outlets and to the outboard outlets (for the side windows).
Page 132: Defogging And Defrosting
Defogging and Defrosting Fog on the inside of windows is a result of high humidity (moisture) condensing on the cool window glass. This can be minimized if the climate control system is used properly. There are two modes to clear fog or frost from your windshield.
Page 133: Outlet Adjustment
(Rear Defogger): Press the defogger button to turn the rear window defogger on or off. An indicator light in the button will come on to let you know that the rear window defogger is activated. Be sure to clear as much snow from the rear window as possible.
Page 134: Passenger Compartment Air Filter
Passenger Compartment Air Filter Passenger compartment air, both outside and recirculated air, is routed through a passenger compartment air ﬁlter. The ﬁlter removes certain contaminants from the air, including pollen and dust particles. Reductions in airﬂow, which may occur more quickly in dusty areas, indicate that the ﬁlter needs to be replaced early.
Page 135 3. Lift the snaps on the ﬁlter cover to remove the cover. 4. Remove the air ﬁlter. 5. Reverse the steps to install the new air ﬁlter. It will not cause damage to your vehicle if you choose not to replace the air ﬁlter after removing it. However, the air coming into your vehicle will not be ﬁltered.
Page 136: Warning Lights, Gages, And Indicators
Warning Lights, Gages, and Indicators This part describes the warning lights and gages that may be on your vehicle. The pictures will help you locate them. Warning lights and gages can signal that something is wrong before it becomes serious enough to cause an expensive repair or replacement.
Page 137: Instrument Panel Cluster
Instrument Panel Cluster Your instrument panel is designed to let you know at a glance how your vehicle is running. You’ll know how fast you’re going, how much fuel is left in the tank and many other things you’ll need to drive safely and economically. United States Cluster shown, Canada similar 3-25...
Page 138: Speedometer And Odometer
Speedometer and Odometer Your speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour (km/h). Your odometer shows how far your vehicle has been driven, in miles. You may wonder what happens if your vehicle needs a new odometer installed.
Page 139: Tachometer
Tachometer The tachometer shows engine speed in thousands of revolutions per minute (rpm). Notice: If you operate the engine with the tachometer in the shaded warning area, your vehicle could be damaged, and the damages would not be covered by your warranty. Do not operate the engine with the tachometer in the shaded warning area.
Page 140: Airbag Readiness Light
This light is located on the center of the instrument panel, above the audio system. When the key is turned to ON or START, this light will come on as a reminder for the right front passenger to fasten the safety belt. The safety belt light will ﬂash until the right front passenger’s safety belt is buckled.
Page 141: Passenger Airbag Status Indicator
CAUTION: If the airbag readiness light stays on or keeps ﬂashing after you start your vehicle, it means the airbag system and safety belt pretension system may not be working properly. The airbags in your vehicle may not inﬂate in a crash, or they could even inﬂate without a crash.
Page 142 Your vehicle has a rear seat that will accommodate a rear-facing child restraint. A label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys.
Page 143: Charging System Light
If the word OFF is lit on the passenger airbag status indicator, it means that the passenger sensing system has turned off the right front passenger’s frontal airbag and seat-mounted side impact airbag (if equipped). See Passenger Sensing System on page 1-59 for information about the conditions that may affect the airbag system and also important safety information.
Page 144: Brake System Warning Light
Brake System Warning Light Your vehicle’s hydraulic brake system is divided into two parts. If one part isn’t working, the other part can still work and stop you. For good braking, though, you need both parts working well. If the warning light comes on, there is a brake problem. Have your brake system inspected right away.
Page 145: Anti-Lock Brake System Warning Light
Anti-Lock Brake System Warning Light United States With the anti-lock brake system, the light will come on when your engine is started and may stay on for several seconds. That’s normal. If the light stays on, turn the ignition to LOCK. Or, if the light comes on when you’re driving, stop as soon as possible and turn the ignition off.
Page 146: Stabilitrak ® Indicator Light
Traction Control System (TCS) Warning Light This light should come on brieﬂy when you start the engine. If it stays on or comes on while you are driving, there is a problem with your traction control system. The traction control system warning light comes on for a few seconds when the ignition is turned to ON.
Page 147: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage United States This gage shows the engine coolant temperature. If the gage pointer moves into the red area, your engine is too hot! It means that your engine has overheated. You should pull off the road, stop your vehicle and turn off the engine as soon as possible.
Page 148 Malfunctions often will be indicated by the system before any problem is apparent. This may prevent more serious damage to your vehicle. This system is also designed to assist your service technician in correctly diagnosing any malfunction. Notice: If you keep driving your vehicle with this light on, after awhile, your emission controls may not work as well, your fuel economy may not be as good, and your engine may not run as...
Page 149: If The Light Is Flashing
If the Light Is Flashing The following may prevent more serious damage to your vehicle: • Reducing vehicle speed • Avoiding hard accelerations • Avoiding steep uphill grades • If you are towing a trailer, reduce the amount of cargo being hauled as soon as it is possible If the light stops ﬂashing and remains on steady, see “If the Light Is On Steady”...
Page 150: Oil Pressure Light
Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or may begin programs to inspect the emission control equipment on your vehicle. Failure to pass this inspection could prevent you from getting a vehicle registration. Here are some things you need to know to help your vehicle pass an inspection: Your vehicle will not pass this inspection if the Check Engine light is on or not working properly.
Page 151: Maintenance Schedule
CAUTION: Do not keep driving if the oil pressure is low. If you do, your engine can become so hot that it catches ﬁre. You or others could be burned. Check your oil as soon as possible and have your vehicle serviced. Notice: Lack of proper engine oil maintenance may damage the engine.
Page 152: Overdrive Off Light
Overdrive Off Light Your automatic transaxle has overdrive. The light will come on whenever you turn off the overdrive. See Overdrive Off on page 2-21 for more information. Highbeam On Light This light will come on when the high-beam headlamps are in use. See Headlamp High/Low-Beam Changer on page 3-8.
Page 153: Fuel Gage
Fuel Gage United States Your fuel gage shows about how much fuel is in your tank. There is an arrow on the fuel gage that indicates that the fuel ﬁller door is on the driver’s side of your vehicle. The fuel gage works only when the ignition switch is ON.
Page 154: Audio System(S)
Audio System(s) Determine which radio your vehicle has and then read the pages following to familiarize yourself with its features. Driving without distraction is a necessity for a safer driving experience. See Defensive Driving on page 4-2. By taking a few moments to read this manual and get familiar with your vehicle’s audio system, you can use it with less effort, as well as take advantage of its features.
Page 155: Setting The Time
Setting the Time The radio may have a button marked with an H or HR to represent hours and an M or MIN to represent minutes. Press and hold the hour button until the correct hour appears on the display. AM will appear for morning hours.
Page 156: Playing The Radio
This system relies upon receiving speciﬁc information from these stations and will only work when the information is available. In rare cases, a radio station may broadcast incorrect information that will cause the radio features to work improperly. If this happens, contact the radio station.
Page 157: Finding A Station
Finding a Station BAND: Press this button to switch between FM1, FM2, AM, or XM1 or XM2 (if equipped). The display will show the selection. TUNE: Turn this knob to select radio stations. SEEK : Press the up or the down arrow to go to the next or to the previous station and stay there.
Page 158 EQ (Equalizer): Press this button to select customized equalization settings. Up to six customized equalization settings, can be programmed, by performing the following steps: 1. Turn the radio on. 2. Use the TONE button and the SELECT knob to create the equalization. 3.
Page 159: Rds And Xm
Finding a Program Type (PTY) Station (RDS and XM™) To select and ﬁnd a desired PTY perform the following: 1. Press PROG TYPE to activate program type select mode. The PTY symbol will appear on the display. 2. Turn the SELECT knob to select a PTY. 3.
Page 160: Rds Messages
Setting Preset PTYs (RDS Only) These pushbuttons have factory PTY presets. Up to 12 PTYs (six FM1 and six FM2), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Press BAND to select FM1 or FM2. 2.
Page 161: Radio Messages
TRAF (Traffic): If TRAF appears on the display, the tuned station broadcasts traffic announcements. Press this button to receive the traffic announcement from the station and brackets will be displayed around TRAF. When a traffic announcement comes on the tuned radio station you will hear it. If the station does not broadcast traffic announcements, press the TRAF button and the radio will seek to a station that does.
Page 162 Radio Display Message XL (Explicit XL on the radio display, Language Channels) after the channel name, indicates content with explicit language. Updating Updating encryption code No Signal Loss of signal Loading XM Acquiring channel audio (after 4 second delay) CH Off Air Channel not in service CH Unavail Channel no...
Page 163 Radio Display Message No Info Song/Program Title not available No Info Category Name not available No Info No Text/Informational message available Not Found No channel available for the chosen category XM Locked Theft lock active Radio ID Radio ID label (channel 0) Unknown Radio ID not known...
Page 164: Playing A Cd
Playing a CD Insert a CD partway into the slot, label side up. The player will pull it in and the CD should begin playing. If you insert a CD with the radio off and the ignition on, it will start to play. If the ignition or radio is turned off with a CD in the player, it will stay in the player.
Page 165 (Reverse): Press and hold this pushbutton to reverse quickly within a track. You will hear sound at a reduced volume. Release the pushbutton to play the passage. The elapsed time of the track will appear on the display. EQ (Equalizer): Press EQ to select an equalization setting while playing a CD.
Page 166: Radio With Cd (Mp3)
CD Messages CHECK CD: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 167 This system relies upon receiving speciﬁc information from these stations and will only work when the information is available. In rare cases, a radio station may broadcast incorrect information that will cause the radio features to work improperly. If this happens, contact the radio station.
Page 168 Setting Preset Stations Up to 18 stations (six FM1, six FM2, and six AM), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press BAND to select FM1, FM2, or AM. 3.
Page 169 Adjusting the Speakers (Balance/Fade) BAL (Balance): To adjust the balance between the right and the left speakers, press and release this button until BAL appears on the display. The SELECT LED indicator will light to show that the speakers can be adjusted.
Page 170 BAND (Alternate Frequency): Alternate frequency allows the radio to switch to a stronger station with the same program type. To turn alternate frequency on, press and hold BAND for two seconds. AF ON will appear on the display. The radio may switch to stations with a stronger frequency.
Page 171 TRAF (Traffic): If TRAF appears on the display, the tuned station broadcasts traffic announcements. To receive the traffic announcement from the tuned station, press this button. Brackets will be displayed around TRAF and when a traffic announcement comes on the tuned radio station you will hear it. If the station does not broadcast traffic announcements, press the TRAF button and the radio will seek to a station that does.
Page 172 If there is no apparent damage, try a known good CD. Do not add any label to a CD, it could get caught in the CD player. If a CD is recorded on a personal computer and a description label is needed, try labeling the top of the recorded CD with a marking pen instead.
Page 173: Mp3 Format
RCL (Recall): Push this button to see how long the current track has been playing. To change the default on the display, track and elapsed time, push the button until you see the display you want, then hold the button until the display ﬂashes.
Page 174 Root Directory The root directory will be treated as a folder. If the root directory has compressed audio ﬁles, the directory will be displayed as F1 ROOT. All ﬁles contained directly under the root directory will be accessed prior to any root directory folders.
Page 175 File System and Naming The song name that will be displayed will be the song name that is contained in the ID3 tag. If the song name is not present in the ID3 tag, then the radio will display the ﬁle name without the extension (such as .mp3) as the track name.
Page 176 Do not add any label to a CD, it could get caught in the CD player. If a CD is recorded on a personal computer and a description label is needed, try labeling the top of the recorded CD with a marking pen instead. Notice: If you add any label to a CD, insert more than one CD into the slot at a time, or attempt to play scratched or damaged CDs, you could...
Page 177 (Previous Folder): Press this pushbutton to go to the ﬁrst track in the previous folder or playlist. If the disc contains playlists, it will go through the playlist, then the folders. Pressing this pushbutton while in folder random mode will take you to the previous folder and random the tracks in that folder.
Page 178: Radio With Six-Disc Cd
CD Messages CHECK CD: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 179 Playing the Radio PWR (Power): Push this knob to turn the system on and off. VOLUME: Turn this knob to increase or to decrease the volume. RCL (Recall): Press this button to display the current radio station frequency. When the ignition is off, press this button to display the time.
Page 180 Setting Preset Stations Up to 18 stations (six FM1, six FM2, and six AM), can be programmed on the six numbered pushbuttons, by performing the following steps: 1. Turn the radio on. 2. Press AM/FM to select FM1, FM2, or AM. 3.
Page 181 Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: • Seek to stations broadcasting the selected type of programming •...
Page 182: Setting Preset Ptys
To use the PTY interrupt feature, press and hold the P-TYPE button until you hear a beep on the PTY you want to interrupt with. When selected, an asterisk will appear beside that PTY on the display. Select multiple interrupts if desired. When listening to a CD, the last selected RDS station will interrupt play if that selected program type format is broadcast.
Page 183 RDS Messages ALERT!: Alert warns of local or national emergencies. When an alert announcement comes on the current radio station, ALERT! will appear on the display. You will hear the announcement, even if the volume is low or a CD is playing. If a CD is playing, play will stop during the announcement.
Page 184 Playing a CD If the ignition or radio is turned off, with a CD in the player, it will stay in the player. When the ignition or radio is turned on, the CD will start playing where it stopped, if it was the last selected audio source. When a CD is inserted, the CD symbol will appear on the CD.
Page 185 To insert multiple CDs, do the following: 1. Turn the ignition on. 2. Press and hold the LOAD button for two seconds. You will hear a beep and the indicator light, located to the right of the slot, will begin to ﬂash. 3.
Page 186 REV (Reverse): Press and hold this button to reverse quickly within a track. You will hear sound at a reduced volume. Release this button to play the passage. The elapsed time of the track will appear on the display. (Forward): Press and hold this button to advance quickly within a track.
Page 187: Using Song List Mode
SCAN : To scan one CD, press and hold either SCAN arrow for more than two seconds until SCAN appears on the display and you hear a beep. The radio will go to the next track, play for 10 seconds, then go on to the next track.
Page 188 To play the song list, press the SONG LIST button. One beep will be heard and S-LIST will appear on the display. The recorded tracks will begin to play in the order they were saved. Seek through the song list by using the SEEK SCAN arrows.
Page 189: Radio Reception
CD Messages CHECK CD: If this message appears on the display and/or the CD comes out, it could be for one of the following reasons: • It is very hot. When the temperature returns to normal, the CD should play. •...
Page 190: Care Of Your Cds
XM™ Satellite Radio Service XM™ Satellite Radio Service gives digital radio reception from coast-to-coast in the 48 contiguous United States, and in Canada (if available). Just as with FM, tall buildings or hills can interfere with satellite radio signals, causing the sound to fade in and out. In addition, traveling or standing under heavy foliage, bridges, garages, or tunnels may cause loss of the XM™...
Page 191: Driving Your Vehicle
Section 4 Your Driving, the Road, and Your Vehicle ...4-2 Defensive Driving ...4-2 Drunken Driving ...4-3 Control of a Vehicle ...4-6 Braking ...4-6 Anti-Lock Brake System (ABS) ...4-7 Braking in Emergencies ...4-9 Traction Control System (TCS) ...4-9 ® StabiliTrak System ...4-10 Panic Brake Assist ...4-11 All-Wheel Drive (AWD) System ...4-12 Steering ...4-12...
Page 192: Your Driving, The Road, And Your Vehicle
Your Driving, the Road, and Your Vehicle Defensive Driving The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your vehicle: Buckle up. See Safety Belts: They Are for Everyone on page 1-9. CAUTION: Defensive driving really means “Be ready for anything.”...
Page 193: Drunken Driving
Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It is the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: •...
Page 194 According to the American Medical Association, a 180 lb (82 kg) person who drinks three 12 ounce (355 ml) bottles of beer in an hour will end up with a BAC of about 0.06 percent. The person would reach the same BAC by drinking three 4 ounce (120 ml) glasses of wine or three mixed drinks if each had 1-1/2 ounces (45 ml) of liquors like whiskey, gin, or vodka.
Page 195 Statistics show that the chance of being in a collision increases sharply for drivers who have a BAC of 0.05 percent or above. A driver with a BAC level of 0.06 percent has doubled his or her chance of having a collision.
Page 196: Control Of A Vehicle
Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering, and the accelerator. All three systems have to do their work at the places where the tires meet the road.
Page 197: Anti-Lock Brake System (Abs)
Avoid needless heavy braking. Some people drive in spurts — heavy acceleration followed by heavy braking — rather than keeping pace with traffic. This is a mistake. Your brakes may not have time to cool between hard stops. Your brakes will wear out much faster if you do a lot of heavy braking.
Page 198 Let us say the road is wet and you are driving safely. Suddenly, an animal jumps out in front of you. You slam on the brakes and continue braking. Here is what happens with ABS: A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work the brakes at each front wheel and at both rear wheels.
Page 199: Braking In Emergencies
Remember: ABS does not change the time you need to get your foot up to the brake pedal or always decrease stopping distance. If you get too close to the vehicle in front of you, you will not have time to apply your brakes if that vehicle suddenly slows or stops.
Page 200: Stabilitrak System
You may feel or hear the system working, but this is normal. Leave the system on during ordinary driving so that it can operate when needed. When the ignition is turned to ON, the system automatically turns on. This light should come on brieﬂy when you start the engine.
Page 201: Panic Brake Assist
This system will activate when your vehicle speed reaches or exceeds 9 mph (15 km/h), and will deactivate when the vehicle speed reduces to below 9 mph (15 km/h). You may hear a sound in the engine compartment for a few seconds when the engine is started or just after the vehicle begins to move.
Page 202: Power Steering
All-Wheel Drive (AWD) System If your vehicle has all-wheel drive (AWD), the AWD system operates automatically without any action required by the driver. If the front drive wheels begin to slip, the rear wheels will automatically begin to drive the vehicle as required. There may be a slight engagement noise during hard use but this is normal.
Page 203: Steering In Emergencies
If you need to reduce your speed as you approach a curve, do it before you enter the curve, while your front wheels are straight ahead. Try to adjust your speed so you can “drive” through the curve. Maintain a reasonable, steady speed. Wait to accelerate until you are out of the curve, and then accelerate gently into the straightaway.
Page 204: Off-Road Recovery
Off-Road Recovery You may ﬁnd that your right wheels have dropped off the edge of a road onto the shoulder while you are driving. If the level of the shoulder is only slightly below the pavement, recovery should be fairly easy. Ease off the accelerator and then, if there is nothing in the way, steer so that your vehicle straddles the edge of the pavement.
Page 205: Loss Of Control
• Do not get too close to the vehicle you want to pass while you are awaiting an opportunity. For one thing, following too closely reduces your area of vision, especially if you are following a larger vehicle. Also, you will not have adequate space if the vehicle ahead suddenly slows or stops.
Page 206 Skidding In a skid, a driver can lose control of the vehicle. Defensive drivers avoid most skids by taking reasonable care suited to existing conditions, and by not overdriving those conditions. But skids are always possible. The three types of skids correspond to your vehicle’s three control systems.
Page 207: Driving At Night
Driving at Night Night driving is more dangerous than day driving. One reason is that some drivers are likely to be impaired — by alcohol or drugs, with night vision problems, or by fatigue. Here are some tips on night driving. •...
Page 208: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you cannot stop, accelerate, or turn as well because your tire-to-road traction is not as good as on dry roads. And, if your tires do not have much tread left, you will get even less traction.
Page 209: Driving Through Flowing Water
Hydroplaning Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the water. This can happen if the road is wet enough and you are going fast enough. When your vehicle is hydroplaning, it has little or no contact with the road.
Page 210: City Driving
City Driving One of the biggest problems with city streets is the amount of traffic on them. You will want to watch out for what the other drivers are doing and pay attention to traffic signals. 4-20 Here are ways to increase your safety in city driving: •...
Page 211: Freeway Driving
Freeway Driving Mile for mile, freeways — also called thruways, parkways, expressways, turnpikes, or superhighways — are the safest of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 212: Before Leaving On A Long Trip
Just before you leave the lane, glance quickly over your shoulder to make sure there is not another vehicle in your blind spot. Once you are moving on the freeway, make certain you allow a reasonable following distance. Expect to move slightly slower at night. When you want to leave the freeway, move to the proper lane well in advance.
Page 213: Highway Hypnosis
Here are some things you can check before a trip: • Windshield Washer Fluid: Is the reservoir full? Are all windows clean inside and outside? • Wiper Blades: Are they in good shape? • Fuel, Engine Oil, Other Fluids: Have you checked all levels? •...
Page 214: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or mountains is different from driving in ﬂat or rolling terrain. 4-24 If you drive regularly in steep country, or if you are planning to visit there, here are some tips that can make your trips safer and more enjoyable.
Page 215 CAUTION: Coasting downhill in NEUTRAL (N) or with the ignition off is dangerous. Your brakes will have to do all the work of slowing down. They could get so hot that they would not work well. You would then have poor braking or even none going down a hill.
Page 216: Winter Driving
Winter Driving Here are some tips for winter driving: • Have your vehicle in good shape for winter. • You may want to put winter emergency supplies in your vehicle. Also see Tires on page 5-52. 4-26 Include an ice scraper, a small brush or broom, a supply of windshield washer ﬂuid, a rag, some winter outer clothing, a small shovel, a ﬂashlight, a red cloth, and a couple of reﬂective warning triangles.
Page 217 What is the worst time for this? Wet ice. Very cold snow or ice can be slick and hard to drive on. But wet ice can be even more trouble because it may offer the least traction of all. You can get wet ice when it is about freezing, 32°F (0°C), and freezing rain begins to fall.
Page 218: If You Are Caught In A Blizzard
Remember, unless you have ABS, if you brake so hard that your wheels stop rolling, you will just slide. Brake so your wheels always keep rolling and you can still steer. • Whatever your braking system, allow greater distance on any slippery road. •...
Page 219 CAUTION: Snow can trap exhaust gases under your vehicle. This can cause deadly CO (carbon monoxide) gas to get inside. CO could overcome you and kill you. You cannot see it or smell it, so you might not know it is in your vehicle.
Page 220: If Your Vehicle Is Stuck In Sand, Mud, Ice Or Snow
Run your engine only as long as you must. This saves fuel. When you run the engine, make it go a little faster than just idle. That is, push the accelerator slightly. This uses less fuel for the heat that you get and it keeps the battery charged.
Page 221: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out First, turn your steering wheel left and right. That will clear the area around your front wheels. Then shift back and forth between REVERSE (R) and a forward gear, or with a manual transaxle, between FIRST (1) or SECOND (2) and REVERSE (R), spinning the wheels as little as possible.
Page 222 Tire and Loading Information Label Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar). With the driver’s door open you will ﬁnd the label attached below the door lock post (striker). The tire and loading information label shows the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms and pounds.
Page 223 4. The resulting ﬁgure equals the available amount of cargo and luggage load capacity. For example, if the “XXX” amount equals 1400 lbs and there will be ﬁve 150 lb passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs (1400 750 (5 x 150) = 650 lbs).
Page 224 Example 2 Item Description Vehicle Capacity Weight for Example 2 = Subtract Occupant Weight 150 lbs (68 kg) x 5 = Available Cargo Weight = 4-34 Total Item 1,000 lbs (453 kg) 750 lbs (340 kg) 250 lbs (113 kg) Refer to your vehicle’s Tire and Loading Information label for speciﬁc information about your vehicle’s capacity weight and seating positions.
Page 225 Certiﬁcation Label Label Example A vehicle speciﬁc Certiﬁcation label is attached to the center pillar, near the driver’s door latch. It tells you the gross weight capacity of your vehicle, called the Gross Vehicle Weight Rating (GVWR). The GVWR includes the weight of the vehicle, all occupants, fuel, and cargo.
Page 226 If you put things inside your vehicle — like suitcases, tools, packages, or anything else — they will go as fast as the vehicle goes. If you have to stop or turn quickly, or if there is a crash, they will keep going. CAUTION: Things you put inside your vehicle can strike and injure people in a sudden stop or turn, or...
Page 227: Towing
Towing Towing Your Vehicle Consult your dealer or a professional towing service if you need to have your disabled vehicle towed. See Roadside Assistance Program on page 7-6. If you want to tow your vehicle behind another vehicle for recreational purposes (such as behind a motorhome), see “Recreational Vehicle Towing”...
Page 228: Dinghy Towing
Dinghy Towing If your vehicle is a front-wheel-drive with a manual transaxle, it can be dinghy towed. When dinghy towing, be sure to follow the posted legal speed limit. 1. Put the shift lever in NEUTRAL. 2. Turn the ignition to ACC to avoid locking the steering wheel.
Page 229: Dolly Towing
Dolly Towing If your vehicle is a front-wheel drive vehicle it can be towed using a dolly. To tow your vehicle using a dolly, follow these steps: 1. Put the front wheels on a dolly. 2. Put the vehicle in PARK (P) for an automatic transaxle and in NEUTRAL for a manual transaxle.
Page 230: Towing A Trailer
Towing a Trailer CAUTION: If you do not use the correct equipment and drive properly, you can lose control when you pull a trailer. For example, if the trailer is too heavy, the brakes may not work well — or even at all.
Page 231: If You Do Decide To Pull A Trailer
If You Do Decide To Pull A Trailer If you do, here are some important points: • There are many different laws, including speed limit restrictions, having to do with trailering. Make sure your rig will be legal, not only where you live but also where you’ll be driving.
Page 232: Weight Of The Trailer Tongue
You can ask your dealer for our trailering information or advice, or you can write us at: Pontiac-GMC Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 In Canada, write to: General Motors of Canada Limited Customer Communication Centre, 163-005...
Page 233: Safety Chains
Total Weight on Your Vehicle’s Tires Be sure your vehicle’s tires are inﬂated to the upper limit for cold tires. You’ll ﬁnd these numbers on the Tire-Loading Information label located in the glovebox. See Loading Your Vehicle on page 4-31. Then be sure you do not go over the GVW limit for your vehicle, including the weight of the trailer tongue.
Page 234: Driving With A Trailer
Driving with a Trailer Towing a trailer requires a certain amount of experience. Before setting out for the open road, you’ll want to get to know your rig. Acquaint yourself with the feel of handling and braking with the added weight of the trailer. And always keep in mind that the vehicle you are driving is now a good deal longer and not nearly as responsive as your vehicle is by itself.
Page 235: Turn Signals When Towing A Trailer
Turn Signals When Towing a Trailer When you tow a trailer, your vehicle may need a different turn signal ﬂasher and/or extra wiring. Check with your dealer. The arrows on your instrument panel will ﬂash whenever you signal a turn or lane change.
Page 236: Maintenance When Trailer Towing
When You Are Ready to Leave After Parking on a Hill 1. Apply your regular brakes and hold the pedal down while you: • start your engine • shift into a gear, and • release the parking brake 2. Let up on the brake pedal. 3.
Page 237: Service And Appearance Care
Section 5 Service ...5-3 Accessories and Modiﬁcations ...5-3 California Proposition 65 Warning ...5-3 Doing Your Own Service Work ...5-4 Adding Equipment to the Outside of Your Vehicle ...5-5 Fuel ...5-5 Gasoline Octane ...5-5 Gasoline Speciﬁcations ...5-6 California Fuel ...5-6 Additives ...5-6 Fuels in Foreign Countries ...5-7 Filling the Tank ...5-8 Filling a Portable Fuel Container ...5-10...
Page 238 Section 5 Wheel Alignment and Tire Balance ...5-67 Wheel Replacement ...5-67 Tire Chains ...5-68 If a Tire Goes Flat ...5-69 Changing a Flat Tire ...5-70 Removing the Spare Tire and Tools ...5-71 Removing the Flat Tire and Installing the Spare Tire ...5-73 Storing a Flat or Spare Tire and Tools ...5-78 Compact Spare Tire ...5-81 Appearance Care ...5-81...
Page 239: Service
Service Your dealer knows your vehicle best and wants you to be happy with it. We hope you will go to your dealer for all your service needs. You will get genuine GM parts and GM-trained and supported service people. We hope you will want to keep your GM vehicle all GM.
Page 240: Doing Your Own Service Work
Doing Your Own Service Work CAUTION: You can be injured and your vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it. • Be sure you have sufficient knowledge, experience, the proper replacement parts, and tools before you attempt any vehicle maintenance task.
Page 241: Adding Equipment To The Outside Of Your Vehicle
Adding Equipment to the Outside of Your Vehicle Things you might add to the outside of your vehicle can affect the airﬂow around it. This may cause wind noise and affect windshield washer performance. Check with your dealer before adding equipment to the outside of your vehicle.
Page 242: Gasoline Speciﬁcations
Gasoline Speciﬁcations At a minimum, gasoline should meet ASTM speciﬁcation D 4814 in the United States or CAN/CGSB-3.5 in Canada. Some gasolines may contain an octane-enhancing additive called methylcyclopentadienyl manganese tricarbonyl (MMT). General Motors recommends against the use of gasolines containing MMT. See Additives on page 5-6 for additional information.
Page 243: Fuels In Foreign Countries
Notice: Your vehicle was not designed for fuel that contains methanol. Do not use fuel containing methanol. It can corrode metal parts in your fuel system and also damage the plastic and rubber parts. That damage would not be covered under your warranty.
Page 244: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off your engine when you are refueling. Do not smoke if you are near fuel or refueling your vehicle.
Page 245 To remove the fuel cap, turn it slowly counterclockwise. On some vehicles you may have to push in while turning the cap. While refueling, hang the fuel cap inside of the fuel door. CAUTION: If you spill fuel and then something ignites it, you could be badly burned.
Page 246: Filling A Portable Fuel Container
Filling a Portable Fuel Container CAUTION: Never ﬁll a portable fuel container while it is in your vehicle. Static electricity discharge from the container can ignite the gasoline vapor. You can be badly burned and your vehicle damaged if this occurs. To help avoid injury to you and others: •...
Page 247: Hood Release
Hood Release To open the hood, do the following: 1. Pull the release handle with this symbol on it. It is located below the instrument panel to the left of the steering wheel. 2. Then go to the front of the vehicle and pull up on the secondary hood release.
Page 248: Engine Compartment Overview
Engine Compartment Overview When you open the hood of the 1.8L L4 (VIN Code 8) engine, you will see the following: 5-12...
Page 249 A. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-36. B. Power Steering Fluid Reservoir. See Power Steering Fluid on page 5-35. C. Radiator Pressure Cap. See Radiator Pressure Cap on page 5-28. D. Engine Oil Dipstick. See “Checking Engine Oil” under Engine Oil on page 5-16.
Page 250 When you open the hood of the 1.8L L4 (VIN Code L) engine, you will see the following: 5-14...
Page 251 A. Windshield Washer Fluid Reservoir. See “Adding Washer Fluid” under Windshield Washer Fluid on page 5-36. B. Power Steering Fluid Reservoir. See Power Steering Fluid on page 5-35. C. Radiator Pressure Cap. See Radiator Pressure Cap on page 5-28. D. Engine Oil Dipstick. See “Checking Engine Oil” under Engine Oil on page 5-16.
Page 252: Engine Oil
Engine Oil If the engine oil pressure light appears on the instrument cluster, it means you need to check your engine oil level right away. For more information, see Oil Pressure Light on page 3-38. You should check your engine oil level regularly; this is an added reminder.
Page 253: When To Add Engine Oil
When to Add Engine Oil 1.8L L4 (VIN Code 8) Engine 1.8L L4 (VIN Code L) Engine If the oil is below the indent at the tip of the dipstick, you will need to add at least one quart/liter of oil. But you must use the right kind.
Page 254: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for two things: • GM6094M Your vehicle’s engine requires oil meeting GM Standard GM6094M. You should look for and use only an oil that meets GM Standard GM6094M. 5-18 • SAE 5W-30 As shown in the viscosity chart, SAE 5W-30 is best for your vehicle.
Page 255: When To Change Engine Oil
Notice: Use only engine oil identiﬁed as meeting GM Standard GM6094M and showing the American Petroleum Institute Certiﬁed For Gasoline Engines starburst symbol. Failure to use the recommended oil can result in engine damage not covered by your warranty. ® GM Goodwrench oil meets all the requirements for your vehicle.
Page 256: Engine Air Cleaner/Filter
Engine Air Cleaner/Filter The engine air cleaner/ﬁlter is in the engine compartment on the driver’s side of the vehicle. See Engine Compartment Overview on page 5-12 for more information on location. When to Inspect the Engine Air Cleaner/Filter If you are driving in dusty/dirty conditions, inspect the air cleaner/ﬁlter at each engine oil change.
Page 257: Automatic Transaxle Fluid
3. Inspect or replace the engine air cleaner/ﬁlter. 4. Reinstall the cover. CAUTION: Operating the engine with the air cleaner/ﬁlter off can cause you or others to be burned. The air cleaner not only cleans the air; it helps to stop ﬂames if the engine backﬁres. If it is not there and the engine backﬁres, you could be burned.
Page 258: How To Check Automatic Transaxle Fluid
How to Check Automatic Transaxle Fluid Because this operation can be a little difficult, you may choose to have this done at the dealership service department. If you do it yourself, be sure to follow all the instructions here, or you could get a false reading on the dipstick. Notice: Too much or too little ﬂuid can damage the transaxle.
Page 259 Then, without shutting off the engine, follow these steps: The automatic transaxle dipstick has an orange handle and is located near the front of the engine compartment. See Engine Compartment Overview on page 5-12 for more information on location. 1. Release the tab and pull out the dipstick and wipe it with a clean rag or paper towel.
Page 260: Manual Transaxle Fluid
How to Check Because this operation can be difficult, you may choose to have this done at your Pontiac dealership service department. If you do it yourself, be sure to follow all the instructions here, or you could get a false reading.
Page 261: Hydraulic Clutch
Hydraulic Clutch The hydraulic clutch linkage in your vehicle is self-adjusting. The master cylinder reservoir is ﬁlled with DOT-3 brake ﬂuid. It is not necessary to regularly check the ﬂuid unless you suspect there is a leak in the system. Adding ﬂuid will not correct a leak.
Page 262: Engine Coolant
Engine Coolant Your vehicle was factory-ﬁlled with a coolant developed to last for ﬁve years or 100,000 miles (160 000 km), whichever occurs ﬁrst. When coolant is added or ® changed, use DEX-COOL coolant. The following explains your cooling system and how to add coolant when it is low.
Page 263: Checking Coolant
If you have to add coolant more than four times a year, have your dealer check your cooling system. Notice: If you use extra inhibitors and/or additives in your vehicle’s cooling system, you could damage your vehicle. Use only the proper mixture of the engine coolant listed in this manual for the cooling system.
Page 264: Radiator Pressure Cap
Radiator Pressure Cap Notice: If the pressure cap is not tightly installed, coolant loss and possible engine damage may occur. Be sure the cap is properly and tightly secured. See Engine Compartment Overview on page 5-12 for more information on location. Engine Overheating You will ﬁnd a coolant temperature gage on your vehicle’s instrument panel.
Page 265: If No Steam Is Coming From Your Engine
If No Steam Is Coming From Your Engine If you get an engine overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine can get a little too hot when you: • Climb a long hill on a hot day.
Page 266: Cooling System
Cooling System When you decide it is safe to lift the hood, here is what you will see: A. Electric Engine Cooling Fan B. Engine Coolant Recovery Tank C. Radiator Pressure Cap 5-30 CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can injure you.
Page 267 CAUTION: Heater and radiator hoses, and other engine parts, can be very hot. Do not touch them. If you do, you can be burned. Do not run the engine if there is a leak. If you run the engine, it could lose all coolant. That could cause an engine ﬁre, and you could be burned.
Page 268 Notice: In cold weather, water can freeze and crack the engine, radiator, heater core and other parts. Use the recommended coolant and the proper coolant mixture. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough.
Page 269: How To Add Coolant To The Radiator
How to Add Coolant to the Radiator 1. You can remove the radiator pressure cap when the cooling system, including the radiator pressure cap and upper radiator hose, is no longer hot. Turn the pressure cap slowly counterclockwise until it ﬁrst stops. Do not press down while turning the pressure cap.
Page 270 4. Then ﬁll the coolant recovery tank to the FULL mark. 5. Put the cap back on the coolant recovery tank, but leave the radiator pressure cap off. 5-34 6. Start the engine and let it run until you can feel the upper radiator hose getting hot.
Page 271: Power Steering Fluid
Power Steering Fluid The power steering ﬂuid reservoir is located in the engine compartment on the passenger’s side of the vehicle. See Engine Compartment Overview on page 5-12 for reservoir location. When to Check Power Steering Fluid It is not necessary to regularly check power steering ﬂuid unless you suspect there is a leak in the system or you hear an unusual noise.
Page 272: Windshield Washer Fluid
Windshield Washer Fluid What to Use When you need windshield washer ﬂuid, be sure to read the manufacturer’s instructions before use. If you will be operating your vehicle in an area where the temperature may fall below freezing, use a ﬂuid that has sufficient protection against freezing.
Page 273: Brakes
Brakes Brake Fluid The hydraulic clutch and brake master cylinder use the same reservoir. It is ﬁlled with DOT-3 brake ﬂuid. See Engine Compartment Overview on page 5-12 for the location of the reservoir. There are only two reasons why the brake ﬂuid level in the reservoir might go down.
Page 274: Brake Wear
Always clean the brake ﬂuid reservoir cap and the area around the cap before removing it. This will help keep dirt from entering the reservoir. CAUTION: With the wrong kind of ﬂuid in your brake system, your brakes may not work well, or they may not even work at all.
Page 275: Brake Adjustment
Properly torqued wheel nuts are necessary to help prevent brake pulsation. When tires are rotated, inspect brake pads for wear and evenly tighten wheel nuts in the proper sequence to GM torque speciﬁcations. If you have rear drum brakes, they do not have wear indicators, but if you ever hear a rear brake rubbing noise, have the rear brake linings inspected immediately.
Page 276: Battery
Battery Your vehicle has a maintenance free battery. When it is time for a new battery, get one that has the replacement number shown on the original battery’s label. We recommend an ACDelco See Engine Compartment Overview on page 5-12 for battery location.
Page 277: Jump Starting
Jump Starting If your vehicle’s battery has run down, you may want to use another vehicle and some jumper cables to start your vehicle. Be sure to use the following steps to do it safely. CAUTION: Batteries can hurt you. They can be dangerous because: •...
Page 278 Notice: If you leave your radio or other accessories on during the jump starting procedure, they could be damaged. The repairs would not be covered by your warranty. Always turn off your radio and other accessories when jump starting your vehicle. 3.
Page 279 CAUTION: Fans or other moving engine parts can injure you badly. Keep your hands away from moving parts once the engine is running. 5. Check that the jumper cables do not have loose or missing insulation. If they do, you could get a shock.
Page 280 8. Now connect the black negative ( ) cable to the negative terminal of the good battery. Use a remote negative ( ) terminal if the vehicle has one. Do not let the other end touch anything until the next step. The other end of the negative ( ) cable does not go to the dead battery.
Page 281: All-Wheel Drive
All-Wheel Drive If you have an all-wheel-drive vehicle, be sure to perform the lubricant checks described in this section. Transfer Case (Power Transfer Unit) When to Check Lubricant Refer to the Maintenance Schedule to determine how often to check the lubricant. See Part C: Periodic Maintenance Inspections on page 6-17.
Page 282: Bulb Replacement
Bulb Replacement For the proper type of replacement bulbs, see Replacement Bulbs on page 5-51. For any bulb changing procedure not listed in this section, contact your dealer. Halogen Bulbs CAUTION: Halogen bulbs have pressurized gas inside and can burst if you drop or scratch the bulb. You or others could be injured.
Page 283 To replace the headlamp, turn signal, or parking lamp bulb, do the following: 1. Open the hood and locate the lamp assembly. 2. Remove the rubber cover and socket from the headlamp or turn signal/parking lamp. 3. Release the retainer clip holding the bulb on the headlamp by pressing down and moving the metal retainer away from you.
Page 284: Center High-Mounted Stoplamp (Chmsl)
Center High-Mounted Stoplamp (CHMSL) To replace the center high-mounted stoplamp bulb, do the following: 1. Locate the bulb which is on the inside of the liftgate/liftglass near the top. 2. Remove the two clips on both sides of the cover and remove it.
Page 285: Taillamps, Turn Signal, And Stoplamps
Taillamps, Turn Signal, and Stoplamps A. Stoplamp/Taillamp B. Turn Signal Lamp To replace the turn signal and/or stop/taillamp bulbs, do the following: 1. Remove the storage compartment cover in the rear cargo area of the vehicle to access the bulbs. 5-49...
Page 286: Back-Up Lamps
2. Turn the bulb socket counterclockwise and pull it out of the lamp housing. 3. Pull the bulb straight out of the socket. 4. Reverse the previous steps to install a new bulb. 5. Reinstall the cover. 5-50 Back-Up Lamps The back-up lamp bulb is located in the bumper.
Page 287: Replacement Bulbs
Replacement Bulbs Exterior Lamp Back-Up Lamp CHMSL Front Turn Signal and Parking Lamp Headlamp High/Low-Beam Rear Turn Signal Stoplamp/Taillamp For replacement bulbs not listed here, contact your dealer. Windshield Wiper Blade Replacement Windshield wiper blades should be inspected at least twice a year for wear or cracking.
Page 288: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your GM Warranty booklet for details. For additional information refer to the tire manufacturer’s booklet included with your vehicle’s Owner Manual.
Page 289: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into its sidewall. The examples below show a typical passenger car tire and a compact spare tire sidewall. Passenger Car Tire Example (A) Tire Size: The tire size is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type and service description.
Page 290 Compact Spare Tire Example (A) Temporary Use Only: The compact spare tire or temporary use tire has a tread life of approximately 3,000 miles (5 000 km) and should not be driven at speeds over 65 mph (105 km/h). The compact spare tire is for emergency use when a regular road tire has lost air and gone ﬂat.
Page 291: Tire Terminology And Deﬁnitions
Tire Size The following illustration shows an example of a typical passenger car tire size. (A) Passenger (P-Metric) Tire: The United States version of a metric tire sizing system. The letter P as the ﬁrst character in the tire size means a passenger vehicle tire engineered to standards set by the U.
Page 292 Aspect Ratio: The relationship of a tire’s height to its width. Belt: A rubber coated layer of cords that is located between the plies and the tread. Cords may be made from steel or other reinforcing materials. Bead: The tire bead contains steel wires wrapped by steel cords that hold the tire onto the rim.
Page 293 Load Index: An assigned number ranging from 1 to 279 that corresponds to the load carrying capacity of a tire. Maximum Inﬂation Pressure: The maximum air pressure to which a cold tire may be inﬂated. The maximum air pressure is molded onto the sidewall. Maximum Load Rating: The load rating for a tire at the maximum permissible inﬂation pressure for that tire.
Page 294: Inﬂation - Tire Pressure
UTQGS (Uniform Tire Quality Grading Standards): A tire information system that provides consumers with ratings for a tire’s traction, temperature, and treadwear. Ratings are determined by tire manufacturers using government testing procedures. The ratings are molded into the sidewall of the tire. See Uniform Tire Quality Grading on page 5-66.
Page 295: How To Check
A Tire and Loading Information label is attached to the vehicle’s center pillar (B-pillar), below the driver’s door latch. This label shows your vehicle’s original equipment tires and the correct inﬂation pressures for your tires when they are cold. The recommended cold tire inﬂation pressure, shown on the label, is the minimum amount of air pressure needed to support your vehicle’s maximum load carrying capacity.
Page 296: Tire Pressure Monitor System
Tire Pressure Monitor System If your vehicle has this feature, it is designed to alert you when the system detects a large change in the pressure of one tire. The system cannot alert you before you drive that a tire is low or ﬂat. You must begin driving before the system will work properly.
Page 297 Do not reset (initialize) the system without ﬁrst correcting the cause of the low-tire condition. If the system is reset when the tire pressures are incorrect, the system will not function properly and may not alert you when a tire is low. To reset (initialize) the system: 1.
Page 298: Tire Inspection And Rotation
The low-tire pressure warning light may not come on even if the tire inﬂation pressure is low, or it may come on when the tire inﬂation pressure is set correctly under the following circumstances: • A compact spare tire, snow tires, or tire chains are installed on your vehicle.
Page 299 When rotating your tires, always use the correct rotation pattern shown here. Tires should only be moved from front to rear and rear to front on the same side of the vehicle. Do not include the compact spare tire in your tire rotation.
Page 300: When It Is Time For New Tires
When It Is Time for New Tires One way to tell when it is time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining.
Page 301: Different Size Tires And Wheels
CAUTION: If you use bias-ply tires on your vehicle, the wheel rim ﬂanges could develop cracks after many miles of driving. A tire and/or wheel could fail suddenly, causing a crash. Use only radial-ply tires with the wheels on your vehicle. Your vehicle’s original equipment tires are listed on the Tire and Loading Information Label.
Page 302: Uniform Tire Quality Grading
Uniform Tire Quality Grading Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum selection width. For example: Treadwear 200 Traction AA Temperature A The following information relates to the system developed by the Unites States National Highway Traffic Safety Administration, which grades tires by treadwear, traction and temperature performance.
Page 303: Wheel Alignment And Tire Balance
Temperature — A, B, C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a speciﬁed indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure.
Page 304: Tire Chains
If you need to replace any of your wheels, wheel bolts or wheel nuts, replace them only with new GM original equipment parts. This way, you will be sure to have the right wheel, wheel bolts and wheel nuts for your vehicle. CAUTION: Using the wrong replacement wheels, wheel bolts, or wheel nuts on your vehicle can be...
Page 305: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly.
Page 306: Changing A Flat Tire
Changing a Flat Tire If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on your hazard warning ﬂashers. CAUTION: Changing a tire can be dangerous. The vehicle can slip off the jack and roll over or fall on you or other people.
Page 307: Removing The Spare Tire And Tools
When you have a ﬂat tire, use the following example as a guide to assist you in the placement of wheel blocks. The following information will tell you how to use the jack and change a tire. Removing the Spare Tire and Tools The jack, wheel wrench, jack handle and spare tire are stowed in the rear of the vehicle, underneath the ﬂoor of the cargo area.
Page 308 2. Lift up the cargo area ﬂoor panel, remove the hook attached to the bottom side of the panel and hook it over the weatherstripping. Notice: If you do not put the hook in the proper location, you could damage your vehicle. Always put the hook in the proper location in order to avoid damaging the vehicle.
Page 309: Removing The Flat Tire And Installing The Spare Tire
The tools you will be using include the jack (A), jack handle (B) and wheel wrench (C). Removing the Flat Tire and Installing the Spare Tire 1. Attach the jack handle to the jack. 2. Turn the jack handle clockwise to raise the lift head a little.
Page 310 4. Position the jack and raise the jack lift head to ﬁt over the car ﬂange between the two notches. 5-74 CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack you could be badly injured or killed.
Page 311 5. Raise the vehicle by turning the jack handle 6. Remove all the wheel nuts and take off the ﬂat tire. clockwise. Raise the vehicle far enough off the ground so there is enough room for the compact spare tire to ﬁt underneath the wheel well. 5-75...
Page 312 7. Install the spare tire. CAUTION: Rust or dirt on the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after a time. The wheel could come off and cause an accident. When you change a wheel, remove any rust or dirt from the places where the wheel attaches to the vehicle.
Page 313 11. Lower the vehicle by turning the jack handle counterclockwise. Lower the jack completely. CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to come loose and even come off. This could lead to an accident. Be sure to use the correct wheel nuts.
Page 314: Storing A Flat Or Spare Tire And Tools
12. Tighten the wheel nuts ﬁrmly in a crisscross sequence as shown. 5-78 Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone.
Page 315 4. Hook the straps (end closest to the buckle) to the rear, upper tie-down hooks. 5. Pass the straps through the center hole of the wheel. 6. Attach the other end of the straps to the rear, lower tie-down hooks. 5-79...
Page 316 7. Position the tire edge against the rear center end of the ﬂoor panel. Pull the end of the straps to make sure the tire is secure. Use the following diagram as a guide for storing the compact spare tire once you are done using it. 5-80 A.
Page 317: Compact Spare Tire
Compact Spare Tire Although the compact spare tire was fully inﬂated when your vehicle was new, it can lose air after a time. Check the inﬂation pressure regularly. It should be 60 psi (420 kPa). After installing the compact spare on your vehicle, you should stop as soon as possible and make sure your spare tire is correctly inﬂated.
Page 318: Fabric/Carpet
Notice: If you use abrasive cleaners when cleaning glass surfaces on your vehicle, you could scratch the glass and/or cause damage to the rear window defogger. When cleaning the glass on your vehicle, use only a soft cloth and glass cleaner. Many cleaners contain solvents that may become concentrated in your vehicle’s breathing space.
Page 319: Leather
To clean, use the following instructions: 1. Saturate a lint-free, clean white cloth with water or club soda. 2. Wring the cloth to remove excess moisture. 3. Start on the outside edge of the soil and gently rub toward the center. Continue cleaning, using a clean area of the cloth each time it becomes soiled.
Page 320: Instrument Panel, Vinyl, And Other Plastic Surfaces
Instrument Panel, Vinyl, and Other Plastic Surfaces A soft cloth dampened with water may be used to remove dust. If a more thorough cleaning is necessary, a clean soft cloth dampened with a mild soap solution can be used to gently remove dust and dirt. Never use spot lifters or removers on plastic surfaces.
Page 321: Washing Your Vehicle
Washing Your Vehicle The paint ﬁnish on the vehicle provides beauty, depth of color, gloss retention, and durability. The best way to preserve the vehicle’s ﬁnish is to keep it clean by washing it often with lukewarm or cold water. Do not wash the vehicle in the direct rays of the sun.
Page 322: Windshield, Backglass, And Wiper Blades
Windshield, Backglass, and Wiper Blades If the windshield is not clear after using the windshield washer, or if the wiper blade chatters when running, wax, sap or other material may be on the blade or windshield. Clean the outside of the windshield with a full-strength glass cleaning liquid.
Page 323: Tires
Tires To clean the tires, use a stiff brush with tire cleaner. Notice: Using petroleum-based tire dressing products on your vehicle may damage the paint ﬁnish and/or tires. When applying a tire dressing, always wipe off any overspray from all painted surfaces on your vehicle.
Page 324: Vehicle Care/Appearance Materials
Vehicle Care/Appearance Materials Description Polishing Cloth Interior and exterior Wax-Treated polishing cloth. Tar and Road Removes tar, road oil Oil Remover and asphalt. Chrome Cleaner Use on chrome or and Polish stainless steel. White Sidewall Removes soil and black Tire Cleaner marks from whitewalls.
Page 325: Vehicle Identiﬁcation
Vehicle Identiﬁcation Vehicle Identiﬁcation Number (VIN) This is the legal identiﬁer for your vehicle. It appears on a plate in the front corner of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle.
Page 326: Electrical System
Electrical System Add-On Electrical Equipment Notice: Don’t add anything electrical to your vehicle unless you check with your dealer ﬁrst. Some electrical equipment can damage your vehicle and the damage wouldn’t be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 327: Power Windows And Other Power Options
Power Windows and Other Power Options Circuit breakers protect the power windows and other power accessories. When the current load is too heavy, the circuit breaker opens and closes, protecting the circuit until the problem is ﬁxed or goes away. Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by fuses, circuit breakers and fusible...
Page 328: Instrument Panel Fuse Block
Instrument Panel Fuse Block The fuse block is located underneath the instrument panel on the driver’s side of the vehicle. 5-92 Fuses Usage Front Parking Lamps, Taillamps, TAIL License Plate Lamps, Instrument Panel Lights, Engine Control System On-Board Diagnostic System Empty Not Used Power Windows...
Page 329 Fuses Usage Empty Not Used Cruise Control, Anti-lock Brakes, Theft Deterrent System, Automatic ECU-IG Transaxle Control System, Electric Cooling Fan Rear Window Wiper, Rear RR WIPER Window Defogger Air Conditioning Power Outlets P/POINT Power Outlets ECU-B Daytime Running Lamps Cigarette Lighter, Power Rearview Mirrors, Power Outlets, Audio System, Automatic Transaxle Control System...
Page 330: Engine Compartment Fuse Block
Engine Compartment Fuse Block This engine compartment fuse block is located in the engine compartment on the driver’s side of the vehicle near the air cleaner. See Engine Compartment Overview on page 5-12 for more information on location. Fuses Empty Not Used SPARE Spare Fuse...
Page 331 Fuses Usage Interior Lights, Gauges and Meters, Audio System, Remote Keyless DOME Entry System, Navigation System (If Equipped) MAIN Starter System, AM2 Fuse Audio System ® MAYDAY OnStar System ABS NO.1, ABS NO.2, RDI FAN, FOG, Heater, AM1, POWER, DOOR, ECU-B, TAIL, STOP, P/POINT, INV, OBD Fuses, Charging System Right-hand Headlamp, Headlamp...
Page 332: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. Application Air Conditioning Refrigerant Automatic Transaxle 1.8L (Code 8) 1.8L (Code 8) with AWD Cooling System 1.8L (Code 8) 1.8L (Code L) Engine Oil with Filter 1.8L (Code 8) 1.8L (Code L) Fuel Tank...
Page 333 Application Manual Transaxle Five-Speed Six-Speed Rear Differential Transfer Case Wheel Nut Torque All capacities are approximate. When adding, be sure to ﬁll to the approximate level, as recommended in this manual. See Part D: Recommended Fluids and Lubricants on page 6-19. Engine 1.8L L4 1.8L L4 H.O.
Page 334: Normal Maintenance Replacement Parts
Normal Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your GM dealer. Part Battery Engine Air Cleaner/Filter Engine Oil Filter 1.8L (Code 8) 1.8L (Code L) Passenger Compartment Air Filter PCV Valve 1.8L (Code 8) Base Model 1.8L (Code 8) AWD Model 1.8L (Code L)
Page 335 Section 6 Maintenance Schedule ...6-2 Introduction ...6-2 Maintenance Requirements ...6-2 Your Vehicle and the Environment ...6-2 How This Section is Organized ...6-3 Part A: Scheduled Maintenance Services ...6-4 Using the Maintenance Schedule ...6-4 Scheduled Maintenance ...6-5 Part B: Owner Checks and Services ...6-13 At Each Fuel Fill ...6-13 At Least Once a Month ...6-13 At Least Twice a Year ...6-14...
Page 336: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements your new vehicle warranties. See your Warranty and Owner Assistance booklet or your dealer for details. Maintenance Requirements Maintenance intervals, checks, inspections and recommended ﬂuids and lubricants as prescribed in this...
Page 337: How This Section Is Organized
How This Section is Organized This maintenance schedule is divided into ﬁve parts: “Part A: Scheduled Maintenance Services” explains what to have done and how often. Some of these services can be complex, so unless you are technically qualiﬁed and have the necessary equipment, you should let your GM dealer’s service department do these jobs.
Page 338: Part A: Scheduled Maintenance Services
Part A: Scheduled Maintenance Services In this part are scheduled maintenance services which are to be performed at the mileage intervals speciﬁed. Using the Maintenance Schedule We at General Motors want to keep your vehicle in good working condition. But we do not know exactly how you will drive it.
Page 339: Scheduled Maintenance
Scheduled Maintenance The services shown in this schedule up to 120,000 miles (192 000 km) should be repeated after 120,000 miles (192 000 km) at the same intervals for the life of this vehicle. See Part B: Owner Checks and Services on page 6-13, Part C: Periodic Maintenance Inspections on page 6-17, and Part D: Recommended Fluids and Lubricants on page 6-19.
Page 340 15,000 Miles (24 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Rotate tires. See Tire Inspection and Rotation on page 5-62 for proper rotation pattern and additional information. (See footnote +.) Inspect engine air cleaner ﬁlter if you are driving in dusty conditions.
Page 341 Change manual transaxle ﬂuid every 30,000 miles (48 000 km) only if your vehicle is used to tow a trailer. Change transfer case ﬂuid when doing frequent trailer towing. Change rear differential ﬂuid when doing frequent trailer towing. 35,000 Miles (56 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst).
Page 342 55,000 Miles (88 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Rotate tires. See Tire Inspection and Rotation on page 5-62 for proper rotation pattern and additional information. (See footnote +.) Inspect engine air cleaner ﬁlter if you are driving in dusty conditions.
Page 343 65,000 Miles 104 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Rotate tires. See Tire Inspection and Rotation on page 5-62 for proper rotation pattern and additional information. (See footnote +.) Inspect engine air cleaner ﬁlter if you are driving in dusty conditions.
Page 344 90,000 Miles (144 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Rotate tires. See Tire Inspection and Rotation on page 5-62 for proper rotation pattern and additional information. (See footnote +.) Replace engine air cleaner ﬁlter (or every 24 months, whichever occurs ﬁrst).
Page 345 105,000 Miles (168 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Rotate tires. See Tire Inspection and Rotation on page 5-62 for proper rotation pattern and additional information. (See footnote +.) Inspect engine air cleaner ﬁlter if you are driving in dusty conditions.
Page 346 120,000 Miles (192 000 km) Change engine oil and ﬁlter (or every 3 months, whichever occurs ﬁrst). An Emission Control Service. Rotate tires. See Tire Inspection and Rotation on page 5-62 for proper rotation pattern and additional information. (See footnote +.) Replace engine air cleaner ﬁlter (or every 24 months, whichever occurs ﬁrst).
Page 347: Part B: Owner Checks And Services
Part B: Owner Checks and Services Listed in this part are owner checks and services which should be performed at the intervals speciﬁed to help ensure the safety, dependability and emission control performance of your vehicle. Be sure any necessary repairs are completed at once. Whenever any ﬂuids or lubricants are added to your vehicle, make sure they are the proper ones, as shown in Part D.
Page 348: At Least Twice A Year
At Least Twice a Year Restraint System Check Make sure the safety belt reminder light and all your belts, buckles, latch plates, retractors and anchorages are working properly. Look for any other loose or damaged safety belt system parts. If you see anything that might keep a safety belt system from doing its job, have it repaired.
Page 349: Starter Switch Check
Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before you start, be sure you have enough room around the vehicle. 2. Firmly apply both the parking brake and the regular brake.
Page 350: Ignition Transaxle Lock Check
Ignition Transaxle Lock Check While parked, and with the parking brake set, try to turn the ignition to LOCK in each shift lever position. • With an automatic transaxle, the ignition should turn to LOCK only when the shift lever is in PARK (P). •...
Page 351: Part C: Periodic Maintenance Inspections
Part C: Periodic Maintenance Inspections Listed in this part are inspections and services which should be performed at least twice a year (for instance, each spring and fall). You should let your dealer’s service department do these jobs. Make sure any necessary repairs are completed at once.
Page 352: Fuel System Inspection
Fuel System Inspection Inspect the complete fuel system for damage or leaks. Engine Cooling System Inspection Inspect the hoses and have them replaced if they are cracked, swollen or deteriorated. Inspect all pipes, ﬁttings and clamps; replace as needed. Clean the outside of the radiator and air conditioning condenser.
Page 353: Part D: Recommended Fluids And Lubricants
Part D: Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation may be obtained from your dealer. Usage Fluid/Lubricant Engine oil which meets GM Standard GM6094M and displays the American Petroleum Institute Certiﬁed for Gasoline Engines Engine Oil starburst symbol.
Page 354 Usage Fluid/Lubricant Chassis Lubricant (GM Part No. U.S. 12377985, Clutch Linkage in Canada 88901242) or lubricant Pivot Points meeting requirements of NLGI #2, Category LB or GC-LB. Lubriplate Lubricant Aerosol (GM Part No. U.S. 12346293, Floor Shift in Canada 992723) or lubricant Linkage meeting requirements of NLGI #2 Category LB or GC-LB.
Page 355: Part E: Maintenance Record
Part E: Maintenance Record After the scheduled services are performed, record the date, odometer reading, and who performed the service and any additional information from “Owner Checks and Services” or “Periodic Maintenance” on the following record pages. Also, you should retain all maintenance receipts. Maintenance Record Odometer Date...
Page 356 Maintenance Record (cont’d) Odometer Date Serviced By Maintenance Record Reading 6-22...
Page 357 Maintenance Record (cont’d) Odometer Date Serviced By Maintenance Record Reading 6-23...
Page 358 Maintenance Record (cont’d) Odometer Date Serviced By Maintenance Record Reading 6-24...
Page 359: Customer Assistance And Information
Section 7 Customer Assistance and Information ...7-2 Customer Satisfaction Procedure ...7-2 Online Owner Center ...7-3 Customer Assistance for Text Telephone (TTY) Users ...7-4 Customer Assistance Offices ...7-4 GM Mobility Reimbursement Program ...7-5 Roadside Assistance Program ...7-6 Courtesy Transportation ...7-7 Vehicle Data Collection and Event Data Recorders ...7-9 Collision Damage Repair ...7-10 Customer Assistance and Information...
Page 360: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Pontiac. Normally, any concerns with the sales transaction or the operation of your vehicle will be resolved by your dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 361: Online Owner Center
The BBB Auto Line Program is an out of court program administered by the Council of Better Business Bureaus to settle automotive disputes regarding vehicle repairs or the interpretation of the New Vehicle Limited Warranty. Although you may be required to resort to this informal dispute resolution program prior to ﬁling a court action, use of the program is free of charge and your case will generally be heard within 40 days.
Page 362: Customer Assistance For Text Telephone (Tty) Users
Customer Assistance Offices Pontiac encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail Pontiac, refer to the addresses below. United States — Customer Assistance Pontiac Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 www.Pontiac.com...
Page 363: Gm Mobility Reimbursement Program
Overseas — Customer Assistance Please contact the local General Motors Business Unit. Mexico, Central America and Caribbean Islands/Countries (Except Puerto Rico and U.S. Virgin Islands) — Customer Assistance General Motors de Mexico, S. de R.L. de C.V. Customer Assistance Center Paseo de la Reforma #2740 Col.
Page 364: Roadside Assistance Program
Roadside Assistance Program As the owner of a new Pontiac vehicle, you are automatically enrolled in the Pontiac Roadside Assistance program. This value-added service is intended to provide you with peace of mind as you drive in the city or travel the open road. Contact Pontiac’s Roadside Assistance toll-free at 1-800-ROADSIDE (762-3743).
Page 365: Courtesy Transportation
(762-3743), text telephone (TTY) users, call 1-888-889-2438. Pontiac reserves the right to limit services or reimbursement to an owner or driver when, in Pontiac’s judgement, the claims become excessive in frequency or type of occurrence. Roadside Assistance is not part of or included in the coverage provided by the New Vehicle Limited Warranty.
Page 366: Transportation Options
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait, GM helps to minimize your inconvenience by providing several transportation options. Depending on the circumstances, your dealer can offer you one of the following: Shuttle Service Participating dealers can provide you with shuttle service to get you to your destination with minimal...
Page 367: Vehicle Data Collection And Event Data Recorders
Additional Program Information Courtesy Transportation is available during the Bumper-to-Bumper warranty coverage period, but it is not part of the New Vehicle Limited Warranty. A separate booklet entitled Warranty and Owner Assistance Information furnished with each new vehicle provides detailed warranty coverage information. Courtesy Transportation is available only at participating dealers and all program options, such as shuttle service, may not be available at every dealer.
Page 368: Collision Damage Repair
To read this information, special equipment is needed and access to the vehicle or the device that stores the data is required. GM will not access information about a crash event or share it with others other than: • with the consent of the vehicle owner or, if the vehicle is leased, with the consent of the lessee, •...
Page 369 Aftermarket collision parts are also available. These are made by companies other than GM and may not have been tested for your vehicle. As a result, these parts may ﬁt poorly, exhibit premature durability/corrosion problems, and may not perform properly in subsequent collisions. Aftermarket parts are not covered by your GM New Vehicle Limited Warranty, and any vehicle failure related to such parts are not covered by that warranty.
Page 370 If an Accident Occurs Here is what to do if you are involved in an accident. • Try to relax and then check to make sure you are all right. If you are uninjured, make sure that no one else in your vehicle, or the other vehicle, is injured.
Page 371: Reporting Safety Defects
Managing the Vehicle Damage Repair Process In the event that your vehicle requires damage repairs, GM recommends that you take an active role in its repair. If you have a pre-determined repair facility of choice, take your vehicle there, or have it towed there. Specify to the facility that any required replacement collision parts be original equipment parts, either new Genuine GM parts or recycled original GM parts.
Page 372: Reporting Safety Defects To The Canadian Government
In addition to notifying NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. Please call us at 1-800-762-2737, or write: Pontiac Customer Assistance Center P.O. Box 33172 Detroit, MI 48232-5172 In Canada, please call us at 1-800-263-3777 (English) or 1-800-263-7854 (French).
Page 373: Current And Past Model Order Forms
Owner’s Information Owner publications are written speciﬁcally for owners and intended to provide basic operational information about the vehicle. The owner’s manual will include the Maintenance Schedule for all models. In-Portfolio: Includes a Portfolio, Owner’s Manual, and Warranty Booklet. RETAIL SELL PRICE: $35.00 Without Portfolio: Owner’s Manual only.
Page 374 NOTES 7-16...
Page 375 Accessories and Modiﬁcations ... 5-3 Accessory Power Outlet(s) ... 3-16 Adding Equipment to Your Airbag-Equipped Vehicle ... 1-64 Additives, Fuel ... 5-6 Add-On Electrical Equipment ... 5-90 Air Cleaner/Filter, Engine ... 5-20 Air Conditioning ... 3-18 Airbag Passenger Status Indicator ... 3-29 Readiness Light ...
Page 376 Audio System(s) (cont.) Radio with Six-Disc CD ... 3-66 Setting the Time ... 3-43 Understanding Radio Reception ... 3-77 XM™ Satellite Radio Antenna System ... 3-78 Automatic Headlamp System ... 3-14 Automatic Transaxle Fluid ... 5-21 Operation ... 2-18 Battery ... 5-40 Before Leaving on a Long Trip ...
Page 377 Child Restraints Child Restraint Systems ... 1-31 Infants and Young Children ... 1-28 Lower Anchors and Tethers for Children ... 1-37 Older Children ... 1-26 Securing a Child Restraint in a Rear Seat Position ... 1-42 Securing a Child Restraint in the Right Front Seat Position ...
Page 378 Daytime Running Lamps ... 3-14 Defensive Driving ... 4-2 Doing Your Own Service Work ... 5-4 Door Ajar Light ... 3-40 Locks ... 2-6 Power Door Locks ... 2-7 Rear Door Security Locks ... 2-8 Driver Position, Safety Belt ... 1-14 Seat Height Adjuster ...
Page 379 Filter Engine Air Cleaner ... 5-20 Finish Damage ... 5-87 Fixed Mast Antenna ... 3-78 Flash-to-Pass ... 3-8 Flat Tire ... 5-69 Flat Tire, Changing ... 5-70 Flat Tire, Storing ... 5-78 Floor Mats ... 2-34 Fluid Automatic Transaxle ... 5-21 Manual Transaxle ...
Page 380 Hazard Warning Flashers ... 3-6 Head Restraints ... 1-5 Headlamp Wiring ... 5-90 Headlamps Automatic Headlamp System ... 3-14 Bulb Replacement ... 5-46 Daytime Running Lamps ... 3-14 Flash-to-Pass ... 3-8 Halogen Bulbs ... 5-46 Headlamps, Front Turn Signal, and Parking Lamps ...
Page 381 Keyless Entry System ... 2-3 Keys ... 2-2 Labeling, Tire Sidewall ... 5-53 Lamps Exterior ... 3-13 Fog ... 3-15 Interior Control ... 3-15 Reading ... 3-16 LATCH System Child Restraints ... 1-37 Liftgate/Liftglass ... 2-9 Liftglass/Liftgate ... 2-9 Light Airbag Readiness ...
Page 382 Maintenance, Normal Replacement Parts ... 5-98 Maintenance Schedule At Each Fuel Fill ... 6-13 At Least Once a Month ... 6-13 At Least Once a Year ... 6-14 At Least Twice a Year ... 6-14 Brake System Inspection ... 6-18 Engine Cooling System Inspection ...
Page 383 Odometer ... 3-26 Odometers, Trip ... 3-26 Off-Road Recovery ... 4-14 Engine ... 5-16 Pressure Light ... 3-38 Older Children, Restraints ... 1-26 Online Owner Center ... 7-3 ® ® OnStar System, see OnStar Manual ... 2-32 Other Warning Devices ... 3-6 Outlet Adjustment ...
Page 384 Radiator Pressure Cap ... 5-28 Radios ... 3-42 Care of Your CD Player ... 3-78 Care of Your CDs ... 3-78 Radio with CD ... 3-43, 3-54 Radio with Six-Disc CD ... 3-66 Setting the Time ... 3-43 Understanding Reception ... 3-77 Reading Lamps ...
Page 385 Safety Belts (cont.) Safety Belt Extender ... 1-25 Safety Belt Use During Pregnancy ... 1-22 Safety Belts Are for Everyone ... 1-9 Shoulder Belt Height Adjuster ... 1-21 Safety Warnings and Symbols ... iii Scheduled Maintenance ... 6-5 Seatback, Folding Passenger ... 1-6 Seats Driver Seat Height Adjuster ...
Page 386 Tachometer ... 3-27 Taillamp Indicator Light ... 3-39 Taillamps Turn Signal, and Stoplamps ... 5-49 TCS Warning Light ... 3-34 Theft-Deterrent Systems ... 2-12 Content Theft-Deterrent ... 2-12 Throttle System Inspection ... 6-18 Tilt Wheel ... 3-6 Tires ... 5-52 Aluminum Wheels, Cleaning ...
Page 387 Understanding Radio Reception ... 3-77 Uniform Tire Quality Grading ... 5-66 Vehicle Control ... 4-6 Damage Warnings ... iv Loading ... 4-31 Parking Your ... 2-27 Symbols ... iv Vehicle Data Collection and Event Data Recorders ... 7-9 Vehicle Identiﬁcation Number (VIN) ...
Page 388 Windshield Backglass, and Wiper Blades, Cleaning ... 5-86 Washer ... 3-9 Washer Fluid ... 5-36 Wiper Blade Replacement ... 5-51 Wiper Fuses ... 5-90 Wipers ... 3-8 Windshield, Rear Washer/Wiper ... 3-10 Winter Driving ... 4-26 XM™ Satellite Radio Antenna System ... 3-78 Your Vehicle and the Environment ...

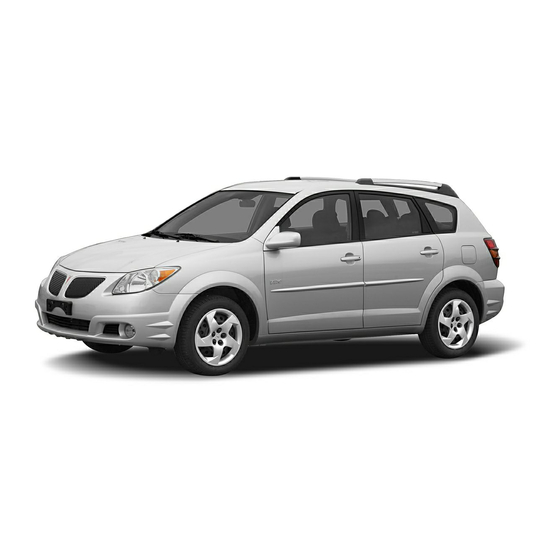

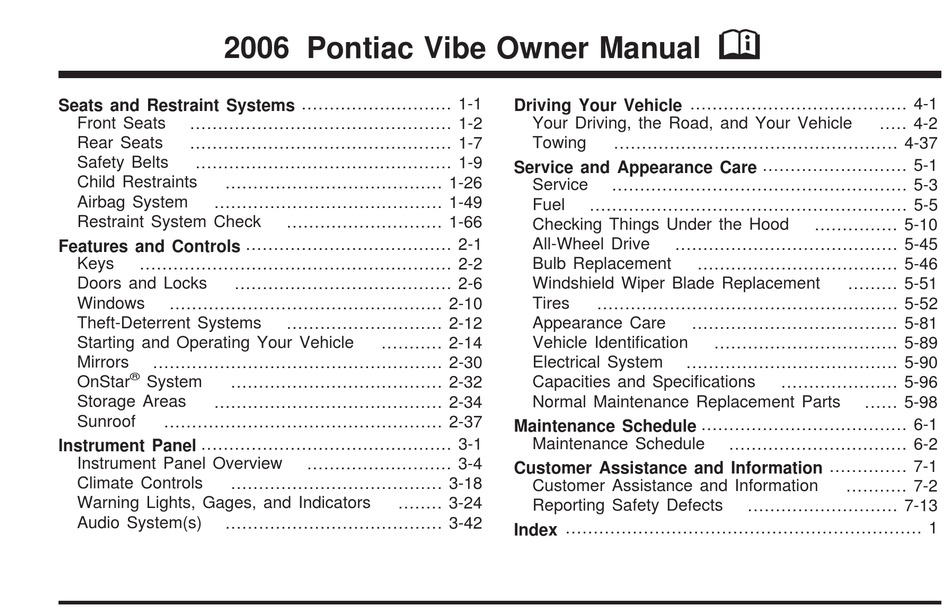

Pontiac 2006 Vibe Owner's Manual

Section 1 Seats and Restraint Systems

Seats and Restraint Systems

Front Seats

Rear Seats

Safety Belts

Child Restraint Systems

Airbag System

Restraint System Check

Section 2 Features and Controls

Features and Controls

Keys

Doors and Locks

Windows

Theft-Deterrent Systems

Starting and Operating Your Vehicle

Mirrors

Onstar System

Storage Areas

Sunroof

Section 3 Instrument Panel

Instrument Panel Overview

Climate Controls

Warning Lights, Gages, and Indicators

Audio System(S)

Section 4 Driving Your Vehicle

Driving Your Vehicle

Your Driving, the Road, and Your Vehicle

Towing

Section 5 Service and Appearance Care

Service and Appearance Care

Fuel

Checking Things under the Hood

All-Wheel Drive

Bulb Replacement

Windshield Wiper Blade Replacement

Tires

Appearance Care

Vehicle Identiﬁcation

Electrical System

Quick Links

Chapters

Related Manuals for Pontiac 2006 Vibe

Summary of Contents for Pontiac 2006 Vibe
