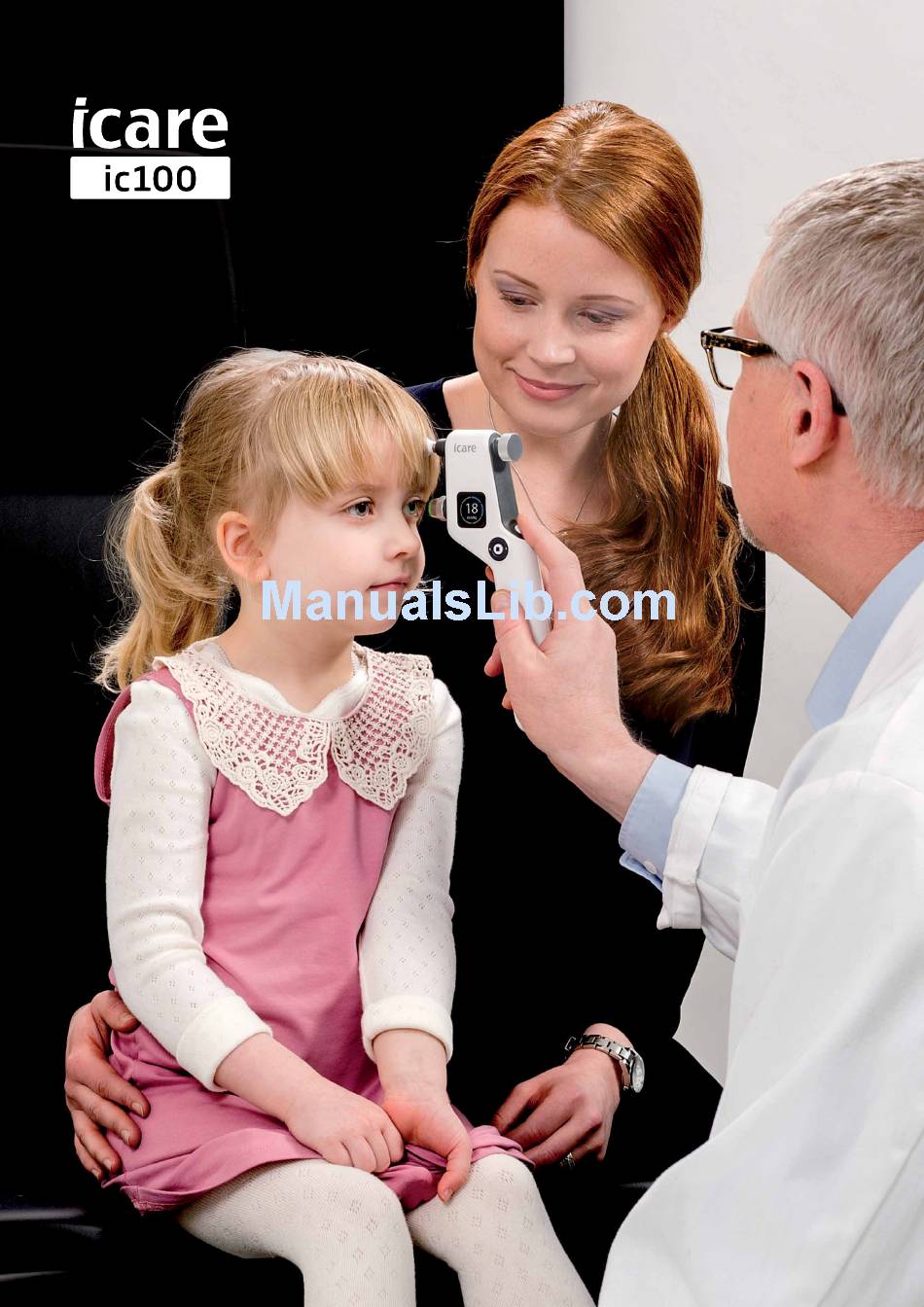

- Page 1 Icare ic100 tonometer manual ENGLISH INSTRUCTION MANUAL ENGLISH www.icaretonometer.com...
-
Page 2: Table Of Contents
Cleaning the tonometer Returning the Icare tonometer for servicing / repair Periodic Safety Checks Symbols Electromagnetic declaration Guidance and manufacturer’s declaration Electromagnetic emissions Electromagnetic immunity Recommended separation distances between portable and mobile RF communications equipment and Icare ic100 Notes www.icaretonometer.com... -
Page 3: Safety Instructions
Icare ic100 tonometer. WARNING Use of any accessory with the Icare ic100 tonometer other than those specified may result in increased emissions or decreased immunity of the Icare ic100 tonometer. -
Page 4: Intended Use

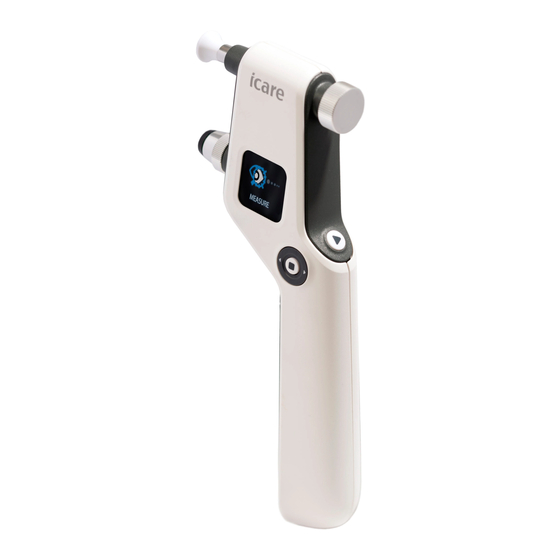

The Icare ic100 tonometer is intended to be used for the measurement of intraocular pressure in the human eye. INTRODUCTION The Icare ic100 tonometer is used in the diagnosis, follow up and screening of glaucoma. It is based on a patented, induction-based rebound method, which allows intraocular pressure (IOP) to be measured accurately, rapidly and without an anesthetic. -
Page 5: Installing Or Changing The Batteries
Icare ic100 tonometer manual ENGLISH INSTALLING OR CHANGING THE BATTERIES Unscrew the battery compartment locking screw with a screwdriver. Remove the battery compartment cover. Place the wrist strap into the wrist strap attachment at the end of the tonometer. Insert a new set of four AA batteries. Insert the batteries accordance with the picture below. Do not use rechargeable batteries. -
Page 6: Measurement
Icare ic100 tonometer manual ENGLISH MEASUREMENT NOTE If you do not use the tonometer, it will switch off automatically after 3 minutes. NOTE No anesthetic is required when performing measurements. *Since local anesthetic may lower the tonometer reading, we recommend that you refrain from using an anesthetic when performing measurements. - Page 7 Icare ic100 tonometer manual ENGLISH STEP 3. You may perform the measurement in single or series mode. Single mode: Press the Measure button lightly to perform the measurement, taking care not to shake the tonometer. The tip of the probe should make contact with the central cornea.
-
Page 8: Menu Functions
Icare ic100 tonometer manual ENGLISH MENU FUNCTIONS Scrolling between the Menu functions starts from the MEASURE display, press either of the Navigation buttons located around the Select button. Menu functions are MEASURE, HISTORY, SOUND, LIGHT, LANGUAGE and INFO MEASURE – Access to measurement Press the Select button to access. If the probe is not loaded the LOAD display appears. Tonometer is ready for measurement when Play-symbol display appears. To exit, press the Select button. -
Page 9: Turning The Tonometer Off
Icare ic100 tonometer manual ENGLISH ERROR AND INFO MESSAGES The following messages may appear: MESSAGE DESCRIPTION ACTIONS Battery charge is low. Prepare to replace the batteries. The batteries are empty. Turn the tonometer OFF by pressing Select button. Replace the batteries. -
Page 10: Measurement Flow Chart
Icare ic100 tonometer manual ENGLISH MEASUREMENT FLOW CHART Turn Tonometer ON by pressing Select or Measure button This is displayed if you pressed the Select button, pressing of Measure button would lead you directly to Load Probe Load Probe Ready to measure... -
Page 11: Accessories
8612.2 for tonometers. The study was performed ain the Department of Ophthalmology, Helsinki University Central Hospital. In the study, 158 patients were measured. The mean paired difference and standard deviation (Goldmann-Icare) were -0.4 mmHg and 3.4 mmHg. A scattergram and Bland-Altman plot of the results is shown below. -
Page 12: Maintenance
Contact Icare Finland’s Technical Services Department (see www.icarefinland.com) or your local Icare representative for shipping instructions. Unless otherwise instructed by Icare Finland, there is no need to ship accessories along with the tonometer. Use a suitable carton with the appropriate packaging material to protect the device during shipment. -
Page 13: Periodic Safety Checks
Icare ic100 tonometer. WARNING Use of any accessory or cable with the Icare ic100 tonometer other than those specified may result in increased emissions or decreased immunity of the Icare ic100 tonometer. -
Page 14: Guidance And Manufacturer's Declaration
GUIDANCE AND MANUFACTURER’S DECLARATION–ELECTROMAGNETIC EMISSIONS Icare ic100 (TA011) is intended for use in the electromagnetic environment specified below. The user of the Icare ic100 (TA011) should assure that it is used in such an environment. RF emissions CISPR 11 Group 1 Icare ic100 (TA011) is battery operated and use RF energy only for its internal function. -
Page 15: Recommended Separation Distances Between Portable And Mobile Rf Communications Equipment And Icare Ic100
TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Icare ic100 (TA011) is used exceeds the applicable RF compliance level above, theIcare ic100 (TA011) should be observed to verify normal operation. -
Page 16: Notes
Icare ic100 tonometer manual ENGLISH NOTES www.icaretonometer.com...
