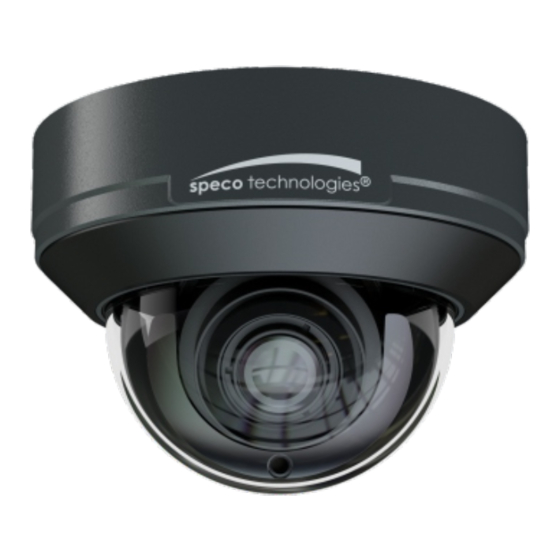

Speco O4iD2M Quick Start Manual
Hide thumbs Also See for O4iD2M:

Advertisement

Quick Links

Quick Start Guide
O4iD2M

Advertisement

loading
Need help?

Need help?

Do you have a question about the O4iD2M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Speco O4iD2M

  • Page 1 Quick Start Guide O4iD2M...
  • Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
  • Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
  • Page 4 Camera Quick start guide Rubber plug Screwdriver CVBS&DC 4 screws 4 Screws (6.5×38mm) (PA 4×25mm) Drill template IN cables 4 Screws 4 Rubber o-rings 8 Plastic screw Junction box (PM 4×16mm) for screws anchors Overview Overview Ethernet Connector Audio Input (MIC) Audio Output (HP) CVBS Video Output Alarm Input/Output...
  • Page 5: Connecting Network Cable

    External microphone 1--ALM-COM 2--ALM-OPEN 3--ALM-INA 4--ALM-GND 12VDC/24VAC * It is recommended to install the water-proof connector for outdoor installations. Connecting Network Cable ① Loosen the nut from the main element. ② Run the network cable (without RJ 45 connector) through both elements.
  • Page 6: Installation

    Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. ① Attach the drill template of the junction box to the place where you want to install the junction box and then rill the screw hole and calbe hole on the wall according to the drill template.
  • Page 7 ④ Connect the cables, mount the rubber plug to the gap of the mounting base and install the camera onto the junction box. Rubber Plug 4× PM 4×16mm ⑤ Three-axis adjustment. Before adjustment, preview the image of the camera on a monitor and then adjust the camera according to the figure below to get an optimum angle.
  • Page 8 Install the lower dome back to the camera and fasten it with screws. Put the trim ring onto the lower dome. Finally, remove the protection film softly. Web Operation and Login IP Scanner can search for the device on the local network. ●...
  • Page 9 5C:F2:07:24:68:9A O4iD2M ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer. You can also manually enter the IP address in the address bar of the web browser.
