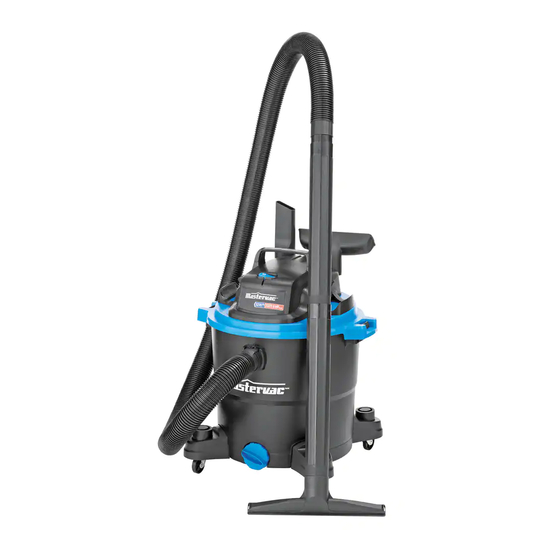

Mastervac 054-0238-8 Instruction Manual

Wet/dry vacuum
Hide thumbs

Advertisement

Quick Links

INSTRUCTION MANUAL
Wet/Dry Vacuum
054-0238-8

Advertisement

loading
Need help?

Need help?

Do you have a question about the 054-0238-8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mastervac 054-0238-8

Summary of Contents for Mastervac 054-0238-8

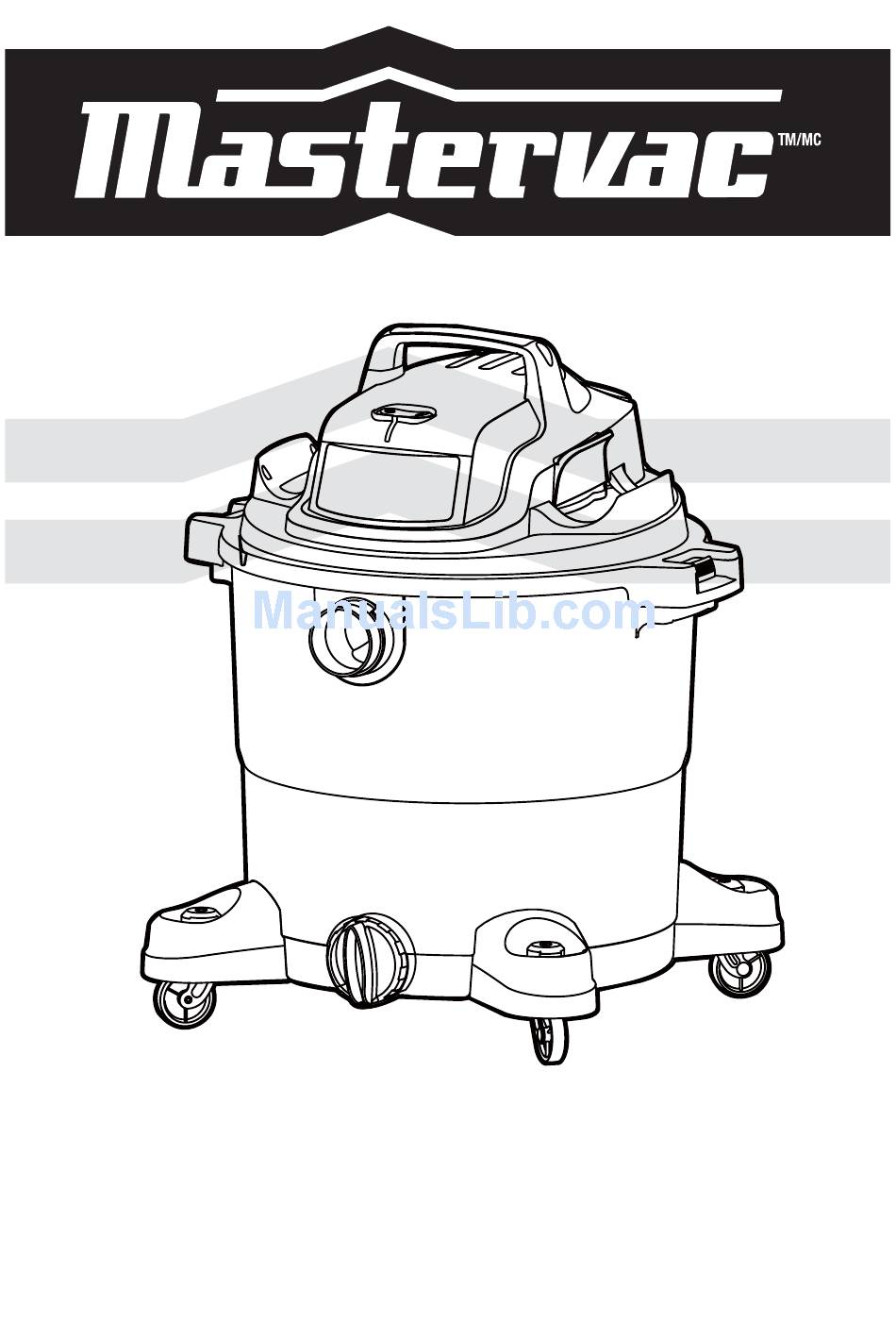

  • Page 1 INSTRUCTION MANUAL Wet/Dry Vacuum 054-0238-8...
  • Page 2 It contains important information for your safety as well as operating and maintenance advice. Keep this instruction manual for future use. Should this product be passed on to a third party, then this instruction manual must be included. WET/DRY VACUUM 054-0238-8...

  • Page 3: Table Of Contents

    SECTION TECHNICAL SPECIFICATIONS SAFETY WARNINGS 4–6 EXTENSION CORDS LOCATION OF PARTS GENERAL ASSEMBLY INSTRUCTIONS DRY VACUUM OPERATION WET VACUUM OPERATION BLOWER OPERATION MAINTENANCE CARTRIDGE FILTER TROUBLESHOOTING ACCESSORIES EXPLODED VIEW PARTS LIST WARRANTY WET/DRY VACUUM 054-0238-8...
  • Page 4 45 L (12 U.S. gallons / 10 Imperial gallons) Tank: Polypropylene Hose: 2 1/2" x 7' (6.4 cm x 2.1 m) Filters: Cartridge filter, Foam filter, Dust bag Power cord: 12’ (3.7 m) Weight: 17lb 7oz (7.9 kg) WET/DRY VACUUM 054-0238-8...

  • Page 5: Important Safety Instructions

    • Do not use or store near hazardous materials. • Do not use this Wet/Dry Vacuum with a torn filter or without installing the filter except when vacuuming liquids as described in the operation section of this manual. WET/DRY VACUUM 054-0238-8...
  • Page 6 Do not vacuum drywall dust or cold fireplace soot or ash with a standard Wet/Dry filter. This dust is very fine and hence will not be captured by the filter and may cause damage. Refer to the operation section for proper filter selection. WET/DRY VACUUM 054-0238-8...
  • Page 7 If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way. Double-insulation eliminates the need for the three-wire, grounded power cord and grounded power supply system. WET/DRY VACUUM 054-0238-8...

  • Page 8: Extension Cords

    Make repairs or replacements before using the vacuum cleaner. Only use extension cords that are rated for outdoor use. Length of Extension Cord 110 V-120 V 25’ (7.5 m) 50’ (15.25 m) 100’ (30.5 m) 150’ (45.7 m) Amps AWG Wire Size 7-10 11-12 13-16 Not recommended WET/DRY VACUUM 054-0238-8...
  • Page 9 16. Household Collector Bag 6. Extension wand (x 2) 17. Regular Cartridge Filter 7. Crevice tool 18. Filter retainer 8. Utility nozzle 19. Clasp (x 2) 9. Floor brush/squeegee 20. Tank 10. Switch 21. Noise diffuser 11. Vacuum hose connector WET/DRY VACUUM 054-0238-8...
  • Page 10 10. Align the top section with the clasps, and snap into place by applying pressure until the clasps click (figure 10). 11. Insert the large end of the hose into the front inlet of the tank and turn to lock (figure 11). 12. Fit the required accessory on to the suction tube (figure 12). WET/DRY VACUUM 054-0238-8...
  • Page 11 8. Once you have completed vacuuming, flip the switch to the “O” position and unplug the power cord from the power outlet. DO NOT use the cartridge filter for wet or sharp materials. DO NOT USE DUST BAG FOR LIQUID VACUUMING. O = OFF I = ON WET/DRY VACUUM 054-0238-8...
  • Page 12 To continue vacuuming, refit the container with the drain cap. After wet vacuuming, turn the machine off and remove plug from power supply. Empty the container, clean and dry the inside and outside before storage. WET/DRY VACUUM 054-0238-8...
  • Page 13 5. The unit will now blow through the vacuum hose and can be used to clear obstructions within the hose (figure 5). WARNING: If after a few seconds the hose continues to be blocked, turn off the unit and clear the hose manually. WET/DRY VACUUM 054-0238-8...
  • Page 14 Foam Sleeve / Wet Filter (054-0035) (part # 23) Dry Reusable filter (054-0148) Household Collector Bag (054-0003) (part # 31) Fine Dust High Eff. Collector Bag (054-0214) Regular Wet/Dry Cartridge Filter (054-0008) (part # 27) HEPA Wet/Dry Cartridge Filter (054-0159) WET/DRY VACUUM 054-0238-8...

  • Page 15: Maintenance

    7. Clean filter by rinsing from the inside (figure 7). 8. When wet (to prevent mold and/or mildew build-up), the cartridge filter should be moved and allowed to air dry for a 24-hour period before being re-installed back onto the filter cage. WET/DRY VACUUM 054-0238-8...

  • Page 16: Cartridge Filter

    Reduced efficiency and Remove the filter, wash and clean Filter may be blocked motor/speed vibration. it. Do not reuse until it is by fine dust. completely dry. Use a new filter if necessary. WET/DRY VACUUM 054-0238-8...

  • Page 17: Accessories

    ® Additional accessories for your MasterVac Wet/Dry Vacuum are available. Consumables 054-0035 Foam Sleeve / Wet Filter 054-0148 Dry Reusable filter 054-0003 Household Collector Bag 054-0214 Fine Dust High Efficiency Collector Bag 054-0008 Regular wet/dry Cartridge Filter 054-0159 HEPA wet/dry Cartridge Filter 2 1/2"...
  • Page 18 WET/DRY VACUUM 054-0238-8...
  • Page 19 Crevice tool Hose Extension wands x 2 Cartridge Filter Household Collector Bag Floor brush/squeegee Utility nozzle Noise diffuser If any parts are missing or damaged, or if you have any questions, please call the Toll-free Helpline, at 1-800-689-9928. WET/DRY VACUUM 054-0238-8...

  • Page 20: Warranty

    The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal legislation. Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8 WET/DRY VACUUM 054-0238-8...
