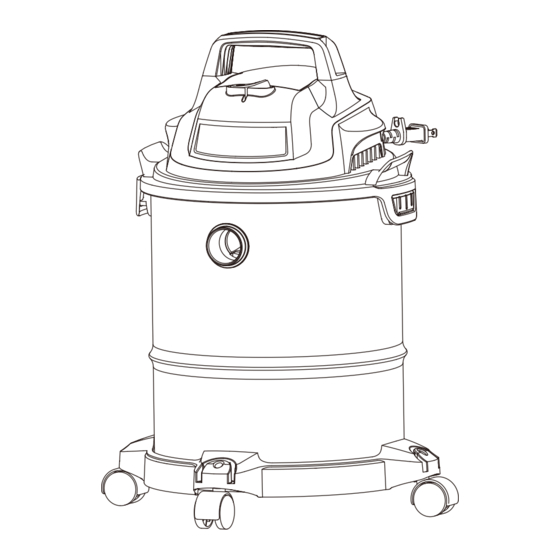

- Page 1 054-0246-8 STAINLESS STEEL WET/DRY VACUUM INSTRUCTION IMPORTANT: MANUAL Read and understand this instruction manual thoroughly before using the product.
- Page 2 TABLE OF CONTENTS SPECIFICATIONS EXTENSION CORDS SAFETY WARNINGS LOCATION OF PARTS GENERAL ASSEMBLY INSTRUCTIONS DRY VACUUM OPERATION WET VACUUM OPERATION BLOWER OPERATION MAINTENANCE TROUBLESHOOTING ACCESSORIES EXPLODED VIEW PARTS LIST WARRANTY If any parts are missing or damaged, or if you have any questions, please call our toll- free helpline at 1-800-689-9928.
- Page 3 054-0246-8 | contact us 1-800-689-9928 IMPORTANT SAFETY INSTRUCTIONS Tank size: 15 L (4 U.S. gallons / 3 1/2 Imperial gallons) Peak horsepower: 2.5 HP Household Type Power: 120 V, 60 Hz, 5.5 A SAVE THIS MANUAL Tank: Stainless steel FOR FUTURE REFERENCE.
-
Page 4: Replacement Parts
054-0246-8 | contact us 1-800-689-9928 SERVICING OF DOUBLE-INSULATED WET/DRY VACUUM. • To reduce the risk of health hazards from vapours or dust, do not vacuum toxic materials. • Do not use or store near hazardous materials. In a double-insulated Wet/Dry Vacuum, two systems of insulation are provided instead of grounding. - Page 5 054-0246-8 | contact us 1-800-689-9928 Verify that the power cord is disconnected from the outlet. Undo the clasps. Lift the top section off the container. Description Description Handle Foam sleeve / wet filter Top section Extension wands (x 3)
- Page 6 054-0246-8 | contact us 1-800-689-9928 Turn the tank upside down, and insert the Place the top section on the container. casters on to the four feet of the tank. Align the top section with the clasps and snap into place by applying pressure until clasps click.
- Page 7 054-0246-8 | contact us 1-800-689-9928 OPERATING INSTRUCTIONS – DRY VACUUMING Insert the larger end of the hose into the front inlet on the tank and lock it in place. Push the required attachment onto the free end Verify that the power cord is disconnected from of the hose or extension.
- Page 8 054-0246-8 | contact us 1-800-689-9928 OPERATING INSTRUCTIONS – WET VACUUMING Turn the motor on by flipping the switch to the “I” position. Verify that the power cord is disconnected from the outlet. Verify that the container is clean and free of dust and dirt.
- Page 9 054-0246-8 | contact us 1-800-689-9928 This Wet/Dry Vac has blowing capabilities. Verify that the power cord is disconnected from the outlet. To use the blower feature follow the instructions listed. Insert the large end of the hose into the blower connection in the top of the motor housing.
- Page 10 054-0246-8 | contact us 1-800-689-9928 Clean the foam filter or dust filter by washing it Problem Possible Causes Corrective Action with a mild soapy solution. Vacuum will not operate. No power supply. Check power supply-cord, breakers, fuses. Faulty power cord.
- Page 11 054-0246-8 | contact us 1-800-689-9928 Additional accessories for your Mastervac ® Wet/Dry Vacuum are available. Consumables 054-0151 Foam Sleeve / Wet Filter 054-0148 Dry Reusable Filter 1 1/4" accessories 054-0047 Hose 054-0120 Multi-surface Nozzle 054-0009 Micro Kit 054-0084...
- Page 12 054-0246-8 | contact us 1-800-689-9928 MASTERVAC LIMITED WARRANTY Description This Mastervac product is guaranteed for a period of three (3) years from the date of original retail Handle purchase against defects in materials and workmanship. Power head assembly...
