Summary of Contents for Mastervac 054-0239-6

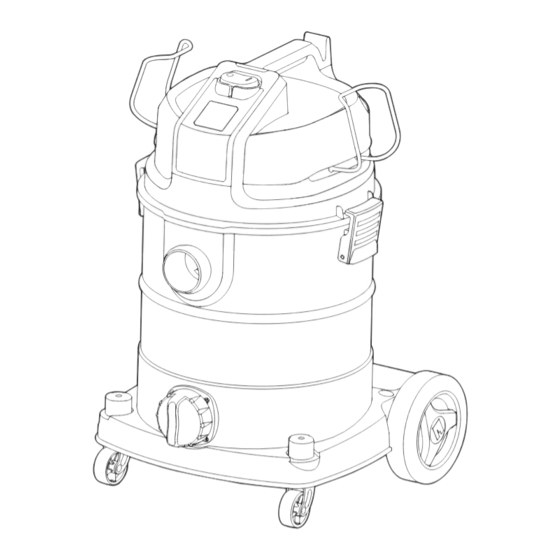

- Page 1 INSTRUCTION MANUAL STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
- Page 2 Keep this instruction manual for future use. Should this product be passed on to a third party, then this instruction manual must be included. STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
-
Page 3: Maintenance
SECTION TECHNICAL SPECIFICATIONS SAFETY GUIDELINES 4–6 KEY PARTS DIAGRAM GENERAL ASSEMBLY INSTRUCTIONS 8–9 DRY VACUUM OPERATION WET VACUUM OPERATION BLOWER OPERATION MAINTENANCE CARTRIDGE FILTER TROUBLESHOOTING ACCESSORIES EXPLODED VIEW PARTS LIST WARRANTY STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6... - Page 4 70 CFM at end of hose HOSE 1 7/8” x 7' (4.8 cm x 2.1 m) FILTERS Washable Polyethylene Terephtalate(P.E.T.) cartridge, Dust bag, Foam fi lter POWER CORD 20’ (6 m) WEIGHT 19lbs 5 oz (8.8 kg) STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
-
Page 5: Important Safety Instructions
• Do not pull or carry by the cord. Do not use the cord as a handle, close a door on the cord, or pull the cord around sharp edges or corners. • Do not run the Wet/Dry Vacuum over the cord. STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6... - Page 6 To reduce the risk of electric shock, do not expose to rain. Store indoors. WARNING: For your own safety, read and understand this instruction manual. Do not operate unattended. Do not use this Wet/Dry Vacuum to pick up hot ashes, coals, toxic, fl ammable or STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
- Page 7 This plug will fi t in a polarized outlet only one way. If the plug does not fi t fully in the outlet, reverse the plug. If it still does not fi t, contact a qualifi ed electrician to install the proper outlet. Do not change the plug in any way. STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
- Page 8 Drain assembly Regular wet/dry Cartridge Filter Integrative base Cloth pre-fi lter Wheel shaft Utility nozzle Wheel assembly Hose Caster assembly Household Collector Bag Electrostatic earth plate Wire Form Hose Storage On Head STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
- Page 9 If cloth pre-fi lter is wet, please dry it before use. Please do not use this cloth pre-fi lter on both sides. (Fig. 10). 10. For wet vacuum cleaning, install the supplied foam fi lter (Fig. 11). 11. Replace the top section on the tank (Fig. 12). STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
- Page 10 Fit the casters (A) into the appropriate mountings on the underside of the tank. Push the casters (A) fi rmly into the mounting until they engage with a clicking noise (Fig. 9). STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
- Page 11 8. Once you have fi nished vacuuming, fl ip the switch to the ‘O’ position and unplug the power cord from the power outlet. DO NOT use the cartridge fi lter for wet or sharp materials. O = OFF I = ON STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
- Page 12 Empty the tank and clean/dry the inside and the outside before storage. Remember! The foam fi lter must be removed after wet vacuuming, and a cartridge fi lter must be installed before dry vacuuming again. STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
- Page 13 4. The unit will now blow through the vacuum hose and can be used to clear obstructions within the hose (Fig. 4). WARNING! If after a few seconds the hose continues to be blocked, turn off the unit and clear the hose manually. STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
- Page 14 Foam Sleeve / Wet Filter (054-0035) (Part #15) Dry Reusable fi lter (054-0148) Household Collector Bag (054-0150) (Part #23) Fine Dust High Eff. Collector Bag (054-0212) Regular wet/dry Cartridge Filter (054-0008) (Part #19) HEPA wet/dry Cartridge Filter (054-0159) STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
- Page 15 8. When wet (to prevent mould and/or mildew build-up), the cartridge fi lter should be moved and allowed to air dry for a 24-hour period before being re-installed back onto the fi lter cage. STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
- Page 16 Remove the fi lter, wash and clean it. Do not motor/speed vibration. Filter may be blocked by fi ne dust. reuse until it is completely dry. Use a new fi lter if necessary. STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
- Page 17 Additional accessories for your MasterVac® Wet/Dry Vacuum are available. Following up fi ts when used with adapter, included with hose or vacuum. Consumables 054-0035 Foam Sleeve / Wet Filter 054-0148 Dry Reusable fi lter 054-0003 / 054-0150 Household Collector Bag 054-0214 / 054-0212 Fine Dust High Effi...
- Page 18 STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
- Page 19 Household Collector Bag Wheel assembly x 2 Hose assembly Caster assembly x 2 Adaptor If any parts are missing or damaged, or if you have any questions, please call the Toll-free Helpline, at 1-800-689-9928. STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
- Page 20 The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim or exclude any statutory warranties set forth in any applicable provincial or federal legislation. Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8 STAINLESS STEEL WET/DRY VACUUM WITH TWO-STAGE MOTOR 054-0239-6...
