FOLDING / UNFOLDING HANDLE

The CycleBoard comes with the handle folded down in the shipping box.

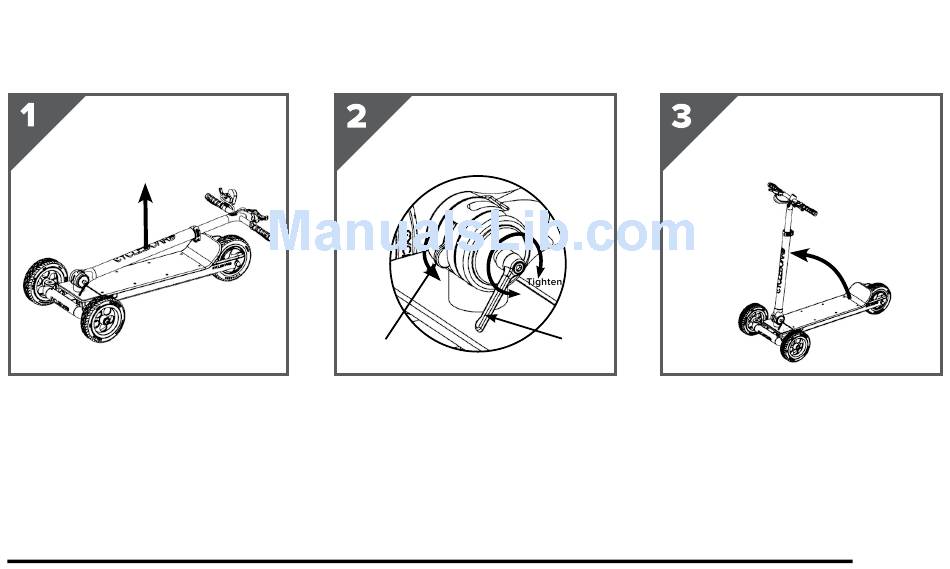

TO UNFOLD:
Pick up the CycleBoard by
the handle to lift out of box
TO FOLD:
Reverse the steps above:
1. Loosen the handle lever by rotating it counter clockwise.
2. Press the release tab downward.
3. Lower the handle until it locks in the lowered position
4. Once the handle locks in the lowered position, tighten the handle lever on the left side by rotating it clockwise until tight
Note: If the release tab is difficult to press, gently shift the handle forwards and backwards while pressing the release tab.
Press release tab downward
to raise handle to the upright
position
Loosen
Release Tab Handle Lever
After handle locks in place,
tighten the handle lever
on the left side by rotating it
clockwise.
Page 6
