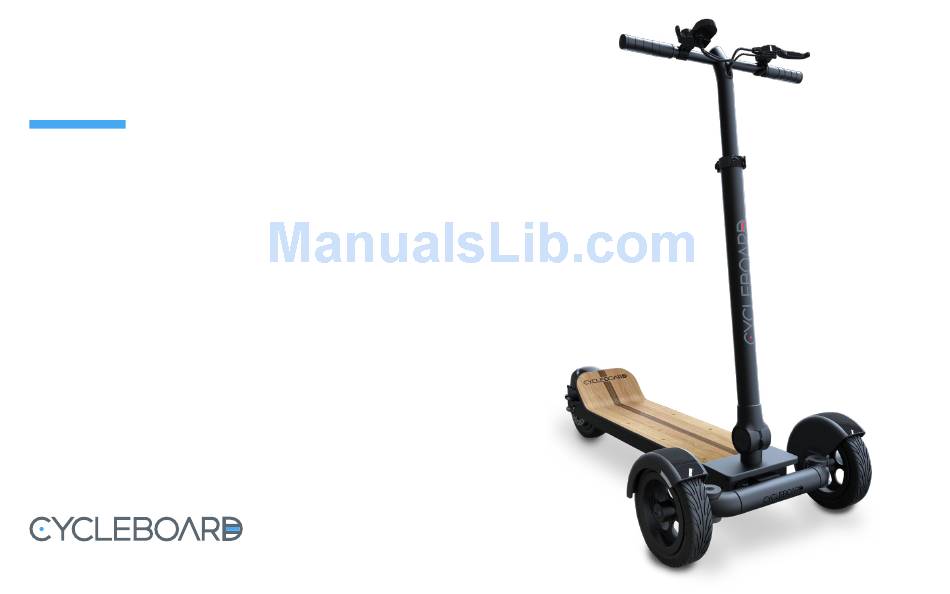

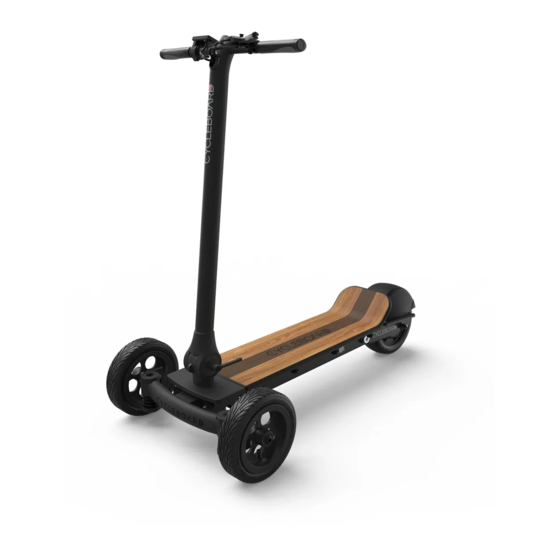

- Page 1 CYCLEBOARD | ELITE OWNER’S MANUAL Important Instructions and Warnings Read this manual completely before riding your CycleBoard. PATENTED cycleboard.com...
-
Page 2: Table Of Contents
Battery And Charger Use And Care Maintenance and General Troubleshooting For assistance contact www.cycleboard.com Please have your Serial Number ready before contacting CycleBoard for warranty assistance and/or replacement parts. It is located on the bottom of your CycleBoard. Page 2... -
Page 3: Introduction
Congratulations on the purchase of your new CycleBoard! Read this manual thoroughly! Pay special attention to the safety and product warnings before you start riding your CycleBoard to help ensure that you ride safely and your CycleBoard electric vehicle has a long service life. -
Page 4: Cycleboard Major Parts And Diagram
CYCLEBOARD MAJOR PARTS AND DIAGRAM Throttle Brake Handlebar Bell Height Adjustment Battery Charger Folding Handle Mechanism Front Wheel Self-Centering Springs Steering Mechanism Serial Number Charging Port Deck / Standing Area Battery and Motor Controller Caliper Compartment Rear Wheel & Hub Motor... -
Page 5: Specifications
Full Charge Distance: Up to 15 Miles (5.8Ah Battery) / Up to 25 your warranty. Miles (9.6Ah Battery) Climbing Grade: up to 20° Incline Note: The CycleBoard must be moving at 2-3 mph while applying the throttle to engage motor. MOTOR 48V 450W Brushless, Gearless rear hub motor... -
Page 6: Folding / Unfolding Handle
FOLDING / UNFOLDING HANDLE The CycleBoard comes with the handle folded down in the shipping box. TO UNFOLD: Press release tab downward After handle locks in place, Pick up the CycleBoard by to raise handle to the upright tighten the handle lever... -
Page 7: Setup
FIG 3. HEIGHT ADJUSTMENT INSTRUCTIONS: Your CycleBoard has been pre-assembled and only requires a few steps to prepare it to ride: After opening the box, inspect the contents for any damage that may have occurred during shipping. If anything has been damaged, contact us for replacement or repair. -
Page 8: Safety Instructions
Do not do “wheelies” or pull up on the handlebars when riding, as this could cause damage to the CycleBoard or injury to the rider. Do not touch the brakes or motor of your CycleBoard when in use or soon after riding as these parts can become very hot. - Page 9 Any rider unable to stand and lean comfortably on the CycleBoard as well as operate the throttle and brake properly should not attempt to ride it. Keep the CycleBoard away from children under the age of 18 and remember that it is intended for use only by persons who are, at a minimum, completely comfortable and competent while operating the product.
- Page 10 • While riding, be aware of your surroundings and obey local traffic laws. • Never exceed the 250-lb. weight limit. • Never let children under the age of 18 ride your CycleBoard. The CycleBoard can reach speeds of 20mph+. The CycleBoard is an adult product and not meant for use by children.
-
Page 11: Safety And Warning Labels
SAFETY AND WARNING LABELS Page 11... -
Page 12: Operating Procedures
Speed Mode 1. Keep one foot on the riding deck and push off on the ground BOTH HANDS ON THE HANDLEBARS IN CASE with the other foot. The CycleBoard must be moving at 2-3 mph for the motor OF UNINTENDED MOVEMENT OF YOUR to engage. - Page 13 YOUR SAFETY IS UP TO YOU when you are operating your CycleBoard. We only list some of the do’s and don’ts here, it is not possible to list them all.
- Page 14 DOWNHILL AND RIDER-ASSISTED RIDING The CycleBoard is intended to be primarily powered by its electric motor and does not require the rider to manually operate it for successful riding. We recommend that you take time to familiarize yourself with the CycleBoard and to safely and gradually explore the limits of performance with each ride.
-
Page 15: Throttle / Lcd Display
THROTTLE / LCD DISPLAY Read the instructions carefully before usage. Cruise Control Speed Mode Speedometer Warning Safe Start Mode Odometer Battery Indicator USB Port Indicator Accelerator Power Button M/Mode Button Page 15... -
Page 16: Throttle Operation
The CYCLEBOARD throttle is designed with advanced features like speed modes, safe-start, programmable speed limits and more. To propel the CYCLEBOARD forward, keep one foot on the riding deck, push off on the ground with the other foot and pull the throttle trigger (located on the right handle) backwards, towards the rider. - Page 17 Long press Mode button for 5-6 seconds parameter, then turn the throttle off and then back on again. Note: The CycleBoard throttle only has 1 Mode button. In order to decrease your speed mode, you must cycle through the speed modes P15: PROGRAM SPEED LIMITS PER SPEED MODE to get to the lower speed mode.
- Page 18 You must select 1 – 5 to engage the motor; Mode 0 will not engage motor. POWER ON – To turn on the CycleBoard, hold down the (power) button for 1-2 seconds until you see the throttle screen light up.
-
Page 19: Braking
The more pressure applied, the faster the CYCLEBOARD will come to a stop. Once you have eased off the throttle, pull the brake lever towards you to slow down and stop. -
Page 20: Steering
DO NOT attempt to turn the handlebars while riding as this is not how the electric vehicle that uses an intuitive “Lean- CycleBoard is designed to steer and may be dangerous. Start off by practicing in to-Turn” steering design. wide open areas on speed mode 1 and gradually increase your speed over time as your comfort and skill levels increase. -
Page 21: Pre-Ride Checklist
PRE-RIDE CHECKLIST BEFORE RIDING, ALWAYS MAKE SURE TO THOROUGHLY CHECK YOUR CYCLEBOARD AND ENSURE IT IS SAFE TO OPERATE. BRAKE HANDLE Check the brakes for proper function. When you squeeze the Loosen the height adjustment thumb screw and handle clamp to lever, the brake should provide positive braking action. - Page 22 Particularly riders must learn and master the steering function of the CycleBoard, see more on this in the “Steering” Section of this guide.
-
Page 23: Battery And Charger Use And Care
BATTERY AND CHARGER USE AND CARE Included with your new CYCLEBOARD is a 48V lithium-ion battery and a 2amp lithium-ion battery charger. Your CYCLEBOARD battery is designed for high capacity charging and a long lifespan; however, improper use will damage the battery and decrease its charge strength and capacity. - Page 24 BATTERY AND CHARGER USE AND CARE (CON’T) CHARGING YOUR CYLEBOARD: Note: The CycleBoard battery charger Turn the CYCLEBOARD off before charging or before conducting any is designed to work in 110 to 220 volt maintenance or assembly procedures. environments. You may need to purchase a...
- Page 25 CYCLEBOARD should be regularly examined for damage to the cord, plug, and other parts. In the event of damage, do not charge the CYCLEBOARD until the charger has been repaired or replaced. If the charger emits unusual sounds or odors, immediately stop using it and contact CYCLEBOARD customer service.
-
Page 26: Maintenance And General Troubleshooting
• Follow proper battery disposal procedure: Recycle lithium-ion batteries. Do not throw away in regular trash or attempt to incinerate. • The CYCLEBOARD battery is not designed to be removed or “Hot Swapped”. It should only be removed when it reaches the end of its service life and needs to be replaced... - Page 27 CHARGER: The charger supplied with this CYCLEBOARD electric vehicle should be regularly examined for damage to the cord, plug, enclosure and other parts and in the event of such damage, the CYCLEBOARD must not be charged until the charger has been repaired or replaced.
-
Page 28: Troubleshooting Guide
Use only on flat, dry surfaces, avoid inclines and debris Battery not fully charged Fully recharge battery until light turns green on charger Battery life has been reached Replace battery - contact CycleBoard for assistance Damaged Battery Replace battery - contact CycleBoard for assistance Runs slow, power reduction... - Page 29 SOLUTION Disc brake is rubbing Brake caliper out of alignment Adjust brake caliper Brake Disc is bent or damaged Replace brake disc; Contact CycleBoard for assistance Worn out brake pads Replace brake caliper; Contact CycleBoard for assistance Brakes not working...
-
Page 30: Faq
HOW FAR CAN I RIDE ON A CYCLEBOARD ? On a full charge, the CYCLEBOARD has a range of up to 15 miles for the standard 5.8ah battery and a range of up to 25 miles for the extended 9.6ah battery. Traveling up steep inclines will take more energy out of the battery and is not recommended. Factors such as road surface, wind resistance and weight of the rider can also affect the CYCLEBOARD ’s range. - Page 31 A. The CYCLEBOARD handle quickly collapses for easy storage and transportation and can fit in the trunk of most cars. RECORD YOUR INFORMATION: For your records, save your original sales receipt with this manual and write the serial number below. Your CYCLEBOARD model and serial number can be found on the underside of the frame...
- Page 32 Need Help? Visit our web site for replacement parts, product support and a list of authorized service centers at www.cycleboard.com Page 32...
