Quick Links
Safety Warnings................................................................................................................2
Basic Operation Tips........................................................................................................2
Start Up/Shutting Down the Projector........................................................................3
Product Layout.......................................................................................................................3
Installation...............................................................................................................................5
Standard Setup..................................................................................................................6
Installation Method...........................................................................................................7
Connections........................................................................................................................7
Operation.................................................................................................................................8
Startup.................................................................................................................................8
Shutdown Procedure........................................................................................................9
Control Panel Buttons......................................................................................................9
Remote Control.................................................................................................................9
How to Adjust the Trapezoidal Image........................................................................10
Menu Settings........................................................................................................................11
System Function Operation...........................................................................................11
Picture Menu......................................................................................................................11
Menu Options....................................................................................................................11
Audio Menu.......................................................................................................................12
Sound Mode Standard....................................................................................................12
USB Interface and Supporting Formats.....................................................................12
Troubleshooting...................................................................................................................14
Specifications........................................................................................................................15
1
Advertisement
Related Manuals for Kogan KAPROFHDXXA
Summary of Contents for Kogan KAPROFHDXXA
- Page 1 Safety Warnings........................2 Basic Operation Tips......................2 Start Up/Shutting Down the Projector................3 Product Layout........................3 Installation..........................5 Standard Setup........................6 Installation Method......................7 Connections........................7 Operation..........................8 Startup..........................8 Shutdown Procedure......................9 Control Panel Buttons......................9 Remote Control.........................9 How to Adjust the Trapezoidal Image................10 Menu Settings........................11 System Function Operation...................11 Picture Menu........................11 Menu Options........................11 Audio Menu........................12 Sound Mode Standard....................12...
- Page 2 Please check all contents while unpacking. • Please read this manual carefully before using the projector. • Do not look directly into the light from the projector lens. • Direct bursts of intense light can harm your eyes. • Do not allow children or infants to stay in areas where they can look at the projector •...
- Page 3 Prevention To improve the service life of the projector, please do not use the projector in a dusty or • humid environment. Do not expose the projector to direct sunlight. • The ideal working temperature for the projector is 0°C ~ 35°C •...

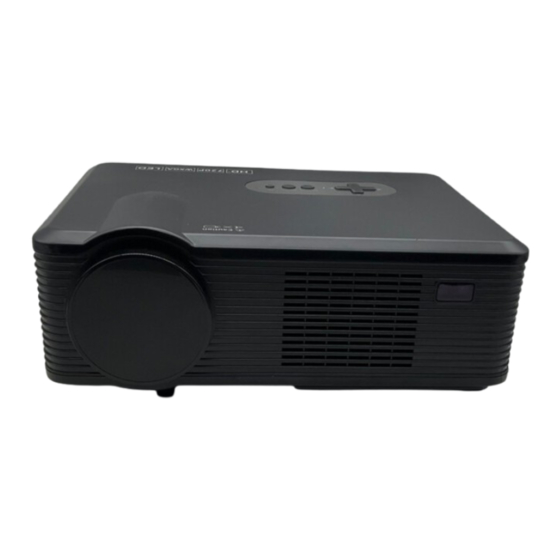

- Page 4 Front View Lens 2. Remote Sensor 3. Ventilation Window When using the remote, point it towards the remote sensor. • You can adjust the definition of the image by adjusting the lens focus • The adjustable support base can move the projection angle by a maximum of 15°. The •...
- Page 5 Please refer to the below image for setting up. Right Front Left Front Screen Speaker Speaker Subwoofer Center Speaker Projector Blu-Ray / DVD Player Seating Door Right Rear Left Rear Speaker Speaker To achieve a better effect, do not allow sunlight to shine directly onto the projection screen.
- Page 6 Please follow the data in the chart below to adjust the image size and the distance between the lens and screen. Screen Size 50” 72” 100” 120” Aspect Ratio 1.9m 2.65m 3.65m 4.35m 16:9 1.65m 2.3m 3.15m 3.75m The image size depends on the distance between the projector and screen. There may be a 3% deviation from the data.
- Page 7 If installing the projector on the ceiling, please consult with a professional installer, and refer to the diagram below for projector positioning. To avoid damage to the projector, please ensure the projector is mounted properly to the • ceiling or on a suitable, stable surface. Keep the working environment of the project within the temperature range of 0°C –...
- Page 8 Note: if this is the first time using the projector, please read the “installation” section in this manual before use. To connect the signal cable and power cable to the projector, following this operating process. Before starting the projector, please connect the external device (such as the PC, Blu-ray player etc...) Please place 2 x AAA batteries into the remote control before use.
- Page 9 While using the projector, press the POWER button to shut it down. Even though the projection light may go out, the projector is still running until the fan stops turning. The UP and DOWN buttons on the remote control have the same functionality as the CH+ and CH- buttons on the control panel.
- Page 10 During the first use of the projector, the image may be blurry or difficult to see. This will be due to the lack of focus with the lens and the trapezoid correction. Please follow these steps to adjust the focus: Adjusting Focus Rotate the lens clockwise or anti-clockwise, observing the image on the screen.
- Page 11 Select the signal source While selecting channels, if there is no signal input, “NO SIGNAL” will be displayed. The SOURCE button can be used to indicate your preferred signal source. Different display modes can be set: Standard, Lively, Movie based on personal preference. Colour Temperature You can select different colour temperatures.
- Page 12 While in projection mode, press “V+/-” buttons to increase or decrease the volume. Adjust the sound settings as suitable to your theatre setup.
- Page 14 Please check these suggestion solutions if you encounter any problems with the projector. If they do not solve the issue, please contact the Kogan.com customer support team. Problem Possible Solutions 1. Is the power cable plugged in? Cannot start unit up 2.
