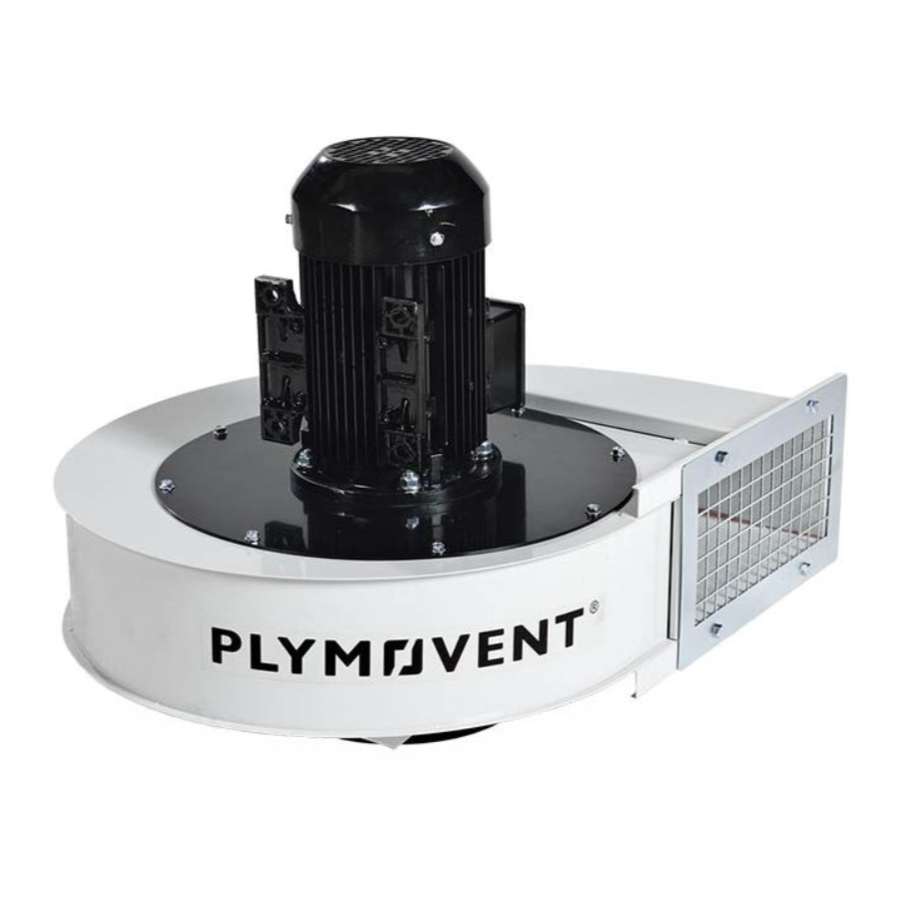

  • Page 1 Extraction fan Afzuigventilator Absaugventilator Ventilateur d’aspiration Ventilador de aspiración Utsugsfläkt FUA-1300/4700 User manual Gebruikershandleiding Betriebsanleitung Manuel opérateur Instrucciones para el uso Bruksanvisning www.plymovent.com...
  • Page 2: Table Of Contents

    5 Utilisation 5 Uso 5 Använding 6 Entretien 6 Mantenimiento 6 Underhåll 7 Réparation des pannes 7 Subsanación de fallos 7 Felsökning 8 Pièces détachées 8 Piezas de recambio 8 Reservdelar 9 Schéma électrique 9 Esquema eléctrico 9 Elschema 10 Mettre au rancart 10 Desechar 10 Omhändertagande Déclaration de conformité Declaración CE-försäkran om överensstämmelse 0000100435/010812/0 FUA-1300/4700...
  • Page 3: Preface

    Options and accessories pREFAcE The following products can be obtained as an option and/or Using this manual accessory: This manual is intended to be used as a work of reference for - Mounting bracket (for mounting the fan as a standalone fan professional, well-trained and authorised users to be able to or wall/ceiling mounting) safely install, maintain and repair the product mentioned on - FUA-1300/1800/2100: MB-FUA/S1 the cover of this document. - FUA-3000/4700: MB-FUA/S2 pictograms and symbols - Mounting bracket (for mounting the fan on the UK and The following pictograms and symbols are used in this manual: FlexMax extractors) - FUA-1300/1800/2100: MB-FUA/C1 - FUA-3000/4700: MB-FUA/C2 Suggestions and recommendations to simplify carrying out tasks and actions. - Outlet transition AttENtiON! - FUA-3000: OL-250 (Ø 250 mm) A remark with additional information for the user. A - FUA-4700: OL-250 (Ø 250 mm)
  • Page 4: Product Description

    Pictograms and instructions on the product (if present) - The pictograms, warning and instructions attached to the product are part of the safety features. They must not be covered or removed and must be present and legible during the entire life of the product. - Immediately replace or repair damaged or illegible pictograms, warnings and instructions. Users The use of this product is exclusively reserved to authorised, well-trained and qualified users. Temporary personnel and Fig. 2.1 Main components FUA-1300/1800/2100 personnel in training can only use the product under supervision and responsibility of skilled engineers. intended use The product has been designed as an extraction fan for extracting fumes and gases which are released during the most common welding processes, as well as the extraction of exhaust gases. Using the product for other purposes is considered contrary to its intended use. The manufacturer accepts no liability for any damage or injury resulting from such use. The product has been built in accordance with state-of-the-art standards and recognised safety regulations.
  • Page 5: Installation

    - sucking cigarettes, cigars, oiled tissues and other 4.2.2 Installing the fan on an MB-FUA-S1/S2 burning particles, objects and acids For use as a standalone or for mounting on the wall, ceiling or - explosive environments or explosive substances/ a platform. The motor can be installed resting on the stand. - gases The motor of the FUA-1300/1800/2100 can also be installed Note: this list is not all-embracing. upside down (hanging from the stand, not shown). - Check the working environment. Do not allow unauthorised To install the fan on an MB-FUA-S1/S2 stand, proceed as persons to enter the working environment. follows: - Protect the product against water and humidity.
  • Page 6 • Use the mounting holes (A) and suitable hardware (not supplied, material depending on wall type) to install the bracket on the wall. • Position the fan on the bracket. • Tighten the bolts (B). A (x 6) B (x 4) Fig. 4.4 Changing the outlet position 4.2.5 Installing the fan directly on an arm The FUA-1300/1800/2100 can be used on the KUA or LM-2 extraction arm. In that case, no additional bracket is needed. The necessary hardware is delivered with the arm. Fig. 4.2 Installing the fan on an MB-FUA-C1/C2 To install the fan directly on the arm, proceed as follows. 4.2.4 Changing the outlet position The fan outlet can be positioned in various directions (see Fig. 4.3). 0000100435/010812/0 FUA-1300/4700...
  • Page 7 Connecting the fan outlet to a duct • Tighten the bolts. (FUA-1300/1800/2100) • Attach the soft connection to the outlet transition. AttENtiON! • Tighten the hose clamp (E). In case the fan is not placed directly next to the • Attach the soft connection to the duct. filter system, make sure the extraction duct is • Tighten the hose clamp (F). sufficiently supported. We advise the use of a soft connection for the outlet to reduce the noise and the vibrations of the fan and to avoid damage to the duct. To connect the fan outlet to a duct, proceed as follows: Fig. 4.6 • Attach the soft connection to the outlet of the fan. • Tighten the hose clamp (E). • Attach the soft connection to the duct. • Tighten the hose clamp (F). 0000100435/010812/0 FUA-1300/4700 EN - 7...
  • Page 8: Maintenance

    • Check the direction of rotation of the motor. For this polluted. extraction fan. purpose the fan contains an arrow indicating the prescribed Outside air is Check or replace direction of rotation. The rotation is visible through the grid being extracted. the sealing of the motor. material. • If necessary, invert the connection of the phases. Vibrations in Machine not Imbalance in the Clean the the machine. steady. extraction fan. extraction fan. Refer to the documentation supplied with the selected control equipment how to control the fan. MAiNtENANcE The fans require no specific maintenance. tROUbLEShOOtiNg If the product does not function (correctly), consult the checklist below to see if you can remedy the error yourself. Should this not be possible, contact your supplier. wARNiNg! Always switch off the machine and disconnect it from the mains before carrying out the activities below. First read the maintenance regulations at the beginning of this manual. 0000100435/010812/0 FUA-1300/4700 EN - 8...
  • Page 9: Spare Parts

    SpARE pARtS cE DEcLARAtiON The following spare parts are available for the product. Refer CE declaration of conformity for machinery to the exploded views on page 47: - Fig. III for the FUA-1300/1800/2100; We, Plymovent Manufacturing BV, Wezelkoog 11, 1822 BL - Fig. IV for the FUA-3000/4700. Alkmaar, the Netherlands, herewith declare, on our own responsibility, that the product(s): - FUA-1800 Article number Description - FUA-2100 FUA-1300 - FUA-3000 - FUA-4700 0000100580 Fan wheel FUA-1300 0000100585 Inlet flange FUA-1300/1800 which this declaration refers to, are in accordance with the 0000100588 Outlet grid FUA-1300/1800/2100 conditions of the following Directive: - Machine Directive 2006/42 EC 0000100589 Motor FUA-1300; 230-400V/3ph/50Hz...
  • Page 10 274 mm (10.8 in.) 348 mm (13.7 in.) 330 mm (12.9 in.) 353 mm (13.9 in.) Ø 250 mm (9.8 in.) Ø 245 mm (9.6 in.) 455 mm (17.9 in.) 455 mm (17.9 in.) 142 mm (5.6 in.) 142 mm (5.6 in.) 244 mm (9.6 in.) 244 mm (9.6 in.) 410 mm (16.1 in.) 480 mm (18.9 in.) Ø 160 mm (6.3 in.) Ø 160 mm (6.3 in.) 228 mm (9 in.) 258 mm (10.6 in.) 433 mm (17 in.) 433 mm (17 in.) 583 mm (23 in.) 733 mm (28.9 in.) 201 mm (7.9 in.) 201 mm (7.9 in.) 247 mm (9.7 in.) 297 mm (11.7 in.) 512 mm (20.2 in.) 591 mm (23.3 in.) Ø 300 mm (11.8 in.) Ø 300 mm (11.8 in.) 20 mm (0.8 in.)/ 60 mm (2.4 in.) 25 mm (1.0 in.) Ø 320 mm (12.6 in.) Ø 380 mm (15 in.) 60 mm (2.4 in.) 45 mm (1.8 in.) 0000100435/010812/0 FUA-1300/4700 EN - 45...
  • Page 11 2000 1800 1600 1400 1200 1000 FUA-3000 FUA-4700 FUA-2100 FUA-1800 FUA-1300 1000 1500 2000 2500 3000 3500 4000 Fig. ii 0000100435/010812/0 FUA-1300/4700 EN - 46...
  • Page 12 0000100418 0000100419 0000100420 0000100421 0000100585 0000100586 0000100522 0000100523 0000100524 0000100597 0000100525 0000100526 0000100527 0000100528 0000100529 0000100530 0000100531 0000100532 0000100533 0000100588 0000100995 Fig. iii Fig. iV 0000100435/010812/0 FUA-1300/4700 EN - 47...
  • Page 13 0000100435/010812/0 FUA-1300/1800/2100/3000/4700 www.plymovent.com...
  • Page 14: Installation

    Safety information ..........3 Pressure loss diagram and Dimensions ... 4-6 Spare part drawing ........7-9 Thank you for buying a PlymoVent product. Before you unpack and put it into operation please read this product manual, and follow the instructions. THIS manual SHould be Handed over...
  • Page 15: Technical Description

    1300, 1301, 1800, 2100, 2101, 3000, 4700 permission from PlymoVent AB. PlymoVent AB reserves the right to make design changes. Fans for welding fumes, dust and oilmist.
  • Page 16: Technical Data

    Technical data Technical data: 1300 Technical data: 1301 Power supply: 208-230/460V 3 ~ Power supply: 115/208-230V 1 ~ Frequency: 60 Hz Frequency: 60 Hz Output: 0.5 Hp Output: 0.5 kW Rated Current: 1-2.2 Amp Rated Current: 3.7-7.4 Amp Motor speed: 3600 rpm Motor speed: 3600 rpm Technical data: 2100 Technical data: 1800...
  • Page 17 Technical data Airflows through different outlets and freeblowing. Extractor type No of FS/FUA FS/FUA FS/FUK/FUA FS/FUK/FUA FS/FUK/FUA FS/FUK/FUA FS/FUK/FUA FS/FUK/FUA Extractors 1300 CFM 1301 CFM 1800 CFM 2100 CFM 2101 CFM 3000 CFM 4700 CFM 6000 CFM KUA-2 1030 KUA-3-4 LM-2 FlexMAX UK"Plymoth"...
  • Page 18 Dimensions FS Fan mounted on tubular support. For various applications. The fan can be turned Prod. no: around its axis and mounted to the sup- FS-1300 Ø6.30 3.74 16.93 Ø6.30 25.59 16.34 9.65 17.52 34.3 port in six different FS-1301 Ø6.30 3.74 16.93 Ø6.30 25.59 16.34 9.65...
  • Page 19 Dimensions FUA Fan without support. For direct mounting on LM-2, EA, KUA (1300-2101) and EF, EFO filters. Prod. no: FUA-1300 Ø6.30 3.74 13.98 Ø6.30 16.93 7.87 9.65 17.52 27.7 FUA-1301 Ø6.30 3.74 13.98 Ø6.30 16.93 7.87 9.65 17.52 29.0 FUA-1800 Ø6.30 3.74...
  • Page 20: Spare Part Drawing

    © Copyright 2008: All rights reserved. All information within this printed matter may not be reproduced, handed over, copied, xeroxed or translated into another language in any form or means without written 1300, 1301, 1800, 2100, 2101, 3000 permission from PlymoVent AB. PlymoVent AB reserves the right to make design changes. 1300-2101 3000...
  • Page 21 © Copyright 2008: All rights reserved. All information within this printed matter may not be reproduced, 4700 handed over, copied, xeroxed or translated into another language in any form or means without written permission from PlymoVent AB. PlymoVent AB reserves the right to make design changes. (4700) (4700)
  • Page 22 € Copyright: All right reserved. All information within this printed matter may not be reproduced, handed FANS over, copied, xeroxed or translated into another language, in any form or any means without written permission from PlymoVent AB. PlymoVent AB reserves the right to make design changes. Produkt No: Decription...
  • Page 23: Veiligheid

    Reg.nr: 2.25-2 Edition: 5 Date: 080512 EU Declaration of Conformity We hereby declare that the equipment described below conforms to the relevant fundamental safety and health requirements of the appropriate EU Directives, both in its basic design and construction as well as in the version marketed by us.
  • Page 24 FA, FD, BSFM, TEV EU-DIRECTIVES: 98/37/EC, 98/79/EC EN 60204-1 EN 292-1 EN 292-2 EN 294 89/336/EEC, 92/31/EEC EN 61000-6-4 EN 61000-6-2 73/23/EEC, 93/68/EEC EN 60204-1 PlymoVent AB Box 527 921 28 Lycksele Sweden ›››››››››.. ›››››››››.. Cees Knijn Tony Norgren Plant manager 11/11...
  • Page 25: Installation

    Spare part drawing ............14-17 Wiring diagram.............18-20 EU Declaration of conformity........21-22 Thank you for buying this PlymoVent product. Before you take it out of its box and start to use it, please read this product manual and follow the instructions carefully.
  • Page 26: Delivery

    Ø 160 mm (6") stos for connection with a central exhaust system. Hose and nozzle must be ordered separately. NOTE: PRODUCT LIABILITY BY PLYMOVENT IS ONLY APPLICABLE IF THE EQUIPMENT HAS NOT BEEN ALTERED OR ADDED TO, OTHER THAN WITH THE WRITTEN CONSENT OF PLYMOVENT AB. Construction Motorized hose reel: With or without fan.
  • Page 27: Technical Data

    56/123 23/50 *Without hose and nozzle **With FUA-1300 ***With FUA-2100 Safety Information: To ensure maximum safety exhaust reels operated by control panel are constructed so that a button for unrolling and rolling up of the hose has to be depressed until required position is reached.
  • Page 28: Pressure Loss Calculation

    Pressure Loss Calculation Pressure Loss Calculation The fall of pressure in a air duct system or in a hose is Recommended values Airflow: mainly determined by the air velocity in that system. /h. ( 211 cfm.) Cars 360 m The higher the velocity is, the higher the pressure loss will Lorries 1080 m /h.
  • Page 29: Mounting Instruction

    © copyright 2008: All rights reserved. All information within this printed matter may not be reproduced, MHR-650, MHR-850, MHR-1050 handed over, copied, xeroxed or translated into another language in any form or means without written permission from Plymovent AB. Plymovent AB reserves the right to make design changes. Motorized hose reel Assembly the hose 6.
  • Page 30 Mounting Max. mounting height Max. mounting height 6 m (20ft for hose length 5,5 m (18´ft)´´ for hose length 7,5 m (25ft). 7,5 m (24ft). 8,5 m (28ft) for hose 8 m (26ft) for hose length length 10 m (34ft). 10 m (33ft).
  • Page 31 Mounting of fan The motorized hose reel is delivered complete including ceiling or wall mounting bracket. Either for connection to a central exhaust system or fitted with a fan (see 1-4). First mount the fan with the reel upside down on the floor and then mount the complete reel to its intended position.
  • Page 32 Exhaust reel mounted on swinging arm handed over, copied, xeroxed or translated into another language in any form or means without written permission from Plymovent AB. Plymovent AB reserves the right to make design changes. Prod. no. Reach mm (see page 9)
  • Page 33 Mounting Mounting bracket EBE-3.5, EBE-4.5 150 mm 150 mm = 5,90 inch 200 mm = 7,87 inch 270 mm = 10,62 inch 1. Bolt mounting bracket to wall. 320 mm = 12,59 inch 370 mm = 14,56 inch 420 mm = 16,53 inch Ø...
  • Page 34 Mounting 4. Adjust friction until arm remains in one position. 150 mm/5,9" 5. Mount hose reel to extractor arm. 6. Mount spiro-tubing and hose on the extractor arm. 7. Set required friction. 8. Mount ducting bend to hose reel. EN/22...
  • Page 35 © copyright 2008: All rights reserved. All information within this printed matter may not be reproduced, Grabber nozzle handed over, copied, xeroxed or translated into another language in any form or means without written permission from Plymovent AB. Plymovent AB reserves the right to make design changes. Ca./Approx. Max 1,0 Bar 6 Bar 1.
  • Page 36: Maintenance Instruction

    MHR-650, MHR-850, MHR-1050 handed over, copied, xeroxed or translated into another language in any form or means without written permission from Plymovent AB. Plymovent AB reserves the right to make design changes. Replacing the exhaust hose 1. Uncoil hose completely and lock reel in its most extended position.
  • Page 37 Endposition switch adjustment for motorized hose reels 1. Check that the motor rotate correct in relation to the control switches (fig. 3). If not, shift the brown and black cable inside the control box. 2. Adjustment of the limit positions are made by the two set screws on the underside of the motor (4). The set screws are marked "1"...
  • Page 38: Spare Part Drawing

    © copyright 2008: All rights reserved. All information within this printed matter may not be reproduced, MHR-650, MHR-850, MHR-1050 handed over, copied, xeroxed or translated into another language in any form or means without written permission from Plymovent AB. Plymovent AB reserves the right to make design changes. EN/22...
  • Page 39 © Copyright: All right reserved. All information within this printed matter may not be reproduced, handed over, copied, xeroxed or translated into another language, in any form or any means without written permission from PlymoVent AB. PlymoVent AB reserves the right to make design changes. Produkt No:...
  • Page 40 © copyright 2008: All rights reserved. All information within this printed matter may not be reproduced, handed over, copied, xeroxed or translated into another language in any form or means without written Exhaust rell on swinging arm permission from Plymovent AB. Plymovent AB reserves the right to make design changes. EN/22...
  • Page 41 © Copyright: All right reserved. All information within this printed matter may not be reproduced, EB-3,5, -4,5 handed over, copied, xeroxed or translated into another language, in any form or any means without written permission from PlymoVent AB. PlymoVent AB reserves the right to make design changes. Produkt No: Decription...
  • Page 42 EN/22...
  • Page 43 EN/22...
  • Page 44 EN/22...
  • Page 45: Eu Declaration Of Conformity

    Reg.nr: 2.25-4 Edition: 3 Date: 080512 EU Declaration of Conformity We hereby declare that the equipment described below conforms to the relevant fundamental safety and health requirements of the appropriate EU Directives, both in its basic design and construction as well as in the version marketed by us.
  • Page 46 PRODUCT: HOSE REELS BATCH NO: 04401--XXXXX MODEL: MHR MODEL: SER, SERF, MHR, MER, MERF EU-RicHTLiniE: EU-DIRECTIVES: ”Wir, Plymovent, Kopparbergsgatan 2, SE-214 44 Malmö, 98/37/EC, 98/79/EC Sweden, erklären hiermit eigenverantwortlich dass das EN 60204-1 Produkt/die Produkte: EN 292-1 EN 292-2 EN 294 Richtlinie für Maschinen 2006/42/Ec...
  • Page 47 exhaust gas hose for teMperatures up to +350°f CARFLEX 350 Construction  external helix  additional abrasion protector  hose wall: neoprene-coated Material properties polyester fabric hose wall: neoprene-coated vibration proof ● polyester fabric flame resistant, neoprene ● external helix: galvanized steel passed UL 94;...
  • Page 48 CARFLEX 350 Delivery forms: * Bending radius Dia. Outer Negative Weight Product code Standard production: (in.) (Dia.) (in. w.c.) (in.) (lbs./ft.) Dia. 4” - 8” ● 2.50 3.04 1.52 0.36905 240–063–118 Color: black ● 3.00 3.56 1.84 0.40260 240–075–118 outer abrasion protector blue 3.20 3.72 1.92...
  • Page 49 RubbeR nozzle with SpRing clip The REC nozzle is highly suitable for Plymovent’s fixed extractors and exhaust hose reels. Recommended for today’s trucks, private cars and especially vehicles with twin exhaust pipes. The REC is designed to take in ambient cooling air thereby reducing the exhaust emission temperature.
