Warning: This is an unvented, electric appliance.
DO NOT attempt to burn wood or manufactured
firelogs in or on this appliance or grate.
REV-0
34HF601ARA
www.tsicustomerservice.com
Distributed by • Distribuido por • Distribué par • Twin-Star International, Inc; Delray Beach, FL 33445
Made in China • Printed in China • Fabricado en China • Impreso en China • Fabriqué en China • Imprimé en Chine
Advertencia: Este es un aparato eléctrico sin
ventilación. NO intente quemar leños fabricados ni
madera dentro o sobre este aparato o su parrilla.
MODEL:
1
Avertissement : Il s'agit d'un appareil électrique
non ventilé. NE PAS tenter de faire brûler du bois
ou des bûches fabriquées dans l'appareil ou sur
la grille.
www.tsicustomerservice.com
Advertisement
Table of Contents
Related Manuals for Duraflame 34HF601ARA
Summary of Contents for Duraflame 34HF601ARA

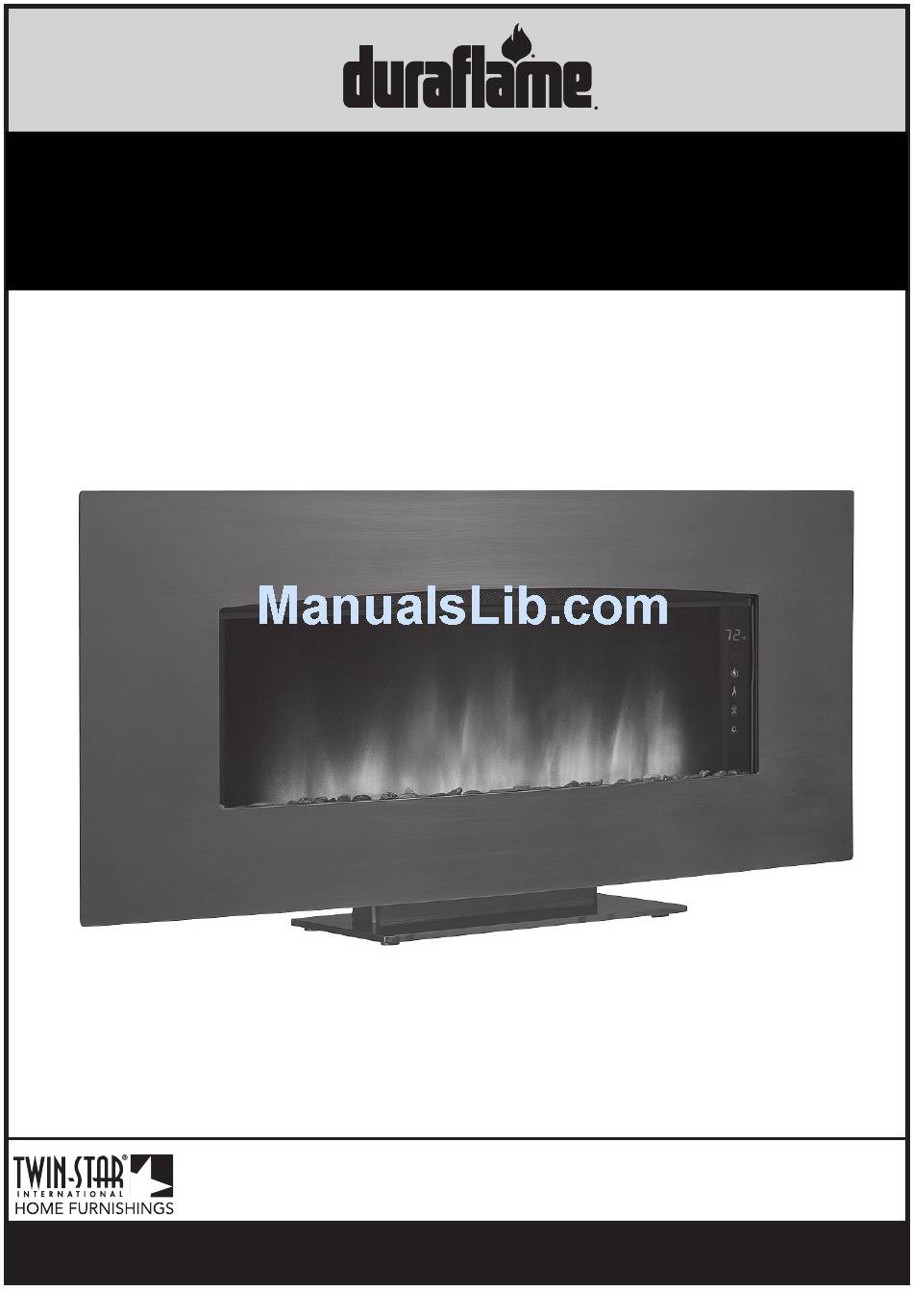

- Page 1 MODEL: 34HF601ARA www.tsicustomerservice.com Distributed by • Distribuido por • Distribué par • Twin-Star International, Inc; Delray Beach, FL 33445 Made in China • Printed in China • Fabricado en China • Impreso en China • Fabriqué en China • Imprimé en Chine Warning: This is an unvented, electric appliance.
-
Page 2: Getting Started
GETTING STARTED 1. Remove the product identification sticker from the front of the fireplace. Product Identification Sticker 2. Attach the Product Identification Sticker to the Manual below for future reference. This information is used for product registration and also is necessary for customer service. Attach Product Identification Sticker Here 3. -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons including the following: 1. Read all instructions before using this appliance. 2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. -
Page 4: Package Contents
PACKAGE CONTENTS Part Description Quantity Mounting Bracket Fireplace Front Frame Base Bracket Base Remote Control Decorative Rocks Varies HARDWARE CONTENTS Description Quantity Picture Part Screw 0.2 in. x 1.5 in. 0.5 cm x 3.8 cm Wall Anchors 0.3 in. x 1.5 in. 0.7 cm x 3.8 cm Screw 0.25 in. -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS Tools Required for Assembly (not included): Phillips screwdriver, Drill, Hammer, Level Drill Phillips Head Screwdriver Hammer Level INSTALLING YOUR ELECTRIC FIREPLACE Your new electric fireplace may be installed virtually anywhere in your home. However, when choosing a location be sure to follow the general instructions included. - Page 6 INSTALLATION INSTRUCTIONS Fig. 1 1. Remove mounting bracket (A) from back of Fireplace (B) by removing the two screws at the top back of the unit (Fig.1). Fig. 2 2. Choose a wall location to attach the mounting bracket (A). Position the mounting bracket (A) in the desired location.
- Page 7 INSTALLATION INSTRUCTIONS 4. Attach the mounting bracket (A) to the wall Fig. 4 fastening the 4 screws (AA) into the wall anchors (Fig. 4). Hardware Used Screw 0.2 in / 0.5 cm x 1.5 in / 3.8 cm Fig. 5 5.
- Page 8 INSTALLATION INSTRUCTIONS Fig. 7 STAND/BASE INSTALLATION INSTRUCTIONS Fig. 8 1. Use 4 screws (CC) to fasten the base bracket (D) to the base (E). (Fig. 8). Hardware Used Screw 0.25 in / 0.6 cm x 0.7 in / 1.7 cm Fig.
- Page 9 INSTALLATION INSTRUCTIONS Fig. 10 3. Fasten the base bracket (D) to the fireplace with the provided screw (DD) (Fig 10). Hardware Used Screw 0.25 in / 0.6 cm x 0.5 in / 1.2 cm Fig. 11 4. Place the decorative rocks as desired (Fig 11). Cold climate installation recommendation: When installing this unit against a non-insulated exterior wall or chase the outer walls must be insulated to conform to applicable insulation codes.
-
Page 10: Operation Instructions
OPERATION INSTRUCTIONS Indicators Touch Panel The fireplace can be operated by either the remote control or the control panel. www.tsicustomerservice.com REV-0... - Page 11 OPERATION INSTRUCTIONS FUNCTION ICON DESCRIPTION There are 6 brightness levels that can be selected. FLAME Settings 6 - 2 decrease in brightness Setting 1 has no blue glow and is full brightness HEATER The heater can be turned on or off by the remote control or touch control panel.
-
Page 12: Troubleshooting
TROUBLESHOOTING Problem Root Cause Corrective Action Check that unit is plugged into a standard 120V outlet. Press power button No power. No power to the unit. several times, make sure power is set at “ON”position. Check your heater cord and plug connections. Faulty wall outlet connections or loose plugs can cause the outlet or plug to overheat. -
Page 13: Exploded View
EXPLODED VIEW Part Part Name Control Panel 5 Buttons Spinner Motor Right Backlight PCBA Thermostat Sensor Left Backlight PCBA Blower/Heater Assembly Flame PCBA Flame Generator/ Spinner Remote Control - 5 Buttons Main Circuit Board CARE AND MAINTENANCE • The motors used on the fan and the flame generator assembly are pre-lubricated for extended bearing life and require no further lubrication. -
Page 14: Fcc/Ic Information
FCC/IC INFORMATION NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 15: Year Limited Warranty
1-YEAR LIMITED WARRANTY The manufacturer warrants that your new Electric Fireplace is free from manufacturing and material defects for a period of one year from date of puchase, subject to the following conditions and limitations. 1. Install and operate this appliance in accordance with the installation and operating instructions furnished with the product at all times. - Page 16 www.tsicustomerservice.com www.tsicustomerservice.com REV-0...
