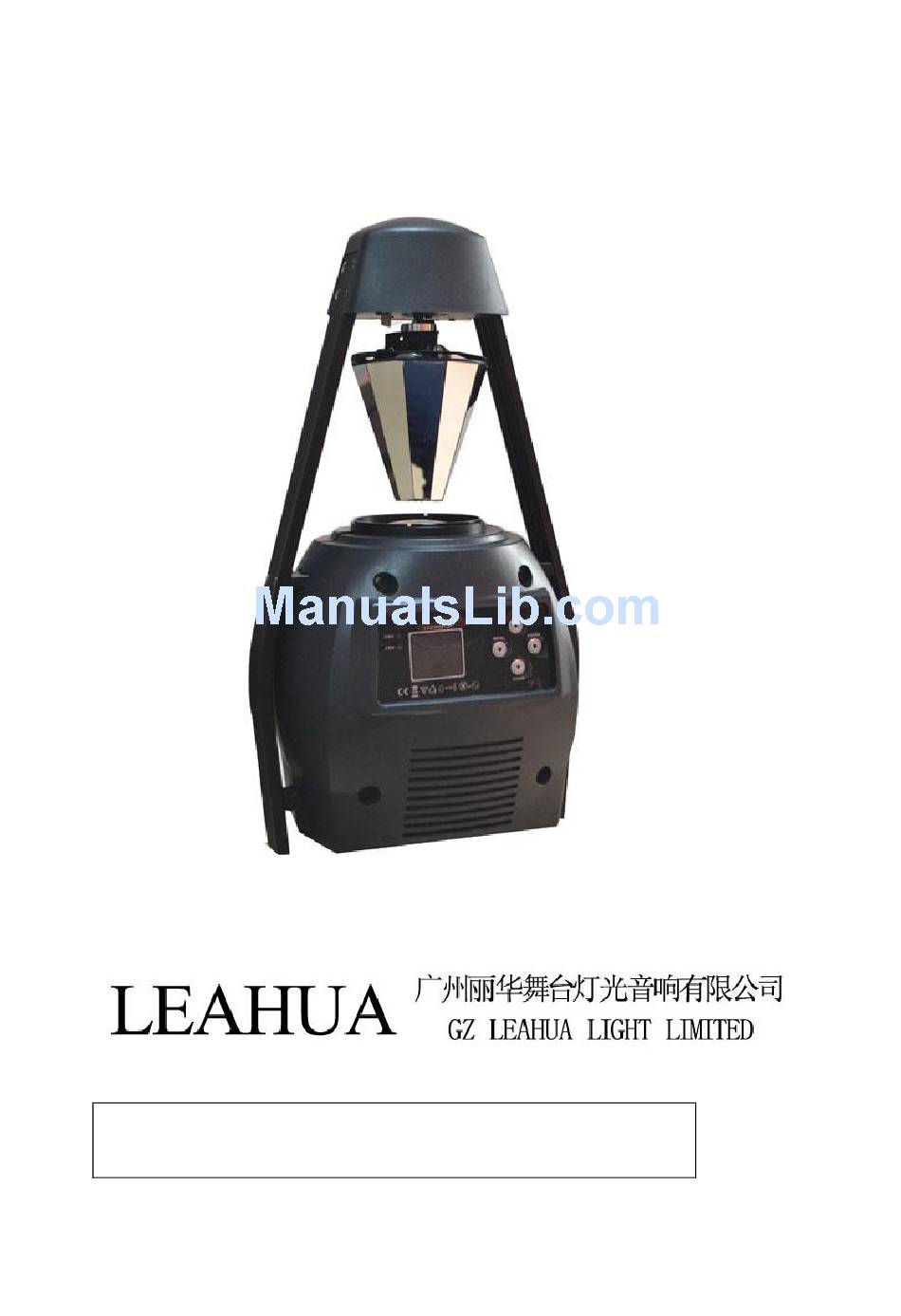

- Page 1 LH-N006 Roller Beam 5R User Manual This manual contains important information. Please read before operating fixture. Add：A1 Building The Sixth Industrial Zone Zhu Gang Road Hongxing Shijing Town Baiyun District Guangzhou China. Tel：+86 020-66292177 Fax：+86 020-66292177...
-
Page 2: Security Tips
1 SECURITY TIPS WARNING!!! To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions: non-professionals, not to disassemble the light arbitrarily and lighting accessories inside. rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ (to be selected). - Page 3 2 TECHNOLOGY REFERENCE Voltage :110V/240V AC, 50/60Hz Power Consumption:200W Fuse: 3A/240V Lamp:Philips 189w 5R UHP lamp(DMX on/off) Body Size: 26*31*49cm Net Weight: 11Kg Lumen output:20000LM/10meter Color Temperature:8000K Prism:8 Prism rotation Gobo wheel :14 gobos +white Color wheel :13 colors +white rainbow effect DMX Channel:13CH Control: DMX512 , Sound , Master-Slave , Auto Focus :Double automatic focusing...
- Page 4 3 Board Instruction 001-255 Addr DMX Control 000-255 Auto run Sound control Master salve choose On/off Light switch On/off 000-255 Tilt 000-255 Focus 000-255 Color 000-255 Test Gobo 000-255 Prism 000-255 Frost 000-255 Strobe 000-255 Language English /Chinese Screen saver Mode1/mode2 /off Display Screen rotion...
-
Page 5: Dmx Channel Sheet
Work mode Address Version D.1.4.0.0 Info Elapse tatol 4 DMX CHANNEL SHEET Value Function 0-255 Pan Movement (0-540degree) Tilt 0-255 Tilt Movement (0-270degree) Barrel rotation Barrel rotation angle:0-400 degree 0-127 128-191 Forwards Barrel rotation from fast to slow Backwards Barrel rotation from slow to 192-255 fast Color Wheel... - Page 6 70-79 Color7 80-89 Color8 90-99 Color9 100-127 Color10 128-191 Forwards rainbow effect from fast to slow 192-255 Backwards rainbow effect from slow to fast Gobo Wheel white 5-9 Rot. gobo 1 10-14 Rot. gobo 2 15-19 Rot. gobo 3 20-24 Rot. gobo 4 25-29 Rot.
- Page 7 205-209 Rot. gobo 5shake 210-214 Rot. gobo 6shake 215-219 Rot. gobo 7shake 220-224 Rot. Gobo8 shake 225-229 Rot. gobo 9 shake 230-234 Rot. gobo 10 shake 235-239 Rot. gobo 11 shake 240-244 Rot. Gobo 12 shake 245-249 Rot. Gobo 13 shake 250255 Rot.
- Page 8 0-127 No movement 128-200 Reset (last above 3 seconds) 201-255 No movement Lamp control No movement 10-100 Off(last above 3 seconds) 101-255 On (last above 3 seconds) 5 DIFFICULTY RESOLUTION The following is a list of problems and resolution, and other malfunction preparing work should be professionally qualified staff to deal with.
-
Page 9: After Service
3. Computer lamp work intermittently a) Check whether the fan process naturally and become dirty b) Check inner temperature-response control plug is off c) Check whether the circuitry is good 4. The computer lamp not controlled by controller during lighting a) Check numeral starting address and the connection of communication control circuit b) The corresponding channel button of controller is open or not... - Page 10 Warranty Card Name Model Production Purchase Sale Store End User Link man: Company Name: Tel: Stamp Add: Description: These must be truthfully fill, seal by the end-user and point-of-sale, or else the warranty will not work (warranty period and terms, see the following) warranty period：one year since purchase warranty terms：1、If fail when using the product in normal state, you can made under the provisions of the warranty, show the warranty card and purchase bills(copy), and enjoy free maintenance service in a specific service center or...
