leahua LH-C043 Led Spider User Manual

Rgbw moving head
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
LH-C043 Led Spider rgbw moving head
This manual contains important information.
Please read before operating fixture.
Add：A1 Building The Sixth Industrial Zone Zhu Gang Road Hongxing Shijing Town Baiyun
District Guangzhou China.
Tel：+86 020-66292177 Fax：+86 020-66292177
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the LH-C043 Led Spider and is the answer not in the manual?

Questions and answers

Related Manuals for leahua LH-C043 Led Spider

Summary of Contents for leahua LH-C043 Led Spider

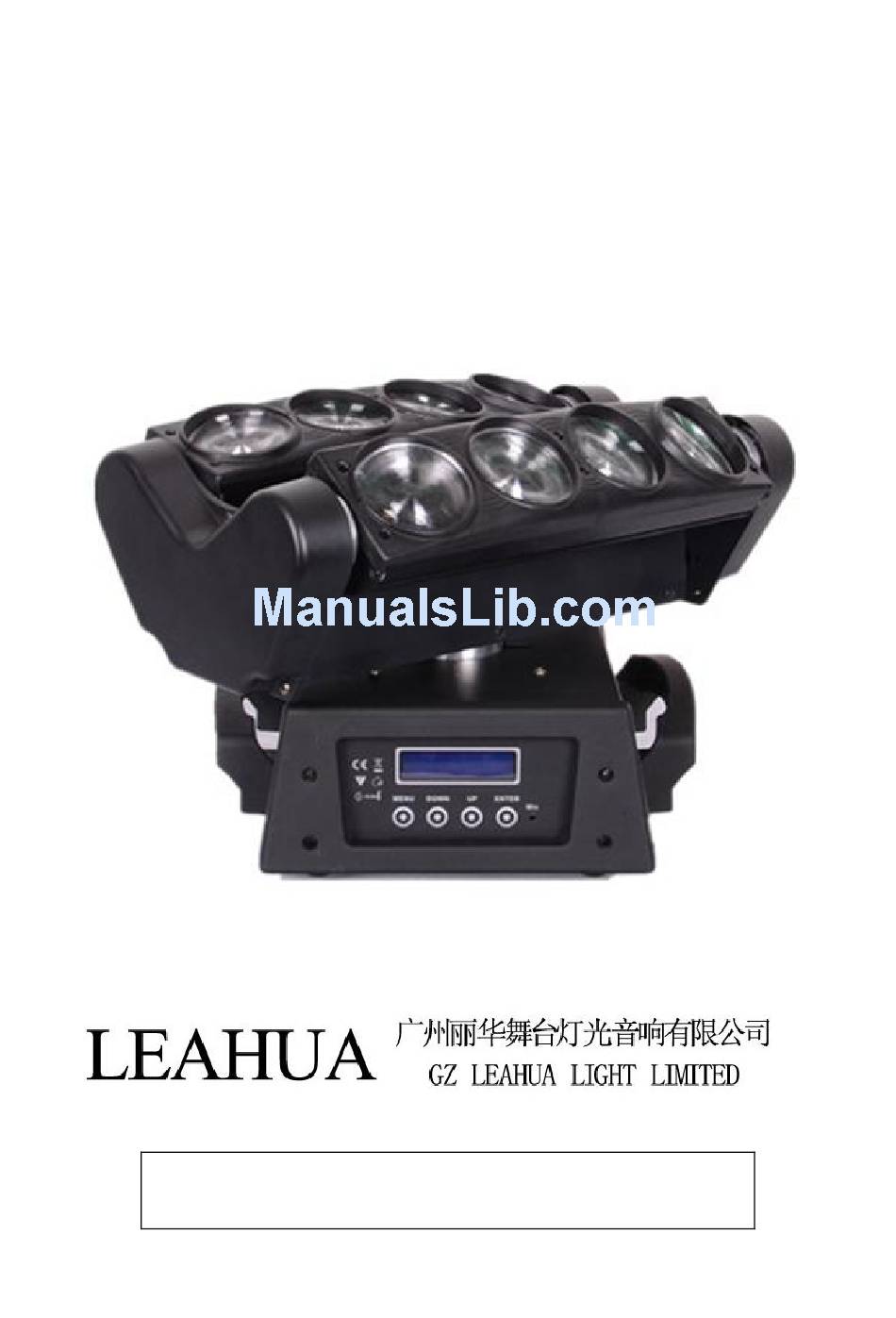

  • Page 1 LH-C043 Led Spider rgbw moving head User Manual This manual contains important information. Please read before operating fixture. Add：A1 Building The Sixth Industrial Zone Zhu Gang Road Hongxing Shijing Town Baiyun District Guangzhou China. Tel：+86 020-66292177 Fax：+86 020-66292177...

  • Page 2: Security Tips

    1 SECURITY TIPS WARNING!!! To reduce the risk of fire, electric shock, or injury to persons, follow these important safety instructions:  non-professionals, not to disassemble the light arbitrarily and lighting accessories inside.  rated voltage range: AC110V-120V/60Hz or AC200V-240V / 50HZ (to be selected).
  • Page 3 2 TECHNOLOGY REFERENCE POWER SUPPLIE Input power:AC100-240V 50/60 Hz LED:8PCS 10W 4in1 RGBW Cree LED DMX channel:11/37channels Movement: Pan/Tilt: X :540degree, Y1 :120degree, Y2 :120degree Control mode:DMX512/Master-Slave/Auto run/ sound Display: LCD display Beam angle:3degree Pan/tilt speed:3 selectable for High, medium and low speed WEIGHT&SIZE N.W: 9kgs G.W:11kgs...
  • Page 4 3 Board Instruction Main menu: DMX address A001—A512 address code Channel Mode 11CH , 37CH channel selection Show Mode Sound ,Auto ,effect select Slave Mode Master , Slave , main machine and shoose Black Out Yes , NO . standby mode Sound State ON , OFF .programmable starts...

  • Page 5: Dmx Channel Sheet

    4 DMX CHANNEL SHEET 11 Channel Mode: Channel Function Value 000 - 255 X axis moving 0 ---630 000 - 255 Y1 axis moving 0 ---185 000 - 255 Y2 axis moving 0 ---185 000-255 Dimmer(0-100%) 000-9 Shutter closed 010-245 Strobe effect slow to fast 246-255 Shutter open...
  • Page 6 Channel Mode: Channel DMX Value Function 000 - 255 X axis moving 0 ---630 000 - 255 Y1 axis moving 0 ---185 000 - 255 Y2 axis moving 0 ---185 000-255 Dimmer(0-100%) 000-9 Shutter closed 010-245 Strobe effect slow to fast 246-255 Shutter open 000-255...
  • Page 7 000-255 Blue6 000-255 White6 000-255 Red7 000-255 Green7 000-255 Blue7 000-255 White7 000-255 Red8 000-255 Green8 000-255 Blue8 000-255 White8 5 DIFFICULTY RESOLUTION The following is a list of problems and resolution, and other malfunction preparing work should be professionally qualified staff to deal with.

  • Page 8: After Service

    b) Check inner temperature-response control plug is off c) Check whether the circuitry is good 4. The computer lamp not controlled by controller during lighting a) Check numeral starting address and the connection of communication control circuit b) The corresponding channel button of controller is open or not c) Check whether the fuse on power supply input jack is broken 6 AFTER SERVICE 1.
  • Page 9  Warranty Card Name Model Production Purchase Sale Store End User Link man: Company Name: Tel: Stamp Add: Description: These must be truthfully fill, seal by the end-user and point-of-sale, or else the warranty will not work (warranty period and terms, see the following) warranty period：one year since purchase warranty terms：1、If fail when using the product in normal state, you can made under the...
