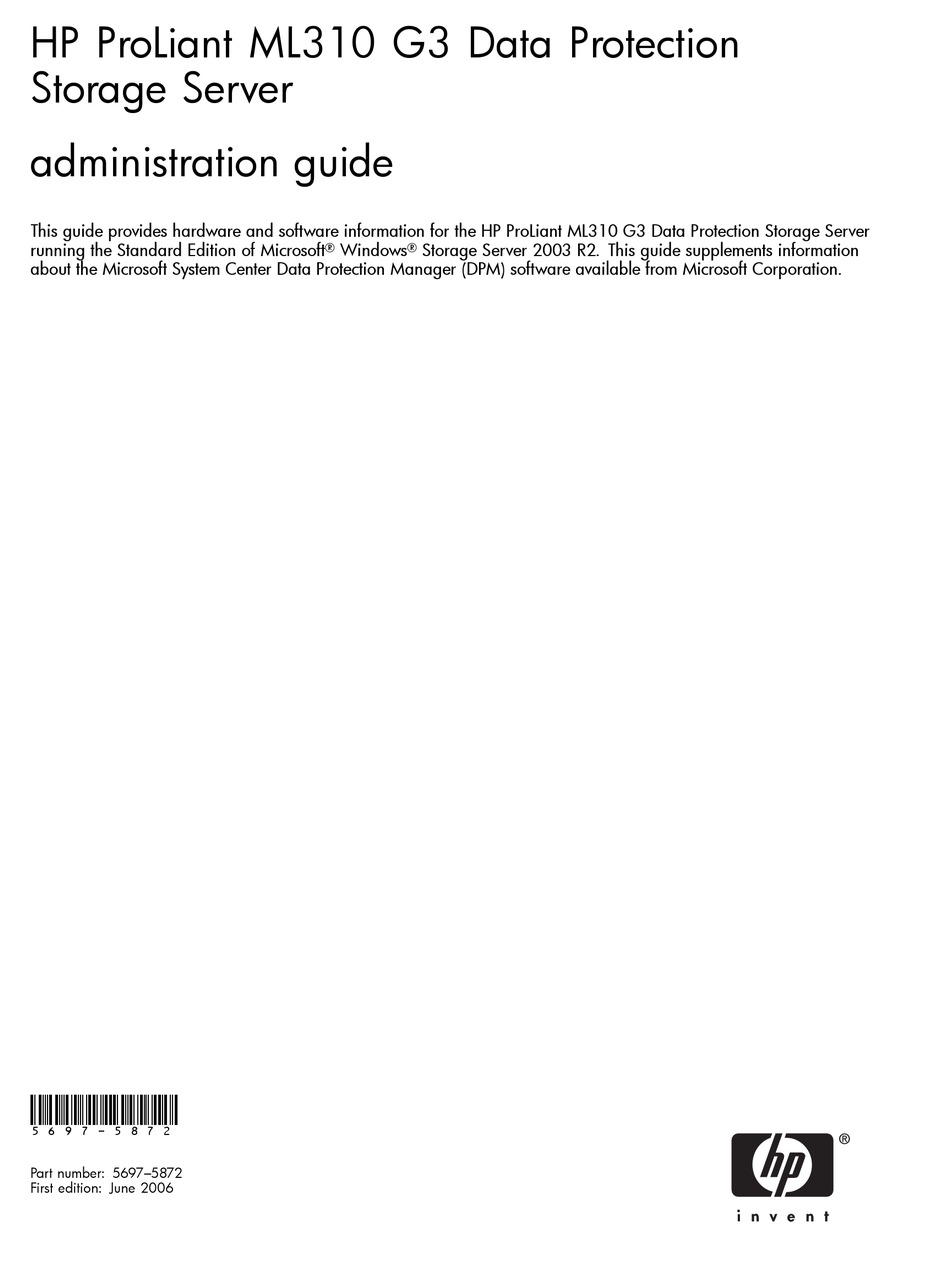

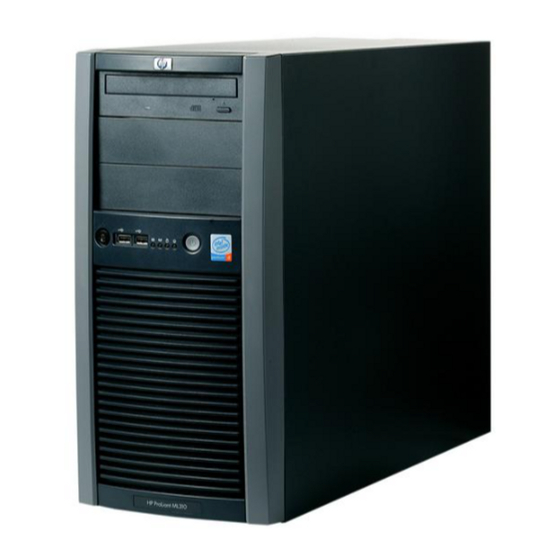

HP ProLiant ML310 G3 Data Protection
Storage Server
administration guide
This guide provides hardware and software information for the HP ProLiant ML310 G3 Data Protection Storage Server
running the Standard Edition of Microsoft
Windows
Storage Server 2003 R2. This guide supplements information
®
®
about the Microsoft System Center Data Protection Manager (DPM) software available from Microsoft Corporation.
5697-5872
Part number: 5697–5872
First edition: June 2006

Advertisement

Table of Contents
loading

Related Manuals for HP ProLiant ML310 G3

Summary of Contents for HP ProLiant ML310 G3

  • Page 1 HP ProLiant ML310 G3 Data Protection Storage Server administration guide This guide provides hardware and software information for the HP ProLiant ML310 G3 Data Protection Storage Server running the Standard Edition of Microsoft Windows Storage Server 2003 R2. This guide supplements information ®...
  • Page 2 Hewlett-Packard. The information contained in this document is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting as additional warranty.

  • Page 3: Table Of Contents

    ........HP technical support ........
  • Page 4 ....HP Network Configuration Utility .......
  • Page 5 ........Index ......HP ProLiant ML310 G3 Data Protection Storage Server...
  • Page 6 8 HP Data Protection Storage Server Management console ....9 HP System Management Homepage ......
  • Page 7 6 Summary of RAID methods ......HP ProLiant ML310 G3 Data Protection Storage Server...

  • Page 9: About This Guide

    This guide provides information for using the following HP ProLiant Data Protection Storage Server models: • HP ProLiant ML310 G3 1 TB Storage Server This guide is available on the HP web site and is also provided as a PDF printable document on the HP ProLiant Data Protection Storage Server documentation CD. Intended audience This book is intended for use by technical professionals who are experienced with the following: •...

  • Page 10: Document Conventions And Symbols

    Provides clarifying information or specific instructions. NOTE: Provides additional information. TIP: Provides helpful hints and shortcuts. Getting help If you still have a question after reading this guide, contact an HP authorized service provider or access our web site: http://www.hp.com. About this guide...

  • Page 11: Hp Technical Support

    Detailed, specific questions For continuous quality improvement, calls may be recorded or monitored. HP Subscriber’s choice HP strongly recommends that customers sign up online using the Subscriber’s choice web site at http://www.hp.com/go/e-updates. • Subscribing to this service provides you with e-mail updates on the latest product enhancements, newest versions of drivers, and firmware documentation updates, as well as instant access to...

  • Page 12: Documentation Feedback

    For more information, go to the HP web site: http://h20219.www2.hp.com/services/cache/10707-0-0-225-121.aspx. HP Services provides service tools that notify you when a significant system event has or will occur. These tools, WEBES System Event Analyzer (SEA) and OSEM, are used both as part of the ISEE remote service offering and as standalone tools to HP service customers.

  • Page 13: Data Protection Storage Server

    1 Data Protection Storage Server This chapter describes the features and uses of Data Protection Manager (DPM) and identifies several Microsoft resources for planning and operating this solution on HP ProLiant Data Protection Storage Servers. DPM description Microsoft System Center Data Protection Manager is a software application designed for storage ®...

  • Page 14: Use Scenarios

    Use scenarios Depending on the needs of your business, you can configure the Data Protection Storage Server for use in a local area network (LAN) environment or for use across a wide-area network (WAN) environment. In both cases, the Data Protection Storage Server provides end-users with the ability to restore data across the network without the intervention of a system administrator.

  • Page 15: Dpm End-User Recovery Option

    Install the provided WindowsServer2003-KB913109.exe hotfix on both the Data Protection Storage Server and the protected server. Go to the Protection tab on the DPM user interface and run a synchronization with consistency check on the protected volumes. HP ProLiant ML310 G3 Data Protection Storage Server...

  • Page 16: Hp Storageworks Data Protector Express

    Registering your Data Protection Storage Server IMPORTANT: If you purchased the Data Protection Storage Server from an HP Authorized reseller, you need to register the product with HP within 10 days of purchase to receive phone-in support and software update services.

  • Page 17: Additional Resources

    The following web sites provide additional information and documentation for DPM: Data Protection Manager technical overview http://www.microsoft.com/windowsserversystem/dpm/evaluation/whitepaper.mspx • Microsoft System Center Data Protection Manager Planning and Deployment Guide http://go.microsoft.com/fwlink/?LinkId=46351 • Microsoft System Center Data Protection Manager 2006 Operations Guide http://go.microsoft.com/fwlink/?LinkId=46363 HP ProLiant ML310 G3 Data Protection Storage Server...
  • Page 18 Data Protection Storage Server...

  • Page 19: Storage Server Features And Specifications

    ML310 G3. HP ProLiant ML310 gl0052 USB connectors (2) Media bays (bezel blanks) Power On/Standby button Bezel lock Hard drive bays CD-ROM drive Figure 3 Front panel components HP ProLiant ML310 G3 Data Protection Storage Server...

  • Page 20: Rear Panel

    HP ProLiant ML310 gl0053 Figure 4 Front panel controls and indicators Table 2 Front panel controls and indicators Item Description Status CD-ROM drive ejector button Power On/Standby button Power On/Standby LED Amber = System has AC power and is in standby mode...

  • Page 21: Rear Panel Components

    Figure 6 Rear panel indicators Table 3 Rear panel indicators Item Description Status NIC link LED On = link Off = no link NIC activity LED Flashing = activity Off = no activity HP ProLiant ML310 G3 Data Protection Storage Server...

  • Page 22: Storage Server Configuration

    Intel Pentium D 930 (3.0 GHz, dual core, 800 MHz FSB, 2 x 2 MB L2 cache) Memory (ECC PC2–4200 DDR) 1 GB (2 x 512 MB) Hard drives Four (HP 250 GB SATA, 1.5 Gb, 7.2 K) HP 6–port SATA RAID Drive controller RAID (OS drives) Hardware RAID 5...

  • Page 23: Factory Image

    HP 6–port SATA RAID controller determines whether a rebuild of a drive is necessary. NOTE: With HP Storage Manager, logical disks are labeled 1, 2, and so on. In Microsoft Disk Manager, logical disks are displayed as 0, 1, and so on. Information about HP Storage Manager can be obtained from http://h200005.www2.hp.com/bc/docs/support/SupportManual/c00405440/c00405440.pdf.

  • Page 24: Default Boot Sequence

    Default boot sequence The BIOS supports the following default boot sequence: DVD-ROM PXE (network boot) Under normal circumstances, the storage servers boot up from the OS logical drive. • If the system experiences a drive failure, the drive displays an amber disk failure LED. •...

  • Page 25: Remote Access, Monitoring, And Set Up Completion

    Knowing the serial number of the storage server and its IP address, you can log in to a network port. Instructions for setting up Remote Browser are explained in the HP ProLiant Data Protection Storage Server installation guide that is provided with the server.

  • Page 26: Accessing Remote Desktop

    NOTE: Remote Desktop is only supported on systems running Internet Explorer. Logging off and disconnecting Remote Desktop provides two options when closing a client: you can either disconnect or log off the system. Disconnecting leaves the session running on the server. You can reconnect to the server and resume the session.

  • Page 27: Sessions Information

    Administrators may want to add users, change SNMP trap destinations, or change networking settings. Refer to the HP Integrated Lights-Out 2 User Guide for information about changing these settings. To obtain this guide, go to http://www.hp.com/support/manuals, navigate to the servers section, and select Server management.

  • Page 28: Hp Systems Insight Manager

    HP 9000 servers; HP BladeSystems; and HP ProLiant Storage Servers, HP StorageWorks MSA, EVA, and XP storage arrays. HP SIM also provides management of non-HP gear through industry standards. It can be extended to provide system management with plug-ins for HP clients, storage, power, and printer products.

  • Page 29: Setup Completion

    IP address or the computer name under DNS. NOTE: Notice that the URL is followed by 2381. This is the port or socket number that the HP Insight Management Agents for Servers use to communicate with the browser. If this number is not specified, the browser might attempt to connect to another web page if the managed server is running a web server.
  • Page 30 Remote access, monitoring, and set up completion...

  • Page 31: Storage Management Overview

    Each of these elements is composed of the previous level’s elements. Storage management example Figure 10 depicts many of the storage elements that one would find on a storage device. The following sections provide an overview of the storage elements. HP ProLiant ML310 G3 Data Protection Storage Server...

  • Page 32: Physical Storage Elements

    Physical Disks Single Server Cluster Implementation RAID Arrays Storage Elements Logical Drives Selective Storage Presentaion Visible Disks Logical Partitioning Storage Elements NTFS Volumes File \Engineering \Users \Sales \Engineering \Users \Sales \Customers File Folders System \Marketing \Marketing Elements from 02/10/03 09:30 \snapshot.0 from 02/10/03 09:30 \snapshot.0 Shadow Copy Shadow Copies...

  • Page 33: Fault Tolerance

    12, failure of any hard drive leads to failure of all logical drives in the same array, and hence to data loss. To protect against data loss from hard drive failure, storage servers should be configured with fault tolerance. HP recommends adhering to RAID 5 configurations. HP ProLiant ML310 G3 Data Protection Storage Server...

  • Page 34: Online Spares

    The table below summarizes the important features of the different kinds of RAID supported by the Smart Array controllers. The decision chart in the following table can help determine which option is best for different situations. Table 6 Summary of RAID methods RAID 0 RAID 1+0 RAID 5...

  • Page 35: Partitions

    file system, providing another level of granularity for management of the information space. Each of these folders can contain separate permissions and share names that can be used for network access. Folders can be created for individual users, groups, projects, and so on. HP ProLiant ML310 G3 Data Protection Storage Server...

  • Page 36: File Sharing Elements

    File sharing elements The storage server supports several file sharing protocols, including Distributed File System (DFS), Network File System (NFS), File Transfer Protocol (FTP), Hypertext Transfer Protocol (HTTP), and Microsoft Server Message Block (SMB). On each folder or logical storage element, different file sharing protocols can be enabled using specific network names for access across a network to a variety of clients.

  • Page 37: Troubleshooting, Servicing, And Maintenance

    ) link. For example, instead of using “ML310 Data Protection Storage Server,” enter “ML310 server” for the product to search, then select the “HP ProLiant ML310 Server series” link, then the Manuals (guides, supplements, addendums, etc) link to locate the guide.

  • Page 38: Maintenance And Service Documentation

    HP’s customer self-repair program offers you the fastest service under either warranty or contract. It enables HP to ship replacement parts directly to you so that you can replace them. Using this program, you can replace parts at your own convenience.

  • Page 39: System Installation And Recovery

    The System Installation and Recovery DVD The HP ProLiant Storage Server System Installation and Recovery DVD allows you to install an image or recover from a catastrophic failure. The DVD is used initially to install and configure the operating system and applications provided with your storage server.

  • Page 40: Systems With A Don't Erase Partition

    CAUTION: In order for user data to be retained on two-drive systems, the data volume must be a single, mirrored volume as initially configured by the factory. If you choose to restore only the operating system on two-drive systems, you need to manually recreate mirrors of your operating system and data volumes after the system is recovered and Windows boots.

  • Page 41: A Network Adapter Teaming

    Load Balancing provides the ability to balance transmissions across NICs. Opening the HP Network Configuration Utility The HP Network Configuration Utility is now accessible from the Windows system tray at the bottom of the storage server desktop. To open the utility, click the HP Network Configuration Utility icon Adding and configuring NICs in a team...

  • Page 42: Hp Network Configuration Utility Properties Dialog Box, Before Teaming

    Figure 15 HP Network Configuration Utility Properties dialog box, before teaming Highlight the NICs to team. Click Team. Figure 16 HP Network Configuration Utility Properties dialog box, after teaming Configure the team by clicking the Properties tab. The teaming options are discussed in the following sections.

  • Page 43: Team Properties Page

    Click OK to accept the team properties. Click OK in the HP Network Configuration Utility Properties dialog box to apply the changes. Team Properties page The Team Properties page is displayed (see Figure 17) when the Properties tab is selected on the HP Network Configuration Utility Properties dialog box.

  • Page 44: Team Type Selection

    LACP or if any ports in the team don’t have successful LACP negotiation with the switch, the team will choose to operate as a TLB team. As network and server configurations change, the Automatic team type ensures that HP ProLiant servers intelligently choose between TLB and 802.3ad Dynamic to minimize server reconfiguration.

  • Page 45: Switch-Assisted Load Balancing With Fault Tolerance (Slb)

    Primary port to be located on a specific switch. Network Fault Tolerance Only (NFT) Network Fault Tolerance (NFT) is the foundation of HP ProLiant Network Adapter Teaming. In NFT mode, from two to eight teamed ports are teamed together to operate as a single virtual network adapter.

  • Page 46: Automatic (Recommended)

    It is very important to understand the differences between the load-balancing methods when deploying HP ProLiant Network Adapter Teaming in an environment that requires load balancing of routed Layer 3 traffic. Because the methods use conversations to load balance, the resulting traffic may not be distributed equally across all ports in the team.

  • Page 47: Tcp Connection

    It load balances every outbound frame of every operational teamed port on a frame–by-frame basis. Absolutely no frame ordering is maintained. All teamed ports are equally used. HP recommends that the implications of this method of load balancing be carefully considered before deployment.
  • Page 48 Network adapter teaming...

  • Page 49: B Regulatory Compliance And Safety

    This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. HP ProLiant ML310 G3 Data Protection Storage Server...

  • Page 50: Modifications

    • Allow only HP authorized service technicians to repair the unit. The Center for Devices and Radiological Health (CDRH) of the U.S. Food and Drug Administration implemented regulations for laser products on August 2, 1976. These regulations apply to laser products manufactured from August 1, 1976.

  • Page 51: International Notices And Statements

    EN55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11) - Electromagnetic Immunity • EN61000-3-2 (IEC61000-3-2) - Power Line Harmonics • EN61000-3-3 (IEC61000-3-3) - Power Line Flicker • EN 60950 (IEC 60950) - Product Safety BSMI notice HP ProLiant ML310 G3 Data Protection Storage Server...

  • Page 52: Japanese Notice

    Batteries, battery packs, and accumulators should not be disposed of together with the general household waste. To forward them to recycling or proper disposal, please use the public collection system or return them to HP, an authorized HP Partner, or their agents. Regulatory compliance and safety...

  • Page 53: Taiwan Battery Recycling Notice

    18 AWG, and the length of the cord must be between 1.8 m (6 ft) and 3.6 m (12 ft). If you have questions about the type of power cord to use, contact an HP authorized service provider. NOTE: Route power cords so that they will not be walked on and cannot be pinched by items placed upon or against them.

  • Page 54: Czechoslovakian Notice

    • Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet when standing on conductive floors or dissipating floor mats. • Use conductive field service tools. • Use a portable field service kit with a folding static-dissipating work mat. If you do not have any of the suggested equipment for proper grounding, have an authorized reseller install the part.

  • Page 55: English Notice

    Pour obtenir plus d’informations sur les centres de collecte et de recyclage des appareils mis au rebut, veuillez contacter les autorités HP ProLiant ML310 G3 Data Protection Storage Server...

  • Page 56: German Notice

    locales de votre région, les services de collecte des ordures ménagères ou le magasin dans lequel vous avez acheté ce produit. German notice Entsorgung von Altgeräten aus privaten Haushalten in der EU Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass das Produkt nicht über den normalen Hausmüll entsorgt werden darf.

  • Page 57: Latvian Notice

    Descarte de Lixo Elétrico na Comunidade Européia Este símbolo encontrado no produto ou na embalagem indica que o produto não deve ser descartado no lixo doméstico comum. É responsabilidade do cliente descartar o material usado (lixo HP ProLiant ML310 G3 Data Protection Storage Server...

  • Page 58: Slovakian Notice

    Para obter mais informações sobre locais que reciclam esse tipo de material, entre em contato com o escritório da HP em sua cidade, com o serviço de coleta de lixo ou com a loja em que o produto foi adquirido.
  • Page 59 återvinns på ett sätt som skyddar människors hälsa och miljön. Kontakta ditt lokala kommunkontor, din närmsta återvinningsstation för hushållsavfall eller affären där du köpte produkten för att få mer information om var du kan lämna ditt avfall för återvinning. HP ProLiant ML310 G3 Data Protection Storage Server...
  • Page 60 Regulatory compliance and safety...

  • Page 61: Index

    13 defined, 13 grounding methods, 53 expanding, 16 licensing, 16 registering, 16 scenarios, 14 hardware support services, 11 Data Protector Express, 16 help, obtaining, 10, 11 data striping, 33 hotfixes, SIS, 15 HP ProLiant ML310 G3 Data Protection Storage Server...
  • Page 62 39 specifications, 19 System Management Homepage, 27 mount points, creating, 35 technical support network adapter teaming, 41 HP, 11 Network Configuration Utility, 41 Telnet Server, 26 teaming, 41 enabling, 26 sessions information, 27 text symbols, 10...
  • Page 63 Volume Shadow Copy Service (VSS), 13, 36 documentation, 11 volumes, planning, 35 storage, 11 HP Subscriber’s choice, 11 Microsoft, 9 product manuals, 9 server troubleshooting guide, 37 WEEE directive, 54 Windows update, 29 HP ProLiant ML310 G3 Data Protection Storage Server...
