Tvone 1T-MV-8474 User Manual

4k multiviewer
Hide thumbs Also See for 1T-MV-8474:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
4K Multiviewer
1T-MV-8474
User Guide V1.6
Firmware versions 3.0.0.C CL885 and above
MNL-1T-MV-8474 V1.6
July 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1T-MV-8474 and is the answer not in the manual?

Questions and answers

Related Manuals for Tvone 1T-MV-8474

Summary of Contents for Tvone 1T-MV-8474

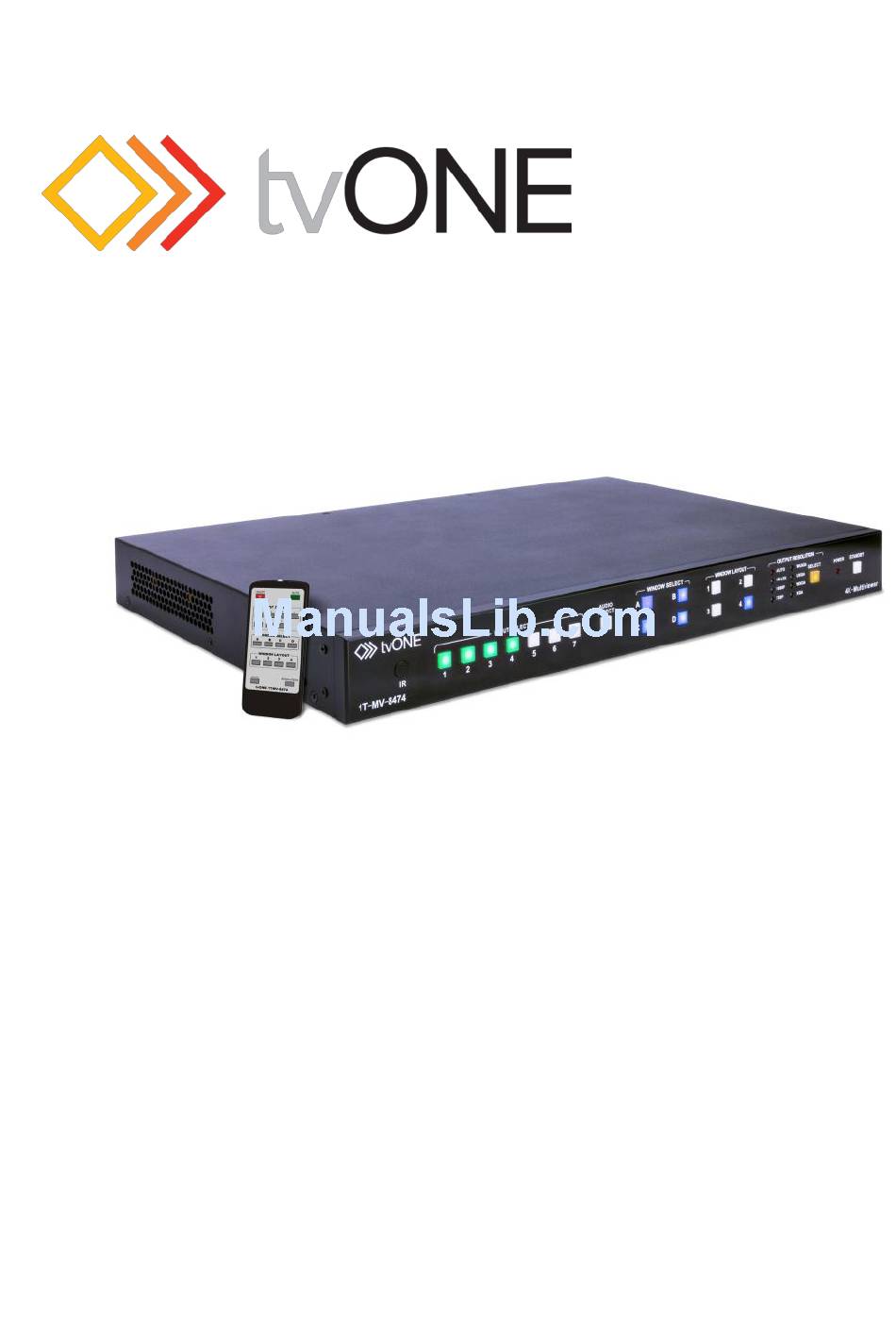

  • Page 1 4K Multiviewer 1T-MV-8474 User Guide V1.6 Firmware versions 3.0.0.C CL885 and above MNL-1T-MV-8474 V1.6 July 2016...

  • Page 3: Table Of Contents

    In this guide Features ....................... 1 In the box ....................1 Safety precautions ................... 2 Quick start ....................3 Front panel ....................5 Rear panel ....................6 IR remote control ..................7 External controls ..................8 The web interface ................8 IP connections .................
  • Page 4 Restoring the default factory settings ........26 Changing the baud rate ............. 27 Switching the analog input between RGB and YPbPr..27 Turning auto-adjust on and off for VGA sources ....28 Firmware..................28 Copying, uploading and downloading EDID ......29 Specifications ..................

  • Page 5: Features

    Thanks for buying this 1T-MV-8474 4K Multiviewer from tvONE. The 4K Multiviewer allows you to display up to four video sources on the same screen, in crisp 4K detail. You can display both digital and analog video from a wide range of devices, and play everything from mono to 7.1 surround-sound audio.

  • Page 6: Safety Precautions

    Use only the supplied AC power cord. Do not use the power cord if it is damaged.  Do not block any vents or openings in the unit housing that provide ventilation. Allow sufficient space for air to circulate around the unit. tvONE...

  • Page 7: Quick Start

    2. Connect the AC power cord, and then connect the plug to an electrical outlet. Switch on. 3. Switch on. 4. Press a button to choose a window layout. MNL-1T-MV-8474 V1.6...
  • Page 8 Press a button in the WINDOW SELECT area, then press a button in the INPUT SELECT area. 6. Choose where you want your sound to come from. Press the AUDIO button, then press a button in the INPUT SELECT area. tvONE...

  • Page 9: Front Panel

    OUTPUT Press the SELECT button to change the resolution. RESOLUTION A light indicates the current output. POWER Indicates when the unit has power. STANDBY Switches between standby and working mode. The button lights up during standby. MNL-1T-MV-8474 V1.6...

  • Page 10: Rear Panel

    Connect a hi-definition source to this input using DB-15 cable or YPbPr-VGA cable. USB port for firmware updates. Connect to a LAN source with an Ethernet cable to use IP control. RS232 Connect an RS-232 device to this port with an RS-232 cable. tvONE...

  • Page 11: Ir Remote Control

    Press an input select button to choose a new audio input. MUTE Turn the sound on and off. RESOLUTION Press to change the resolution. A light in the OUTPUT RESOLUTION area on the front panel of the 4K Multiviewer indicates which resolution is currently selected. MNL-1T-MV-8474 V1.6...

  • Page 12: External Controls

    For instructions on resetting the 4K Multiviewer to its factory default settings, see page 26. IP connections The 4K Multiviewer supports Telnet, UDP and TCP/IP. Network settings On the Network tab of the web interface, you can adjust your network settings. tvONE...

  • Page 13: Rs-232

    Choose an option from the Socket drop-down list and select Submit.  Enter a port number and select Submit. The default port number is 23. RS-232 The RS-232 port Connect the RS-232 to RXD, TXD and GND only. MNL-1T-MV-8474 V1.6...

  • Page 14: Audio Channels

    Parity None Stop bits Hardware flow control None For more information about serial command lines, see the separate API document for the 1T-MV-8474 4K Multiviewer. You can download the API document from the Support Information tab at http://www.tvone.com/4k-multiviewer. Audio channels There are three methods of audio output: ...

  • Page 15: On-Screen Display

     To turn information about audio on or off, choose an option from the Audio OSD drop-down list.  To turn information about video on or off, choose an option from the Video OSD drop-down list. MNL-1T-MV-8474 V1.6...

  • Page 16: Installing The 4K Multiviewer

    Connect an RS-232 serial controller to the RS-232 port.  Connect a Local Area Network (LAN) to the LAN port. 6. Connect the AC power cord to the 4K Multiviewer, and connect the plug to an available electrical outlet. Wiring Diagram tvONE...

  • Page 17: Operation

    The 4K Multiviewer offers up to 16 window layouts. On the front panel or the remote control, you can choose from four predefined layouts. You can choose any of the 16 layouts and configure which four layouts are available on the front panel and remote control using the web interface. MNL-1T-MV-8474 V1.6...
  • Page 18 In the WINDOW SELECT area of the front panel, buttons light up to show which windows belong to your chosen window layout. In the INPUT SELECT area of the front panel, buttons light up to indicate the currently selected sources. tvONE...
  • Page 19 LAYOUT area on the front panel and remote control. Choose your defaults on the General tab. For each button, choose a window layout from the drop-down list. 2. Select Submit. Tip: Make a note of which window layout is associated with which button. MNL-1T-MV-8474 V1.6...

  • Page 20: Configuring Your Display

    2. To select which source you want to appear in which window, press a button in the WINDOW SELECT area, then press a button in the INPUT SELECT area. Repeat this step for each window of your chosen display. tvONE...

  • Page 21: Example Display Configurations

    Example display configurations Key to example configurations MNL-1T-MV-8474 V1.6...
  • Page 22  A, 5  B, 6 Example of a triple window display This display shows three input sources in windows A, B and C. To configure the example below, press:  A, 1  B, 2  C, 3 tvONE...
  • Page 23 Configuring window layouts in the web interface You can configure any of the window layouts on the General tab of the web interface. For each window in your chosen window layout, choose an input from the drop-down list. 2. Select Submit. MNL-1T-MV-8474 V1.6...
  • Page 24 2. To turn the window back on, press and hold the same button for five seconds. Changing the aspect ratio of a window You can change the aspect ratio of any window on the General tab of the web interface. For each window, choose an aspect ratio from the drop-down list. tvONE...

  • Page 25: Changing The Resolution Of Your Output

    OUTPUT RESOLUTION area of the front panel repeatedly until the LED for the resolution you want is lit. You can also change the output resolution on the General tab of the web interface. Read about which resolutions the 4K Multiviewer supports on page 35. MNL-1T-MV-8474 V1.6...

  • Page 26: Audio Settings

     To only use an analog source as a backup for an input, select Auto from the drop-down list. Note: VGA/RGB/YPbPr does not include an audio signal. If you use the VGA input, connect an analog audio input. tvONE...
  • Page 27 After five seconds the audio changes to the new source. 3. To change the audio source using the web interface, on the General tab, choose an option from the Audio Input drop-down list and select Submit. MNL-1T-MV-8474 V1.6...
  • Page 28 Setting Delay in milliseconds  To delay audio, enter a number from 1-10 in the Audio Delay field and select Submit.  To stop delaying audio, enter 0 in the in the Audio Delay field and select Submit. tvONE...

  • Page 29: Locking The Front Panel

    To deactivate the complete lock in the web interface, select the Unlock option.  To activate or deactivate the complete lock on the front panel, in the WINDOW SELECT area, press and hold buttons A and D until the standby button flashes once. MNL-1T-MV-8474 V1.6...

  • Page 30: Advanced Operation

    The 4K Multiviewer reboots and the OSD shows the window status, IP address and port number. When you restore the factory default settings, the IP address of the 4K Multiviewer is reset. Read about how to find the new IP address on page 8. tvONE...

  • Page 31: Changing The Baud Rate

    You can switch the VGA input between RGB and YPbPr on the Advanced tab of the web interface. Select either RGB or YPbPr from the Analog setting drop-down list. 2. Select Submit. 3. Reboot the 4K Multiviewer. For instructions on rebooting the 4K Multiviewer, see page 13. MNL-1T-MV-8474 V1.6...

  • Page 32: Turning Auto-Adjust On And Off For Vga Sources

    Risk of damage to equipment: Do not switch off the 4K Multiviewer until the upgrade process is completed, or the firmware will be corrupted. Note: the USB port can only support up to 500 mA. Download the latest firmware from www.tvone.com/firmware- updates. Search for 1T-MV8474. 2. Copy the file called MERGE.bin...

  • Page 33: Copying, Uploading And Downloading Edid

    It may be necessary to update the web interface as part of the firmware upgrade process. Contact tvONE Technical Support for assistance. For contact details, see the back page of this guide. Copying, uploading and downloading EDID...
  • Page 34 Save Target as … to save an output, an input, or an EDID stored in a custom slot on the 4K Multiviewer.  Edit the EDID.  Upload the edited EDID to a new custom slot on the 4K Multiviewer. tvONE...

  • Page 35: Specifications

    EDID memory  Advanced EDID utilities Audio  20 Hz to 20 kHz bandwidth Audio sampling  48 kHz rate Channels  Format  LPCM Audio levels  Stereo audio: unity / nominal  Stereo audio: 0.5-1.0 V MNL-1T-MV-8474 V1.6...
  • Page 36 Analog Audio  7 stereo 3.5mm female connectors Power  1 IEC C14 power connector Output connectors HDMI/DVI  1 HDMI 19-pin female connector Digital audio  1 TOSLINK Optical female connector Analog audio  4 3.5mm female connectors tvONE...
  • Page 37 3.3 kg (7.3 lb) Power AC power  100-240 V AC / 50-60 Hz Power  15 W maximum consumption Materials Front panel  10mm aluminum alloy with black finish Chassis  1mm pressed steel with matte black finish MNL-1T-MV-8474 V1.6...
  • Page 38  −20 °C to 60 °C (−4 °F to 14 °F) temperature Operating  20% to 90% non-condensing humidity Product item  1T-MV-8474 4K Multiviewer number Accessories Included  19 Button remote control  AC power cable  User Guide ...
  • Page 39 1600 x 1200 60/65/70/7 1680 x 1050 1792 x 1344 1856 x 1392 1920 x 1080 25/30 50/60 1920 x 1080 24/25/30/ 24/25/30/ 50/60 1920 x 1200 1920 x 1440 2048 x 1152 3840 x 2160 24/30 30/60 MNL-1T-MV-8474 V1.6...
  • Page 40 1920 x 1080 @ 60 Hz 720P 1280 x 720 @ 60 Hz WUXGA 1900 x 1200 @ 60 Hz UXGA 1600 x 1200 @ 60 Hz WXGA 1280 x 800 @ 60 Hz 1024 x 768 @ 60 Hz tvONE...

  • Page 41: Limited Warranty

    Should a product, in tvONE’s opinion, prove defective within this warranty period, tvONE, at its discretion, will repair or replace this product without charge. Any defective parts replaced become the property of tvONE. This...

  • Page 42: Regulatory Compliance

    The liability of tvONE with respect to any defective products will be limited to the repair or replacement of such products. In no event shall tvONE be responsible or liable for any damage arising from the use of such defective products whether such damages be direct, indirect, consequential or otherwise, and whether such damages are incurred by the reseller, end- user or any third party.

  • Page 43: Liability Statement

    desirable.

  • Page 44: Contact Us

    Support: tech.europe@tvone.com Copyright 2016 tvONE. All rights reserved. Information in this document is subject to change without notice. The software described in this document is furnished under a license agreement or nondisclosure agreement. The software may be used or copied only in accordance with the terms of those agreements.
