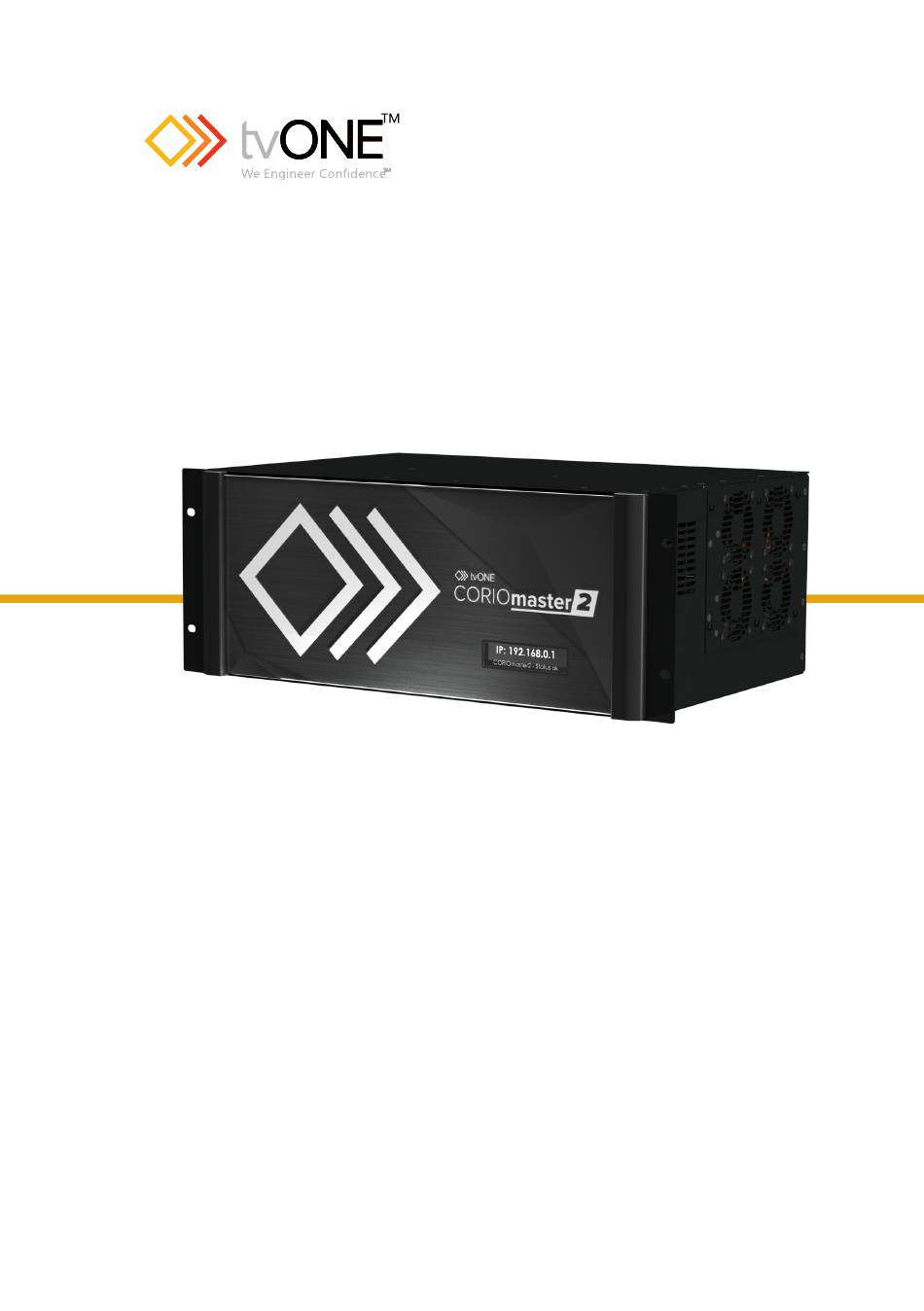

- Page 1 CM2-547 CORIOmaster2™ CORIOgrapher™ V3.0 and above Quick Start Guide V1.0 Firmware version M500 and above QSG-CM2-547-V1.0 Jun 2020...
-
Page 2: Table Of Contents
In this guide About CORIOgrapher™ About your CORIOmaster2™ Hardware recommendations Quick start Set up and test audio Contact us Video wall worksheet Get more help You can read more online. To open the online help, select in CORIOgrapher, or visit help.tvone.com/products/cm2-series/coriomaster2. -
Page 3: About Coriographer
About CORIOgrapher™ CORIOgrapher is the software that controls your CORIOmaster2™. You can create installations over three canvases, with multiple screens and windows, and add transitions and effects for a state-of-the-art dynamic video installation. CORIOgrapher system requirements CORIOgrapher: Works with PCs running Windows® 7 and 10 Does not work with touch-screen-only devices, including tablets or phones Works with Microsoft Surface Pros and similar touch screen devices... - Page 4 Dashboard CORIOview and CORIOmaster micro only. Standby puts your device into standby mode. Standby Help opens tvONE help for your product. Help Settings is where you configure your system, network, modules, and more. Settings...
-
Page 5: About Your Coriomaster2

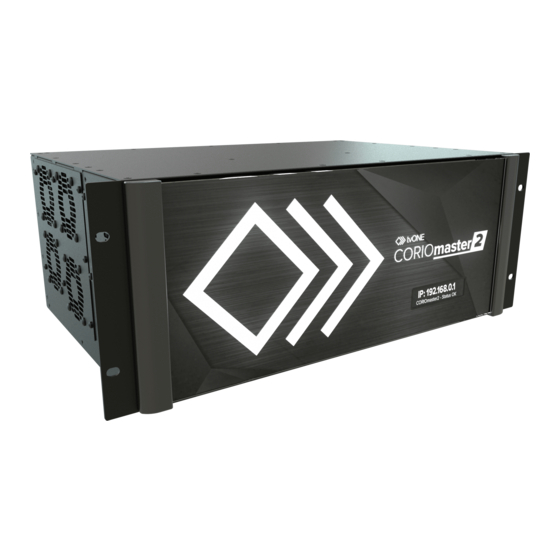

About your CORIOmaster2™ Thanks for buying this CORIOmaster2, our latest all-in-one, 12 Gigapixel, multi-window video processor. CORIOmaster2 connects to a wide range of sources and displays, and works with CORIOgrapher™ software to allow you to build dynamic video installations with an easy-to-use visual interface. - Page 6 Connect to your network with Ethernet Optional: connect to serial controller CPU module with RS-232 Optional: connect directly to a PC with Ethernet or RS-232 Power supply unit (PSU) Connect to electrical outlet Optional second PSU, Optional: connect to electrical outlet sold separately tvONE...
-
Page 7: Hardware Recommendations
Hardware recommendations At tvONE, we design our products to the highest quality standards. To get the best results from our products, we recommend that you use the best quality connectors, cables, and adapters. Consider the points below when you choose accessories and position equipment. -
Page 8: Quick Start
CORIOgrapher, select CORIOgrapher and search, or ask a question. Or visit help.tvone.com/products/cm2-series/coriomaster2. 1. Plan your installation. What do you want your installation to look like? What equipment do you need to achieve this? At the back of this guide is a plan that you can fill out. - Page 9 4. Open CORIOgrapher and select your CORIOmaster2. Enter your username and password to log in, and select Read to load your configuration. The first time you log in, make sure the Secure option is cleared. The default username is admin, and the default password is adminpw.
- Page 10 The media player of the Streaming media and 4K playback input module is not available when you work in an offline configuration. 5. Optional: enable secure mode. a. Select Settings > Networking. b. Select Secure connection. c. Select Save > Save. CORIOmaster2 restarts. d. Select Secure and log in. tvONE...
- Page 11 6. Select the Frame Rate for the canvas and Apply. You will see a warning for each display in the Editor if the display resolution does not match the canvas frame rate. Video tearing Using a mixture of frame rates and/or resolutions can cause video tearing. For best results, make sure all your displays use the same frame rate.
- Page 12 For best results, choose a source connected to hardware that is easy to play, for example, a DVD player. Dedicated windows can only be used once, and have a fixed source. Free windows can have any source and you can select the quality. tvONE...
- Page 13 c. Scale the window to cover all your displays. d. Select Take to send the video wall to your CORIOmaster2. 10. Check that your installation looks correct. Make sure that the source for the window is playing, and check that the picture is assembled correctly.
- Page 14 To test any sources from Streaming media and 4K playback input modules, you need to add something to your play queues first. Read more in the Quick Start Guide that came with your module, or in tvONE Help. Read troubleshooting advice in tvONE help. In CORIOgrapher, select Help and search, or ask a question.
-
Page 15: Set Up And Test Audio
Set up and test audio Your CORIOmaster2™ supports embedded audio in uncompressed PCM format. Testing embedded audio inputs 1. From Editor, select Live changes. 2. Select an audio source from the list. You hear the audio source from all the displays and output devices associated with this canvas. - Page 16 Windows, mute all the displays, except the one you want to test. Select to mute a display, and to unmute a display. 3. Select an audio source from the list. You hear the audio source from the display that isn't muted. tvONE...
- Page 17 If your source is a stream with low latency, CORIOmaster2 mutes the audio. The Streaming media and 4K playback input module only supports the following embedded audio formats: Read more about audio in tvONE Help. In CORIOgrapher, select Help search, or ask a question. Or visit help.tvone.com/products/cm2- series/coriomaster2.
-
Page 18: Contact Us
Copyright © 2020 tvONE™. All rights reserved. -
Page 19: Video Wall Worksheet
Video wall worksheet What is my video wall layout? In the space above, draw a picture showing what kind of wall you have in mind. Show both the displays you have in mind as well as the video windows that you would like to show. What am I trying to accomplish with this video wall? How many displays or outputs are needed? How many monitors are needed? - Page 20 How many LED walls are needed? Is edge blending required? What is the blending overlap size? What are the sizes of the displays? What are the bezel sizes for the monitors? What are the native resolutions of the displays? tvONE...
- Page 21 How many source signals or inputs are required? What are the source signal types? What are the source resolutions? What are the frame rates of the inputs? Will the signal feeds be available at all times that the video wall is operating? Is there any switching or processing before the signal enters the video wall processor? How many windows will be required for the video wall? Include all windows...
- Page 22 Are presets (video switching, source transitions, window movement) required for the video wall? What type of control system will operate the wall, if any? tvONE...
- Page 23 In the spaces below, draw your preset destinations with window and transition attributes noted. QSG-CM2-547-V1.0...
- Page 24 tvONE...
