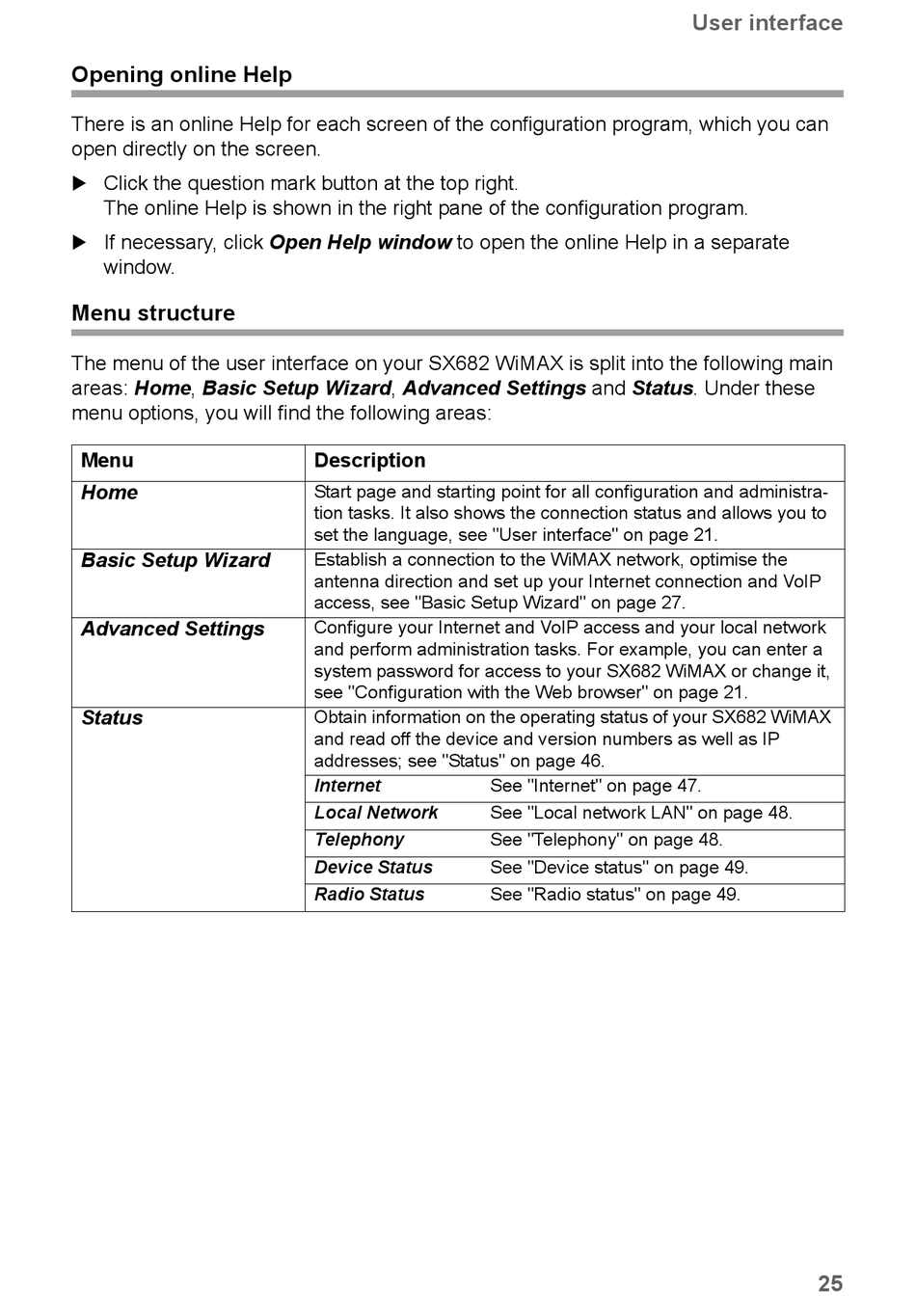

Opening online Help

There is an online Help for each screen of the configuration program, which you can
open directly on the screen.
Click the question mark button at the top right.

The online Help is shown in the right pane of the configuration program.
If necessary, click Open Help window to open the online Help in a separate

window.

Menu structure

The menu of the user interface on your SX682 WiMAX is split into the following main
areas: Home, Basic Setup Wizard, Advanced Settings and Status. Under these
menu options, you will find the following areas:
Menu
Home
Basic Setup Wizard
Advanced Settings
Status
Description
Start page and starting point for all configuration and administra-
tion tasks. It also shows the connection status and allows you to
set the language, see "User interface" on page 21.
Establish a connection to the WiMAX network, optimise the
antenna direction and set up your Internet connection and VoIP
access, see "Basic Setup Wizard" on page 27.
Configure your Internet and VoIP access and your local network
and perform administration tasks. For example, you can enter a
system password for access to your SX682 WiMAX or change it,
see "Configuration with the Web browser" on page 21.
Obtain information on the operating status of your SX682 WiMAX
and read off the device and version numbers as well as IP
addresses; see "Status" on page 46.
Internet
Local Network
Telephony
Device Status
Radio Status
See "Internet" on page 47.
See "Local network LAN" on page 48.
See "Telephony" on page 48.
See "Device status" on page 49.
See "Radio status" on page 49.
User interface
25
