Override Procedures - Equalizer Systems AUTO-LEVEL Operation And Warranty Manual

The leveling system is equipped with an override option to allow for the retraction of the jacks if the electrical system has
faulted. Generally if the fault is week or dead batteries it is best to charge the batteries and operate the system normally.
The procedure requires a 1/8 inch Allen wrench and an electric drill (recommended 2000 rpm) with a 6mm hex driver.
1. Locate and access the pump/manifold assembly. Generally it will be located behind a plastic shield in one of the
forward storage compartments.
2. On the side of the manifold there are 4 individual cartridge valves (one for each jack leg). There is an Allen (1/8
inch) screw recessed in the center of the end of the valve stem. Using a 1/8 inch Allen wrench turn the screw(s) in
Clockwise approximately 2 turns until they stop. All 4 may be selected or just the ones that are for the jack(s) that
are needing to have the override performed on. (See Drawing)
Note: some units may have a single valve on the opposite side (retract) of the manifold, if so it must have the
screw turned in as above.
3. Locate the sticker at the end of the motor remove it. This will expose the motor override hex. Using a drill with a
6mm hex drive bit run the drill in the Counter-Clockwise direction to retract the jack(s) until they are fully
retracted. Re-install the sticker when completed. (See Drawing)
Hint: If the pump motor will run from the Keypad using the drill may not be needed. Simply press the all
retract after step 2.
4. When the jack(s) are fully retracted return all of the override screws (item 2 above) to their original out counter-
clockwise position.
Important failure to return the valves to the out (counter-clockwise) position may result in the jacks
"Drifting" from the stowed position.

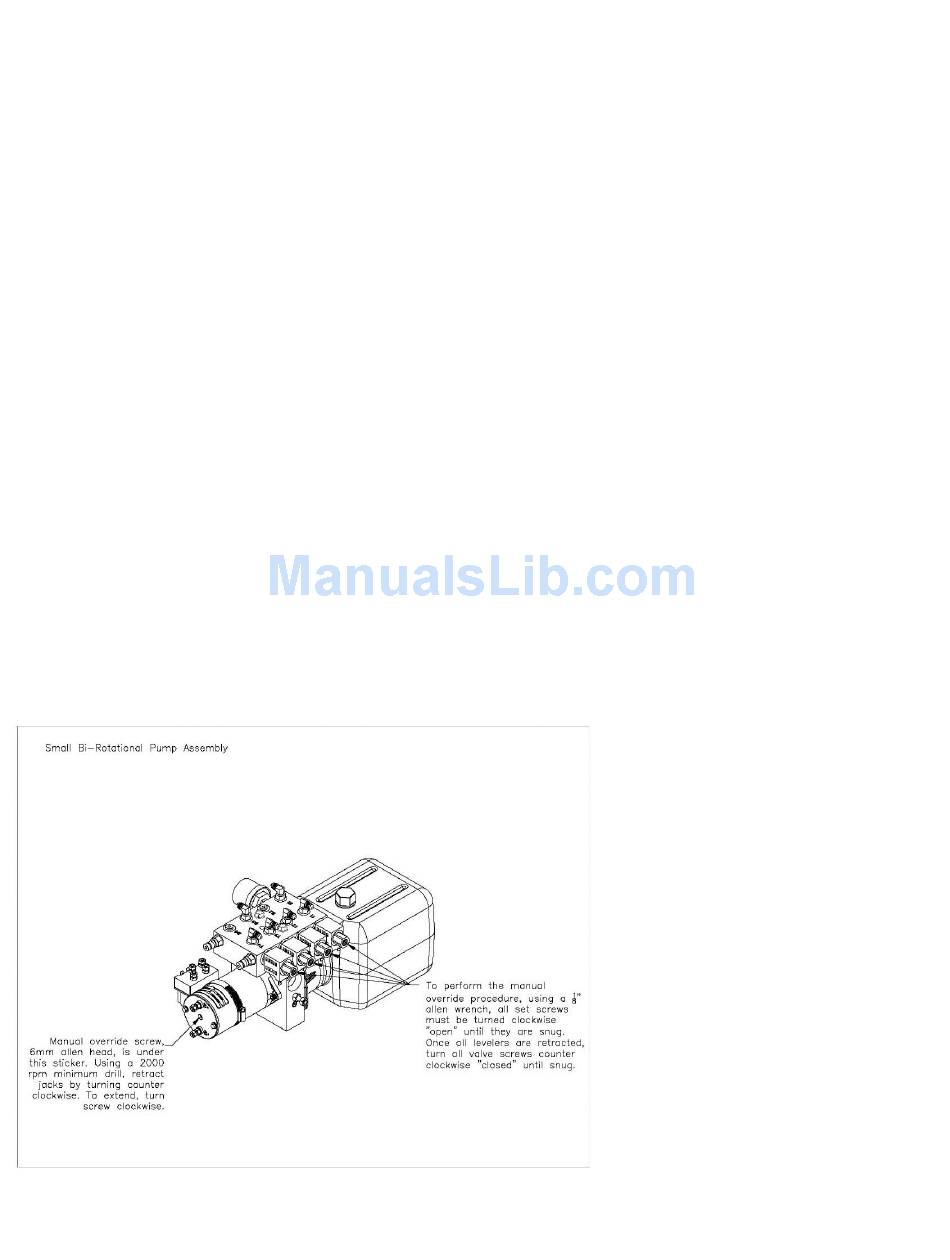

Override procedure
7.
