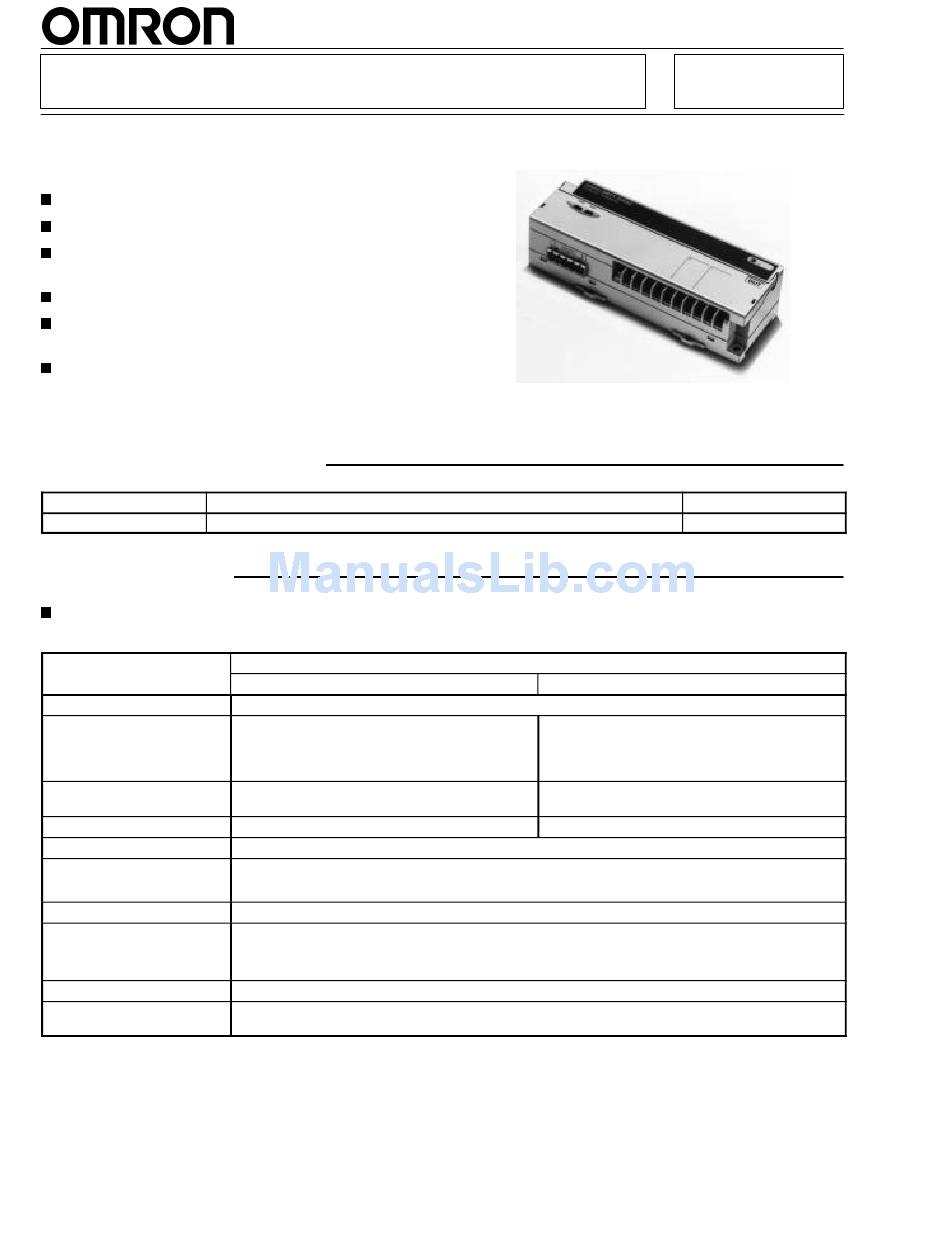

Omron DRT1-DA02 Manual

Analog Output Module
I/O Interface Converts Binary Data into
Analog Output Data
Two outputs available.
High resolution of 1/6000.
Conversion is possible within a range of --5% to
150% full scale.
High conversion speed of 4 ms/two points.
Handles a wide range of outputs including 1 to 5 V,
0 to 10 V, --10 to 10 V, 4 to 20 mA, and 0 to 20 mA.
Bears the CE marking.

Ordering Information

Classification
Analog output Module 2 outputs (Occupies 2 output words of the Master.)

Specifications

Ratings
Output
Item
Output points
Output type
Allowable external output
load resistance
External output impedance
Resolution
Overall accuracy
Conversion time
Converted output data
Insulation resistance
Insulation method
114
I/O points
Voltage output
2 points
1 to 5 V
0 to 10 V
--10 to 10 V
1 KW min.
0.5 W max.
1/6000 full scale
25°C : ±0.4% full scale
0°C to 55°C: ±0.8% full scale
4 ms/2 points
Binary data
--10- to 10-V range: 8BB8 to 0BB8 full scale
Other signal ranges:0000 to 1770 full scale
20 MW min. at 250 VDC (between insulated circuits)
Photocoupler insulation between outputs and communications lines (There is no insulation between
output signals.)
DRT1-DA02
DRT1-DA02
Type
Current output
0 to 20 mA
4 to 20 mA
600 W max.
---
Model
