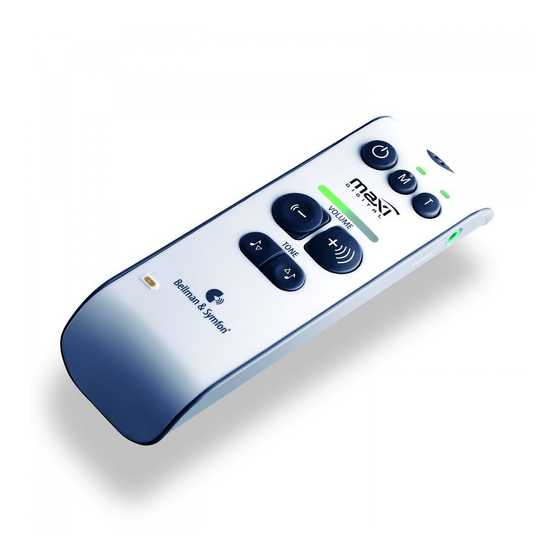

Bellman & Symfon Audio Maxi BE2020 Manual

Digital communication aid
Hide thumbs Also See for Audio Maxi BE2020:
1
2
3
4
5
6
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
Pro bezpečnost vašich
dětí
Tento výrobek může obsahovat
A termék kisméretű alkatrészeket
malé části. Udržujte obal a malé
tartalmazhat. A csomagolást és a kis
části mimo dosah dětí.
alkatrészeket gyermekek elől elzárva tartsa.
Per la sicurezza dei bambini:
Zum Schutz Ihrer Kinder.
Bitte beachten Sie, dass dieses Produkt
si ricorda che il prodotto può contenere parti
di piccole dimensioni. Tenere la confezione
Kleinteile enthalten kann. Stellen Sie sicher,
e le parti di piccole dimensioni lontano dalla
dass Verpackung und Kleinteile nicht in
portata dei bambini.
Reichweite von Kindern geraten.
Voor de veiligheid van uw
Af hensyn til dine børns sikkerhed
kinderen.
Vær opmærksom på, at dette produkt kan
Hou er rekening mee dat dit product kleine
indeholde små dele. Sørg for, at både pakning
onderdelen kan bevatten. Zorg ervoor dat de
og små dele opbevares utilgængeligt for børn.
verpakking en de kleine onderdelen buiten het
bereik van uw kind worden gehouden.
Para la seguridad de sus hijos
Tenga en cuenta que este producto puede
For dine barns sikkerhet
incluir piezas pequeñas. Asegúrese de
Vær oppmerksom på at dette produktet kan
mantener el embalaje y las piezas pequeñas
inneholde små deler. Påse at innpakningen og
fuera del alcance de los niños.
små deler holdes utenfor ditt barns rekkevidde.
Lastesi turvallisuuden vuoksi
Bezpieczeństwo dzieci
Huomaa, että tämä tuote voi sisältää pieniä
osia. Varmista, että pakkaus ja pienet osat
Pamiętaj, że ten produkt może zawierać małe
pidetään poissa lapsesi ulottuvilta.
elementy. Przechowuj opakowanie i małe
elementy poza zasięgiem dziecka.
Pour la sécurité de vos enfants
Para a segurança das crianças
Veuillez ne pas oublier que ce produit peut
Tenha em atenção que este produto pode
comprendre des petites pièces. Assurez-vous
conter peças de pequenas dimensões.
que le paquet et les petites pièces sont gardés
Mantenha a embalagem e as peças pequenas
hors de portée de votre enfant.
fora do alcançe das crianças.
For the safety of your children
För barnens säkerhet
Please be aware that this product may include
Observera att den här produkten kan innehålla
small parts. Ensure that the package and small
smådelar. Se till att förpackningen och
parts are kept out of reach from your child.
smådelarna förvaras utom räckhåll för barn.
Για την ασφάλεια των παιδιών σας
Έχετε υπόψη σας ότι το προϊόν αυτό μπορεί
να περιέχει μικρά εξαρτήματα. Βεβαιωθείτε
ότι η συσκευασία και τα μικρά εξαρτήματα
φυλάσσονται σε μέρος που δεν έχουν
πρόσβαση τα παιδιά σας.

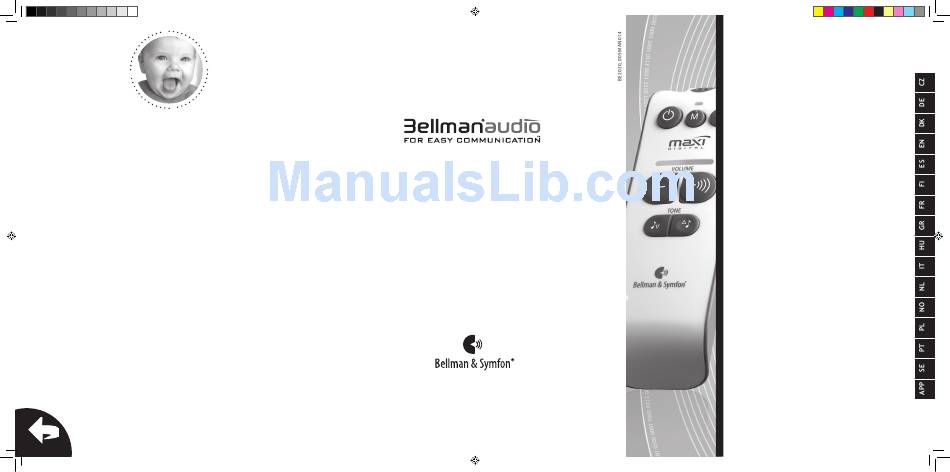

BE2020_005MAN014_front_fold.indd 1-3
A gyermekek biztonsága
érdekében
Bellman & Symfon AB
Södra Långebergsgatan 30
SE-421 32 Västra Frölunda Sweden
Tel. +46 31 68 28 20 Fax. +46 31 68 28 90
info@bellman.com www.bellman.com
Bellman
Audio Maxi
Digital communication aid
MODEL: BE2020
2009-09-03 16:56:57

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Audio Maxi BE2020 and is the answer not in the manual?

Questions and answers

Related Manuals for Bellman & Symfon Audio Maxi BE2020

Summary of Contents for Bellman & Symfon Audio Maxi BE2020

  • Page 1 Bellman Audio Maxi Pro bezpečnost vašich A gyermekek biztonsága Digital communication aid dětí érdekében Tento výrobek může obsahovat A termék kisméretű alkatrészeket MODEL: BE2020 malé části. Udržujte obal a malé tartalmazhat. A csomagolást és a kis části mimo dosah dětí. alkatrészeket gyermekek elől elzárva tartsa.
  • Page 2 BE2020_005MAN014_front_fold.indd 4-6 2009-09-03 16:56:59...

  • Page 3: Getting Started

    Bellman Audio Maxi Digital Communication Aid, BE2020 ® Thank you for choosing products from Bellman & Symfon. Bellman Audio is an assistive listening system. The system consists of a number of units which facilitate listening under different circumstances. Bellman Audio products make everyday life easier for many people and give them the freedom to freely pursue their interests.
  • Page 4 signal source, because this can cause powerful inductive feedback. Feedback together with a high sound level can cause discomfort or, in serious cases, endanger your hearing. Warning! The Bellman Audio Maxi digital communication aid uses AA alkaline type batteries. ® Do not expose batteries to fire or direct sunlight. Function The BE2020 Bellman Audio Maxi Digital Communication Aid is a digital amplifier which has ® been specifically developed to provide an exceptional sound experience even in demanding situ- ations. Maxi works extremely well for speech and music with the built-in microphone, with an external microphone (accessory) or with other external sound sources. Built-in microphone The built-in microphone (2) is located under the rubber cap on the top of the front panel. The microphone is an omnidirectional one. Telecoil The built-in telecoil is angled at 45 degrees in order to catch inductive signals from an inductive loop in both the horizontal position (in the hand or on a table) and vertical position (on a clip or neck strap). The T position can be used in premises where an inductive loop (or hearing loop) has been fitted. Look for the inductive loop symbol or ask staff whether there is an inductive loop if you are unsure. Selecting the signal source It is easy to select the sound source. • The user can manually choose between the internal microphone (M position) or built-in telecoil (T position) by pressing the buttons a (6) and d (7) on the front. When switching between these, the volume control will be set to a low level to avoid unpleasant sound levels. • If something is connected to the external sound source input, Maxi automatically selects this. When you remove it, Maxi is automatically connected to the internal microphone (M position). External sound source If the user connects an audio cable (accessory BE9126) between the red 2.5 mm tele jack and a sound source (SCART connector, hi-fi equipment, MP3 player etc.), this sound source is selected instead. The input sensitivity is automatically adjusted to adjust the signal strength to...

  • Page 5: Volume Control

    When you want to return to listening to the signal source connected to the External sound source input (1), release the a button (6). The internal microphone is then disconnected and the external sound source returns to normal volume again. Clip Remove the clip by using Place the clip against the battery cover and press firmly so that it locks on. the small round handles and pressing out from the sides. Indicators and settings Volume and Tone LED Indicator The Volume and Tone LED Indicator (8) is used as an indicator for the volume and tone con- trols.
  • Page 6 Tone control BE2020 has a digital tone control fg (10), which means that you can increase or reduce the treble with the pushbuttons fg (10). Each press results in an increase or reduction in treble by one increment. If you hold one of the tone buttons down for more than 1 second, the treble will increase or reduce by one increment per second as long as the button is held down or until the minimum or maximum position is reached. By pressing the g button (10), the treble is increased by one increment at a time until maxi- mum treble is reached. At maximum treble, the LED at the far right of the Volume and Tone LED Indicator (8) is illuminated. By pressing the f button (10), the treble is reduced by one increment at a time until minimum treble is reached. At minimum treble, the LED at the far left of the Volume and Tone LED Indicator (8) is illuminated. When the centre LED of the Volume and Tone LED Indicator (8) is illuminated, treble is deac- tivated. Troubleshooting in brief Symptom Solution Nothing happens when you try to start Maxi • Change the batteries. Only use AA alka- using the On/Off button. line type batteries. No sound can be heard in the headphones • Check that the correct signal source has when Maxi is switched on. been selected, e.g. internal microphone (M position). For further information about the product in English, refer to the Appendix. External sound source input 2.5 mm tele 10. Tone control fg jack 11. Low battery LED Internal microphone 12. Headphone output 3.5 mm tele jack Microphone LED 13. Neck strap attachment...
