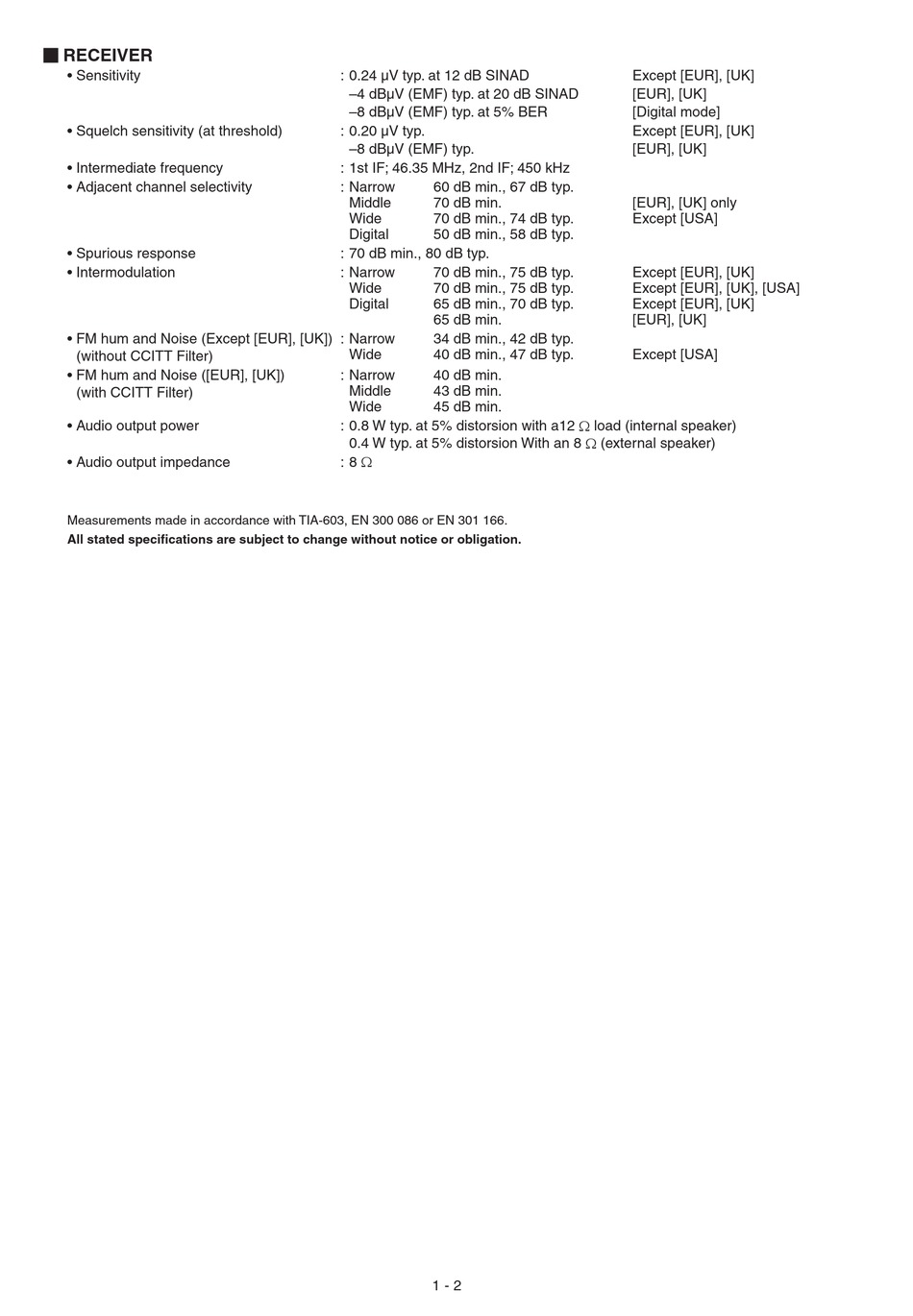

Icom IC-F4101D Service Manual page 5

M
RECEIVER
• Sensitivity
• Squelch sensitivity (at threshold)
• Intermediate frequency
• Adjacent channel selectivity
• Spurious response
• Intermodulation
• FM hum and Noise (Except [EUR], [UK])
(without CCITT Filter)
• FM hum and Noise ([EUR], [UK])
(with CCITT Filter)
• Audio output power
• Audio output impedance
Measurements made in accordance with TIA-603, EN 300 086 or EN 301 166.
All stated specifi cations are subject to change without notice or obligation.
: 0.24 µV typ. at 12 dB SINAD
–4 dBµV (EMF) typ. at 20 dB SINAD
–8 dBµV (EMF) typ. at 5% BER
: 0.20 µV typ.
–8 dBµV (EMF) typ.
: 1st IF; 46.35 MHz, 2nd IF; 450 kHz
: Narrow 60 dB min., 67 dB typ.
Middle 70 dB min.
Wide 70 dB min., 74 dB typ.
Digital 50 dB min., 58 dB typ.
: 70 dB min., 80 dB typ.
: Narrow 70 dB min., 75 dB typ.
Wide 70 dB min., 75 dB typ.
Digital 65 dB min., 70 dB typ.
65 dB min.
: Narrow 34 dB min., 42 dB typ.
Wide 40 dB min., 47 dB typ.
: Narrow 40 dB min.
Middle 43 dB min.
Wide 45 dB min.
: 0.8 W typ. at 5% distorsion with a12 Ω load (internal speaker)
0.4 W typ. at 5% distorsion With an 8 Ω (external speaker)
: 8 Ω
1 - 2
Except [EUR], [UK]
[EUR], [UK]
[Digital mode]
Except [EUR], [UK]
[EUR], [UK]
[EUR], [UK] only
Except [USA]
Except [EUR], [UK]
Except [EUR], [UK], [USA]
Except [EUR], [UK]
[EUR], [UK]
Except [USA]
