Icom IC-F4101D Service Manual page 4

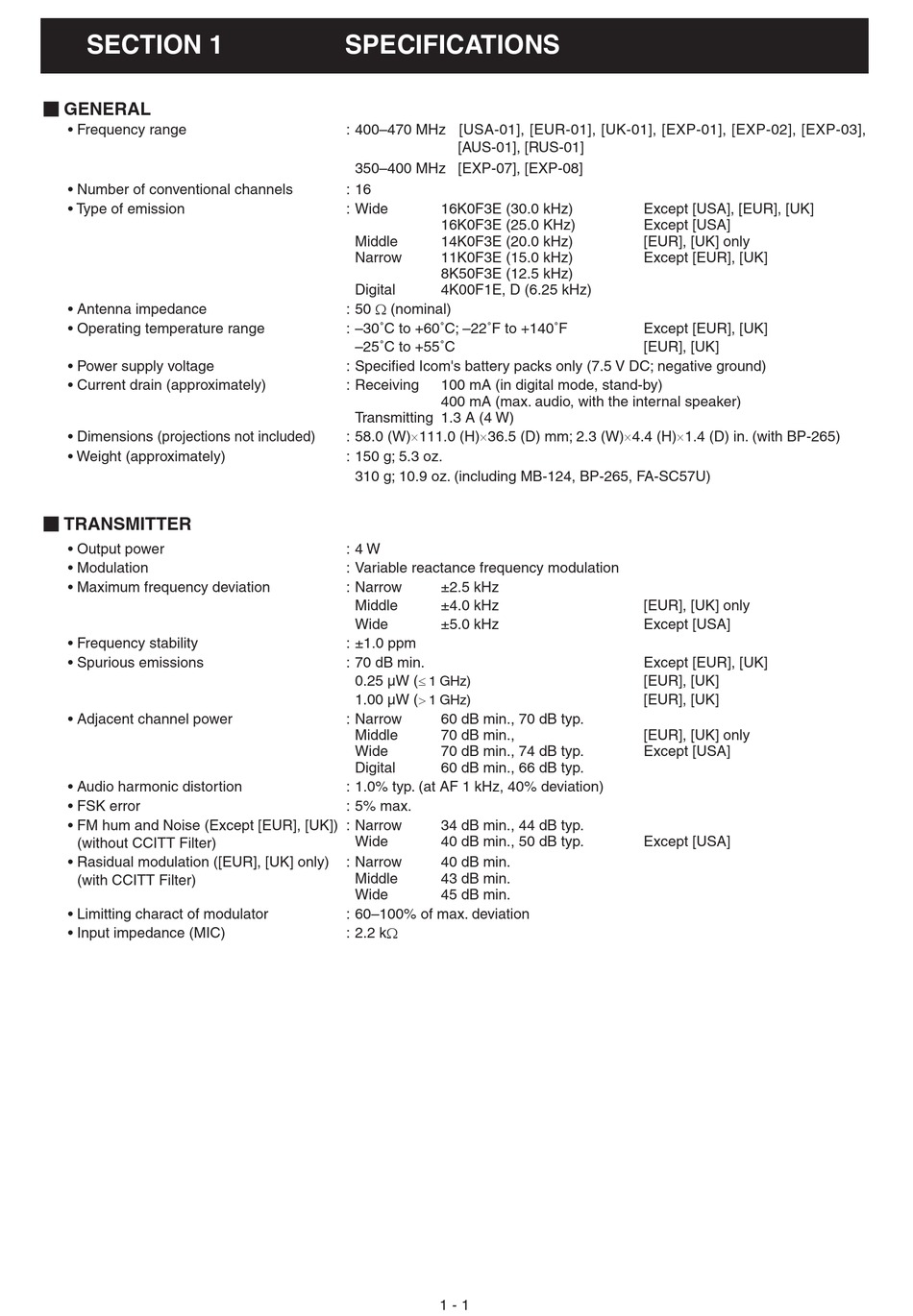

SECTION 1.
M
GENERAL
• Frequency range
• Number of conventional channels
• Type of emission
• Antenna impedance
• Operating temperature range
• Power supply voltage
• Current drain (approximately)
• Dimensions (projections not included)
• Weight (approximately)
M
TRANSMITTER
• Output power
• Modulation
• Maximum frequency deviation
• Frequency stability
• Spurious emissions
• Adjacent channel power
• Audio harmonic distortion
• FSK error
• FM hum and Noise (Except [EUR], [UK])
(without CCITT Filter)
• Rasidual modulation ([EUR], [UK] only)
(with CCITT Filter)
• Limitting charact of modulator
• Input impedance (MIC)
SPECIFICATIONS
: 400–470 MHz [USA-01], [EUR-01], [UK-01], [EXP-01], [EXP-02], [EXP-03],
[AUS-01], [RUS-01]
350–400 MHz [EXP-07], [EXP-08]
: 16
: Wide 16K0F3E (30.0 kHz)
16K0F3E (25.0 KHz)
Middle 14K0F3E (20.0 kHz)
Narrow 11K0F3E (15.0 kHz)
8K50F3E (12.5 kHz)
Digital 4K00F1E, D (6.25 kHz)
: 50 Ω (nominal)
: –30˚C to +60˚C; –22˚F to +140˚F
–25˚C to +55˚C
: Specifi ed Icom's battery packs only (7.5 V DC; negative ground)
: Receiving 100 mA (in digital mode, stand-by)
400 mA (max. audio, with the internal speaker)
Transmitting 1.3 A (4 W)
: 58.0 (W)×111.0 (H)×36.5 (D) mm; 2.3 (W)×4.4 (H)×1.4 (D) in. (with BP-265)
: 150 g; 5.3 oz.
310 g; 10.9 oz. (including MB-124, BP-265, FA-SC57U)
: 4 W
: Variable reactance frequency modulation
: Narrow ±2.5 kHz
Middle ±4.0 kHz
Wide ±5.0 kHz
: ±1.0 ppm
: 70 dB min.
≤ 1 GHz)
0.25 µW (
> 1 GHz)
1.00 µW (
: Narrow 60 dB min., 70 dB typ.
Middle 70 dB min.,
Wide 70 dB min., 74 dB typ.
Digital 60 dB min., 66 dB typ.
: 1.0% typ. (at AF 1 kHz, 40% deviation)
: 5% max.
: Narrow 34 dB min., 44 dB typ.
Wide 40 dB min., 50 dB typ.
: Narrow 40 dB min.
Middle 43 dB min.
Wide 45 dB min.
: 60–100% of max. deviation
: 2.2 kΩ
1 - 1
Except [USA], [EUR], [UK]
Except [USA]
[EUR], [UK] only
Except [EUR], [UK]
Except [EUR], [UK]
[EUR], [UK]
[EUR], [UK] only
Except [USA]
Except [EUR], [UK]
[EUR], [UK]
[EUR], [UK]
[EUR], [UK] only
Except [USA]
Except [USA]
