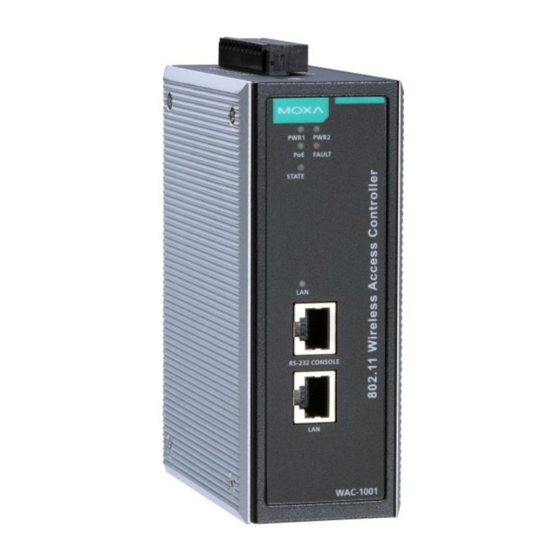

Moxa Technologies WAC-1001 User Manual
Hide thumbs
Also See for WAC-1001:
- Quick installation manual (12 pages) ,
- Quick installation manual (12 pages)
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies WAC-1001
Summary of Contents for Moxa Technologies WAC-1001
- Page 1 WAC-1001 User’s Manual Fourth Edition, August 2015 www.moxa.com/product © 2015 Moxa Inc. All rights reserved. www.ipc2u.ru www.moxa.pro...
-
Page 2: Technical Support Contact Information
WAC-1001 User’s Manual The software described in this manual is furnished under a license agreement and may be used only in accordance with the terms of that agreement. Copyright Notice © 2015 Moxa Inc., All rights reserved. Trademarks The MOXA logo is a registered trademark of Moxa Inc. -
Page 3: Table Of Contents
Table of Contents Introduction ............................1-1 Overview ............................1-2 Package Checklist ..........................1-2 Product Features ..........................1-2 Product Specifications (WAC-1001 Rev 2.xx.x) ..................1-3 Functional Design ..........................1-4 LED Indicators ..........................1-4 Beeper ............................1-4 Reset Button ..........................1-4 Relay (Digital Output) ........................1-5 Getting Started .......................... - Page 4 Federal Communication Commission Interference Statement ............B-3 Firmware Recovery ..........................B-3 www.ipc2u.ru www.moxa.pro...
-
Page 5: Introduction
Introduction The WAC-1001 is rated to operate at temperatures ranging from 0 to 60°C for standard models and -40 to 75°C for wide temperature models, and is rugged enough for any harsh industrial environment. The following topics are covered in this chapter: ... -
Page 6: Overview
RTG series. It is ideal for applications that are hard to wire, too expensive to wire, or use mobile equipment that connects to a TCP/IP network. The WAC-1001 can operate at temperatures ranging from 0 to 60°C for standard models and -40 to 75°C for extended temperature models, and is rugged enough for any harsh industrial environment. -
Page 7: Product Specifications (Wac-1001 Rev 2.Xx.x)
WAC-1001 Introduction Product Specifications (WAC-1001 Rev 2.xx.x) WLAN Interface Standards: IEEE 802.1x (Radius client) IEEE 802.3u for 10/100BaseT(X) for Ethernet LAN IEEE 802.3af for Power-over-Ethernet Supported Models: • AWK-3121-M12-RTG • AWK-3121-SSC-RTG Interface LAN Ports: 1, 10/100/1000BaseT(X), auto negotiation speed (RJ45-type) -
Page 8: Functional Design
Reset Button The RESET button is located on the top panel of the WAC-1001. You can reboot the WAC-1001 or reset it to the factory default settings by pressing the RESET button with a pointed object such as an unfolded paper clip. -
Page 9: Relay (Digital Output)
Introduction Relay (Digital Output) The WAC-1001 has one relay output consisting of the 2 terminal block contacts on the top panel, as shown below. These relay contacts are used to forward system failures and user-configured events. The two wires attached to the relay contacts form an open circuit when a user-configured event is triggered. If a user-configured event does not occur, the relay circuit will remain closed. -
Page 10: Getting Started
Getting Started This chapter explains how to install the WAC-1001 for the first time, and quickly set up your wireless network. The Function Map provides a convenient means of determining which functions you need to use. The following topics are covered in this chapter: ... -
Page 11: First-Time Installation And Configuration
First-time Installation and Configuration Before installing the WAC-1001, make sure that all items in the Package Checklist are in the box. You will need access to a notebook computer or PC equipped with an Ethernet port. The WAC-1001 has a default IP address that must be used when connecting to the device for the first time. - Page 12 Step 5: Set up Roaming domain The first time you log into the WAC-1001, a warning message will be displayed on your computer’s web browser to remind you to set the value of the Roaming domain. Click Yes to go to Controller Settings ...
-
Page 13: Function Map
DI and Power Status monitoring and device management functions Managed Device List LAN Status Maintenance Console Settings Ping Firmware Upgrade Functions for maintaining the WAC-1001, and for Config Import Export diagnosing the network Load Factory Default Username/Password Locate Device Misc. Settings Save Configuration... -
Page 14: Web Console Configureation
Web Console Configureation In this chapter, we explain all aspects of web-based console configuration. Moxa’s easy-to-use management functions help you set up your WAC-1001. The following topics are covered in this chapter: Web Browser Configuration Overview Basic Settings ... -
Page 15: Web Browser Configuration
To use the WAC-1001’s management and monitoring functions from a PC host connected to the same LAN as the WAC-1001, you must make sure that the PC host and the WAC-1001 are on the same logical subnet. The Moxa WAC-1001’s default IP is 192.168.127.253. - Page 16 4. Use the menu tree on the left side of the window to open the function pages to access each of the WAC-1001’s functions. In the following paragraphs, we describe each WAC-1001 management function in detail. A quick overview is available in this manual in the “Function Map” section of Chapter 2.
-
Page 17: Overview
WAC-1001 Web Console Configureation Overview The Overview page summarizes the WAC-1001’s current status. The information is categorized into several groups: System info, Device info, and Controller info. Basic Settings The Basic Settings group includes the most commonly used settings required by administrators to maintain and control the WAC-1001. -
Page 18: Network Settings
DHCP server Static Set up the WAC-1001’s IP address manually. IP address Setting Description Factory Default WAC-1001’s IP address Identifies the WAC-1001 on a TCP/IP network. 192.168.127.253 Subnet mask Setting Description Factory Default WAC-1001’s subnet Identifies the type of network to which the WAC-1001 is 255.255.255.0... -
Page 19: Time Settings
Time information. Functions such as Auto warning can add real-time information to the message. The Current local time shows the WAC-1001’s system time when you open this web page. You can click on the Set Time button to activate the updated date and time parameters. An “(Updated)” string will appear to indicate that the change is complete. -
Page 20: Controller Settings
NTP server. Controller Settings The Controller Settings group includes the most important settings, which enable administrators to set up the WAC-1001’s services. Basic WAC Settings The Roaming method and the Roaming domain’s information are displayed on the Overview page. - Page 21 Roaming domain Setting Description Factory Default 6 Hex characters Specifies the area served by the WAC-1001. All related <The Mac address of controllers, APs, and clients use this as identification to work the WAC-1001> and communicate with each other. Priority 1/2 roaming threshold...
-
Page 22: Wlan Security Settings
It is not necessary to exchange keys or passphrases. When you enable EAP, the WPA/WPA2-enterprise wireless security functions of the managed APs will be disabled. The WAC-1001 will then act as an EAP proxy or relay to support WAP/WPA2-enterprise wireless security. 802.1X/ EAP... -
Page 23: Advanced Settings
MD5 or SHA, is the most secure protocol. You can also enable data encryption to enhance data security. The WAC-1001’s MIB can be found in the software CD and supports reading the attributes via SNMP. (Only get method is supported.) SNMP security modes and security levels supported by the WAC-1001 are shown in the following table. -
Page 24: Auto Warning Settings
A data encryption key is the minimum requirement for data encryption (maximum of 63 characters) Private MIB Information Device Object ID Also known as OID. This is the WAC-1001’s enterprise value. It is fixed. Auto Warning Settings Since industrial-grade devices are often located at the endpoints of a system, these devices will not always know what is happening elsewhere on the network. -
Page 25: System Log
WAC-1001 Web Console Configureation In addition to logging these events, the WAC-1001 supports different approaches to warn engineers automatically, such as SNMP trap, e-mail, and relay output. It also supports two digital inputs to integrate sensors into your system to automate alarms by email and relay output. -
Page 26: Syslog Server Settings
WAC-1001 Web Console Configureation Syslog Event Types Detail information for the grouped events is shown in the following table. You can check the box for Enable log to enable the grouped events. All default values are enabled (checked). Details for each event group can be found on the “System log Event Types”... -
Page 27: E-Mail
E-mail Server Settings You can set up to 4 e-mail addresses to receive alarm emails from the WAC-1001. The following parameters can be configured on the E-mail Server Settings page. In addition, a Send Test Mail button can be used to test whether the Mail server and e-mail addresses work well. -
Page 28: Relay
None Relay The WAC-1001 has one relay output, which consists of 2 terminal block contacts on the WAC-1001’s top panel. These relay contacts are used to indicate user-configured events and system failure. The two wires attached to the relay contacts form an open circuit when a user-configured event is triggered. If a user-configured event does not occur, the relay circuit will remain closed. - Page 29 WAC-1001 Web Console Configureation Trap Event Types SNMP Trap Receiver Settings SNMP traps are defined in SMIv1 MIBs (SNMPv1) and SMIv2 MIBs (SNMPv2c). The two styles are basically equivalent, and it is possible to convert between the two. You can set the parameters for SNMP trap receivers from the web page.
-
Page 30: Status
WAC-1001 Web Console Configureation 1st / 2nd Trap version Setting Description Factory Default SNMP trap defined in SNMPv1 SNMP trap defined in SNMPv2 1st / 2nd Trap server IP/name Setting Description Factory Default IP address or host Enter the IP address or name of the trap server used by your... -
Page 31: Di And Power Status
Auto refresh box is checked. Managed Device List The Managed Device List displays all AWK APs, which are managed by the WAC-1001; the associated clients are also displayed here. Select the Auto refresh check box to enable periodic updates. -
Page 32: Lan Status
LAN Status The LAN Status displays the status of Ethernet port. Maintenance Maintenance functions provide the administrator with tools to manage the WAC-1001 and wired/wireless networks. Console Settings You can enable or disable access permission for the following consoles: HTTP, HTTPS, Telnet and SSH connections. -
Page 33: Firmware Upgrade
Moxa’s website (http://www.moxa.com). Note that while the firmware is being upgraded, all APs controlled by the WAC-1001 will be out of service. Click the Browse button to specify the firmware image file and click Firmware Upgrade and Restart to start the firmware upgrade. - Page 34 Click MIB Export to save a MIB file to your local storage. The configuration file is a .my file that you can import with a general SNMP tool. This operation allows you to control or configure the WAC-1001 remotely. 3-21 www.ipc2u.ru...
-
Page 35: Load Factory Default
Web Console Configureation Load Factory Default Use this function to reset the WAC-1001 and roll all settings back to the factory default values. You can also reset the hardware by pressing the reset button on the top panel of the WAC-1001. -
Page 36: Misc. Settings
The following figure shows how the WAC-1001 stores the setting changes into volatile and non-volatile memory. All data stored in volatile memory will disappear when the WAC-1001 is shutdown or rebooted unless they are saved onto the flash (non-volatile) memory. Because the WAC-1001 starts up and initializes with the settings stored in flash memory, all new changes must be saved to flash memory before restarting the WAC-1001. -
Page 37: Restart
If you made changes recently but did not save, you will be given two options. Clicking the Restart button here will reboot the WAC-1001, and all setting changes will be ignored. Clicking the Save and Restart button will apply all setting changes and then reboot the WAC-1001. -
Page 38: Software Installation And Configuration
Software Installation and Configuration The following topics are covered in this chapter: Overview AWK Search Utility Installing AWK Search Utility Configuring AWK Search Utility www.ipc2u.ru www.moxa.pro... -
Page 39: Overview
Software Installation and Configuration Overview The Documentation & Software CD included with your WAC-1001 is designed to make the installation and configuration procedure easy and straightforward. This auto-run CD includes AWK Search Utility (to broadcast search for all WAC/AWK’s accessible over the network), the WAC-1001 User’s Manual, and Quick Installation Guide. - Page 40 WAC-1001 Software Installation and Configuration 3. Click Next to create the program’s shortcut files to the default directory, or click Browse to select an alternate location. 4. Click Next to select additional tasks. 5. Click Next to proceed with the installation. The installer then displays a summary of the installation options.
-
Page 41: Configuring Awk Search Utility
1. The Broadcast Search function is used to locate all AWK APs and WAC controllers that are connected to the same LAN as your computer. After locating a WAC-1001, you will be able to change its IP address. Since the Broadcast Search function searches by TCP packet and not IP address, it does not matter if the WAC or AWK is configured as an AP or Client. - Page 42 WAC-1001 Software Installation and Configuration 3. The “Searching” window indicates the progress of the search. When the search is complete, all WAC and AWK units that were located will be displayed in the AWK Search Utility window. 4. Click Locate to cause the selected device to beep.
- Page 43 WAC-1001 Software Installation and Configuration To modify the configuration of the highlighted WAC or AWK, click on the Web icon to open the web console. This will take you to the web console, where you can make all configuration changes. Refer to Chapter 3, “Using the Web Console,”...
- Page 44 WAC-1001 Software Installation and Configuration The three advanced options—Search, Connection, and Miscellaneous—are explained below: Search • Retry count (default=5): Indicates how many times the search will be retried automatically. • Retry interval (ms): The time lapse between retries. Connection •...
-
Page 45: Other Console Considerations
WAC-1001 to a PC’s COM port, can be used if you do not know the WAC-1001’s IP address. The other consoles can be used to access the WAC-1001 over an Ethernet LAN, or over the Internet. -
Page 46: Rs-232 Console Configuration (115200, None, 8, 1, Vt100)
The serial console connection method, which requires using a short serial cable to connect the WAC-1001 to a PC’s COM port, can be used if you do not know the WAC-1001’s IP address. It is also convenient to use serial console configurations when you cannot access the WAC-1001 over Ethernet LAN, such as in the case of LAN cable disconnections or broadcast storming over the LAN. -
Page 47: Configuration By Telnet And Ssh Consoles
WAC-1001’s functions over the network from a PC host that is connected to the same LAN as the WAC-1001, you need to make sure that the PC host and the WAC-1001 are on the same logical subnet. To do this, check your PC host’s IP address and subnet mask. -
Page 48: Configuration By Web Browser With Https/Ssl
Follow the steps below to access the console utility via Telnet or SSH client. 1. From Windows Desktop, run Start Run, and then use Telnet to access the WAC-1001’s IP address from the Windows Run window (you may also issue the telnet command from the MS-DOS prompt). -
Page 49: Disabling Telnet And Browser Access
HTTPS/SSL. (You can see the protocol in URL is https.) Then you can use the menu tree on the left side of the window to open the function pages to access each of WAC-1001’s functions. Disabling Telnet and Browser Access If you are connecting the WAC-1001 to a public network but do not intend to use its management functions over the network, then we suggest disabling both Telnet Console and Web Configuration. -
Page 50: References
References This chapter provides more detailed information about wireless-related technologies. The information in this chapter can help you administer your WAC-1001s and plan your industrial wireless network better. The following topics are covered in this appendix: Roaming Domain Roaming Method ... -
Page 51: Roaming Domain
WAC-1001 References Roaming Domain A roaming domain defines an area where all related wireless controllers, APs, and clients work together to enable fast roaming. Such a domain is specified as six groups of two hexadecimal digits beginning with the fixed identifier, FF:90:E8. -
Page 52: Roaming Method
WAC-1001 References Roaming Method The Roaming method setting offers a strategic roaming mechanism for different applications. Two main factors used to trigger handover determinatively are: the value of RSSI and the RSSI difference. Compare The Compare method provides an aggressive roaming strategy for distributed wireless infrastructures with a smaller amount of symmetric antenna systems;... -
Page 53: Supporting Information
Supporting Information This chapter presents additional information about this manual and product. You can also learn how to contact Moxa for technical support. The following topics are covered in this appendix: About This User’s Manual DoC (Declaration of Conformity) ... -
Page 54: About This User's Manual
WAC-1001 Supporting Information About This User’s Manual This manual is mainly designed for, but not limited to, the following hardware and firmware for the WAC-1001: • Hardware Rev: 2.xx.x Firmware Ver: 2.x • You are strongly recommended to visit Moxa’s website (http://www.moxa.com) to find the latest product datasheet, firmware, QIG (Quick Installation Guide), UM (User’s Manual), and related information. -
Page 55: Doc (Declaration Of Conformity
This could be the result of an erroneous operation or other issue beyond your control, such as an unexpected shutdown during the firmware update. The WAC-1001 is designed to help administrators recover from any damage caused by a system boot failure, and resume system operation rapidly. - Page 56 4. Change the firmware file name to wac-1001v2.rom. 5. Connect to the WAC-1001’s RJ45 Ethernet port If the settings are correct, the following message will be shown on the terminal emulator, and the WAC-1001 will reboot when the firmware recovery process has finished.
