Installation -

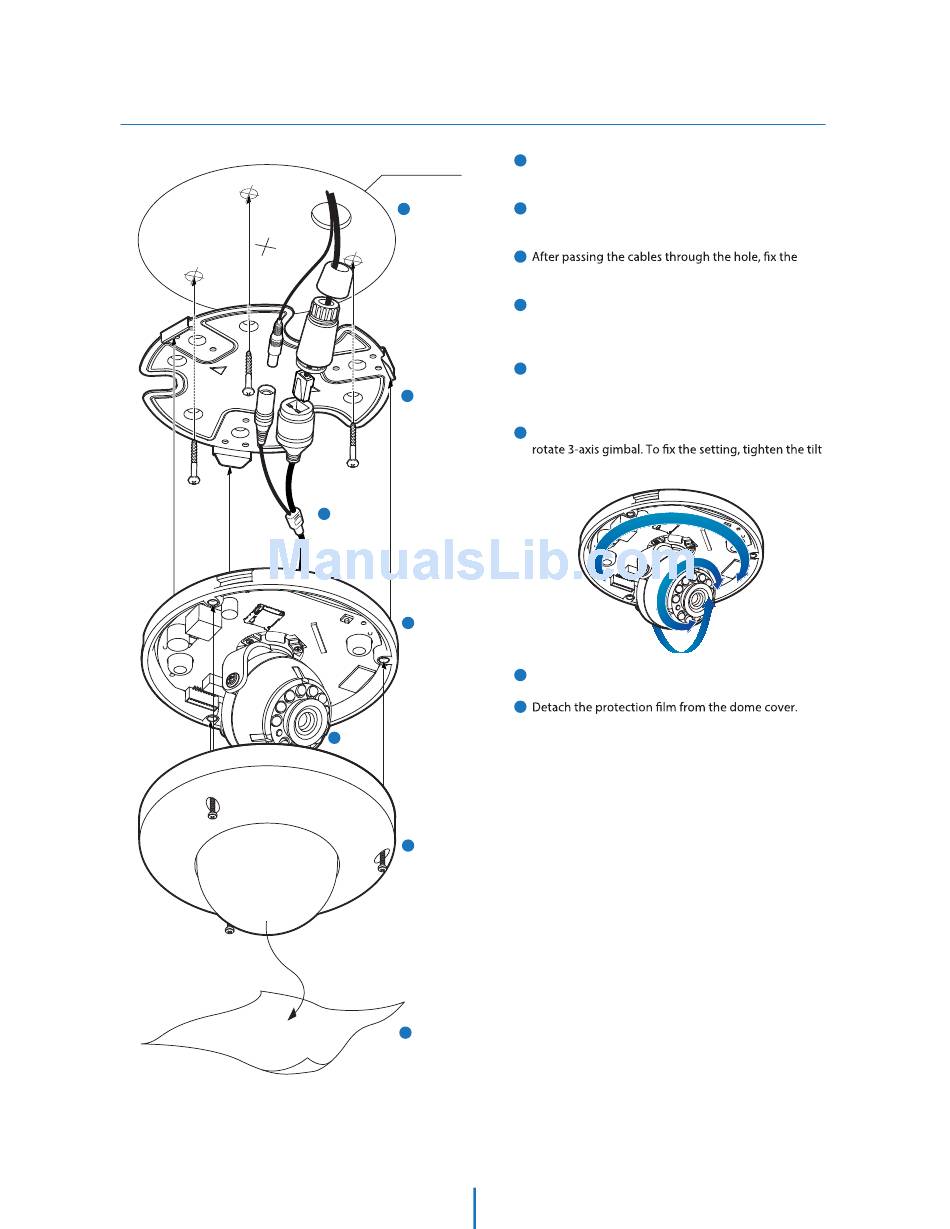

Installation Using Mount Plate
Template Sheet
2
3
4
5
6
7
8
9
1
Disassemble the camera. See the section 'Installation -
Disassemble the camera' for details.
2
Using the template sheet, make the cabling hole on
the wall/ceiling.
3
mount plate on the template sheet.
4
Connect the network cable and power cable
respectively. See the section 'Installation - Cabling' for
details.
5
Fix the bottom case on the mount plate. Press 3 bezels
on bottom case of camera till it sounds snap to lock
the camera to the mount plate.
6
To achieve desired view direction and orientation,
stopper screw.
7
Attach the dome cover to the bottom case.
8
