Megapix DWC-MB45DIA User Manual

5 megapixel indoor/outdoor bullet camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
5D
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWC-MB45DIA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Megapix DWC-MB45DIA

Summary of Contents for Megapix DWC-MB45DIA

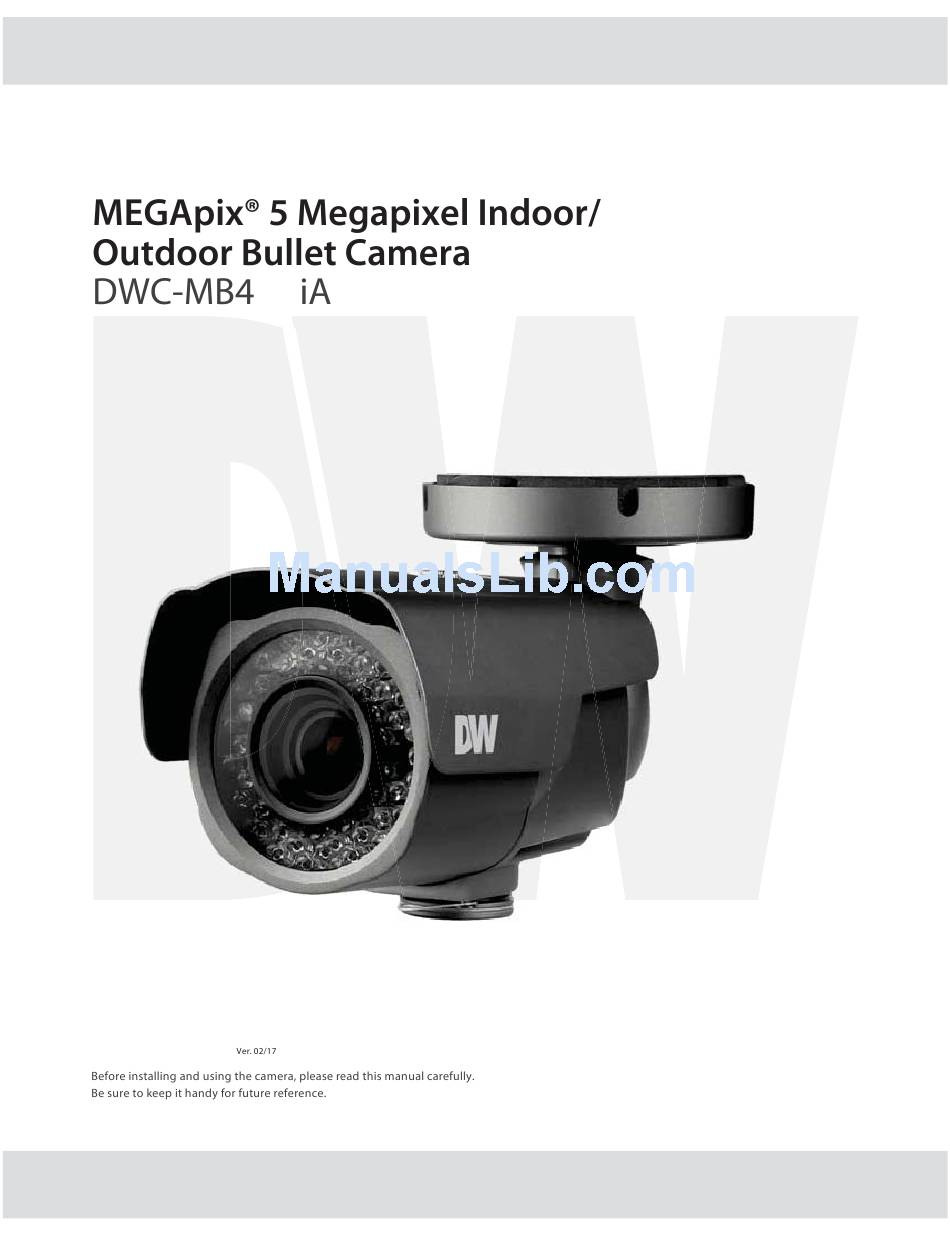

  • Page 1 User’s Manual...

  • Page 5: Product And Accessories

    Introduction - Product & Accessories Please check if all the camera and accessories are included in the package. Cables Camera Screw & Plastic Anchor-4pcs Torx Wrench Test Monitor Cable Template Sheet Quick Manual Manual CD Waterproof cap & Gasket...
  • Page 6 Introduction - Part Name Sunshield Lens Pan/Tilt Stoper Screw Control Board Bracket Con Cap...

  • Page 7: Installation

    Installation - Installation Before installing your camera, you have to read the following cautions. 1. You have to check whether the location can bear five times of the weight of your camera. 2. Don’t let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or fire.
  • Page 8 Installation - Cabling Two Options Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording images instantly. A non-PoE switch will require an adaptor for power transmission. 1. Using a PoE-Enabled Switch 2.
  • Page 9 Installation - Cabling Activation Activation Alarm In Red : ALARM_OUT+ Black : ALARM_OUT- Yellow : GND White : ALARM_IN+ Alarm Out Audio Out Audio In Audio In Alarm Out Cable of the sensor/alarm input device should connect to It connects to the alarm lights, siren or lamps and the sensor alarm in+ and alarm in- of the cable slot.
  • Page 10 Installation - Inserting/Removing SD Memory Card The memory card is an external data storage device that has to record and share video, audio, and text data using digital devices. Micro Recommended SD Card Specification (Not Included) - Type: Micro SD (SD/SDHC/SDXC) - Manufacturer: Transcend, Kingston, Toshiba, SanDisk - Capacity: 4GB~128GB - Class: over UHS-I U3 Class 10...

  • Page 12: Quick Start Of Network Connection

    Network Setup - Quick Start of Network Connection Please follow the steps below to complete Access your IP Camera via the Internet : the initial setup of the network function. If you use a static IP address assigned by your ISP 1) Open Internet Explorer.

  • Page 13: Ddns Registration

    Network Setup - DDNS Registration If you have DYNAMIC IP service from your Internet Service Provider (ISP), you can’t tell the current IP address of the IP Camera. To solve this problem, you have to register to our DDNS service. t, you have to check if you are using dynamic addressing.

  • Page 14: Guide To Network Environment

    Network Setup - Guide to Network Environment Please configure the IP Camera at the 5. The following descriptions are several basic network scenarios. Determine which scenario describes your network. installation site. You must determine your If your network does not match one of the scenarios below network scenario in order to configure the IP and you are unsure how to setup your IP Camera, contact Camera with the proper TCP/IP settings.
  • Page 15 Network Setup - Setup Case A, B Case A: as follows : Dynamic IP + Personal Router [Most SOHO] Network Type : STATIC (even though you have Dynamic IP from your ISP, use STATIC on the IP Camera) Camera Internet Address : A private IP address such as 192.168.0.200 (Example) You need to assign an IP address to the IP Camera just as you do...
  • Page 16 Network Setup - Setup Case C, D Case C: Case D: Static(Fixed) IP [Dedicated line directly Dynamic IP + DSL/Cable Modem [Connected to the IP Camera] directly to the IP Camera] Camera Camera Phone Line or CATV Cable/xDSL Modem (ISP Provided) Public Line Gateway or Router at ISP...

  • Page 17: Port Forwarding

    Network Setup - Port Forwarding After entering the correct TCP/IP settings, you are ready for ‘Port Forwarding’(Cases A, B). Please record the TCP/IP settings of your IP Camera for future reference. You may need this information to access your IP IP Camera TCP/IP Settings IP Address Subnet Mask...

  • Page 18: Starting Ip Camera

    Network Setup - Starting IP Camera After forwarding correctly the Web Port, through your router (if applicable), install the IP Camera in a proper location. Locate the serial number located on the label attached to the bottom of the IP Camera, you will need this for DDNS registration.
  • Page 19 Web Viewer Screen- Camera Web Server - The web server of a camera consists of two parts. The parts are Web Monitoring Page and Web Setting Page. - Internet Explorer version 8.0 or higher are recommended as the Internet browser to be used. - Type the IP address that is assigned to a camera on the address window of a web browser and press “Enter”.
  • Page 20 Web monitoring page 1 (Guest connection) Web monitoring page 2 (Administrator connection) NOTE: All information provided in the following pages display options available to the administrator user.
  • Page 21 Web Viewer Screen- Web Monitoring Page [Setting button] Enables you to move to the web setting page (Live button: Web setting page -> Web monitoring page) [Show Log button] The window for the log data shows up. [ActiveX Download button] Click this button if the ActiveX for video monitoring is not downloaded automatically.
  • Page 22 This product does not support this feature. [Relay Out button] Controls the external device that is connected to the camera. (Before use, check the availability of the product features or the connection status of the installed equipment.) [Digital Input button] Shows the contact signal connected to the camera.
  • Page 23 Setup- Web Setting Page Menu buttons [Live button] this enables you to move to the web monitoring page. [Show Log button] the window for the camera log data shows up. [ActiveX Download button] Click this button if the ActiveX for video monitoring is not downloaded automatically. [Language combo box] a language can be selected out of the items.
  • Page 24 [Transmitted Data] the velocity of the transmitted data [Link Speed / Duplex Mode] the connection status that is connected to the network equipment. Model Information - the product information [Model] the product model name [Serial Number] the product serial number [System Mode] the camera running mode (in case of the camera that runs as a decoder the System Mode is "Decoder") [Firmware Version] the firmware version...
  • Page 25 Setup- Network Network Setting [Static IP / Dynamic IP] select “Static IP” or “Dynamic IP”. For the use of the dynamic IP, the router that supports DHCP should be on the local network. [IP Address / Subnet Mask / Gateway / Default DNS] set the value that is appropriate to the network (ask the network administrator for the proper network values.) Web setting page (Network)
  • Page 26 Link Speed / Duplex Mode [Link Speed / Duplex Mode] if the auto negotiation mode has a problem with the connected network device, use a specified value. The value of the camera and the network device should be same. [Status] the status of the current network connection [OK button] click this button to apply the changed setting values.

  • Page 27: Video Source

    Setup- Video Source Web setting page (Video Source) Camera Input Source [Mirror / Flip] reverse of left and right / reverse of up and down [OK button] click the button “OK” to apply the changed setting values. Camera Control (Display OSD Text) - This product does not support this feature.

  • Page 28: Camera Setup

    Setup- Camera Setup Web setting page (Camera Setup) General [Lens] sets the type of the Lens [Iris] sets the type of the Iris [CDS >> Type] sets the type of the CDS [CDS >> Range >> Min] sets the minimum of the CDS range [CDS >>...

  • Page 29: Motion Detect

    Setup- Motion Detect Web setting page (Motion Detect) Overview - click on any point and drag on the image to create a detection zone. Once motion detection is setup, a red mark will appear on the upper bar of the video image on the web monitoring page. (The upper bar is shown clicking the button "info".) [ROI#1~4 tab] the four ranges can be set separately.

  • Page 30: Roi Encoding

    Setup- ROI Encoding Overview - ROI (Region of Interest) Encoding function: the region specified by a ROI is encoded to transmit a relatively good image compared to other regions. [Enable] check the box for the activation. [ROI Enable check box] select out of "ROI#1~4". The rectangular box in which you can specify the region appears.
  • Page 31 Setup- Web setting page (OSD) OSD: Text [Date Enable / Time Enable / Camera Name Enable] check for the activation to show the text of the items on the video of the camera. (This is the camera OSD (On Screen Display) function and different from the function of the Camera Module OSD function.)[Camera Name] input the name on the OSD [X Axis] adjusts the X axis position of the OSD text.

  • Page 32: Video Profile

    Setup- Video Profile Web setting page (Video Profile) Preview [Streams] the selected video is displayed. Video setting The each stream can have the assigned value independently. [ Proprietary Stream Port ] the port number for transferring the video and audio data [ Compression ] the compression type for transferring the video data ( H.265 / H.264 / MJPEG ) [ Resolution ] the image size.
  • Page 33 After the value is set to "4X", the NVC plays the recorded video by "4X" with less system resources. [ Capture Mode ] in case that the resolution of the monitor or the ratio of the NVC partition display is the SD(Standard Definition) ratio, the HD(High Definition) video ratio (16:9) should be changed to the SD video ratio (4:3).

  • Page 34: Audio Profile

    Setup- Audio Profile Web setting page (Audio Profile) In case that a monitoring program is used in playing audio data, the program supports the codec of the camera. Audio Option: Input [Input Type] line (or line / mic; the models with built-in mic) [Audio Codec] G.711-u / G.711-a / G.726 (Quality: G.711 >...

  • Page 35: Streaming Setting

    Setup- Streaming Setting Web setting page (Streaming Setting) Proprietary Streaming Setting [Proprietary TCP Port] the port for the transmission by the proprietary protocol (This is dependent on the value of the item “Video Profile / Video Setting / Proprietary Stream Port”) [Connection Lists] the IP address and port information of the monitoring devices that are connected.
  • Page 36 3) 3rd Stream > rtsp://192.168.1.2:554/AVStream1_3 [Connection Lists] the IP address and port information of the monitoring devices that are connected. Multicast Setting [Video Address] the IP address for video data transmission [Video Port] the port number for video data transmission [Video TTL] set the number of the routers that pass when transmitting the video data.
  • Page 37 Setup- Events Web setting page (Events) Digital Input [Logical Status (Sensor Type)] - Set according to the normal state of the electrical signal of the attached device. (Open / Close). 1) N.O. (Normal Open): in case of the normal state is "open" 2) N.C.
  • Page 38 [Motion] when the motion is detected, an event occurs. [Timer] the events occurs periodically. (Unit: second) - Action Types [Preset Move] When the PTZ camera is connected to, the command "Preset Move" is sent to the PTZ camera. [Digital Output] This means "relay output".
  • Page 39 Reference Scenario 1. When the emergency bell is pressed, the video of the connected PTZ camera goes to the position that the emergency bell was pressed. - Connect an emergency bell to the connector "Digital Input" of the camera. - Web setting page of camera > Video Source > camera Control: After moving the PTZ camera to the location of the emergency bell for the "Preset no.

  • Page 40: Local Storage

    Setup- Local Storage Web setting page (Local Storage) Overview - This function is available when a memory card is inserted into the product that supports an SD/SDHC card. - Time synchronization issues 1) the video and the camera internal time are saved together on the local storage function. 2) For the time differences of the camera and the monitoring PC occur as time goes, it is required to synchronize the time periodically with a specific server.
  • Page 41 [Storage Estimation] the estimated time that can be saved. Recording Setting [Mode] select one out of "off (not saving) / continuous (continuous saving) / event (saving when a event occurs)" Event types that can be selected 1) Motion: the motion event (A ROI is the setting value for the motion detection.
  • Page 42 Setup- Date / Time Web setting page (Date / Time) Date / Time [Date / Time] displays the current time. [New Date / Time (Manual)] type the time manually. Click the button “Set” to apply the changed value. [New Date / Time (Auto)] synchronize the time with the time of monitoring PC. Click the button “Set” to apply the changed value.
  • Page 43 Setup- UPnP Web setting page (UPnP) UPnP - It is available to scan cameras with Windows explorer and access to them with clicking. The Windows explorer should support the detection of the UPnP device. [Enable] check the box for the activation. [Friendly name] is created by the MAC address automatically.
  • Page 44 Setup- Bonjour Web setting page (Bonjour) Bonjour - It is available to scan cameras with Windows explorer and access to them with clicking. The Windows explorer should support the detection of the Bonjour device. [Enable] check the box for the activation. [Friendly name] is created by the MAC address automatically.
  • Page 45 Setup- Syslogd Web setting page (Syslogd) Syslogd - The camera can send the log files that occur on the operation. Ask the camera supplier for the PC program for receiving the log files. [Enable] check the box for the activation. [Server IP Address] the IP address of the PC that receives the log files [UDP Port] the port number for sending the log files [Log Level] select the log items.
  • Page 46 Setup- SNMP Web setting page (SNMP) SNMP [Enable] check the box for the activation. [Read community] the running mode is "public". (Fixed) [UDP Port] the port number for use...
  • Page 47 Setup- Port Web setting page (Port) Overview - Set up the port number for the data communication Web (HTTP) [Port] the web port number Serial Port #1 (rs485) - This product does not support this feature. Connection Lists (TCP Access) - This product does not support this feature.
  • Page 48 Setup- Security Web setting page (Security) IP Addresses Filtering [Enable] check the box for the activation. [Basic Policy] select one out of "allow" / "deny" [IP Addresses List] make the IP address list for filtering with the button "Add" and "Delete" [My IP Address] displays the IP address of the PC that are connected.
  • Page 49 Setup- DDNS Web setting page (DDNS) IPv4 DDNS [Enable] check the box for the activation. [Select Service] select a service for use. Type the information that is used on the registration process of the DDNS server homepage. [OK button] click this button to apply the changed setting values.
  • Page 50 Setup- Account Web setting page (Account) [Add User button] click for adding an account. [Modify button] click for modifying the registered account. Modify & Create new user (after clicking the button "Add User") Modify & Create new user dialog box [Admin Password] input the password of the account "root"...

  • Page 51: Firmware Update

    Setup- Firmware Update Web setting page (Firmware Update) Firmware Update [Current Firmware Version] displays the current firmware version. [Firmware file] click "Browse..." and select the file to update. Click "Upload" for updating. Do not turn off the power supply while firmware is being updated. Please note that updating the firmware may take up to 10 minutes.

  • Page 52: Factory Default

    Setup- Factory Default Web setting page (Factory Default) [Reset button] click the button to initialize the changed setting values. (click after selecting the values to be initialized.) [Show only changed values check box] check for displaying only the changed values (default) [Select All check box] selects all groups to be initialized.
  • Page 53 Setup- Report Web setting page (Show Report) Overview - This page displays the current setting values and can be printed or made into PDF file. For the PDF file output, the PDF output printer items should be on the PC. [Print button] outputs the page "Report".
  • Page 54 Setup- Open Source Info. Web setting page (Open Source Info.) Reboot - Click the text “Reboot” for rebooting the camera Confimation of reboot Logout - This enables you to move to the initial web page.
  • Page 55 Unit: Inch (mm) * Dimensions based on the position of the sun shield cover 3.8” (96.7 mm) 3.8” (96.7 mm) 9.8” (248.9 mm) ~ 8.8” (225.3 mm)* 3.26” (83 mm) 8.87” (225.3 mm)
