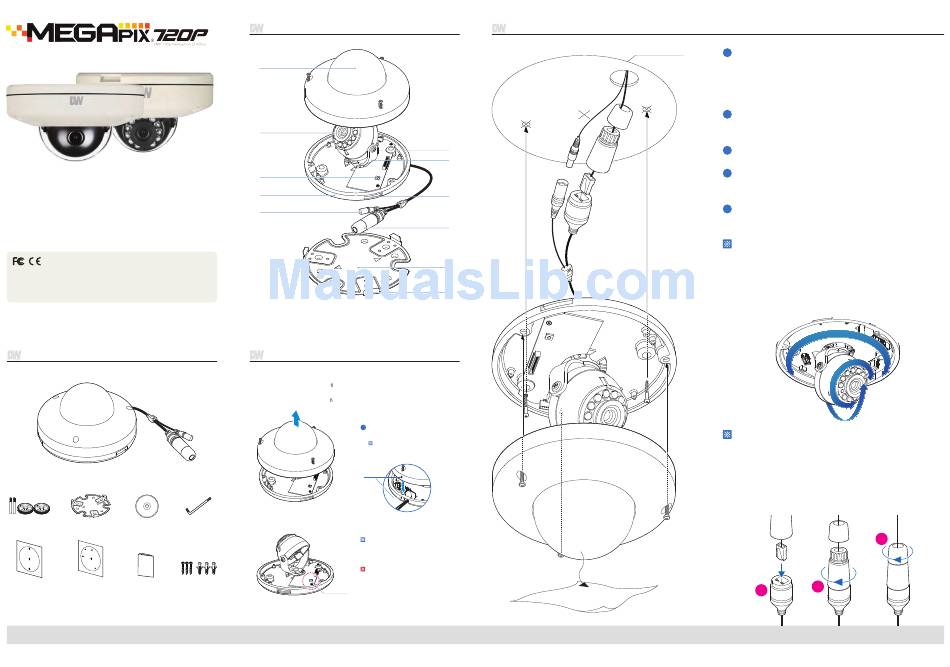

Megapix DWC-MF10M28T Quick Start Manual

MEGApix® 720P 1MP Camera
TM
DWC-MF10M28T, DWC-MF10M36TIR,
DWC-MF10M8TIR
Quick Start Guide
Ver. 1.0 / 2015.03
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own
expense.
To disconnect power from the mains, pull out the mains cord plug. When install the product, ensure that the plug is easily
accessible.
Product & Accessories
Camera Cables
Mount Bolt & Nut Mount Plate Manual CD
Template Sheet Template Sheet
for installing by Bolt & Nut for installing by Plate Quick Manual Plastic Anchor-3pcs
TEL: (866) 446-3595
www.Digital-Watchdog.com / technicalsupport@dwcc.tv
Technical Support Hours: Monday-Friday 9:00AM to 8:00PM EST
Part Name
Dome Cover
Lens
Reset Button
Bottom Case
DC Power Cable

Disassemble the Camera

Before installing your camera:
1. The mounting surface must bear ve times the weight of your camera.
2. Do not let the cables get caught in improper places or the electric line cover to be damaged.
This may cause a breakdown or re.
1
Sticker
Torx Wrench
Screw &
Reset Button
2 0 1 5 0 3 16

Installation

Tilt Stopper Screw
Gimbal
Bezel
RJ-45 Cable
Mount Plate
Plate Hook
Detach the dome cover from bottom
case using the wrench provided.
When closing the dome back on the
camera, align the camera's dome with the
sticker at the bottom of the camera for proper
sealing and protection.

Reset to the Factory Default

Press the reset button for 5 seconds to
return the setup to the factory default.
Warning:
Pressing the 'Reset' button will result in
the lose of all setting data. If needed,
make a note for further installation.
Template Sheet
1 Detach the camera's cover dome from the camera's
module by unscrewing the cover dome screws using the
L-Wrench. See 'Disassemble the Camera' for more
information.
Use the camera or mounting template to mark and drill
2
the necessary holes in the wall or ceiling.
Pull wires through and make connections.
3
Using three (3) included screws, mount and secure the
4
camera to the wall or ceiling.
Secure the camera's cover dome onto the camera base
5
to complete the installation.
To adjust the camera's orientation:
1. Loosen the tilt stopper screw at the base of the
camera's Gimbal by rotating it counter clock-wise.
2. Move the camera to the desired angle.
3. Secure the camera's lens position by screwing the tilt
stopper screw clock-wise.

To use the LAN water protector case:

1. Insert the network cable into (a), the camera's
Network port.
2. Connect (b) to the camera's network port by rotating it
clock-wise until tight.
3. Attach part (c) to the case's body, securing tightly by
rotating it clock-wise.
b
a
c
