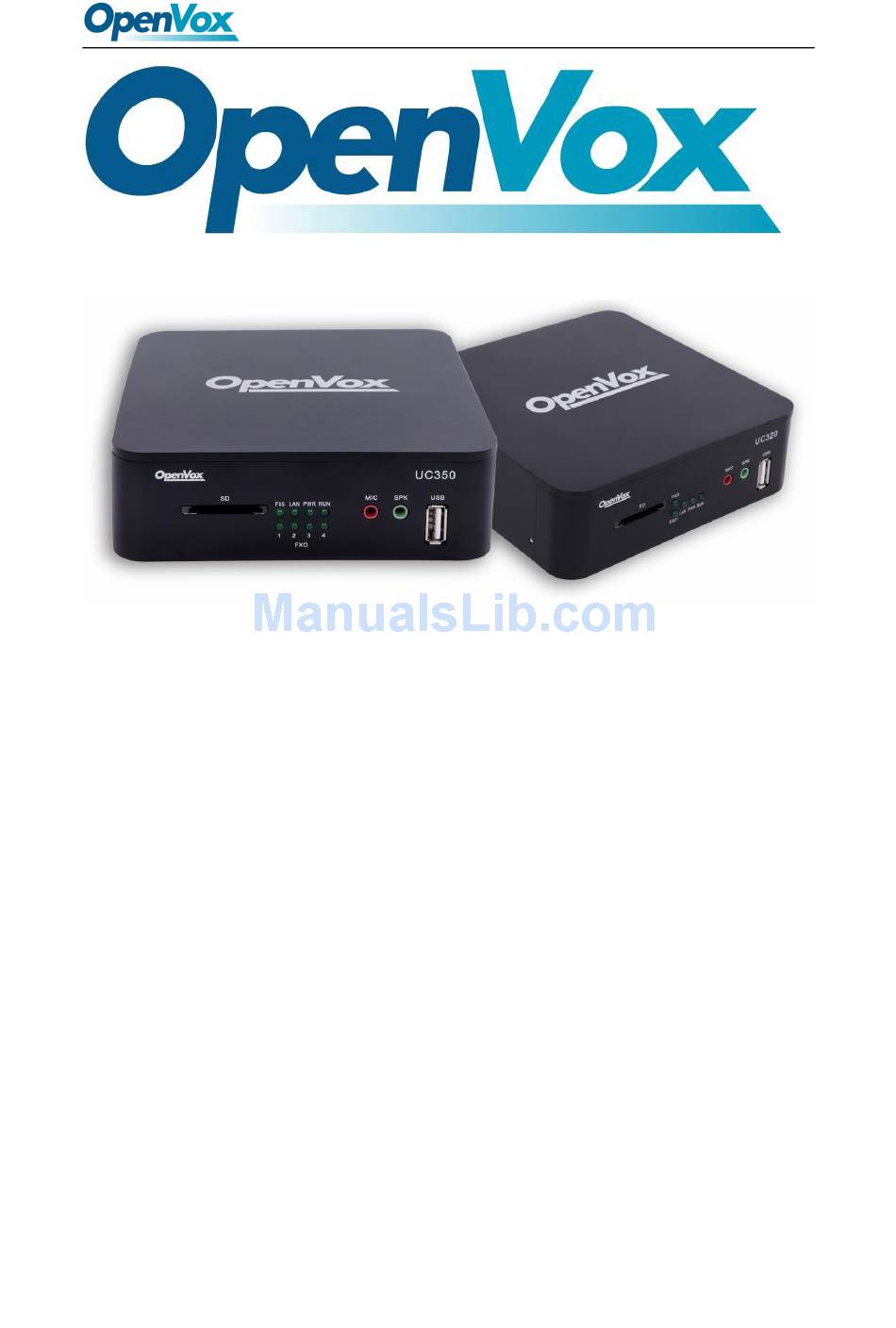

- Page 1 UC300 Series Quick Start Guide OpenVox Communication Co., Ltd UC300 Series Quick Start Guide Version 1.0 OpenVox Communication Co., LTD. URL: www.openvox.cn...
- Page 2 UC300 Series Quick Start Guide OpenVox Communication Co.,Ltd Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District, Shenzhen, Guangdong,China 518109 Tel: +86-755-66630978, 82535461, 82535362 Business Contact: sales@openvox.cn Technical Support: support@openvox.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn...
- Page 3 Information contained herein is of a highly sensitive nature and is confidential and proprietary to OpenVox Inc. No part may be distributed, reproduced or disclosed orally or in written form to any party other than the direct recipients without the express written consent of OpenVox Inc.
-
Page 4: Table Of Contents
UC300 Series Quick Start Guide Contents Appearance ..........................5 2.Description of account and ports ....................5 3.Device connection .......................... 6 4. Access to device ..........................6 5. Function setting ..........................7 1) Shutdown ..........................7 2) Language ..........................8 3）Import License Authorization File ..................8 4) Add extensions ........................ -
Page 5: Appearance
UC300 Series Quick Start Guide 1. Appearance Figure 1-1 UC300-A11EM1 front panel Figure 1-2 UC300-A11EM1 back panel Figure 1-1 UC300-A41EM1 front panel Figure 1-2 UC300-A41EM1 back panel 2.Description of account and ports Website login Default IP: 172.16.101.1 Username: admin Password: admin... -
Page 6: Device Connection
UC300 Series Quick Start Guide Password: pbx101~pbx110 UC300-A41EM port fxs：port5 connects to analog telephony fxo：port1 port4 connect to outside telephone connection 3.Device connection FXS port connects to analog telephony, FXO connects to outside telephone connection. 4. Access to device Log in to the Web GUI Step 1 Use a CAT5 cable to connect the device to the local network where the PC is connected, or connect the device directly to the PC. -
Page 7: Function Setting
UC300 Series Quick Start Guide Figure 4-1 Login interface Type in the default username: admin, and default password: admin to login. 5. Function setting 1) Shutdown This option allows for the shutdown and rebooting of the IP-PBX series. Upon choosing whichever of the two options, you will be prompted to confirm the action. -
Page 8: Language
Figure 5-2 Language setting 3）Import License Authorization File UC300 default license to support the sip extensions are 30, for more sip extensions, please contact OpenVox sales personnel（sales@openvox.cn）to buy license. Figure 5-3 Language setting 4) Add extensions By default, UC300 has registered 10 sip extensions, you can use sip phone to register directly. - Page 9 UC300 Series Quick Start Guide Password: pbx101~pbx110 For instance, add DAHDI extensions(222) to the FXS port, navigate to PBX>PBX configuration > click “Add extension”, choose Generic DAHDI Device in the Device, then click extensions, “submint”. Figure 5-4 add an extension setting...
-
Page 10: Add Sip Trunk
UC300 Series Quick Start Guide Figure 5-5 DAHDI extensions basic setting 5) Add sip trunk Navigate to PBX>PBX configuration >Trunk, click “Add SIP Trunk”. OpenVox Communication Co., LTD. URL: www.openvox.cn... - Page 11 UC300 Series Quick Start Guide Figure 5-6 Add sip trunk interface Enter the following configuration as below, in this case, the IP of service 2 is 172.16.101.2. Table 5-1 2 service sip connections host=172.16.101.2 type=friend context=from-trunk username=8000 secret=8000 UC300 qualify=0...
- Page 12 UC300 Series Quick Start Guide Figure 5-7 UC300 add sip trunk interface OpenVox Communication Co., LTD. URL: www.openvox.cn...
-
Page 13: Queue
UC300 Series Quick Start Guide 6) Queue Navigate to PBX>PBX configuration >Queue, adding a queue, static agents are assumed to always be in the extension of queue but not be supposed login the queue, and can’t log out of the queue. The dynamic member is an extension or callback number that can log in and out of the queue, you can use the Quick Extension Pick feature set an extension to a static / dynamic agent quickly. -
Page 14: Add Conference
UC300 Series Quick Start Guide Add Conference Navigate to PBX>PBX configuration >Conference, add a conference, user extensions can dial conference number (700) to join the conference directly. Figure 5-9Add conference interface Add IVR Navigate to PBX>PBX configuration >IVR, add an IVR. - Page 15 UC300 Series Quick Start Guide Function Description: Press 1 to go to the fxs extension; press 2 to go to the queue, press 3 to join the meeting. In this setup, hang-up directly on illegal input and timeout input. Figure 5-10 Add IVR interface OpenVox Communication Co., LTD.
-
Page 16: Outbound Routes
UC300 Series Quick Start Guide Outbound Routes UC300 has set a outbound route begin with 9, which by FXO outbound. Figure 5-11 Outbound Route interface Similarly, you can also create a new outbound begin with 8, to call to the sip trunk. -
Page 17: Inbound Routes
UC300 Series Quick Start Guide Figure 5-12 Outbound Route interface Inbound Routes The incoming calls to the UC300 system, connects to distance, which can be chosen by yourself. A typical example is that you can set all of the incoming calls on an FXO or FXS port on your UC300 to a specific extension, ring group, voicemail, etc. -
Page 18: Call
UC300 Series Quick Start Guide Figure 5-13 Inbound Route interface 6 Call 1) Internal Call The internal extension user can dial the other party's extension number directly to establish a conversation. For example, the sip extension 101 dial 222 can make a conversation with the dahdi extension (analog telephone).
