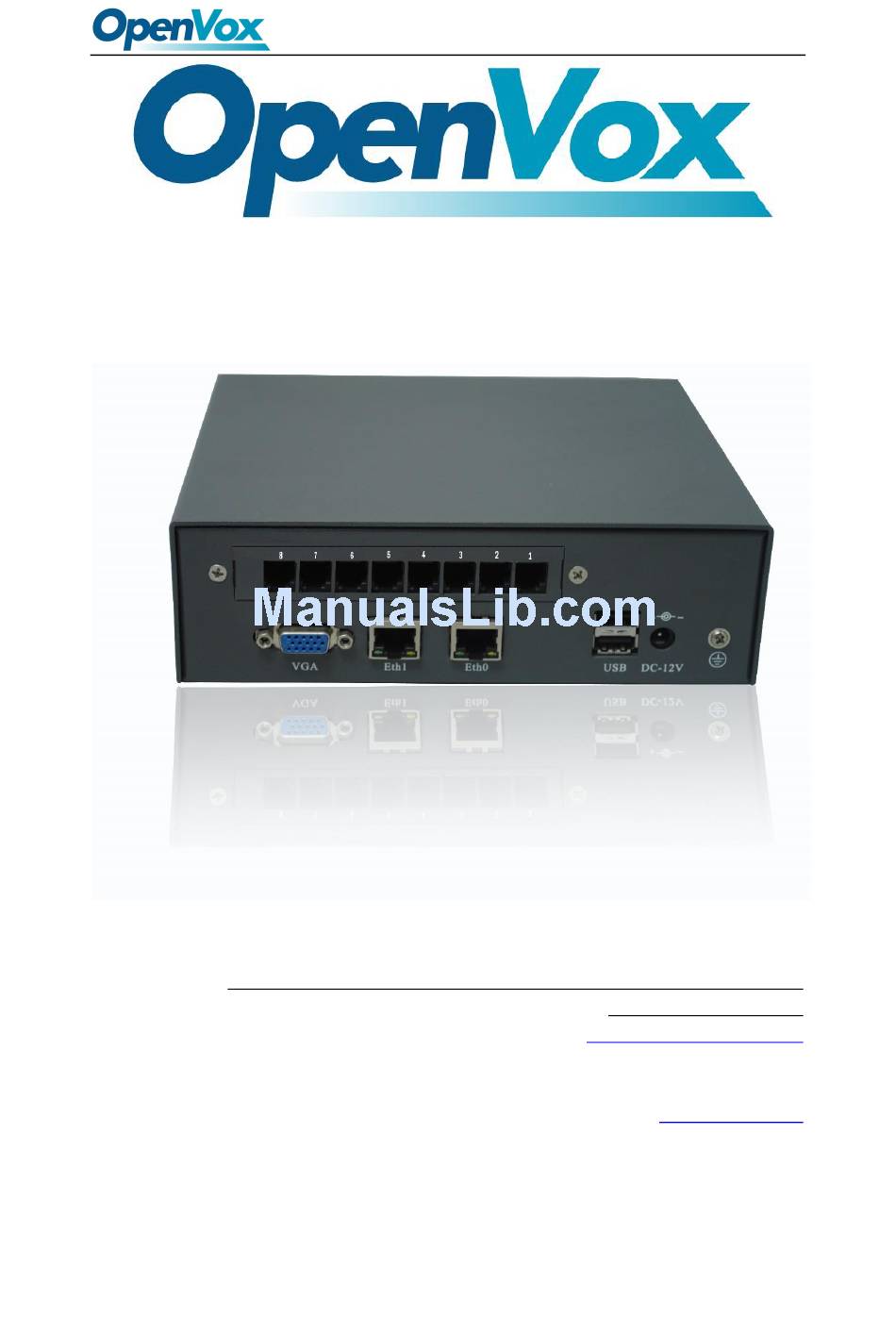

MC100 Series User Manual
MC100 Series User Manual
Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial Park,
Longhua New District, Shenzhen, Guangdong,China 518109
Tel:+86-755-66630978,82535461, 82535362, Fax:+86-755-83823074
Business Contact: sales@openvox.com.cn
Technical Support:
support@openvox.com.cn
Business Hours: 09:00-18:00(GMT+8) from Monday to Friday
URL:
www.openvox.cn
Thank You for Choosing OpenVox Products!
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC100-A44EG2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OpenVox MC100-A44EG2

Summary of Contents for OpenVox MC100-A44EG2

  • Page 1 Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District, Shenzhen, Guangdong,China 518109 Tel:+86-755-66630978,82535461, 82535362, Fax:+86-755-83823074 Business Contact: sales@openvox.com.cn Technical Support: support@openvox.com.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn Thank You for Choosing OpenVox Products!
  • Page 2 Confidentiality Information contained herein is of a highly sensitive nature and is confidential and proprietary to OpenVox Inc. No part may be distributed, reproduced or disclosed orally or in written form to any party other than the direct recipients without the express written consent of OpenVox Inc.
  • Page 3 MC100 Series User Manual Test Environments CentOS7.0 (Elastix4.0) Kernel version: 3.10.0-229.14.1.el7.x86_64 DAHDI: 2.10.2 Asterisk: 11.20.0 SS7: chan_ss7 2.1.0 Hardware: A400、A810E、B200E、B400、DE130E...

  • Page 4: Chapter 1. Overview

    MC100 Series User Manual Chapter 1. Overview 1.1 What is MC100 Series? MC100 Series is an upgrade version of MiniUCS, an open source asterisk-based complete IPPBX solution for SMB. With affordable price, users may easily setup their customized IPPBX. MC100 Series supports comprehensive protocol processing, including SIP, H.323 protocols in IP side and BRI, PRI, SS7 and some protocols transcoding in CPE.

  • Page 5: Product Model

    USB interface 7 PWR Power socket Table 1-2 MC100 Series Naming rules Product Model Descriptions MC100-A44EG2： A standard for Analog port： Combination 4FXS+4FXO The first X is the number of FXS port, （A810E card），2 gigabit Ethernet the second X is the number of FXO port.

  • Page 6: Software & Platform

    MC100 Series User Manual  Storage: 1 SATA slot, 1 mSATA Socket  2 USB 2.0 Ports  2 Ethernet Ports (1000Mbps speed)  2 PCIe sockets for voice cards and other expansion  1 mini PCI-E socket for extension ...
  • Page 7 MC100 Series User Manual  CDR (Call Detail Records)  Call Forward  Call Parking  Call Pickup  Call Routing  Call Transfer  Call Waiting  Caller ID  Conference  Define Office Time  DDNS  Dial by Name ...

  • Page 8: Chapter 2. Hardware Setup

    Two Year Warranty Chapter 2. Hardware Setup OpenVox New IPPBX supports combinations analog, BRI and PRI telephony cards. Software installation method basic on your options, you can choice A400E, A810E, B400E and DE130E, which corresponding to driver in order are wctdm, opvx24xx, wcb4xxp and opvxd115, each card corresponds to its driver.
  • Page 9 MC100 Series User Manual amportal start g) asterisk –r h) dahdi show channels 2.1 Choose Pre-positioned Elastix4.0 System Default IP：172.16.99.98 SSH: root/111111 Web: admin/111111 2.2 Choose System to Install Take centos as example: # yum install bison # yum install bison-devel # yum install ncurses # yum install ncurses-devel # yum install zlib...
  • Page 10 MC100 Series User Manual The software you have to install: Libpri Dahdi Asterisk http://downloads.ast http://downloads.openvox.cn/p http://downloads.asterisk. erisk.org/pub/teleph ub/drivers/dahdi-linux-complete org/pub/telephony/asteri ony/libpri/libpri-curr /openvox_dahdi-linux-complete- sk/old-releases/asterisk-1 ent.tar.gz current.tar.gz 1.15.0.tar.gz Run these commands under /usr/src, download and unzip DAHDI, Asterisk and Libpri. # wget http://downloads.asterisk.org/pub/telephony/libpri/libpri-current.tar.gz # wget http://downloads.openvox.cn/pub/drivers/dahdi-linux-complete/openvox_dahdi-lin...

  • Page 11: Chapter 3. Configuration

    # modprobe wct4xxp # dahdi_genconf # dahdi_cfg –vvvvvv 3.2 Activate Asterisk # asterisk –vvvvvgc Tips If you have any problem during your operation time, please contact our technical support. Certainly you could find reply or leave messages on Openvox Forum or Wiki.

  • Page 12: Chapter 4 Reference

    MC100 Series User Manual Chapter 4 Reference www.openvox.cn www.digium.com www.asterisk.org www.voip-info.org www.asteriskguru.com Tips Any questions during installation please consult in our forum or look up for answers from the following websites: Forum wiki...
