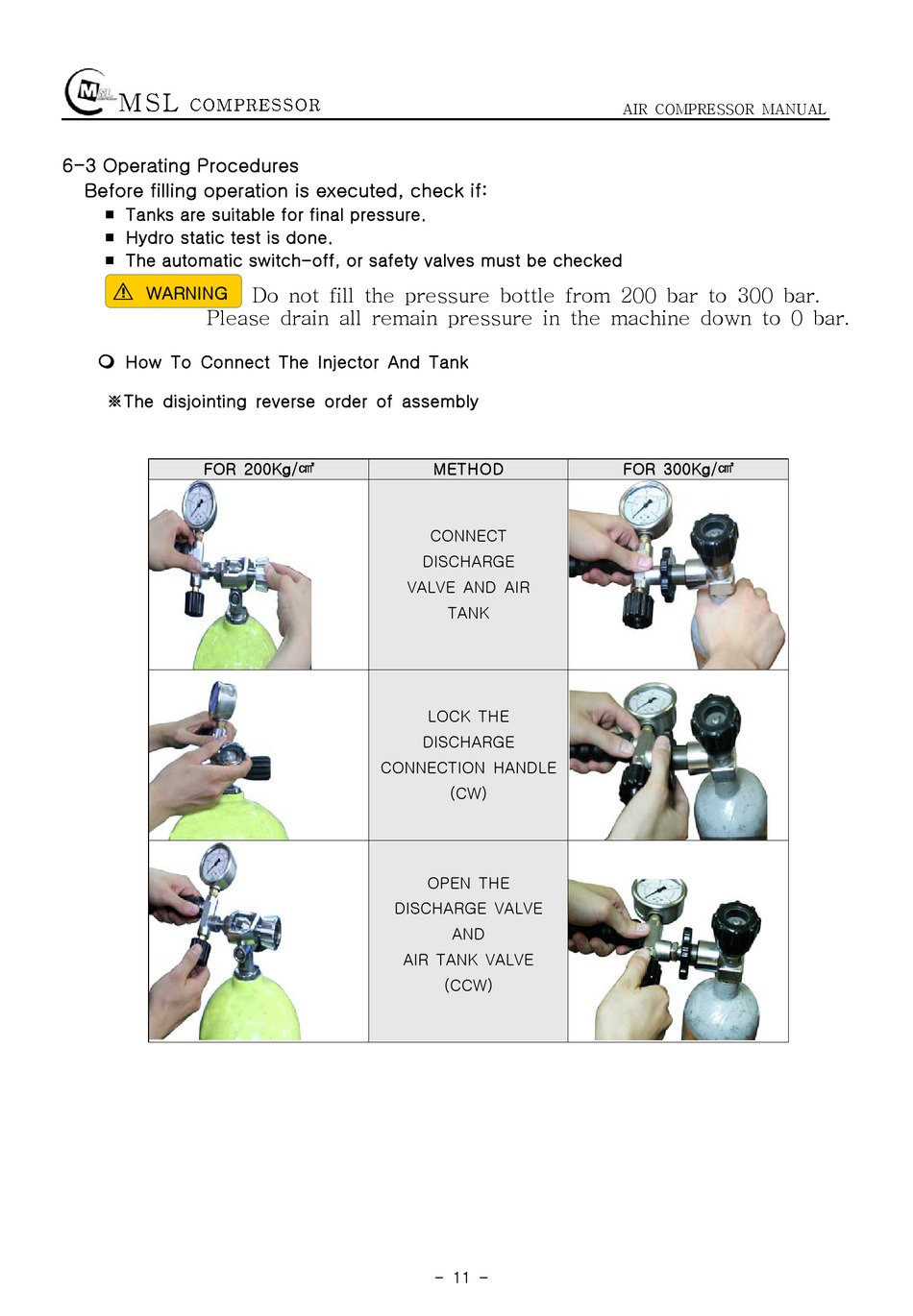

MSL MSF-390 Operation & Maintenance Manual page 11

6-3 Operating Procedures
Before filling operation is executed, check if:
￭ Tanks are suitable for final pressure.
￭ Hydro static test is done.
￭ The automatic switch-off, or safety valves must be checked
��
WARNING
Please drain all remain pressure in the machine down to 0 bar.

How To Connect The Injector And Tank
※The disjointing reverse order of assembly
FOR 200Kg/㎠
Do not fill the pressure bottle from 200 bar to 300 bar.
VALVE AND AIR
CONNECTION HANDLE
DISCHARGE VALVE
AIR TANK VALVE
METHOD
CONNECT
DISCHARGE
TANK
LOCK THE
DISCHARGE
(CW)
OPEN THE
AND
(CCW)
- 11 -
AIR COMPRESSOR MANUAL
FOR 300Kg/㎠
