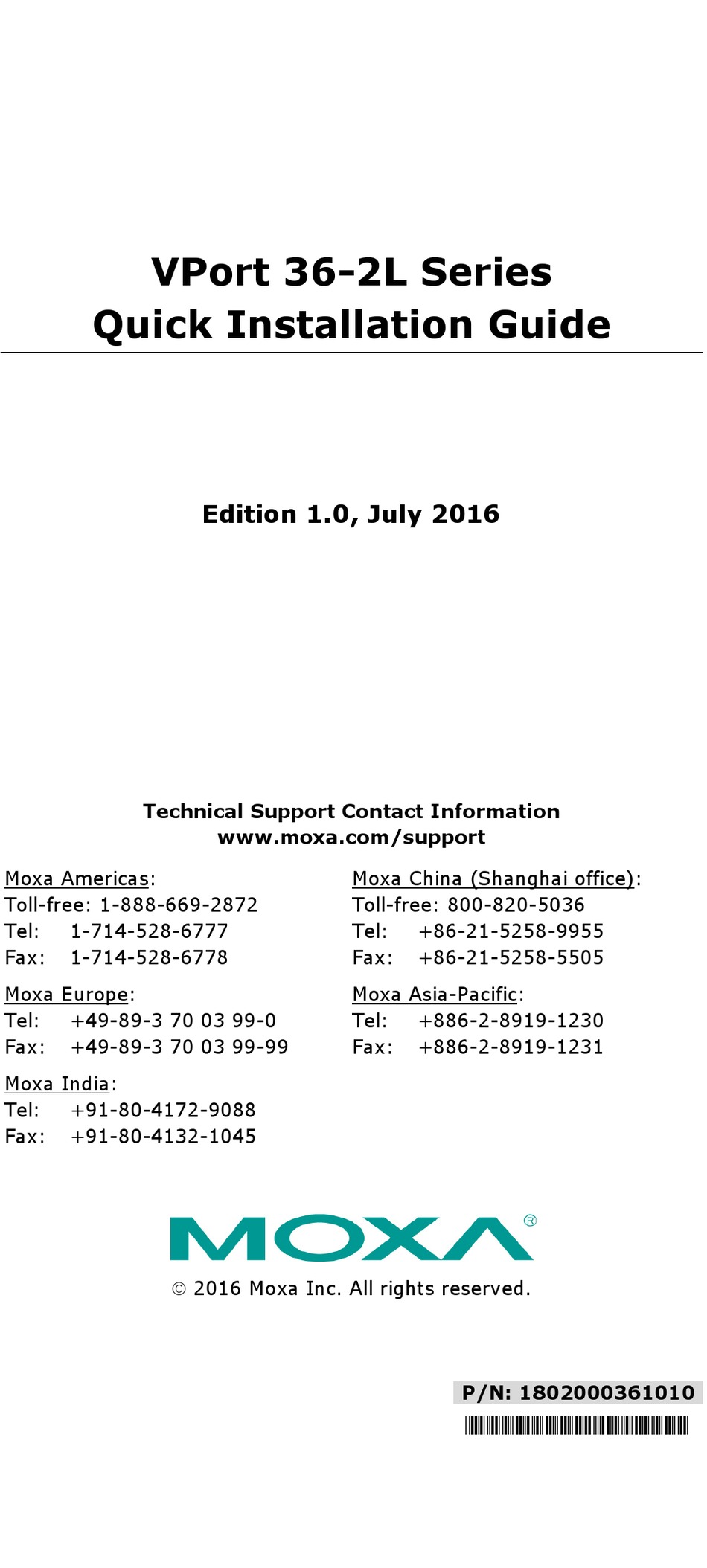

Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
VPort 36-2L Series
Edition 1.0, July 2016
Technical Support Contact Information
www.moxa.com/support
2016 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802000361010
*1802000361010*
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moxa Technologies VPort 36-2L Series
Summary of Contents for Moxa Technologies VPort 36-2L Series
-
Page 1: Quick Installation Guide
VPort 36-2L Series Quick Installation Guide Edition 1.0, July 2016 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0... -
Page 2: Package Checklist
(digital noise reduction), allowing the VPort 36-2L to produce good quality images even in extreme sunlight conditions. Package Checklist Moxa’s VPort 36-2L series is shipped with the following items. If any of these items is missing or damaged, please contact your customer service representative for assistance. -
Page 3: Product Description
• Minimum illumination up to 0.2 lux (color) and 0.1 lux (B/W) • Built-in tamper alarm and Video Motion Detection (VMD) • -40 to 75°C operating temperature • 1 10/100BaseT(X) port with RJ45 connector • SDXC slot for local event / disconnected recording •... -
Page 4: Software Installation
Rear Panel 1. Phone jack for audio output 2. Phone jack for audio input 3. RJ45 port for PoE/non-PoE connection 4. Ground screw for connecting a ground wire 5. 3-pin terminal block for power input 6. LED indicator to show network and system status. Green indicates normal operation. - Page 5 Network Environment with DHCP Server When DHCP is active, the unit’s IP address will be assigned by the network’s DHCP server. Refer to the DHCP server’s IP address table to determine the unit’s assigned IP address. You may also use the Moxa VPort and EtherDevice Configurator Utility (edscfgui.exe), as described below: Using the Moxa VPort and EtherDevice Configurator Utility...
- Page 6 Step 3: Install the ActiveX Control Plug-in A security warning message will appear the first time you access the VPort’s web-based manager. The message is related to installing the VPort AcitveX Control component on your PC or notebook. Click Yes to install this plug-in to enable the IE web browser for viewing video images.
- Page 7 NOTE Strongly recommend to enable the authentication in System/ Account privilege for better cyber security protection. The administrator's account name is "admin” and the default password is "moxamoxa". Please change the default password for better protection. Grounding VPort 36-2L Grounding and wire routing help limit the effects of noise due to electromagnetic interference (EMI).
- Page 8 Side View Camera Mounting Outdoor installation with an IP67/68 camera housing (take VP-CI701 as an example) Screw VP-CI701’s black latch into the VPort 36-2L’s mounting bracket screw hole. Screw in until the lens secures the front glass to the housing. Then install the VP-CI701 onto the wall mount bracket, VP-CI800.
-
Page 9: Wiring Requirements
Wiring Requirements SAFETY FIRST! • Be sure to disconnect the power cord before installing and/or wiring your Moxa VPort 36-2L. • Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size. •...
