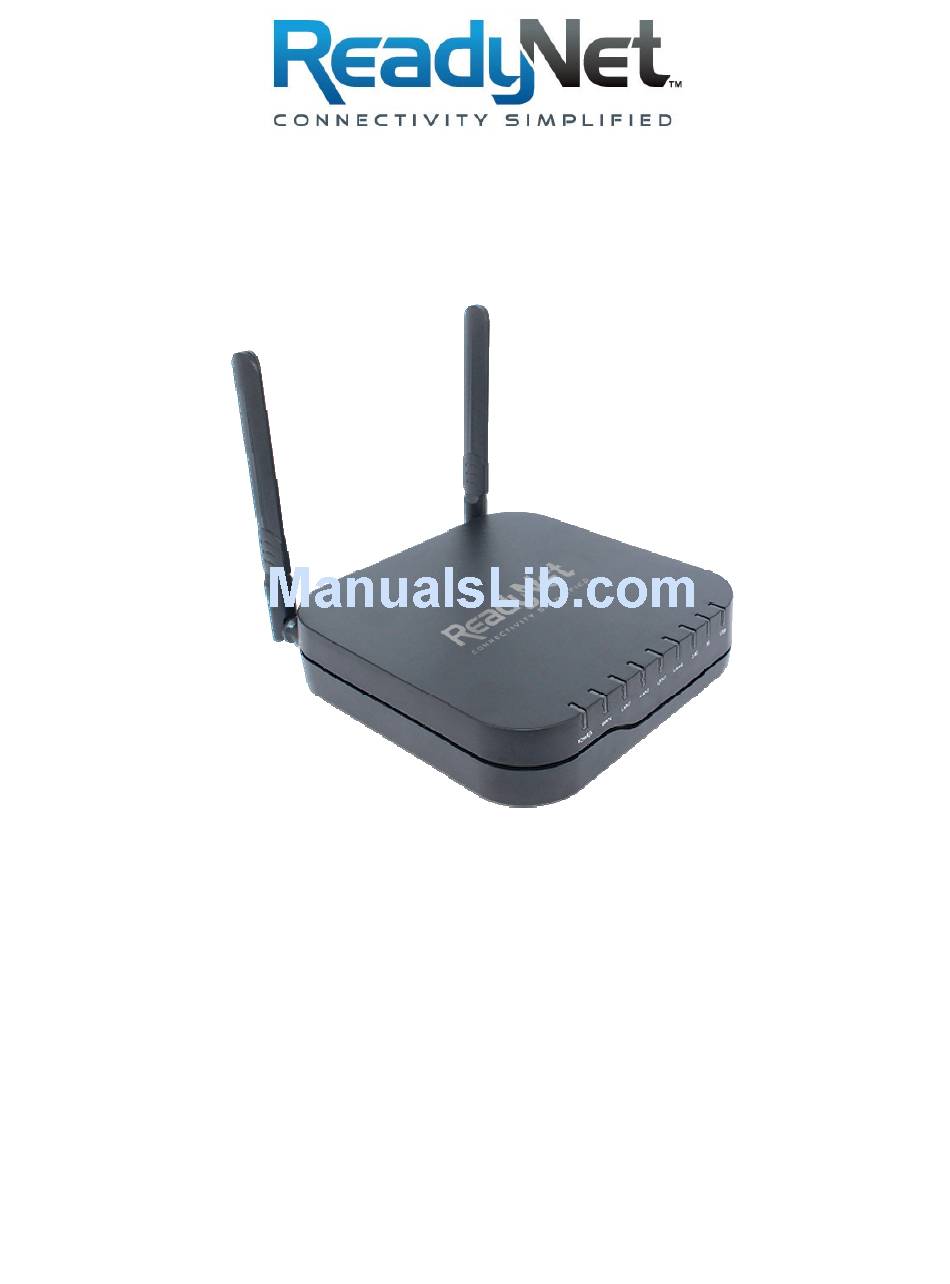

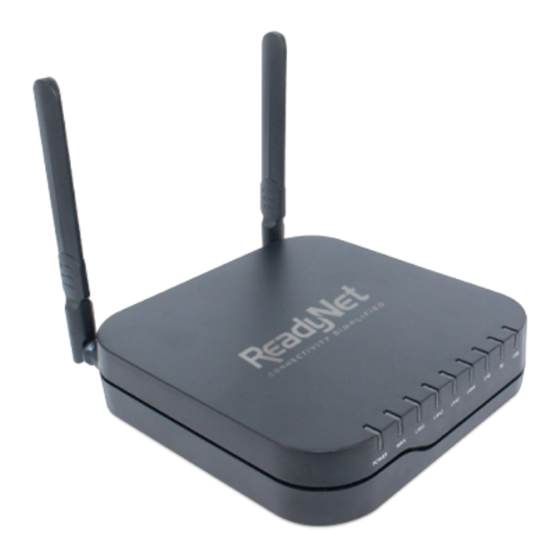

  • Page 1 AC1200MS User Manual...

  • Page 2: Table Of Contents

    Table of Contents Preface ................................1 LED Indicators and Connectors ........................1 LED Indicators ..........................1 Hardware Installation ........................2 Voice Prompt ..............................2 Configuring Basic Settings ........................... 5 Two-Level Management ....................... 5 Accessing the User Interface Web Page ..................5 4.2.1 From the LAN Port .......................
  • Page 3 5.3.2 Wireless Security ........................ 18 5.3.3 WMM ..........................19 5.3.4 WPS ............................ 19 5.3.5 Station list ........................... 20 5.3.6 Advanced ..........................20 5.3.7 5GHz Access Point ......................21 5.3.8 Security for 5GHz Access Point ..................22 SIP Account..........................23 5.4.1 SIP Settings .........................

  • Page 4: Preface

    Preface ’ ’ LED Indicators and Connectors LED Indicators Front Panel Status Explanation Wireless access point is On (Green) ready. It will blink while wireless Blinking (Green) traffic goes through. Version 1.0 P a g e...

  • Page 5: Hardware Installation

    Step 1. Pick up phone and press “****” to start IVR. Step 2. Choose “1” and the AC1200MS reports the current WAN port connection type. Step 3. Prompt "Please enter password”, user needs to input password with end char # if user wants to configure WAN port connection type.
  • Page 6 If at any time you want to quit, press “**”. Step 1. Pick up phone and press “****” to start IVR. Step 2. Choose “3”, and the AC1200MS reports the current WAN port subnet mask. Step 3. Input a new WAN port subnet mask with the end char #.
  • Page 7 Step 6. Report “operation successful” if user operation is correct. Step 1. Pick up phone and press “****” to start IVR. Step 2. Choose “9”, and the AC1200MS reports “ WEB Access Port”. Step 3. Prompt “Please enter password”, inputting password is the same as in operation 1.

  • Page 8: Configuring Basic Settings

    Configuring Basic Settings Two-Level Management “ ” “ ” Accessing the User Interface Web Page 4.2.1 From the LAN Port ’ ’ Notice: You may either simply set up your computer to get IP dynamically from the router or set up the IP address of the computer to be the same subnet as the default IP address of the router, which is 192.168.11.1.

  • Page 9: Webpage

    “ ” “ ” Webpage Navigation Click navigation bar, sub-navigation bars will appear on the second line. Click on the sub-navigation bars to Title choose a configuration page. Parameter To configure the parameters. After every change, click this button to apply the change.

  • Page 10: Setting Up The Internet Connection

    Setting up the Internet Connection – – 4.5.1 Static IP IP Address Type the IP address. Subnet Mask Type the subnet mask. Gateway IP Type the gateway IP address. Address Type in the primary IP Primary DNS Server address for the route. Secondary Type in secondary IP address DNS Server...

  • Page 11: Pppoe

    4.5.3 PPPoE Assign a specific valid user name PPPoE provided by the ISP. Account PPPoE Assign a valid password provided by Password the ISP. Confirm Input the password again. Password Set the DNS Mode to Auto or Manual. DNS Mode If Manual, fill in primary and secondary DNS addresses.

  • Page 12: Encryption

    4.6.2 Encryption Choose one SSID from SSID Off-premises 1, off-premises Choice 2 and Premises. Select an appropriate encryption mode for the security and privacy of your Security wireless data packets. Each encryption mode will Mode bring out a different web page offer additional configurations.

  • Page 13: 4.7.4 View The Register Status

    4.7.4 View the Register Status Make Call 4.8.1 Calling phone or extension numbers “ ” “ ” 4.8.2 Direct IP calls Version 1.0 P a g e | 10...

  • Page 14: Call Hold

    “ ” “ ” 4.8.3 Call Hold “ ” “ ” “ ” “ ” 4.8.4 Blind Transfer “ “ ” ” ’ ’ “ “ ” ” 4.8.5 Attended Transfer “ ” “ ” ’ ’ “ ” “ ”...

  • Page 15: Web Configuration

    Web Configuration Login ’ ’ Configuring the WAN and LAN Ports Version 1.0 P a g e | 12...

  • Page 16: Wan

    5.2.1 IP Address Type the IP address Subnet Mask Type the subnet mask Gateway IP Type the gateway IP Address address Primary DNS Type in the primary IP Server address for the route Type in secondary IP Secondary address for necessity DNS Server in the future Set the DNS Mode to...
  • Page 17 Assign a specific valid user PPPoE Account name provided by the ISP. PPPoE Assign a valid password Password provided by the ISP. PPPoE If or not enable PPPoE Auto-Dial Password. Set the DNS Mode to Auto or Manual. DNS Mode If Manual, fill in the primary and secondary DNS addresses.

  • Page 18: Lan

    5.2.2 Local IP Type in local IP address Address (Default: 192.168.11.1) Type in an address code that Local Subnet determines the size of the Mask network. (Default: 255.255.255.0/ 24) Local DHCP If or not enable DHCP server. Server DHCP Start/End The DHCP start/end address.

  • Page 19: Dmz/Port Forward

    Primary/Sec- Input the primary or secondary ondary DNS DNS IP address. You must specify a DNS server IP address here because your ISP should provide you with usually more than one DNS Server. If your ISP does not Primary DNS provide it, the router will automatically apply default DNS Server IP address:...

  • Page 20: Mac Clone

    5.2.4 MAC Clone Step 1. Press to clone the current PC or MAC address to router’s Internet port.. Step 2. Press to save the changes. Step 3. Press Reboot to make changes effective. 5.2.5 Multi WAN Version 1.0 P a g e | 17...

  • Page 21: Wireless

    Wireless 5.3.1 Basic Select Radio On to enable Radio the wireless, select Radio On/Off Off to disable wireless. Network Choose one network mode Mode from the five types. The name of the wireless. It can be any text numbers or various special characters.

  • Page 22: Wmm

    5.3.3 5.3.4 Enable WPS. Press the button to apply. Version 1.0 P a g e | 19...

  • Page 23: Station List

    5.3.5 Station list 5.3.6 Advanced Version 1.0 P a g e | 20...

  • Page 24: 5Ghz Access Point

    5.3.7 5GHz Access Point Version 1.0 P a g e | 21...

  • Page 25: Security For 5Ghz Access Point

    5.3.8 Security for 5GHz Access Point Version 1.0 P a g e | 22...

  • Page 26: Sip Account

    SIP Account 5.4.1 SIP Settings Version 1.0 P a g e | 23...

  • Page 27: Line 1

    5.4.2 Line 1 Version 1.0 P a g e | 24...

  • Page 28: Voip Qos

    5.4.3 VoIP QoS Phone 5.5.1 Preferences Version 1.0 P a g e | 25...

  • Page 29: Dial Plan

    5.5.2 Dial Plan 5.5.3 Call Log Version 1.0 P a g e | 26...

  • Page 30: Security

    Security 5.6.1 Filtering Setting 5.6.2 Version 1.0 P a g e | 27...

  • Page 31: Mac Clone

    5.6.3 MAC Clone 5.6.4 Port Forward 5.6.5 Content Filtering Version 1.0 P a g e | 28...

  • Page 32: Administration

    Administration 5.7.1 Management Select the user type User Type New User User can change new user name Name Input the new password Password Confirm Confirm the password Password NTP Enable Enable NTP Current Time Display the current time. NTP Settings Select the time zone.

  • Page 33: Logout

    Logout 5.10 Reboot FCC Statement ’ ’ Version 1.0 P a g e | 30...
