V1.0

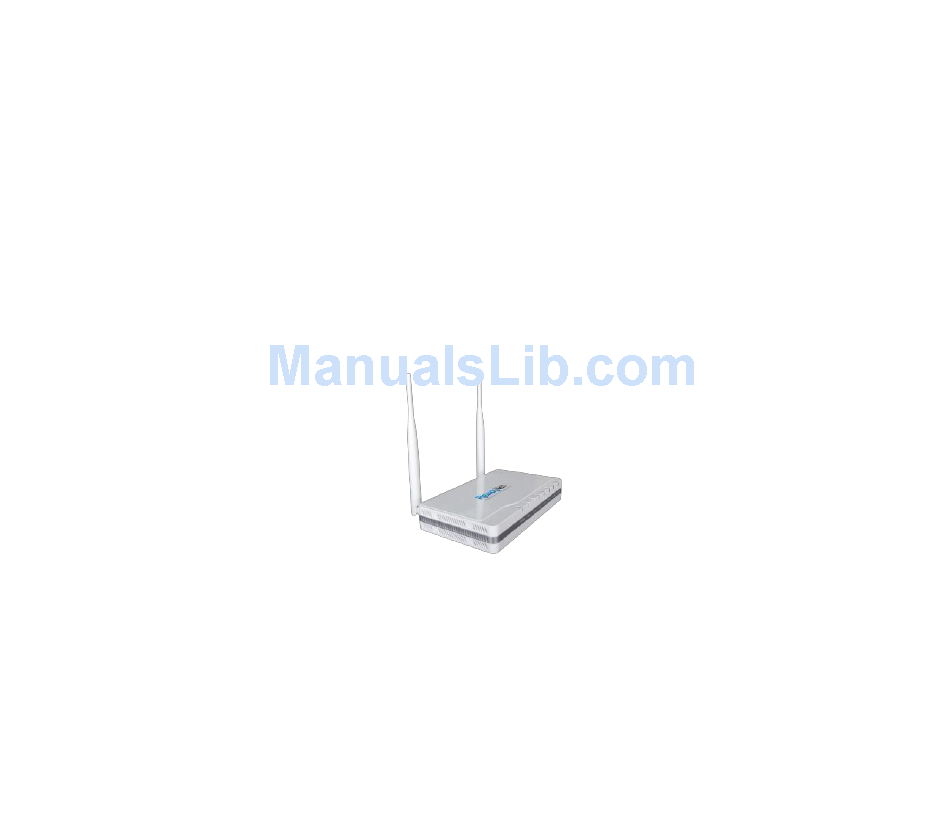

The VWRT510

High Speed Router

User's Guide

V1.0

The page 1 of 48

Revision time: 2013-08-16 18:00

Table of Contents

Need help?

Do you have a question about the VWRT510 and is the answer not in the manual?

Questions and answers

Summary of Contents for ReadyNet VWRT510

Page 2: Table Of Contents
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 Table of Contents 1 Preface ................................................................ 4 2 LED Indicators and Connectors ......................................................... 5 2.1 LED Indicators ..........................................................5 2.2 Hardware Installation ........................................................6 3 Voice Prompt .............................................................. 7 4 Configuring Basic Settings ........................................................
Page 3 Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 5.4 Wireless ............................................................29 5.4.1 Basic ..........................................................29 5.4.2 Wireless Security ......................................................30 5.4.3 WMM ..........................................................30 5.4.4 WPS ..........................................................31 5.4.5 Station list ......................................................... 31 5.4.6 Advanced .......................................................... 32 5.5 SIP Account ..........................................................
Page 5: Led Indicators And Connectors
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 2 LED Indicators and Connectors 2.1 LED Indicators Front Panel Status Explanation Rear Panel Interface Description The page 5 of 48 Revision time: 2013-08-16 18:00...
Page 7: Voice Prompt
Step 5.Choose the new WAN port connection type from 1.DHCP and 2.Static Step 4.Report “operation successful” if user operation properly. Step 6.Report “operation successful”, this means user make the changes successfully, and then VWRT510 will return to sound prompting “please ...
Page 8  If you want to quit by the wayside, press “*”. Step 4.Prompt “operation successful” if password is right and then VWRT510 will be factory setting. Step 5.Press “7” reboot to make changes effective. Step 1.Pick up phone and press “****” to start IVR Step 2.Choose “7”, and VWRT510 report “Reboot”...
Page 10: Configuring Basic Settings
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 4 Configuring Basic Settings 4.1 Two-Level Management 4.2 Accessing Web Page 4.2.1 From LAN port ’ ’ Notice: You may either simply set up your computer to get IP dynamically from the router or set up the IP address of the computer to be the same subnet as the default IP address of router is 192.168.11.1.
Page 11: From Wan Port
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 4.2.2 From WAN port ’ ’ By default, remote web login is disabled, and user need use the changed password to login, please enable remote web login and change the password if you want to login from WAN port, also please add by 8080, since remote login port is 8080 by default..
Page 13: Setting Up The Internet Connection
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 4.5 Setting up the Internet Connection 4.5.1 Static IP IP Address Type the IP address Subnet Mask Type the subnet mask Gateway IP Type the gateway IP address Address...
Page 14: Dhcp
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 Secondary DNS Type in secondary IP address for necessity in the future Server 4.5.2 DHCP Set the DNS Mode from Auto and Manual, If user choose manual, you should fill the...
Page 15: Setting Up The Wireless Connection
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 Assign a specific valid user name PPPoE Account provided by the ISP Assign a valid password provided by PPPoE Password the ISP Confirm Input the password again Password Set the DNS Mode from Auto and...
Page 16: Encryption
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 Click the button to enable or disable wireless. Press to disable wireless. Radio On/Off Press to enable wireless. Network Mode Choose one network mode from the drop down list.
Page 17: Connections
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 4.7.2 Connections 4.7.3 Configuration SIP from Webpage 4.7.4 View the Register Status The page 17 of 48 Revision time: 2013-08-16 18:00...
Page 18: Make Call
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 4.8 Make Call 4.8.1 Calling phone or extension numbers 4.8.2 Direct IP calls “ ” “ ” The page 18 of 48 Revision time: 2013-08-16 18:00...
Page 23: Network&Security
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 5.3 Network&Security 5.3.1 WAN IP Address Type the IP address Subnet Mask Type the subnet mask Gateway IP Type the gateway IP address Address Primary DNS Type in the primary IP address for the route...
Page 24 Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 If user choose manual, you should fill the primary DNS address and Secondary DNS address into Primary DNS Address and Secondary DNS Address. Type in the primary IP address for the...
Page 25: Lan
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 Use the drop down list to select one DDNS Provider DDNS Provider domain DDNS Account Fill in the DDNS account. DDNS Password Fill in the DDNS Password. DDNS Name Fill in the DDNS name.
Page 26 Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 If or not enable DHCP server. Local DHCP Server DHCP Starting Enter a value of the IP address pool for the DHCP server to start Address with when issuing IP addresses. If the LAN Interface IP...
Page 27: Dmz/Port Forward
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 5.3.3 DMZ/Port Forward If or not enable DMZ DMZ Enable DMZ Host IP Enter the private IP address of the DMZ host Address 5.3.4 MAC Clone The page 27 of 48...
Page 29: Wireless
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 5.4 Wireless 5.4.1 Basic Select Radio On to enable the wireless, select Radio Off Radio On/Off to disable wireless. Choose one network mode from the five types. Network Mode...
Page 30: Wireless Security
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 5.4.2 Wireless Security Choose one SSID from SSID, Multiple SSID1, SSID Choice Multiple SSID2 and Multiple SSID3. Select an appropriate encryption mode to improve the security and privacy of your wireless data packets.
Page 31: Wps
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 5.4.4 WPS If or not enable WPS. Press the button to apply. 5.4.5 Station list The page 31 of 48 Revision time: 2013-08-16 18:00...
Page 42: Content Filtering
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 5.7.5 Content Filtering 5.8 Administration 5.8.1 Management Select the user type User Type New User Name User can change new user name New Password Input the new password Confirm the password...
Page 43: System Log
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 NTP Enable If or not enable NTP Display the current time. Current Time NTP Settings Select the time zone. Primary NTP The primary NTP server Server Secondary NTP The secondary NTP server Server Set the NTP synchronization.
Page 45: Trouble Shooting Of The Guide
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 6 Trouble shooting of the guide 6.1 Setting your PC gets IP automatically “ “ ” ” “ “ ” ” “ “ ” ” “ “ ” ”...
Page 46: Can Not Connect To The Configuration Website
Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 6.2 Can not connect to the configuration Website 6.3 Forget the Password The page 46 of 48 Revision time: 2013-08-16 18:00...
Page 47: Statement
FCC Radiation Exposure Statement Readynet Solutions Ltd. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 48 Copy Right 2013 All Rights Reserved by READYNET SOLUTIONS LIMITED V1.0 This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
